ELECTRONIC DRYER

USE AND CARE GUIDE

SECHE-LINGE ELECTRONIQUE

GUIDE D’UTILISATION ET D’ENTRETIEN

SECADORA ELECTRÓNICA

MANUAL DE USO Y CUIDADO

Table of Contents

3LWED5500

DRYER SAFETY .................................................................2

DRYER DISPOSAL.............................................................3

SPECIFICATIONS...............................................................4

CHECK YOUR VENT SYSTEM

FOR GOOD AIR FLOW ......................................................4

Table des matières

Índice

CONTROL PANEL AND FEATURES .................................5

CYCLE GUIDE....................................................................6

USING YOUR DRYER ........................................................7

DRYER CARE.....................................................................9

TROUBLESHOOTING......................................................11

SECURITE DU SECHE-LINGE ........................................13

ELIMINATION DU SECHE-LINGE ...................................14

CARACTERISTIQUES......................................................15

VERIFICATION D’UNE CIRCULATION D’AIR

ADEQUATE POUR LE SYSTEME D’EVACUATION........15

TABLEAU DE COMMANDE ET CARACTERISTIQUES..16

GUIDE DES PROGRAMMES...........................................17

UTILISATION DU SECHE-LINGE ....................................18

ENTRETIEN DU SECHE-LINGE ......................................20

DEPANNAGE ....................................................................22

SEGURIDAD DE LA SECADORA ....................................24

ELIMINACIÓN DE LA SECADORA .................................26

ESPECIFICACIONES .......................................................26

REVISE QUE EL SISTEMA DE VENTILACIÓN

TENGA UN BUEN FLUJO DE AIRE ................................27

PANEL DE CONTROL Y CARACTERÍSTICAS .............. 28

GUÍA DE CICLOS............................................................ 29

USO DE SU SECADORA ................................................ 30

CUIDADO DE LA SECADORA........................................ 32

SOLUCIÓN DE PROBLEMAS......................................... 34

Ceci est une traduction de l’anglais.

This is the original language (English)

Traducido del inglés.

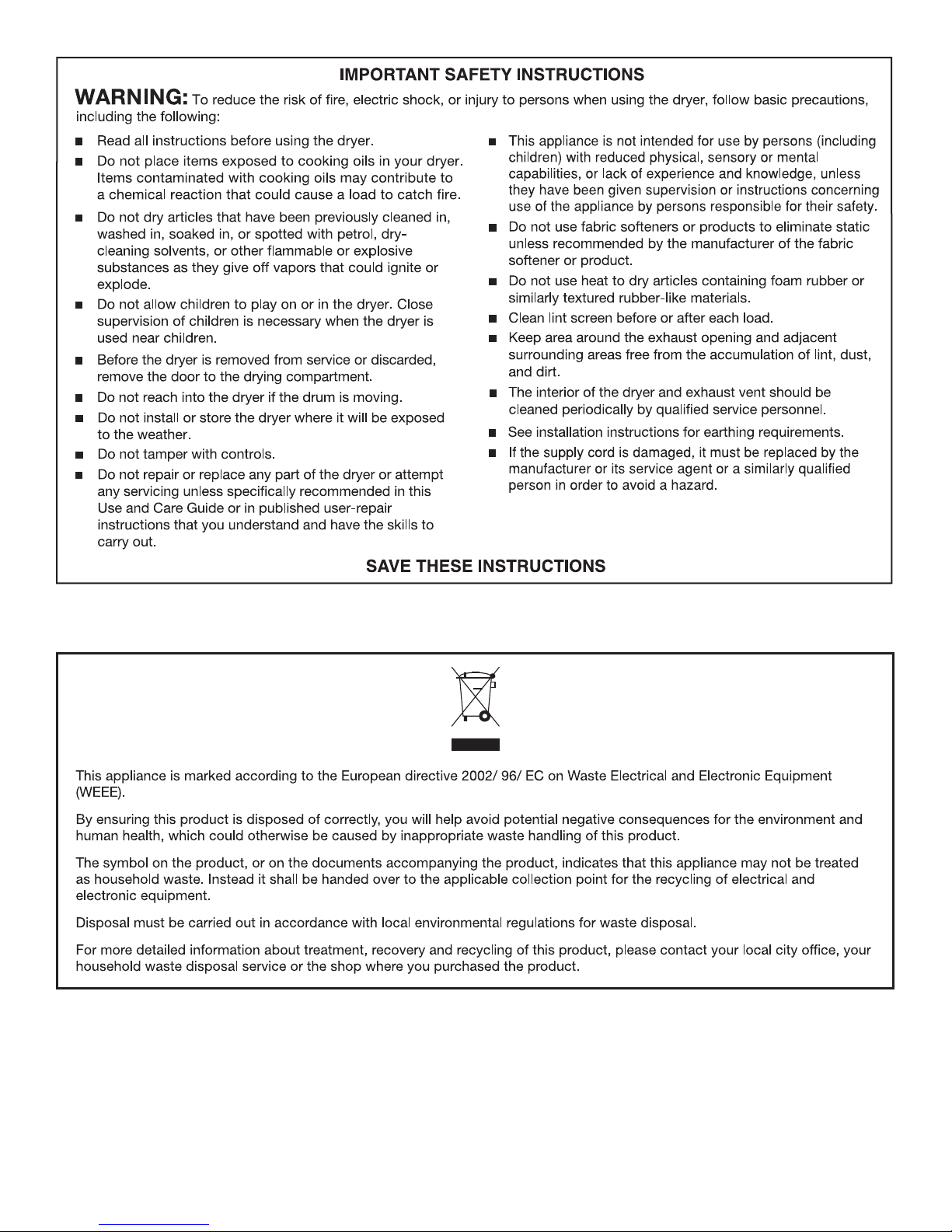

DRYER SAFETY

ADDITIONAL SAFETY INSTRUCTIONS

nDo not use this dryer if it appears to be damaged or is defective. Contact the owner of the dryer to have proper

repairs made.

nDo not use this dryer if industrial chemicals have been used for cleaning.

nDo not dry unwashed items in the tumble dryer.

WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so

the the heat is dissipated.

DRYER DISPOSAL

CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW

Good Air Flow

Along with heat, dryers require good air ow to efciently

dry laundry. Proper venting will reduce your drying times

and improve your energy savings. See Installation

Instructions.

The venting system attached to the dryer plays a big role

in good air ow.

Service calls caused by improper venting are not covered

by the warranty and will be paid by the customer, regardless

of who installed the dryer.

Maintain good air ow by:

Good Better

Use Automatic cycles for Better Fabric Care and Energy Savings

Use the Automatic Cycles to provide the most energy savings and enhanced fabric care from the dryer. During Automatic Cycles,

drying air temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer

shuts off when the load reaches the selected dryness. The dryer will default to Normal Dryness Level to give you optimal dryness

for your load and save energy. With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling,

and static due to over-drying. Use Timed Dry for the occasional damp load that needs a little more drying time or when using the

drying rack.

n Cleaning your lint screen before each load.

n Replace plastic or foil vent material with 102 mm (4")

diameter heavy, rigid vent material.

n Use the shortest length of vent possible.

n Use no more than four 90° elbows in a vent system;

each bend and curve reduces air ow.

n Remove lint and debris from the exhaust hood.

n Remove lint from the entire length of the vent system at

least every 2 years. When cleaning is complete, be sure

to follow the Installation Instructions supplied with your

dryer for nal product check.

n Clear away items from the front the dryer.

102 mm

(

)

SPECIFICATIONS

These units are sold in multiple regions with different

requirements for measuring capacity. Below are a few of

the valid forms of measure posted on this product:

Dry Linen Capacity: A weight measure that reects a

maximum load size that can be loaded into the dryer.

IEC Capacity: The capacity measure that represents the

maximum capacity of dry linens and textiles which the

manufacturer declares can be treated in a specic cycle.

Dry Linen Capacity

IEC Capacity

10,5 kg (23 lb)

8,2 kg (18 lb)

Sound Level:

Lpa < 70 dB(A) (Kpa: +/- 2,5 dB(A))

CONTROL PANEL & FEATURES

POWER/STANDBY BUTTON

Press to turn the dryer on and off.

DRYER CYCLE KNOB

Use your Dryer Cycle knob to select available cycles on

your dryer. Turn the knob to select a cycle for your laundry

load. See “Cycle Guide” for detailed descriptions of cycles.

Timed Dry

Will run the dryer for the specied time on the control.

On models with a selectable temperature knob, you may

choose a setting based on the fabrics in your load. Drying

time and temperature will depend on your dryer model.

Automatic Cycles with ACCUDRY Control

Senses moisture in the load and air temperature and

shuts off when the load reaches the selected dryness

level. Gives the best drying in the shortest time. Drying

time will vary based on fabric type, load size, and dryness

setting.

START/PAUSE BUTTON

Press to start a cycle, or press once while a cycle is in

process to pause it.

OPTIONS AND SETTINGS

Temp

Select a drying temperature based on the fabrics in your

load. If you are unsure of the temperature to select for

a load, select the lower setting rather than the higher

setting.

NOTE: The Air Dry Temp Feature is not available on the

Automatic Cycles.

Wrinkle Shield Feature

When you are unable to remove a load of clothes

from the dryer as soon as it stops, wrinkles can form.

The WRINKLE SHIELD feature periodically tumbles,

rearranges, and uffs the load to help keep wrinkles

from forming.

n Press the WRINKLE SHIELD button to turn ON

or OFF at any time before the cycle has ended.

Cycle Signal

The Cycle Signal produces an audible sound when the

drying cycle is nished. Promptly removing clothes

at the end of the cycle reduces wrinkling.

Press CYCLE SIGNAL to turn on.

NOTE: When the Wrinkle Shield setting is selected

and the Cycle Signal is on, the tone will sound every

20minutes until the clothes are removed, or the Wrinkle

Shield setting ends.

CYCLE STATUS LIGHTS

Lights indicate the progress of the drying cycles.

Wet

The load is still wet and/or the cycle just started.

Damp

This indicator shows that the load is partially dried and

items that you may wish to hang up or iron while still

damp may removed.

Cool Down

The dryer has nished drying with heat, and is now

tumbling the load without heat to cool it down and

reduce wrinkling.

Done

This will indicate that the selected cycle has ended and

the load may be removed from the dryer. If the Wrinkle

Shield option has been selected, the dryer may continue

to tumble the load, even if the Done indicator is lit.

Wrinkle Shield

This indicator will light if the Wrinkle Shield option has

been selected and is running. The dryer will continue to

tumble the load for up to 90 minutes after the cycle has

ended.

2 31

Not all features and options are available on all models.

Appearance may vary.

Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.

AUTOMATIC DRY – Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.

Depending on model, temperature may be selected on cycle knob or be a separate control.

Items to dry: Cycle: Drying

Temperature: Available

Options: Cycle Details:

Jeans, heavy work clothes, towels More Dry

Normal Dry

Less Dry

High

Medium

Low

Gives the best drying in the shortest time.

Drying time varies based on fabric type,

load size, and dryness setting.

Select a drying temperature based on

the fabrics in your load. If you are unsure

of the temperature to select for a load,

select the lower setting rather than the

higher setting.

CYCLE GUIDE — AUTOMATIC CYCLES

CYCLE GUIDE — TIMED DRY

Items to dry: Cycle: Drying

Temperature: Available

Options: Cycle Details:

Not all cycles and settings are available on all models.

TIMED DRY – Will run the dryer for the specied time on the control. Depending on model, temperature may be selected on cycle

knob or be a separate control.

Any load

Rubber, plastic, heat

sensitive fabrics

Timed Dry

Timed Dry Air Dry

Temp

Wrinkle Shield

Time Adjustment

Cycle Signal

Dries items to a damp level for items that

do not require an entire drying cycle.

Select a drying temperature based on

the fabrics in your load. If you are unsure

of the temperature to select for a load,

select the lower setting rather than the

higher setting.

Use a no heat (air dry) setting for foam,

rubber, plastic, or heat-sensitive fabrics.

NOTE: If loads do not seem as dry as you would like, select More Dry next time you dry a similar load. If loads seem drier than you

like, select Less Dry next time you dry a similar load.

Work clothes, medium weight fabrics,

sheets

Casual, shirts, pants, lightweight items,

synthetics, delicates, athletic wear

Any

Wrinkle Shield

Cycle Signal

COOL DOWN – This step is added to any cycle that uses heat. The load is cooled slowly to reduce wrinkling and make it easier to

handle.

Setting the Drying Temperature

If your dryer has multiple heat settings:

A High heat setting may be used for drying heavyweight items

such as towels and work clothes.

A Low to Medium heat setting may be used for drying

medium-weight items such as sheets, blouses, dresses,

underwear, permanent press fabrics, and some knits.

Use a no heat (air dry) setting for foam, rubber, plastic,

or heat-sensitive fabrics.

Line dry bonded or laminated fabrics.

NOTE: If you have questions about drying temperatures

for various loads, refer to the care label directions.

USING YOUR DRYER

1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen

straight up. Roll lint off the screen with your ngers. Do not rinse

or wash screen to remove lint. Push the lint screen rmly back

into place.

For additional cleaning information, see “Dryer Care.”

2. Load the dryer

Place laundry in the dryer. Close the door.

Do not overload the dryer; clothes should be able

to tumble freely.

3. Press POWER

Press the POWER/Standby button to turn on the dryer.

4. Select the desired cycle

Select the desired cycle for your load. See the “Cycle Guide”

or the display for more information about each cycle.

7. Press START/Pause to begin cycle

Press the START/Pause button to begin the cycle.

8. Remove garments promptly

after cycle is nished

Promptly remove garments after cycle has completed to

reduce wrinkling. If you are unable to remove the load

promptly, press the WRINKLE SHIELD button to turn ON

or OFF at any time before the cycle has ended.

5. Set cycle temperature

The default cycle settings will be shown. For some cycles,

you may select alternate settings by pressing the button for

that setting. Press the TEMP button to change the drying

temperature from the default setting.

NOTE: Not all settings are available with all cycles.

6. Select cycle options (if desired)

Add additional options by pressing the corresponding button.

NOTE: Not all options and settings are available with all

cycles.

Wrinkle Shield

n Provide heat-free, periodic tumbling at the end of a cycle.

Press the WRINKLE SHIELD button to turn ON or OFF

at any time before the cycle has ended.

n The WRINKLE SHIELD feature is preset to “OFF.” If

selected for other cycles, the WRINKLE SHIELD

feature setting will remain “ON” the next time that cycle

is selected.

Cycle Signal

n The Cycle Signal produces an audible sound when the

drying cycle is nished. Promptly removing clothes at the

end of the cycle reduces wrinkling.

n Press CYCLE SIGNAL to turn on.

DRYER CARE

Keep dryer area clear and free from items that would

block the air ow for proper dryer operation. This includes

clearing piles of laundry in front of the dryer.

Cleaning the lint screen

Every load cleaning

The lint screen is located in the door opening of the dryer.

A screen blocked by lint can increase drying time.

To clean:

1. Pull the lint screen straight up. Roll lint off the screen

with your ngers. Do not rinse or wash screen to

remove lint. Wet lint is hard to remove.

2. Push the lint screen rmly back into place.

IMPORTANT:

n Do not run the dryer with the lint screen loose,

damaged, blocked, or missing. Doing so can cause

overheating and damage to both the dryer and fabrics.

n If lint falls off the screen into the dryer during removal,

check the exhaust hood and remove the lint. See

“Venting Requirements” in the Installation Instructions.

As needed cleaning

Laundry detergent and fabric softener residue can build

up on the lint screen. This buildup can cause longer drying

times for your clothes, or cause the dryer to stop before

your load is completely dry. The screen is probably clogged

if lint falls off while the screen is in the dryer.

Clean the lint screen with a nylon brush every 6 months,

or more frequently, if it becomes clogged due to a residue

buildup.

To wash:

1. Roll lint off the screen with your ngers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot water and liquid detergent.

Scrub lint screen with the brush to remove residue

buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel.

Reinstall screen in dryer.

Cleaning the dryer interior

To clean dryer drum

1. Apply a liquid, nonammable household cleaner to the

stained area of the drum and rub with a soft cloth until

stain is removed.

2. Wipe drum thoroughly with a damp cloth.

3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim

blue jeans or brightly colored cotton items, may discolor the

dryer interior. These stains will not damage your dryer and

will not stain future loads of clothes. Dry these items inside

out to avoid drum staining.

Removing accumulated lint

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often,

depending on dryer usage. Cleaning should be done

by a qualied servicer.

From the Exhaust Vent

Lint should be removed every 2 years, or more often,

depending on dryer usage.

Cleaning the dryer location

Changing the Automatic Cycle

Settings to Increase Drying Time

If all your loads on all Automatic cycles are consistently

not as dry as you would like, you may change the default

settings to increase the default dryness level.

Your automatic drying settings can be adjusted to adapt to

different installations, environmental conditions, or personal

preference. This change is retained and will affect all of your

Automatic cycles, not just the current cycle/load. There

are 3 drying settings, which are displayed using the Cycle

Status light (Wet, Damp, Cool Down LEDs).

1Factory preset dryness level.

2Slightly drier clothes, 15% more drying time.

3Much drier clothes, 30% more drying time.

To change the drying settings (on some models):

NOTE: The settings cannot be changed while the dryer

is running or paused. The dryer must be in standby mode

(the power button is off) to adjust the default settings.

1. Before starting a cycle, press and hold the TEMP button

for 6 seconds.

2. Press the TEMP button to select the dryness level

shown in the cycle status light display: Wet light on

= level 1, Wet and Damp lights on = level 2, and Wet,

Damp, and Cool Down lights on = level 3.

3. Press START/PAUSE to save the new dryness level

setting.

Vacation, storage, and moving care

Install and store your dryer where it will not freeze. Because

some water may stay in the hoses, freezing can damage

your dryer. If storing or moving your dryer during freezing

weather, winterize it.

Non-Use or Storage Care

Operate your dryer only when you are at home. If you will

be on vacation or not using your dryer for an extended

period of time, you should:

1. Unplug dryer or disconnect power.

2. Clean lint screen. See “Cleaning the Lint Screen.”

Moving Care

IMPORTANT: Washer must be transported in the upright

position.

For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Make sure leveling legs are secure in dryer base.

3. Use tape to secure dryer door.

For direct-wired dryers:

1. Disconnect power.

2. Disconnect wiring.

3. Make sure leveling legs are secure in dryer base.

4. Use tape to secure dryer door.

Reinstalling the Dryer

Follow the Installation Instructions to locate, level,

and connect the dryer.

IMPORTANT:

To prevent damage to dryer and personal injury, any

transport/installation of dryer requires two-person handling.

Autres manuels pour 3LWED5500

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Whirlpool Séchoir

Whirlpool

Whirlpool Duet WED9150WW0 Manuel utilisateur

Whirlpool

Whirlpool WGD9050X Manuel de la liste des pièces

Whirlpool

Whirlpool 3LG5706XP Manuel utilisateur

Whirlpool

Whirlpool Cabrio W10151492B Manuel utilisateur

Whirlpool

Whirlpool TRAK 6450 Manuel utilisateur

Whirlpool

Whirlpool LEN3634DW0 Manuel utilisateur

Whirlpool

Whirlpool WED5200TQ0 Manuel utilisateur

Whirlpool

Whirlpool LE3305XP Manuel utilisateur

Whirlpool

Whirlpool W10757742A Manuel utilisateur

Whirlpool

Whirlpool WGD5200T Manuel utilisateur

Whirlpool

Whirlpool LEB6400KQ1 Manuel utilisateur

Whirlpool

Whirlpool WED94HEAC0 Manuel utilisateur

Whirlpool

Whirlpool Duet YWED9200SQ0 Manuel utilisateur

Whirlpool

Whirlpool W10115228C Manuel utilisateur

Whirlpool

Whirlpool WGD4800B Manuel utilisateur

Whirlpool

Whirlpool 240-VOLT ELECTRIC DRYER Manuel utilisateur

Whirlpool

Whirlpool HybridCare WHD862CHC Manuel utilisateur

Whirlpool

Whirlpool CEM2940TQ0 Manuel utilisateur

Whirlpool

Whirlpool 1W10287573A Manuel utilisateur

Whirlpool

Whirlpool LE5705XP Manuel utilisateur

Whirlpool

Whirlpool WGD97HEXL0 Manuel utilisateur

Whirlpool

Whirlpool Gas dryer Manuel utilisateur

Whirlpool

Whirlpool WED94HEA Manuel

Whirlpool

Whirlpool WED8300SB - Duet Sport Electric Dryer Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
