UseAndCare

A Note to You ......................... 2

Dishwasher Safety ................. 3

Parts and Features ................. 4

Starting Your Dishwasher ....

Loading Your Dishwasher.. ..

Using the Dispensers .......... 10

Setting the Controls ............. 12

Selecting a wash cycle ..... 12

Using CANCEL/DRAIN.. ...13

Selecting cycle options ..... 14

Changing a cycle or

an option setting ............... 14

Using the delay wash

cycle ................................. 15

Understanding the status

indicators ..........................

Washing Special Items ........ 17

Caring for Your

Dishwasher ........................... 18

Saving Energy ...................... 19

Solving Common

Dishwashing Problems.. .....

.20

Troubleshooting ................... 23

Requesting Assistance

or Service .............................. 24

Index ...................................... 26

Warranty ............................... 28

l-800-253-1 301

c Call our Consumer Assistance Center

with questions or comments.

DISHWASHER MODEL SERIES 960

5J95

PART NO. 3373754 Rev. A

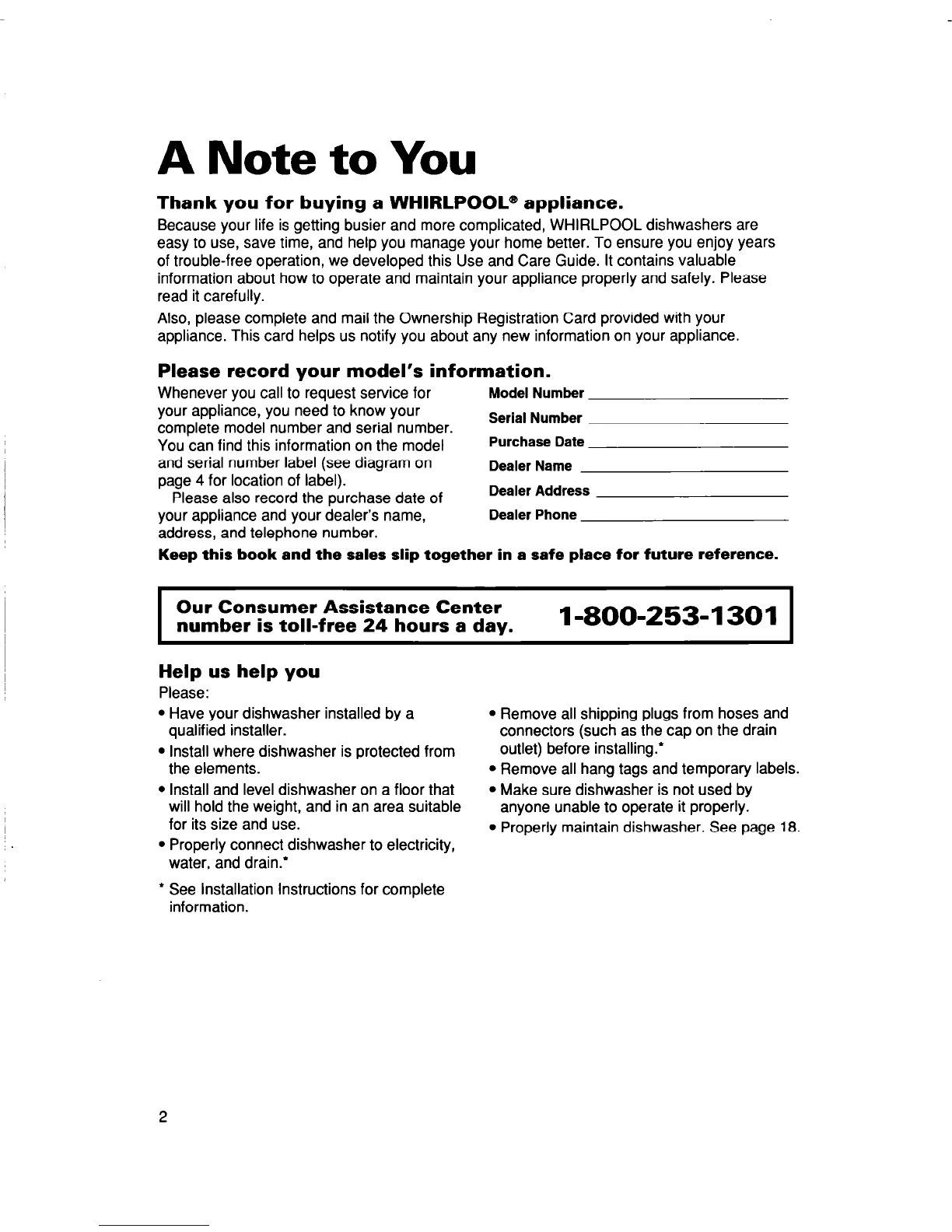

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL dishwashers are

easy to use, save time, and help you manage your home better. To ensure you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number label (see diagram on

page 4 for location of label).

Please also record the ourchase date of

Dealer Name

Dealer Address

your appliance and your dealer’s name,

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 1

Help us help you

Please:

l Have your dishwasher installed by a l Remove all shipping plugs from hoses and

qualified installer. connectors (such as the cap on the drain

l Install where dishwasher is protected from outlet) before installing.*

the elements. l Remove all hang tags and temporary labels.

l Install and level dishwasher on a floor that l Make sure dishwasher is not used by

will hold the weight, and in an area suitable anyone unable to operate it properly.

for its size and use. l Properly maintain dishwasher. See page 18.

l Properly connect dishwasher to electricity,

water, and drain.*

l See Installation Instructions for complete

information.

Dishwasher Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any This symbol alerts you to such dangers

as fire, electrical shock, burns, and

instructions given. Here is a brief explana-

tion of the use of the warning symbol. personal injury.

IMPORTANT SAFETY INSTRUCTIONS

* Read all instructions before using the

dishwasher.

l Use your dishwasher only for the uses

described in this manual.

. DISHWASHER MUST BE ELECTRI-

CALLY GROUNDED. Read the Installa-

tion Instructions for details.

l When discarding an old dishwasher,

always remove the door to prevent

accidental entrapment or suffocation.

l Use ONLY detergents and rinse agents

recommended for use in a dishwasher.

l Store dishwasher detergent in a cool,

dry place WHERE CHILDREN CAN’T

REACH IT.

l When loading items to be washed:

- Load sharp items and knives with the

handles up to reduce risk of cut-type

injuries.

- Locate sharp items and knives so that

they are not likely to damage the door

or tub.

l DO NOT let children play in or on the

dishwasher.

l DO NOT reach into the area below the

bottom rack until the heating element

has cooled for at least 20 minutes.

l DO NOT wash plastic items unless

marked “Dishwasher Safe” or the equiva-

lent. If not marked, check manufacturer’s

recommendations.

l DO NOT use your dishwasher unless all

enclosure panels are properly in place.

l DO NOT sit on, stand on, or abuse the

dishwasher door or dish racks.

l DO NOT tamper with controls.

l If hot water has not been used recently

(usually two weeks or longer), hydrogen

gases may build up in the water heater

and the hot water pipes. HYDROGEN

GAS IS EXPLOSIVE. To prevent injury

or damage, before using your dish-

washer, turn on all hot water faucets and

allow water to run for several minutes.

This will allow gases to escape. Do not

smoke or use any open flame near the

faucet while it is open.

l DO NOT store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

The fumes can create a fire hazard or

explosion.

l Disconnect electrical power to the

dishwasher before attempting to service.

- SAVE THESE INSTRUCTIONS -

Parts and Features

Your dishwasher is illustrated below with the parts and features called out. To help you find

information on specific parts or features quickly, page references are included.

Third level wash,

(P. 9) \

y;;table top rack L\

(P. 9)

Water inlet opening

ID. 8) \

., I

;‘Bybumper\A

Bottom rack

(P. 8) I ii.

Heating element -

Silverware

basket 4

(P. 6)

Door latch

:k adjuster

(P. 9)

spray arm

(P. 8)

Fold-down

H number label

(on right side)

POWER CLEANTM

- Lower spray arm

(P. 8)

- Overfill protector

(P. 18)

- Detergent

dispensers

(P. 10)

pigpen::;

\ (P. 11)

Access panel*

Door color panel’ ’ *See Installation Instructions

for more information.

Control panel

Your dishwasher has a row of push pads to select cycles and options. You

must

select a

cvcle to start your dishwasher. You

may

select one or more options.

Starting Your Dishwasher

This section tells you how to start or stop your dishwasher. Refer to it for quick reference.

Starting a wash cycle

1. Load the dishwasher. See pages 6-9.

pray arms. They should

turn freely.

3. Add detergent. See page 10.

4. Add rinse agent, if needed. See page 11.

5. Close door firmly until it latches.

6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn water off. See page 19.

7. Press a Cycle pad. If desired, press one

OIOO or more Option pads. (See

z = -

pages 12-l 4.) The dishwasher

starts filling once you press a

Cycle pad unless you select

the delay wash cycle. You

may press Option pads as the machine

is filling.

The pad indicator glows red when a cycle

or an option is selected.

L-d

1-I

Stopping the dishwasher

You can stop your dishwasher anytime

during a cycle. All you have to do is:

l Open the door slightly. Wait for any filling

or spraying action to stop before opening

the door all the way. Close door to con-

tinue cycle.

l Press CANCEL/DRAIN. Once pressed, a

2-minute drain starts. See page 13.

Loading Your Dishwasher

This section tells how to properly load your dishwasher for best washing and rinsing results.

Preparing to load the dishwasher

l To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

l Remove large pieces of food, bones, and

other hard items. The POWER CLEANTM

module removes food particles from the

water. The module contains a chopping

device which reduces the size of food items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the POWER

CLEAN module, you might hear chopping,

grinding, crunching, or buzzing sounds.

Those sounds are normal when hard items

enter the module. Do

not

let metallic items

(such as pot handle screws) get into the

POWER CLEAN module. Damage can

occur.

l Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to dry

over a period of time. Run a RINSE/WASH

LATER cycle to keep dishes moist if you

do not plan to wash them soon.

l Load dishes so soiled surfaces face the

rotating spray arm.

l Load dishes so they are not stacked or

overlapping. It is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

l Secure lightweight load items in the racks.

l Pot lids and handles, pizza pans, cookie

sheets, etc., should not touch interior walls,

interfere with the spray arm’s rotation, or

cover the spray tower.

l Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

Loading the cutlery basket

Use the cutlery basket to hold long items.

Always unload or remove the cutlery basket

before unloading the racks to avoid spilling

water on the cutlery.

IMPORTANT: Remove the basket and tip

the contents onto a cutting board to unload.

This helps avoid accidents with sharp points

and edges.

To remove the cutlery basket:

1. Grasp the basket on both sides and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the cutlery basket:

1. Set the basket on the holding buttons.

2. Slide the basket toward the bottom of the

door until it locks into place.

Loading the silverware basket

Personal Injury Hazard

Load sharp items (knives, forks,

skewers, etc.) with the point down.

Failure to do so could cause personal

injury.

l Load the silverware basket while it is in the

door or take the basket out for loading on a

counter or table.

l Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

items. However, always load sharp items

(knives, skewers, forks, etc.) pointing

down.

l Put small items (baby bottle caps, jar lids,

etc.) in any section.

l You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spilling water on the silverware.

To remove the basket:

Grab the basket by the handle and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the basket:

Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

l Unhook the latch as shown.

NOTE:

Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

Loading the bottom rack

Load items with cooked-on or dried-on food

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

l Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

l Make sure pot handles and other items do

not stop rotation of the spray arms. Spray

arms must move freely.

l Load items so they do not block or cover

the spray tower.

l Load heavily-soiled cookware face down

in rack.

l Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Utensil load

l Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTE:

l Do not load glasses, cups, or plastic items

in the bottom rack.

l Do not load items between the bottom rack

and the side of the dishwasher tub. This

can block the water inlet opening.

l If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Fold-down divider

Use the fold-down divider at the back of the

rack to make room for deep bowls, roasters,

etc.

Mixed load

Do not cover spray tower

Utensil load I

/ --w

Bumpers must “V I

face dishwasher door - ti

Loading the top rack

Load the top rack with cups, glasses, and

smaller items. Do not cover the third level

wash when loading the top rack.

Cup and glass load

l Load so open ends face down for cleaning

and draining.

l Load glasses in top rack only - bottom

rack is not designed for glasses. Damage

can occur.

l Place items in the rows

between

prongs.

Placing them over the prongs may lead

to breakage.

l Secure lightweight items.

l China, crystal, and other delicate items

must not touch each other during dish-

washer operation. Damage may occur.

Mixed load

l Small bowls, pans, and other utensils can

be placed in the top rack.

l Load plastic items in the top rack only.

Plastic items may melt in the bottom rack.

l Wash only plastic items marked “dish-

washer safe.”

l Load plastic items so the force of the spray

does not move them during the cycle.

Extra-capacity fold-down

shelves

Use the fold-down shelves on both sides of

the top rack for extra loading space. Fold

them down over short items such as cups,

juice glasses, cereal bowls, etc.

l Adjust rack height if necessary (see below).

l To avoid chipping, do not let stemware

touch other items.

Infinite adjustable top rack

Raise or lower the rack to fit tall items in

either the top or bottom rack. The top rack

does not have to be level.

l Turn the knob clockwise to raise a side of

the rack.

l Turn the knob counterclockwise to lower a

side of the rack.

Do not cover third level wash

Mixed load

Raise

Lower

Using the Dispensers

For best washing results, review the information below. It is important to use detergents and

rinse agents properly.

Using the detergent dispenser

Use automatic dishwashing detergent

only.

Other detergents are too mild and

much too sudsy.

Add detergent just before starting cycle.

Store tightly-closed detergent in a cool, dry

place.

Fresh automatic dishwasher

detergent results in better cleaning.

Filling the detergent dispenser

The detergent dispenser has one section

with a cover and one without. Push cover

down firmly until it latches. Detergent in the

open section falls into the dishwasher when

closing the door. The covered section opens

automatically for the main wash.

NOTE:

It is normal for the cover to open

partially when dispensing detergent.

Coyer Cover, Latch

Use only covered

section for:

- LOW ENERGY/

CHINA

Use both sections for:

- NORMAL

- HEAVY

- POTS-N-PANS

How much detergent to use

The amount of detergent to use depends

on the hardness of your water and the type

of detergent. If you use too little, dishes

won’t be clean. If you use too much in soft

water, glassware will etch.

Different brands of dishwasher detergent

have different amounts of phosphorus for

softening water. If you have hard water

and use low phosphorus content detergent

(6.0% or less), you may need to use more

detergent or use a detergent with a higher

phosphorus content (8.7%).

Find out your water’s hardness by asking

your local water department, water soft-

ener company, or county extension agent.

WATER TYPE WHERE TO FILL

grains per gallon

136+

parts per million

Top of

3rd step

(3 tbs)

Medium

Top of

5-7

grains per gallon 2nd step

85-l 19

pans per million (2 tbs)

soft

O-4

grains per gallon

O-68

parts per million

Top of

1st step

(1 tbs)

Fill amounts shown are for standard

powdered detergent. Amounts may vary if

you use liquid or concentrated powdered

detergent. Follow manufacturer’s directions

when using liquid dishwasher detergent or

concentrated powdered detergent.

Autres manuels pour Series 960

Table des matières

Autres manuels Whirlpool Lave-vaisselle

Whirlpool

Whirlpool 6ADG 7554 WHM Manuel utilisateur

Whirlpool

Whirlpool DU9100XT Series Manuel utilisateur

Whirlpool

Whirlpool RUD1000 Manuel utilisateur

Whirlpool

Whirlpool Gold GU2200 Manuel utilisateur

Whirlpool

Whirlpool ADG 8440 Manuel utilisateur

Whirlpool

Whirlpool WBC 3C26 X Manuel d'installation et d'exploitation

Whirlpool

Whirlpool Ikea IUD8000R Manuel utilisateur

Whirlpool

Whirlpool WFC 3C26 PF X Manuel d'installation et d'exploitation

Whirlpool

Whirlpool WDF310PAAB Instructions de montage

Whirlpool

Whirlpool DU920PFGB4 Manuel utilisateur

Whirlpool

Whirlpool WDF518SAAS0 Manuel utilisateur

Whirlpool

Whirlpool ADP 6600 WH Manuel utilisateur

Whirlpool

Whirlpool W10275146A Manuel utilisateur

Whirlpool

Whirlpool 940 series Manuel utilisateur

Whirlpool

Whirlpool DP3880XM Manuel utilisateur

Whirlpool

Whirlpool CONTROL PANEL Manuel utilisateur

Whirlpool

Whirlpool 8575348-D-WH Manuel du propriétaire

Whirlpool

Whirlpool WDT975SAHV Manuel utilisateur

Whirlpool

Whirlpool ADP 431 WT Manuel utilisateur

Whirlpool

Whirlpool WSIC 3M27 C Manuel d'installation et d'exploitation

Whirlpool

Whirlpool ADG 7470/1 Guide d'installation

Whirlpool

Whirlpool GU2200XTSB1 Manuel utilisateur

Whirlpool

Whirlpool WSFO 3O23 PF Manuel d'installation et d'exploitation

Whirlpool

Whirlpool ADG 7561 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
