UseAndCare

A Note to You ............................... 2

Dishwasher Safety ....................... .3

Parts and Features.. ..................... .4

Starting Your Dlshwasher.. ..........5

Loadlng Your

Dlshwasher

............7

Using the Dispensers

................. 11

Settlng the Controls.. ................. 13

Selecting a wash cycle .............13

Using Cancel/Drain .................. .14

Selecting cycle options .............15

Changing a cycle or

option setting ........................... .15

Adding an item during a cycle ... 16

Using the delay wash cycle .....

.16

Understanding the

status indicators ....................... .17

Washlng Special Items ...............18

Caring for Your Dlshwasher .....

.19

Savlng Energy ............................ .22

Solvlng Common

Dlshwashlng Problems ..............23

Troubleshootlng.. ....................... .26

Requestlng Assistance

or Servlce ................................... .28

Index.. .......................................... .29

Warranty ...................................... 32

1-800-253-I 301

Call our Consumer Aaslstance Center

wlth questlons or comments.

PART

NO-

3376819

Rev.

DISHWASHER MODEL SERIES 940

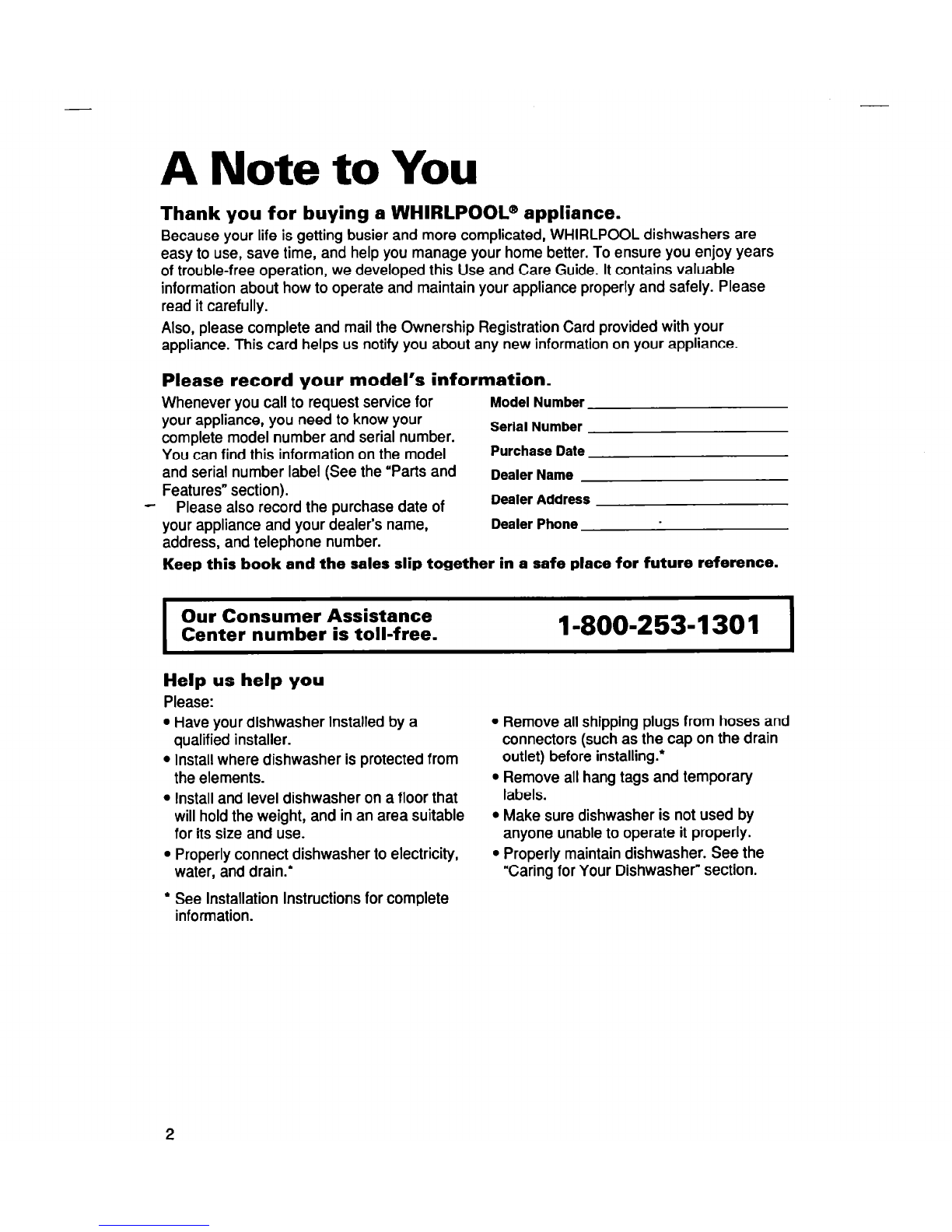

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL dishwashers are

easy to use, save time, and help you manage your home better. To ensure you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number label (See the “Parts and

Dealer Name

Features” section).

- Please also record the purchase date of

Dealer Address

your appliance and your dealer’s name,

Dealer Phone

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance

Center number is toll-free.

1-800-253-1301 1

Help us help you

Please:

Have your dishwasher installed by a

qualified installer.

Install where dishwasher is protected from

the elements.

Install and level dishwasher on a floor that

will hold the weight, and in an area suitable

for its size and use.

Properly connect dishwasher to electricity,

water, and drain.*

See Installation Instructions for complete

information.

Remove all shipping plugs from hoses and

connectors (such as the cap on the drain

outlet) before installing.*

Remove all hang tags and temporary

labels.

Make sure dishwasher is not used by

anyone unable to operate it properly.

Properly maintain dishwasher. See the

“Caring for Your Dishwasher” section.

Dishwasher Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word “DANGER” or “WARNING.” These words mean:

You y&l be killed or seriously Injured

If you don’t follow Instructlons.

You & be kllled or serlously Injured

If you don’t follow Instructlons.

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed. .

IMPORTANT SAFETY INSTRUCTIONS

WARNING

-When using the

dishwasher, follow basic precautions,

including the following:

Read all instructions before using the

dishwasher.

Use the dishwasher only for its

intended function.

Use only detergents or rinse agents

recommended for use in a dishwasher

and keep them out of the reach of

children.

When loading items to be washed:

1)Locate sharp items.so that they

are not likely to damage the door

seal; and

2) Load sharp knives with the handles

up to reduce the risk of cut-type

injuries.

Do not wash plastic items unless they

are marked “dishwasher safe” or the

equivdent. For plastic items not so

marked, check the manufacturer’s

recommendations.

Do not touch the heating element

during or immediately after use.

Do not operate the dishwasher unless

all enclosure panels are properly in

place.

Do not tamper with controls.

Do not abuse, sit on, or stand on the

door or dish racks of the dishwasher.

To reduce the risk of injury, do not

allow children to play in or on the

dishwasher.

Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks

or more. HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has not

been used for such a period, before

using the dishwasher turn on all hot

water faucets and let the water flow

from each for several,minutes. This will

release any accumulated hydrogen gas.

As the gas is flammable, do not smoke

or use an open flame during this time.

Remove the door to the washing

compartment when removing an old

dishwasher from service or discarding it.

-SAVE THESE INSTRUCTIONS -

Parts and Features

Your dishwasher is illustrated below with the parts and features called out. To help you find

information on specific parts or features quickly, page references are included.

Top rack adjuster

(P. 10)

Third level wash

(Pm10)

Upper spray arm

(P.9)

Adiustable top rack

(Pm10)

Water inlet opening

(P.

Silverware

Cutlery

basket

b. 7)

.. .

Door latch/

‘/

Spray tower

(P.9)

Fold-down

. POWER CLEANTM

N module

(p.

30)

Y Lower spray arm

(P.9)

- Overfill protector

(P. 19)

Detergent

- dispensers

(P. 11)

Rinse agent

y dispenser

\ (P. 12)

Access panel*

Door color panel* /

l See

Installatton Instructions

for more information.

Control panel

Your dishwasher has a row of push pads to select cycles and options. You must select a

cycle to start your dishwasher. You may select one or more options.

Starting Your Dishwasher

This section tells you how to start or stop your dishwasher. Refer to it for quick reference.

Tlp Over Hazard

Do not use dlshwasher until

completely Installed.

Do not push down on open door.

Doing so can result In serlous Injury

or cuts.

Electrlcal Shock Hazard

Eiectrlcaily ground dlshwasher.

Connect ground wire to green ground

connector In termlnal box.

Do not use an extenslon cord.

Failure to do so can result in death,

flre, or electrical shock.

GROUNDING INSTRUCTIONS

For a grounded, cord connected

dishwasher:

The dishwasher must be grounded. In

the event of a malfunction or breakdown,

grounding will reduce the risk of electric

shock by providing a path of least

resistance for electric current. The

dishwasher is equipped with a cord

having an equipment-grounding conduc-

tor and a grounding plug. The plug must

be plugged into an appropriate outlet that

is installed and grounded in accordance

with all local codes and ordinances.

WARNING

- Improper connection of

the equipment-grounding conductor can

result in a risk of electric shock.

Check with a qualified electrician or

service representative if you are in

doubt whether the dishwasher is

properly grounded. Do not modify the

plug provided with the dishwasher; if it

will not fit the outlet, have a proper

outlet installed by a qualified electrician.

For a permanently connected

dishwasher:

The dishwasher must be connected to a

grounded metal, permanent wiring

system, or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the dishwasher.

- SAVE THESE INSTRUCTIONS -

Starting a wash cycle

1. Load the dishwasher. See the “Loading

Your Dishwasher” section. -

2. Spin the spray arms. They should

turn freely.

3. Add detergent. See the “Using the

Dispensers” section.

4. Add rinse agent, if needed.

See the “Using the

Dispensers” section.

5. Close door firmly until it latches.

6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn water off. See the “Saving

Energy” section.

7. Press a Cycle pad. If desired, press one

l?Fl

or more Option pads. See the

O_lOO

Z “Setting the Controls” section.

The dishwasher starts filling

once you press a cycle pad

unless you select the delay

wash cycle. You may press Option pads

as the machine is filling.

The pad indicator glows red when a cycle

l-1 or option is selected.

Stopping the dishwasher

You can stop your dishwasher anytime

during a cycle. All you have to do is:

Open the door slightly. Wait for any filling

or spraying action to stop before opening

the door all the way. Close door to con-

tinue cycle.

Press Cancel/Drain. Once pressed, a

2-minute drain starts. (See the “Setting the

Controls” section.)

Loading Your Dishwasher

This section tells how to properly load your dishwasher for best washing and rinsing results,

Preparing to load the dishwasher

To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

Remove large pieces of food, bones, and

other hard items. The POWER CLEANTM

module removes food particles from the

water. The module contains a chopping

device which reduces the size of food items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the POWER

- CLEAN module, you might hear chopping,

grinding, crunching, or buzzing sounds.

Those sounds are normal when hard items

enter the module. Do

not

let metallic items

(such as pot handle screws) get into the

POWER CLEAN module. Damage can

occur.

Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to dry

over a period of time. Run a Rinse/Wash

Later cycle to keep dishes moist if you do

not plan to wash them soon.

Load dishes so soiled surfaces face the

rotating spray arm.

Load dishes so they are not stacked or

overlapping. It is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

Secure lightweight load items in the racks.

Pot lids and handles, pizza pans, cookie

sheets, etc., should not touch interior

walls, interfere with the spray arm’s

rotation, or cover the spray tower.

Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

Loading the cutlery basket

Use the cutlery basket to hold long items.

Always unload or remove the cutlery basket

before unloading the racks to avoid spilling

water on the cutlery.

IMPORTANT: Remove the basket and tip

the contents onto a cutting board to unload.

This helps avoid accidents with sharp points

and edges.

To remove the cutlery basket:

1. Grasp the basket on both sides and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the cutlery basket:

1. Set the basket on the holding buttons.

2. Slide the basket toward the bottom of the

door until it locks into place.

Loading the silverware basket

Load the silverware basket while it is in the

door or take the basket out for loading on a

counter or table.

Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

_ items.

IMPORTANT: Always load sharp items

(knives, skewers, forks, etc.) pointing

down.

Put small items (baby bottle caps, jar lids,

etc.) in any section.

You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spilling water on the silverware.

To remove the basket:

1. Grab the basket by the handle and slide it

toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the basket:

1. Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

Loading the bottom rack

Load items with cooked-on or dried-on food

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

Make sure pot handles and other items do

not stop rotation of the spray arms. Spray

arms must move freely.

Load items so they do not block or cover

the spray tower.

Load heavily soiled cookware face down

- in rack.

Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Utensil load

Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTES:

Do not load glasses, cups, or plastic items

in the bottom rack.

Do not load items between the bottom rack

and the dishwasher tub. This can block the

water inlet opening.

If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Fold-down divider

Use the fold-down divider at the back of

the rack to make room for deep bowls,

roasters, etc.

Mlxed load

Do not cover spray tower

Utensil load

Bumper

face dls

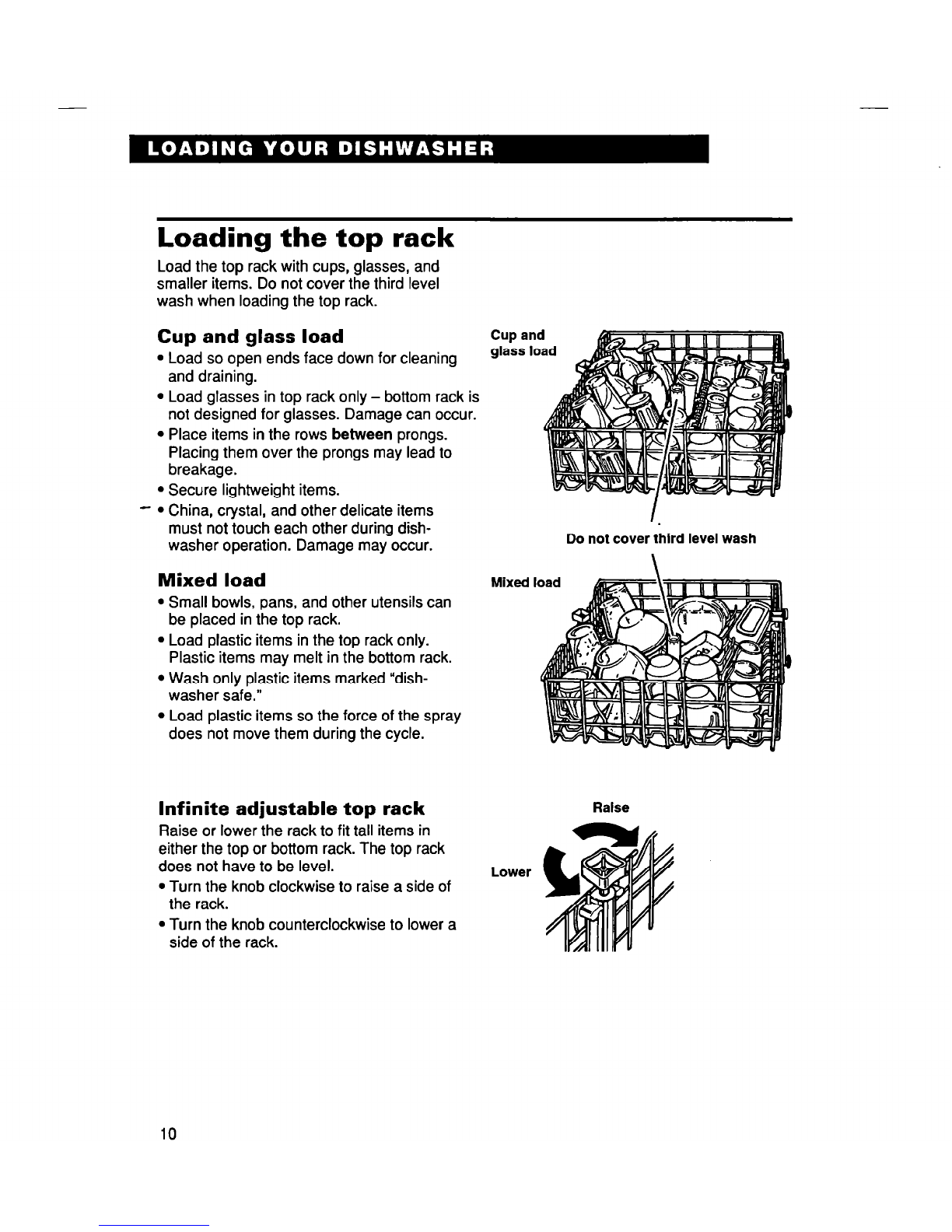

Loading the top rack

Load the top rack with cups, glasses, and

smaller items. Do not cover the third level

wash when loading the top rack.

Cup and glass load

Load so open ends face down for cleaning

and draining.

Load glasses in top rack only - bottom rack is

not designed for glasses. Damage can occur.

Place items in the rows

between

prongs.

Placing them over the prongs may lead to

breakage.

Secure lightweight items.

China, crystal, and other delicate items

must not touch each other during dish-

washer operation. Damage may occur.

Mixed load

Mixed

Small bowls, pans, and other utensils can

be placed in the top rack.

Load plastic items in the top rack only.

Plastic items may melt in the bottom rack.

Wash only plastic items marked “dish-

washer safe.”

Load plastic items so the force of the spray

does not move them during the cycle.

Do not cover third level wash

Infinite adjustable top rack

Raise or lower the rack to fit tall items in

either the top or bottom rack. The top rack

does not have to be level.

Turn the knob clockwise to raise a side of

the rack.

Turn the knob counterclockwise to lower a

side of the rack.

Lower

Raise

Autres manuels pour 940 series

Table des matières

Autres manuels Whirlpool Lave-vaisselle

Whirlpool

Whirlpool WDT710PAYB Manuel utilisateur

Whirlpool

Whirlpool DISHWASHER Manuel utilisateur

Whirlpool

Whirlpool ADG 3452AV Instructions d'utilisation et d'installation

Whirlpool

Whirlpool KUDL15FXSS Instructions de montage

Whirlpool

Whirlpool DU912 8051563 Manuel utilisateur

Whirlpool

Whirlpool 3LCED9100 Manuel utilisateur

Whirlpool

Whirlpool DU5000XW Manuel utilisateur

Whirlpool

Whirlpool GU1100XTLB1 Manuel de service

Whirlpool

Whirlpool ADG 8966 IXM Manuel utilisateur

Whirlpool

Whirlpool 6ADP 5966 Manuel utilisateur

Whirlpool

Whirlpool DU1055XTPB0 Manuel utilisateur

Whirlpool

Whirlpool WDT780SAEM2 Manuel utilisateur

Whirlpool

Whirlpool WDT750SAKW Manuel utilisateur

Whirlpool

Whirlpool WIC3C24PE FULL Manuel d'installation et d'exploitation

Whirlpool

Whirlpool W10282479 Manuel utilisateur

Whirlpool

Whirlpool ADG 7560/1 WP Manuel utilisateur

Whirlpool

Whirlpool ADP 536 WT Manuel utilisateur

Whirlpool

Whirlpool WDP340PAFB0 Manuel utilisateur

Whirlpool

Whirlpool WFC 3B19 Manuel d'installation et d'exploitation

Whirlpool

Whirlpool WDT975SAHV Manuel utilisateur

Whirlpool

Whirlpool WRIC 3C26 Manuel d'installation et d'exploitation

Whirlpool

Whirlpool WBC 3C26 X Manuel d'installation et d'exploitation

Whirlpool

Whirlpool DU1100XTPB6 Manuel utilisateur

Whirlpool

Whirlpool DU7500XR1 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
