COOKTOP, BURNER AND GRATE PARTS

For Models: GLS3074VS00

(Stainless)

7−10 Litho in U.S.A. (amd) Part No. W10168660 Rev. A

30" GAS COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: GLS3074VS00

(Stainless)

W10168660

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10131955

Installation

Instructions

8304571 Undercounter

Installation

8286994 Use & Care Guide

Safe Cooking Tips

3191638 English

9759133 French

2 9760045 Seal, Foam

W10140183

Cooktop

4 Burner Caps

8286153CB

8286154CB

8286155CB

8286156CB

5 9759505 Grate, Burner

6 9759509 Grate, Center

W10132510

Knob, Control

8 Holder, Orifice

W10128448

W10128450

8287052 RR

8287043 LF

9 Head, Burner

8286181 RF

8286184 LR

8286182 RR

8286183 LF

10 8273062 Screw

11 3368921 Screw

12 9782116 Electrode

13 Orifice

3192529 RF

3192523 LR

8287051 RR

8287044 LF

15 3186678 Grommet, Grate

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: GLS3074VS00

(Stainless)

W10168660

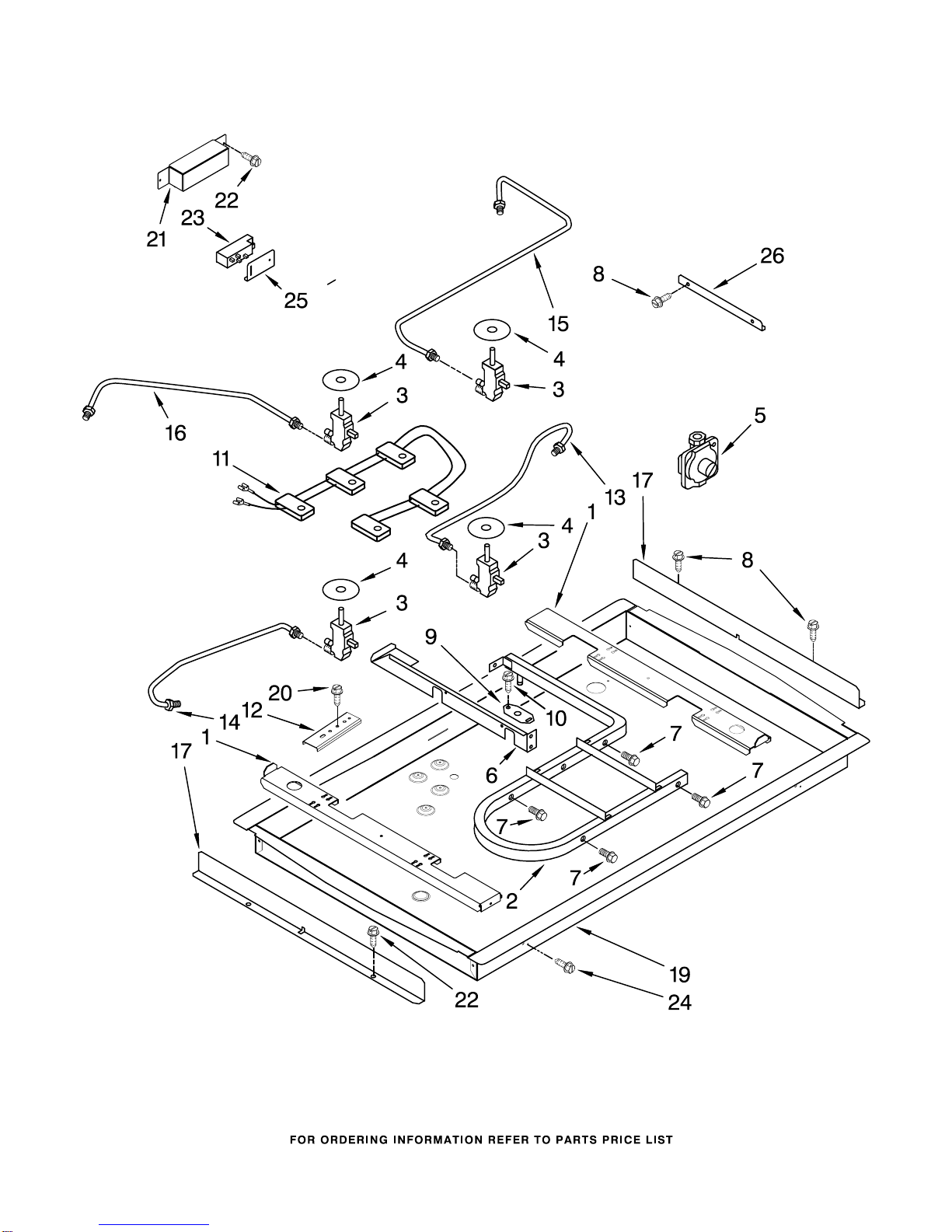

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: GLS3074VS00

(Stainless)

W10168660

Illus. Part

No. No. DESCRIPTION

1 8285796 Rail, Burner

2 8286069 Pipe, Manifold

3 Valve, Gas Burner

8286559 White

4456817 Black

8286560 Yellow

8286561 Orange

4 3191387 Seal, Shaft

W10131956

Regulator

Pressure

6 8285791 Rail, Center

7 8523704 Bolt, Gas Valve

8 3400843 Screw

9 3192491 Bracket, Mainfold

10 3196160 Screw

11 4456905 Harness, Switches

12 4455917 Bracket, Mounting

13 8285793 Tubing, Gas

Burner (RF)

14 8285794 Tubing, Gas

Burner (LF)

15 8285792 Tubing, Gas

Burner (RR)

16 8285795 Tubing, Gas

Burner (LR)

17 3191462 Shield, Heat (2)

19 9760837 Burner Box

20 3400093 Screw

21 8285788 Shield, Heat

22 3177991 Screw

23 8522423 Spark Module

24 4449809 Screw

25 4455837 Bracket, Spark

Module

26 9759145 Bracket, Main

Support

OPTIONAL PARTS

For Models: GLS3074VS00

(Stainless)

W10168660

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

9763116 Cord, Power

3177991 Screw

Miscellaneous

8286320 Spud Kit

WIRING HARNESS PARTS

4456626 Harness,

Ignitor 15" (2)

4456627 Harness,

Ignitor 28" (2)
