COOKTOP PARTS

For Models: GJD3044RB01, GJD3044RC01, GJD3044RP01

(Black) (Pure Biscuit) (Pure White)

1−07 Litho in U.S.A. (lwp) Part No. 8186417

30" ELECTRIC

BUILT−IN

DOWNDRDAFT COOKTOP

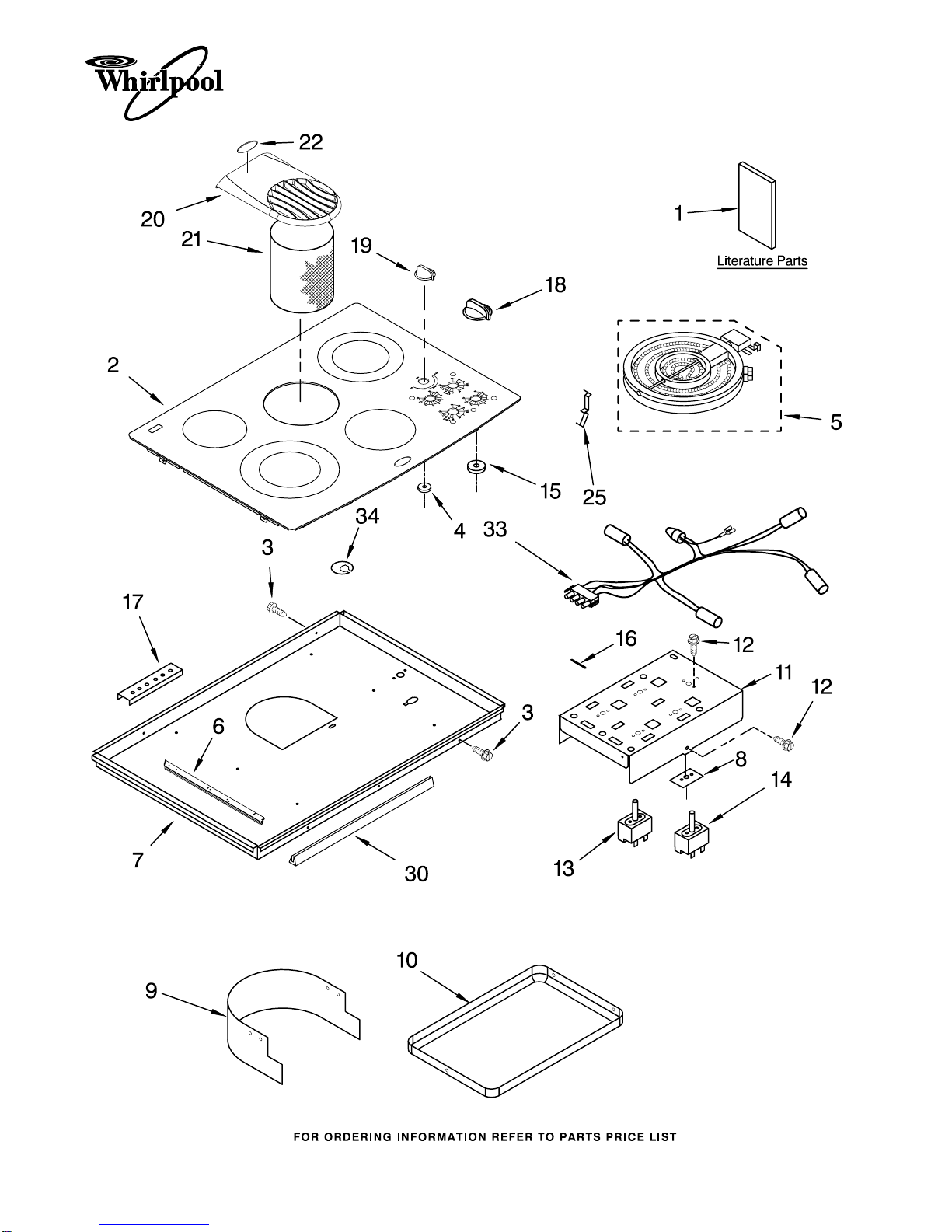

COOKTOP PARTS

For Models: GJD3044RB01, GJD3044RC01, GJD3044RP01

(Black) (Pure Biscuit) (Pure White)

8186417

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8286553 Installation

Instructions

8286343 Wiring Diagram

8286616 Owners Manual

Safe Cooking Tips

3191638 English

9759133 French

2 Cooktop, Glass &

Bracket Assembly

9762696 Black

9762698 Pure Biscuit

9762697 Pure White

3 3196537 Screw, 8−18 x 3/8

4 3191387 Seal, Switch 2"

5 Element, Surface

8523698 L.R. (1200W)

4453909 L.F. 2500/1200W

8285937 R.R. 2000/1000W

8523697 R.F. (1500W)

6 Rail, Element

8285933 Right Hand

8286054 Left Hand

7 8285809 Box, Burner

8 3183956 Seal, Switch Cvr

9 8285934 Shield, Vent

3177991 Screw

10 3190656 Drip Bowl, Grease

11 4455354 Bracket, Control

Mounting

12 311865 Screw, 8−32 x 7/32

13 4456836 Switch, Speed

Control

14 Switch, Infinite

3191049 LR & RF

9759474 RR & LF

15 8285469 Seal, Switch

16 3192439 Seal, Limiter

17 4455917 Bracket, Mounting

18 Knob, Control

8286043BL

Black

8286043BT

Biscuit

8286043WH

White

19 Knob, Downdraft

8286045BL

Black

8286045BT

Biscuit

8286045WH

White

20 Grille, Air

8285115 Black

8285229 Biscuit

8285228 Pure White

21 3192530 Filter, Grease

22 8523552 Badge

25 9759094 Spring, Locator

30 3193032 Gasket, Vent

Shield

33 8286055 Light, Hot Surface

Indicator

34 3193094 Plate, Cover

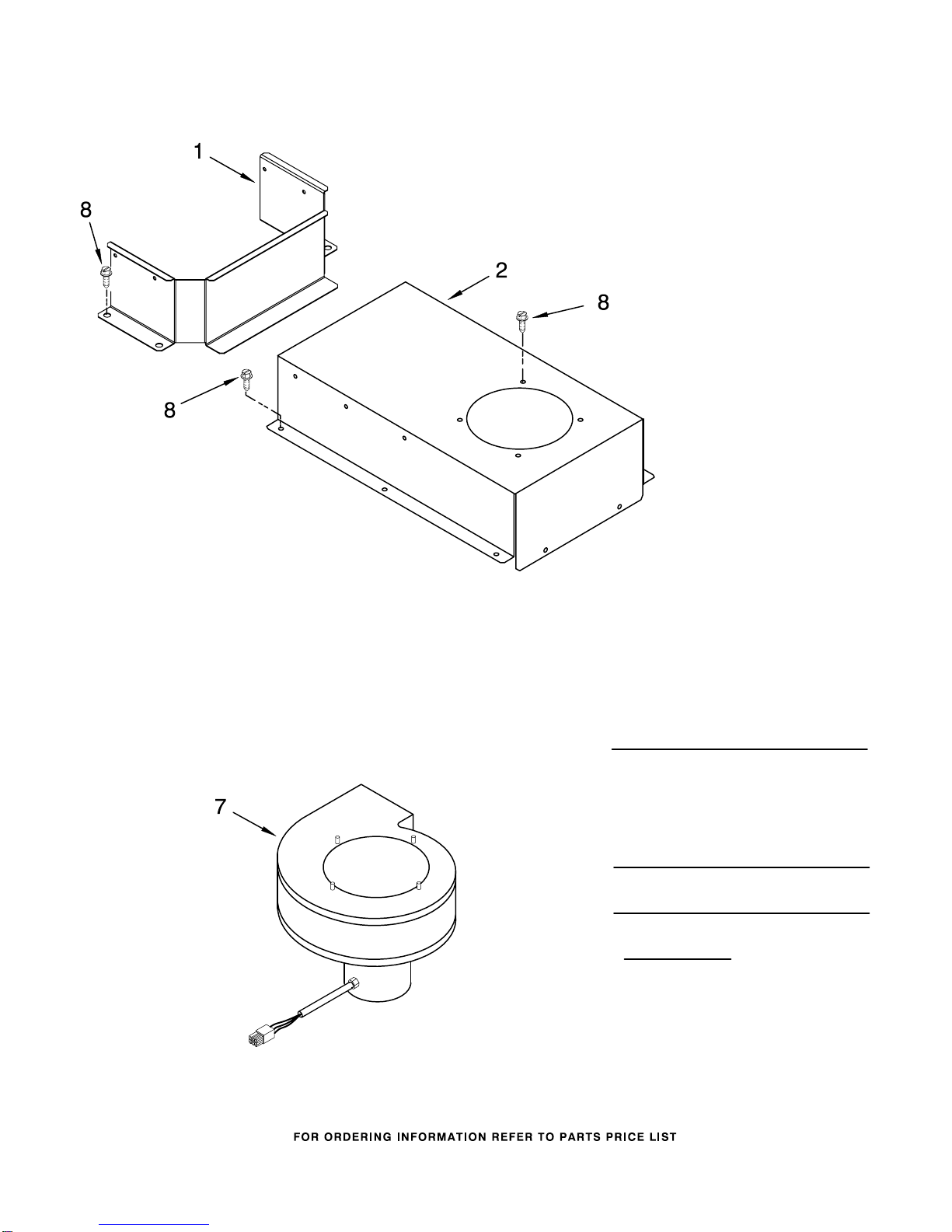

BLOWER UNIT PARTS

For Models: GJD3044RB01, GJD3044RC01, GJD3044RP01

(Black) (Pure Biscuit) (Pure White)

8186417

Illus. Part

No. No. DESCRIPTION

1 8285958 Bracket, Shield

2 3192403 Bracket, Blower

Mounting

7 9760440 Blower Motor Asm.

(Includes Fan Asm)

8 3367670 Screw,10−16 x 1/2

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

3172515 Hardware, Mounting

3192408 Bracket, Mounting

OPTIONAL PARTS

For Models: GJD3044RB01, GJD3044RC01, GJD3044RP01

(Black) (Pure Biscuit) (Pure White)

8186417

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242827 Wire, Yellow

14 Ga. 150 C

ACCESSORY PARTS

3191048 Cleaner, Glass

WIRING HARNESS PARTS

8286407 Harness, Wire

(Ceran Downdraft)

4456859 Harness, Wire

(Blower/Switch)

98997 Clip

9760671 Strain Relief

8286416 Conduit, Downdraft

3196160 Screw

3400015 Screw, 10−32 x 3/8
