INTRODUCTION

BEFORE USING THE COOKTOP

1. Clean the cooktop.

2. Switch on the hotplates to remove fumes and smells coming from the protective greases.

EVERYDAY USE

1. Turn the control knob to the position required.

2. To switch off, turn the knob back to “0”.

Please read the instructions for use carefully, to become familiar with your coo top.

CONTENTS GB

FEATURES Pages 24-25-26

BEFORE USING THE COOKTOP Page 27

TIPS FOR SAFEGUARDING THE ENVIRONMENT Page 27

WARNINGS FOR THE USE OF ELECTRICAL APPLIANCES Page 28

PRECAUTIONS AND GENERAL SUGGESTIONS Page 28

2 ELECTRIC HOTPLATE COOKTOP Page 29

GLASS CERAMIC COOKTOP Page 31

CLEANING AND MAINTENANCE Page 34

TROUBLE-SHOOTING GUIDE Page 35

AFTER-SALES SERVICE Page 35

INSTALLATION Page 36

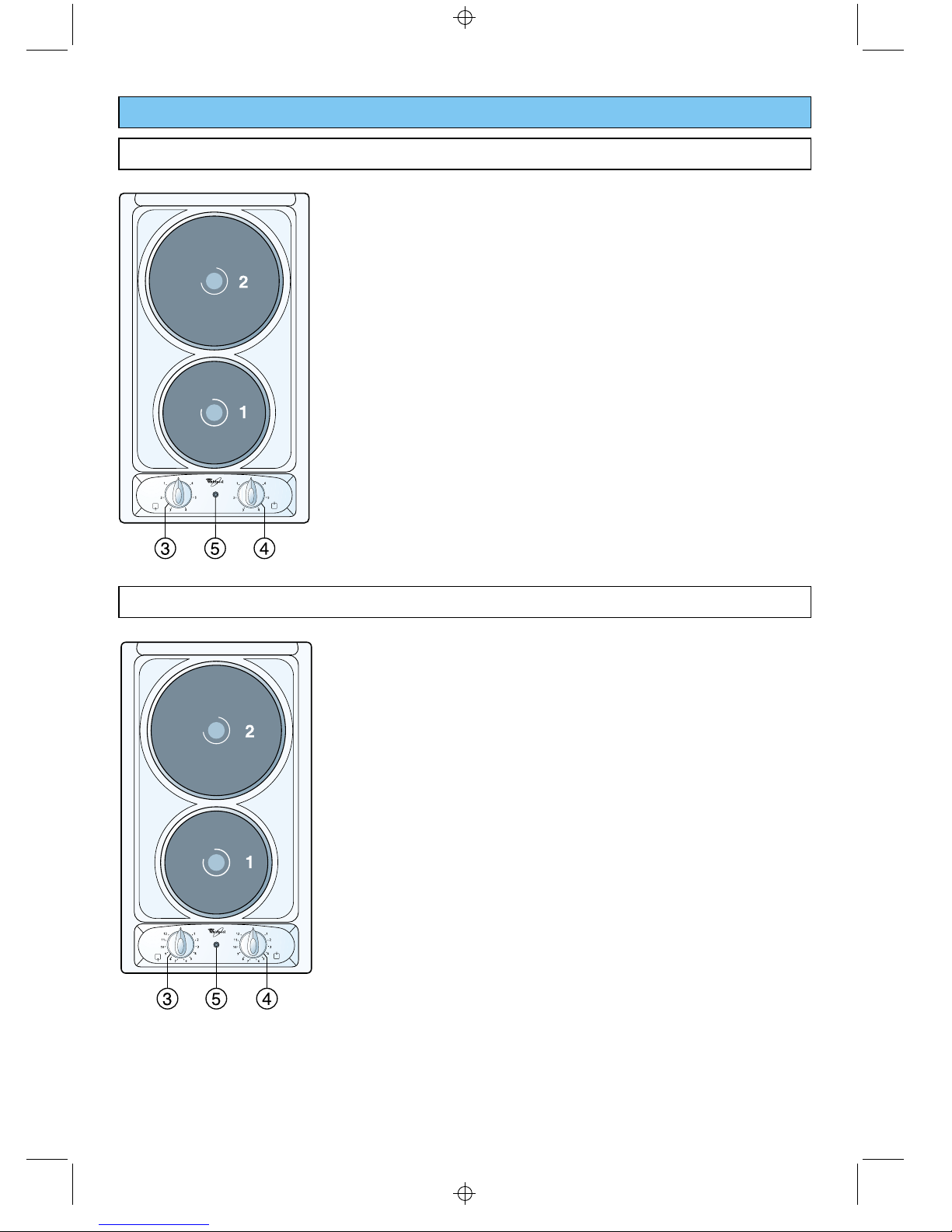

FEATURES

AKR 024

2 ELECTRIC HOTPLATE COOKTOP

- Electrical insulation Class I.

- Protection against overheating of adjacent

surfaces Type Y.

ELECTRIC HOTPLATES

1. High-speed electric hotplate Ø 145 – 1500 W

2. High-speed electric hotplate Ø 180 – 2000 W

CONTROL PANEL

3. Front hotplate (1 – 6) control knob (1)

4. Rear hotplate (1 – 6) control knob (2)

5. Hotplates ON indicator light

AKR 010

2 ELECTRIC HOTPLATE COOKTOP

- Electrical insulation Class I.

- Protection against overheating of adjacent

surfaces Type Y.

ELECTRIC HOTPLATES

1. High-speed electric hotplate Ø 145 – 1500 W

2. High-speed electric hotplate Ø 180 – 2000 W

CONTROL PANEL

3. Front hotplate (1 – 6) control knob (1)

4. Rear hotplate (1 – 6) control knob (2)

5. Hotplate ON indicator light

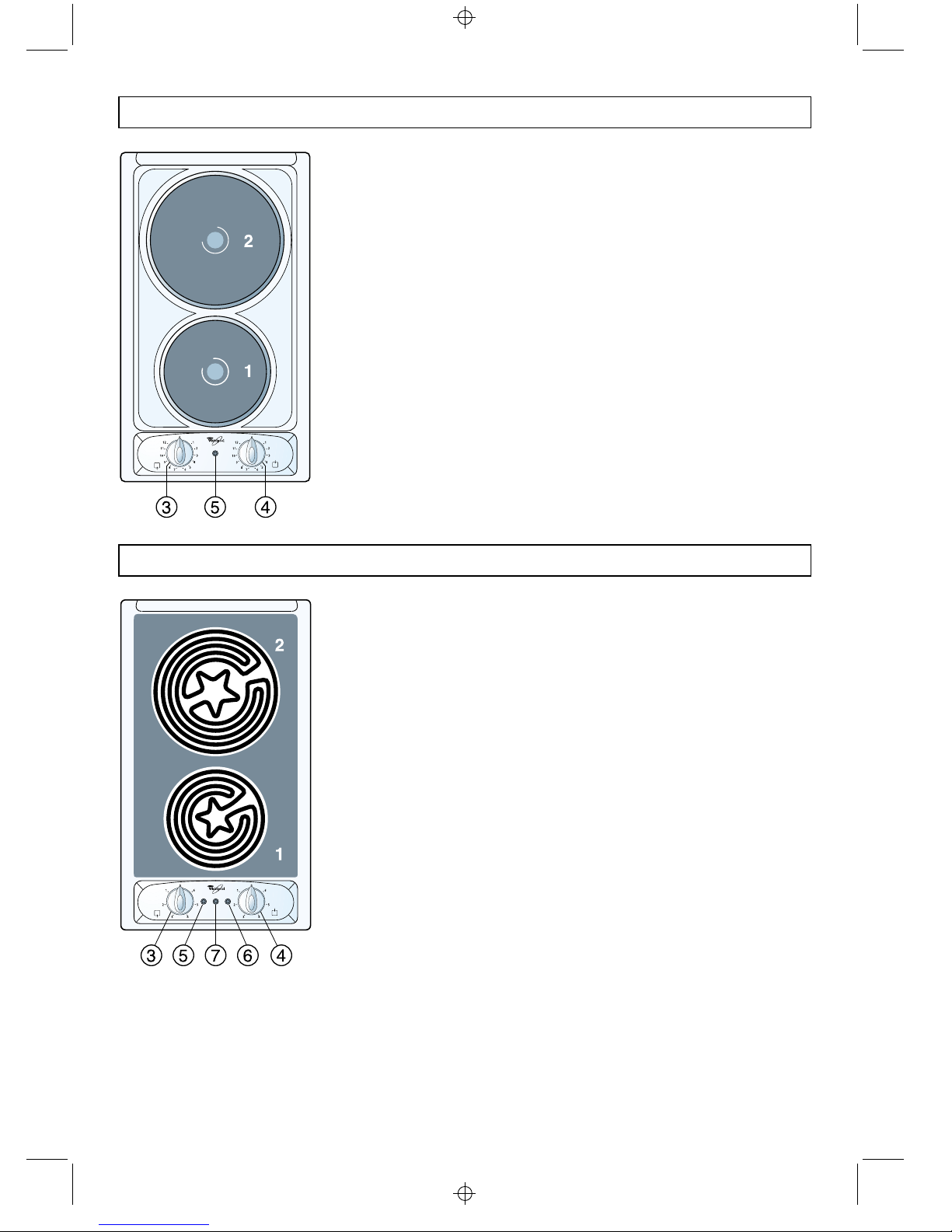

AKR 012

2 ELECTRIC HOTPLATE COOKTOP

- Electrical insulation Class I.

- Protection against overheating of adjacent

surfaces Type Y.

ELECTRIC HOTPLATES

1. High-speed electric hotplate Ø 145 – 1500 W

2. High-speed electric hotplate Ø 180 – 2000 W

CONTROL PANEL

3. Front hotplate (1 – 12) control knob (1)

4. Rear hotplate (1 – 12) control knob (2)

5. Hotplate ON indicator light

AKR 028

GLASS CERAMIC COOKTOP

- Electrical insulation Class I.

- Protection against overheating of adjacent

surfaces Type Y.

COOKING ZONES

1. “Quick light star” cooking zone Ø 145 – 1200W

2. “Quick light star” cooking zone Ø 180 – 1700W

CONTROL PANEL

3. Front zone control knob (1)

4. Rear zone control knob (2)

5. Front zone residual heat indicator light (1)

6. Rear zone residual heat indicator light (2)

7. Cooking zone ON indicator light

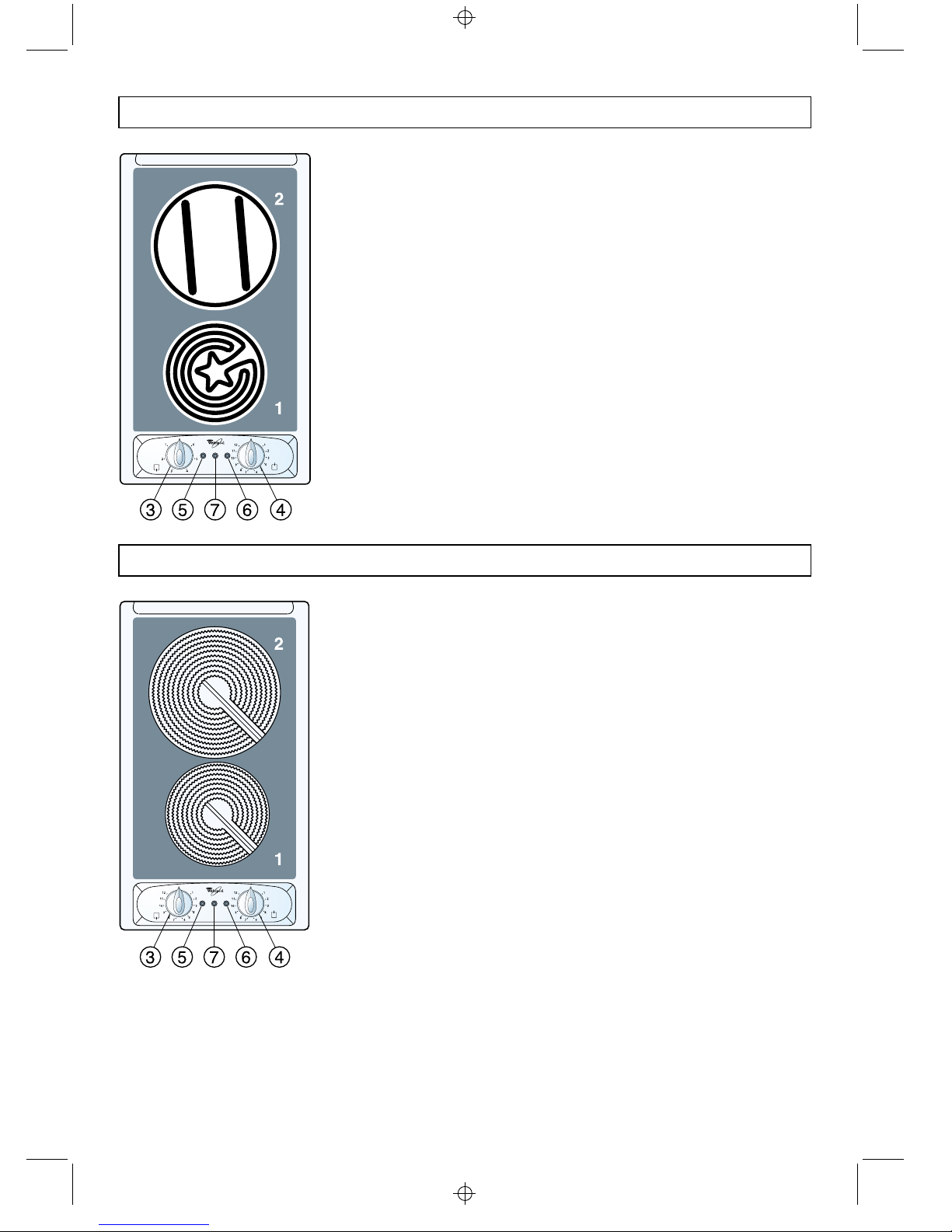

AKR 011

GLASS CERAMIC COOKTOP

- Electrical insulation Class I.

- Protection against overheating of adjacent

surfaces Type Y.

COOKING ZONES

1. “Quick light star” cooking zone Ø 145 – 1200W

2. “Halogen” cooking zone Ø 180 – 1800W

CONTROL PANEL

3. Frontzone1–6controlknob(1)

4. Rearzone1–12controlknob(2)

5. Front zone residual heat indicator light (1)

6. Rear zone residual heat indicator light (2)

7. Cooking zone ON indicator light

AKR 014

GLASS CERAMIC COOKTOP

- Electrical insulation Class I.

-Protection against overheating of adjacent surfaces

Type Y.

COOKING ZONES

1. “hilight” cooking zone Ø 145 – 1200W

2. “hilight” cooking zone Ø 180 – 1800W

CONTROL PANEL

3. Front zone control knob (1)

4. Rear zone control knob (2)

5. Front zone residual heat indicator light (1)

6. Rear zone residual heat indicator light (2)

7. Cooking zone ON indicator light

BEFORE USING THE COOKTOP

For best use of your coo top, read the

instructions for use carefully and eep them in

asafeplace.

This appliance must only be used for the

purpose for which it was designed, i.e. for

coo ing foods.

Any other use should be considered incorrect

and therefore dangerous.

The manufacturer declines all responsibility for

damage caused by unreasonable, incorrect or

rash use of the appliance.

Do not try to alter the technical features of

the appliance, because this could be very

dangerous.

Packaging materials (plastic bags, polystyrene pieces,

etc...) must be stored out of the reach of children as

they are potentially dangerous.

Check that the cooktop has not been damaged

during transport. If in doubt, consult a specialised

engineer.

Ma e sure that the installation and electrical

connections are made by a qualified electrician

following the manufacturer’s instructions and

in compliance with local regulations in force.

TIPS FOR SAFEGUARDING THE ENVIRONMENT

1. Pac aging

The packaging material is 100% recyclable and is

marked with the recycling symbol

to identify the

type of material which must be taken to the local

collection centres.

2. Product

The cooktop has been manufactured with recyclable

material. Dispose of it following the local regulations

for the disposal of waste.

Before disposing of it make it unusable by cutting

off the supply cable.

WARNINGS FOR THE USE OF ELECTRICAL APPLIANCES

When using electrical appliances some

important rules must always be followed. In

particular:

Never touch the appliance with wet or damp hands

or feet.

Never use the appliance with bare feet.

Keep children away from the hob when it is in use.

Before any cleaning or maintenance, switch off the

electricity to the cooktop.

PRECAUTIONS AND GENERAL SUGGESTIONS

Ris of fire!

Do not leave inflammable material on the cooktop.

Make sure that the electrical cables of other

appliances installed nearby cannot come into

contact with the cooktop.

Keep children away from the appliance, especially

when it is being used.

During and immediately after use some parts of the

cooktop reach very high temperatures.

Do not touch them.

Never cook the food directly on the electric

hotplates or on the glass ceramic cooktop, but in

special pans or containers.

If the coo top is fitted with a

glass cover:

Do not close the glass cover when the electric

hotplates are still hot. If there is an oven under the

cooktop, do not close the cover when the oven is

switched on or still hot.

Do not put pans or heavy objects on the cover.

Dry off any liquid which may have spilt on the cover

before opening it.

EC Declaration of conformity

This cooktop is intended to come into contact with

food products and conforms with European

Directive 89/109/EEC.

This cooktop has been designed for use only as a

cooking appliance. Any other use (e.g. heating

rooms) should be considered incorrect and therefore

dangerous.

This cooktop has been designed, constructed and

put on to the market in conformity with:

- Safety requirements of the “Low Voltage”

Directive 7 /2 /EEC and amendments;

- Protection requirements of the “EMC” Directive

89/ 6/EEC and amendments;

- Requirements of Directive 9 /68/EEC.

2 ELECTRIC HOTPLATE COOKTOP

Switch on the electric hotplates by turning the knob to

the position required.

Once the food is boiling turn down the power

accordingtotheheatingintensityrequired.

The hotplate will continue to give out heat for 5

minutes after it has been switched off.

The features of these electric hotplates, which are fitted

with a heating limiter, allow:

− rapid reaching of the temperature

− maximum use of the power with flat-bottomed pans

− limitation of the power if the pan is unsuitable.

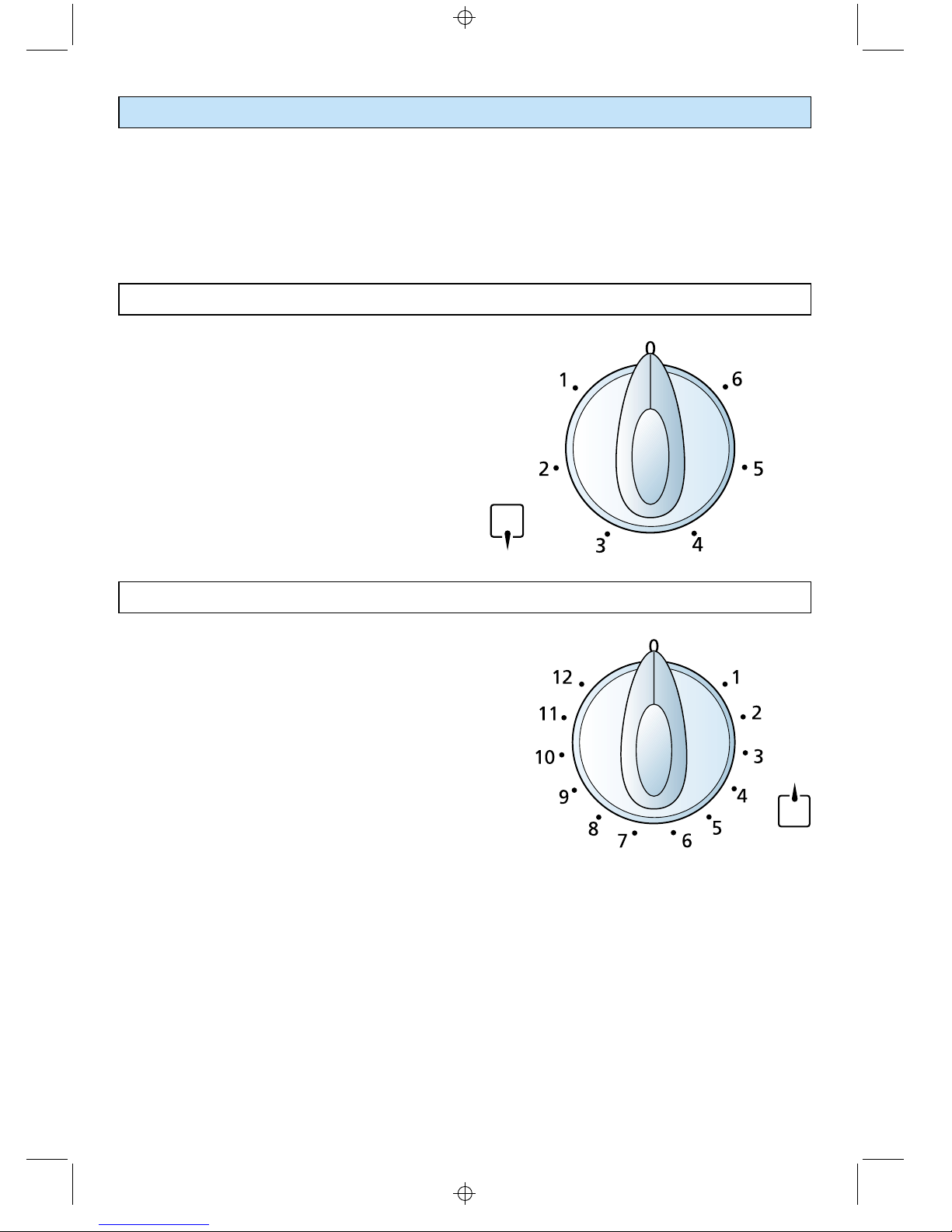

AKR 024 – AKR 010

The hotplate temperature is adjusted by a 7-position

changeover switch.

The numbers from 1 to 6 indicate the operating

positions with temperature increasing with the number.

AKR 012

A power regulator allows continuous adjustment of the

temperature of the electric hotplates from position 1

(minimum temperature) to 12 (maximum temperature.

2 ELECTRIC HOTPLATE COOKTOP

nob

TABLE FOR USE OF THE

nob

1-6 COOKING ZONES 1-12

1-2 1-2

For melting (butter, chocolate).

2 2-3-4

To keep food warm and to

heat small quantities of liquids.

3 4-5-6

To heat larger quantities, whip

creams and sauces.

3-4 6-7

Slow boiling, e.g.: boiled

vegetables, spaghetti, soups,

continuing steam cooking of

roasts, stews.

47-8

For all types of fried foods,

chops, steaks, cooking without

lid, e.g. risotto.

4-5 8-9-10

Browning meats, roast

potatoes, fried fish and to boil

large quantities of water.

6 11-12

Quick frying, steaks in steak

pan, etc.

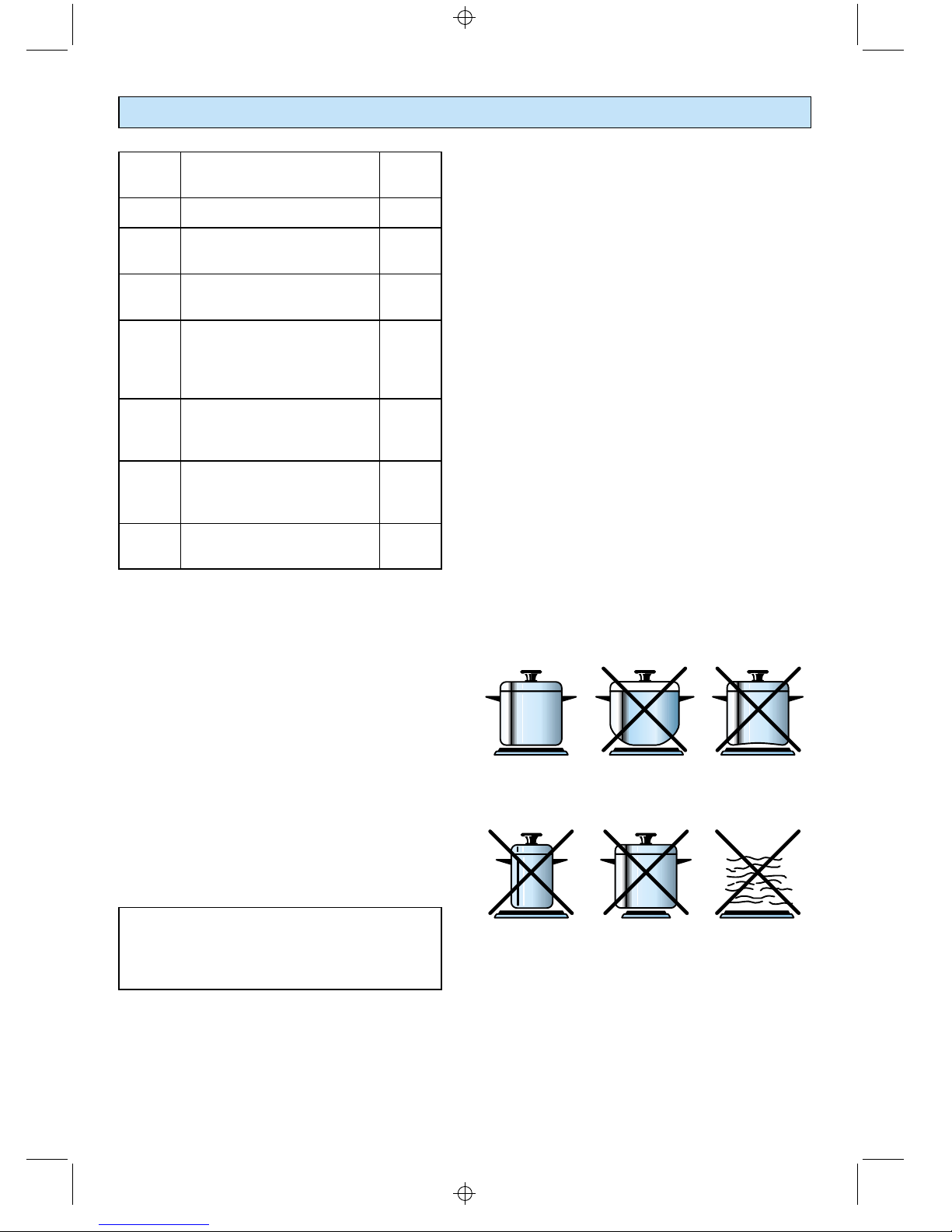

CORRECT USE OF THE ELECTRIC

HOTPLATES

When using the electric hotplate:

− absolutely avoid idle operation (without pans)

− try not to spill liquids on the hotplates when they

are hot

− only use pans with flat bottoms (electric type)

− to save electricity use lids when possible

− always use pans which cover the hotplate surface

completely.

Operation of the electric hotplates is signalled by an

indicator light.

ATTENTION

During and after use of the electric hotplates

the coo top becomes hot.

Keep children away.

GLASS CERAMIC COOKTOP

The cooktop’s glass ceramic surface allows rapid

vertical heat transmission from the heating elements

under the cooktop to the pans on it.

The heat does not propagate horizontally and thus the

cooktop remains “cold” just a few centimetres away

from the cooking zone.

The two cooking zones are indicated by two circles

drawn on the glass ceramic surface.

Before switching on the cooktop make sure that it is

clean.

ATTENTION

During and after use of the electric hotplates

the coo top becomes hot.

Keep children away.

nob

TABLE FOR USE OF THE

nob

1-6 COOKING ZONES 1-12

1-2 1-2

For melting (butter, chocolate).

22-3-4

To keep food warm and to

heat small quantities of liquids.

34-5-6

To heat larger quantities, whip

creams and sauces.

3-4 6-7

Slow boiling, e.g.: boiled

vegetables, spaghetti, soups,

continuing steam cooking of

roasts, stews.

47-8

For all types of fried foods,

chops, steaks, cooking without

lid, e.g. risotto.

4-5 8-9-10

Browning meats, roast potatoes,

fried fish and to boil large

quantities of water.

6 11-12

Quick frying, steaks in steak

pan, etc.

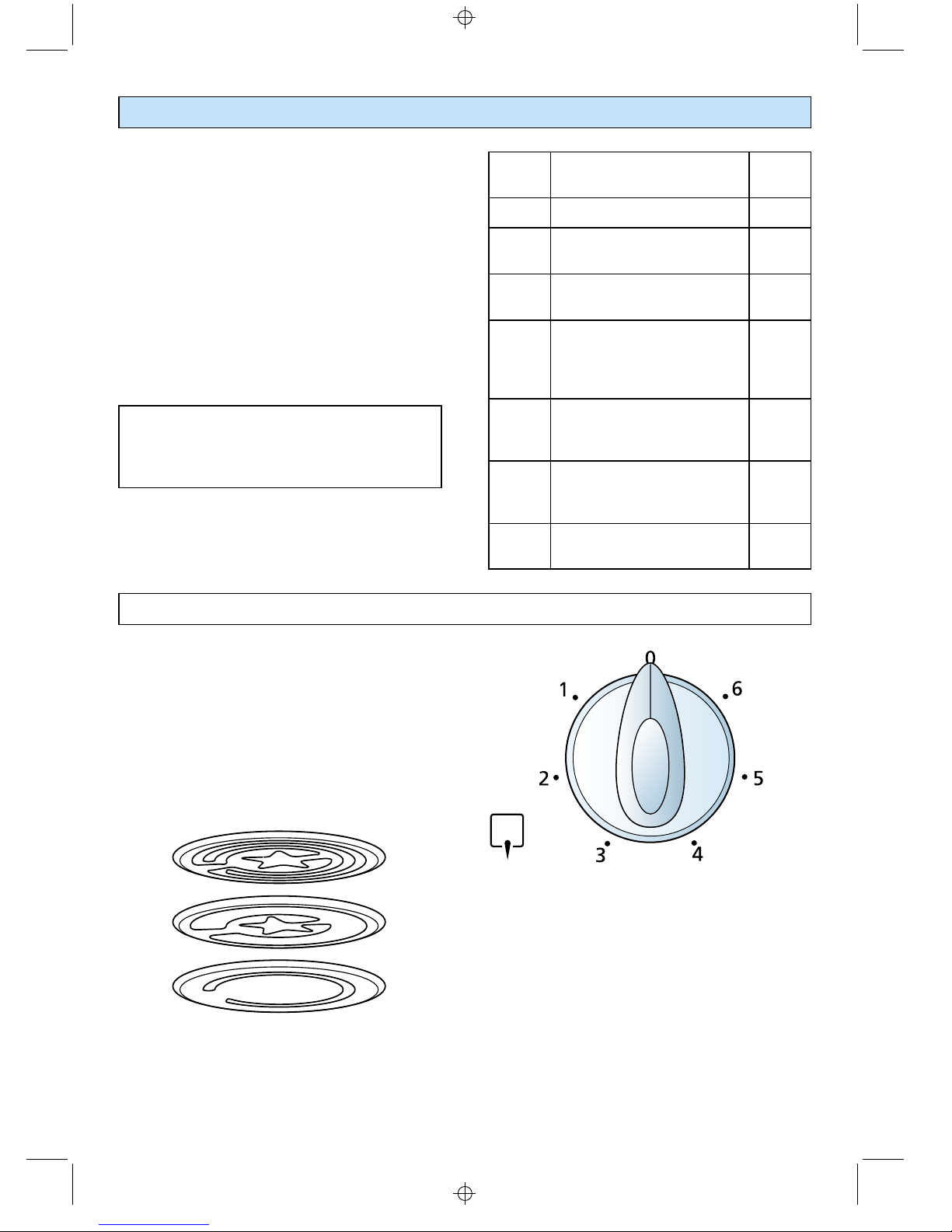

AKR 028

“Quic light star” RADIANT ZONES

The heating element is formed of electrical

resistances which can work together or separately

depending on the position of the 7-position

changeover switch.

It reaches the working temperature quickly.

The figure below shows the ways in which the

heating elements can work.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool plaque de cuisson

Whirlpool

Whirlpool GJC3634RB04 Manuel utilisateur

Whirlpool

Whirlpool 36" (91.4 CM) GAS BUILT-IN COOKTOP Manuel utilisateur

Whirlpool

Whirlpool W3CG3014X Manuel de la liste des pièces

Whirlpool

Whirlpool RC8430XTB0 Manuel utilisateur

Whirlpool

Whirlpool WCG55US0HB Manuel utilisateur

Whirlpool

Whirlpool WCC31430AB Manuel utilisateur

Whirlpool

Whirlpool Cooktop Manuel utilisateur

Whirlpool

Whirlpool 3189086 Manuel utilisateur

Whirlpool

Whirlpool 30 " Eye-Level Gas Range Manuel utilisateur

Whirlpool

Whirlpool SC8436ER Manuel utilisateur

Whirlpool

Whirlpool 30" ELECTRIC MODULARDOWNDRAFT COOKTOP Manuel utilisateur

Whirlpool

Whirlpool RCS3014R Manuel utilisateur

Whirlpool

Whirlpool GLT3057RB05 Manuel utilisateur

Whirlpool

Whirlpool RC8100XA Manuel utilisateur

Whirlpool

Whirlpool WCC31430AB Manuel utilisateur

Whirlpool

Whirlpool G7CG3064 Manuel utilisateur

Whirlpool

Whirlpool SC863OEW Manuel utilisateur

Whirlpool

Whirlpool AKM 605 Manuel utilisateur

Whirlpool

Whirlpool WRD 6030 B Manuel utilisateur

Whirlpool

Whirlpool WCG52424AS Manuel utilisateur

Whirlpool

Whirlpool YGR556LRKB0 Manuel utilisateur

Whirlpool

Whirlpool KGCC506RWW Manuel utilisateur

Whirlpool

Whirlpool GJC3034RC - Pure 30 Inch Smoothtop Electric... Manuel utilisateur

Whirlpool

Whirlpool SC8720ED Manuel utilisateur

Manuels plaque de cuisson populaires d'autres marques

Bonnet

Bonnet OPTIMUM 700 Manuel du propriétaire

Jenn-Air

Jenn-Air JGCP430 Manuel utilisateur

Frigidaire

Frigidaire FES367FCC Guide de démarrage rapide

Ztove

Ztove EZ2 DUO Manuel utilisateur

Kleenmaid

Kleenmaid cooking GCTK9011 Guide d'installation

Casselin

Casselin CSASRE24 Manuel utilisateur

Jenn-Air

Jenn-Air JGC2536EB00 Manuel utilisateur

Waldorf

Waldorf RN8603E-B Mode d’emploi

Wolf

Wolf CI243C/B Manuel utilisateur

Fulgor Milano

Fulgor Milano F5PGK305S1 Manuel utilisateur

GE JP389 Manuel utilisateur

Wells

Wells WV-2HFG Manuel utilisateur

IKEA

IKEA Lagan HGA4K Manuel utilisateur

Samsung

Samsung NA36N9755 Manuel utilisateur

Miele

Miele KM 404 Manuel utilisateur

Lacor

Lacor 69562 Fiche technique

Keating Of Chicago

Keating Of Chicago MG-2 Manuel utilisateur

Jenn-Air

Jenn-Air CCE1400 Manuel utilisateur
