OVEN PARTS

For Models: GBS277PRQ03, GBS277PRB03, GBS277PRS03

(Black) (Designer White) (Stainless)

5−08 Litho in U.S.A. (amd) (psw) Part No. W10208656 Rev. A

27" BUILT−IN ELECTRIC

SINGLE CONVECTION OVEN

(GOLD LINE)

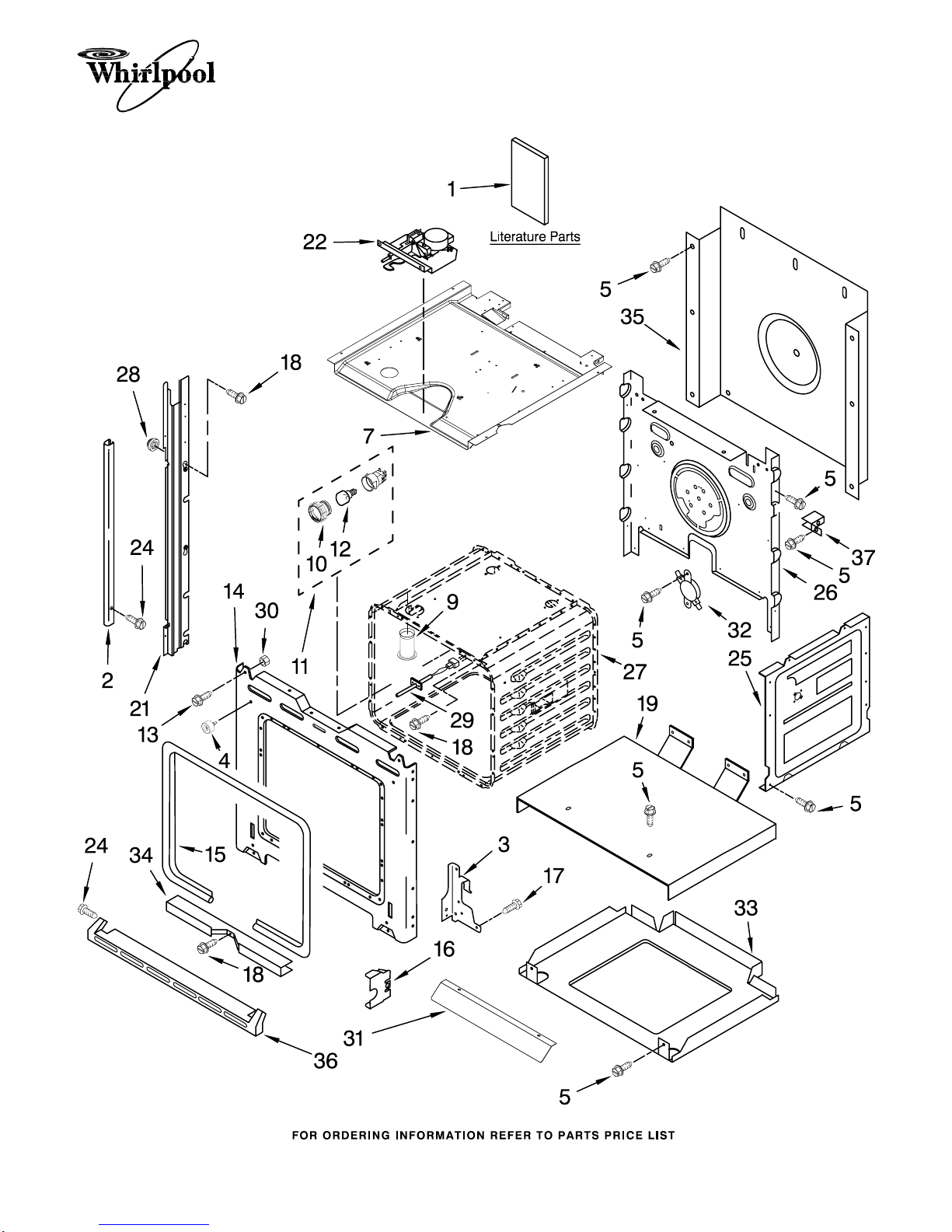

OVEN PARTS

For Models: GBS277PRQ03, GBS277PRB03, GBS277PRS03

(Black) (Designer White) (Stainless)

W10208656

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303648 Installation

Instructions

Owners Manual

W10162171

English

W10162172

French

8301758 Tech Sheet

8304571 Installation/

Undercounter

8301928 Installation/

Micro Trim Kit

Safer Cooking Tips

9762761 English

W10065852

French

2 Trim, Side

Right

W10136093

Black

W10136094

White

W10166950

Stainless

Left

W10136092

Black

W10136095

White

W10166951

Stainless

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door

5 4449809 Screw

7 4455864 Top Chassis

9 4452158 Tube, Vent

W10067870

Lens, Light

W10009930

Assembly, Light

12 4452166 Bulb, Light

13 4449040 Screw

W10130370

Frame, Front

15 4455381 Gasket, Door

16 4452152 Bracket, Mounting

17 4449743 Screw

18 4449154 Screw

19 4451477 Support, Insulation

21 Rail, Side

8303115 Right

8303116 Left

22 9760888 Latch, Motorized

24 Screw

3400832 Black

3400805 Zinc

25 4455641 Side, Chassis

W10161109

Back, Chassis

27 Liner, Oven

(Not serviceable)

28 4448444 Grommet

W10131825

Sensor

30 4450118 Nut

31 9760676 Deflector, Vent

32 9759243 Switch, Safety

Thermostat

33 4455529 Base, Chassis

34 4448933 Retainer, Gasket

35 4451747 Cover, Back

36 Trim, Bottom

8303579 Black

8303580 White

8303578 Stainless

37 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

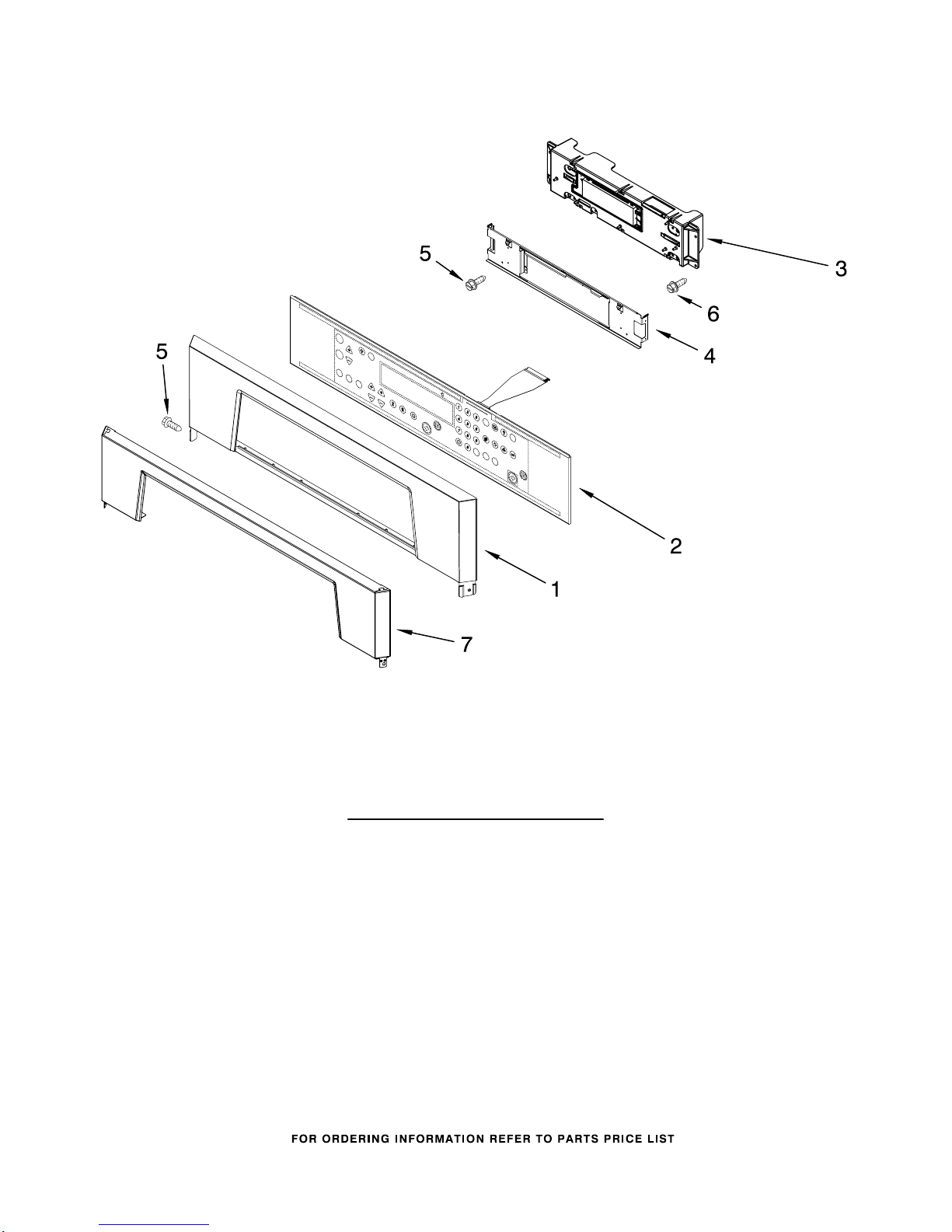

CONTROL PANEL PARTS

For Models: GBS277PRQ03, GBS277PRB03, GBS277PRS03

(Black) (Designer White) (Stainless)

W10208656

Illus. Part

No. No. DESCRIPTION

1 Control Panel

8302844 Black

8302845 White

2 Assembly, Switch

W10161675

Black

W10161674

White

3 8303885 Assembly, Control

W10153087

Backer, Control

5 4449745 Screw

6 3400832 Screw

W10166945

Trim, Control

Panel (Stainless

model only)

OVEN DOOR PARTS

For Models: GBS277PRQ03, GBS277PRB03, GBS277PRS03

(Black) (Designer White) (Stainless)

W10208656

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303699 Door Liner

2 8303810 Nameplate

3 4449253 Glass, Inner

4 4451721 Insulation, Door

W10136472

Bracket, Handle

6 4451040 Screw

7 9759224 Glass, Inner

8 4449809 Screw

9 4449743 Screw

10 3400832 Screw

11 4448520 Bumper, Door (3)

12 Assembly, Door

Glass

8303298 Black

8303304 White

8303286 Stainless

13 Door Handle

8302810 Black

8302811 White

8303163 Stainless

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

17 4457102 Shield, Heat

18 4457131 Retainer, Glass

19 4457113 Shield, Heat

Bottom

20 Hinge, Door

9760575 Right

9760576 Left

INTERNAL OVEN PARTS

For Models: GBS277PRQ03, GBS277PRB03, GBS277PRS03

(Black) (Designer White) (Stainless)

W10208656

Illus. Part

No. No. DESCRIPTION

1 4449154 Screw

2 9760771 Element, Broil

3 4448715 Rack, Oven

4 9760766 Element, Bake

W10116228

Motor, Convection

W10116351

Blade, Fan

W10116349

Nut

8 4448988 Cover, Fan

TOP VENTING PARTS

For Models: GBS277PRQ03, GBS277PRB03, GBS277PRS03

(Black) (Designer White) (Stainless)

W10208656

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent Top

3 4457289 Blower

7103P027−60

Nut, Terminal

Block (3)

5 4455177 Elbow, Vent Bottom

6 4449809 Screw

7 3400080 Screw

8 4451985 Suppressor

9 4449868 Block, Terminal

10 8303498 Vent, Control

Panel

4450038 Screw

11 Side, Control Top

4451597 Right

4451598 Left

12 9759135 Back, Control

13 4450550 Cover, Top Rear

14 4448664 Clamp

15 4452366 Cover, Top Front

16 4451758 Seal, Foam

OPTIONAL PARTS

For Models: GBS277PRQ03, GBS277PRB03, GBS277PRS03

(Black) (Designer White) (Stainless)

W10208656

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

4450952 Conduit

4450800 Screw, Ground

4452400 Lead, Ground Strap

4448664 Clamp

4449809 Screw

98997 Clip

8301399 Harness, Main

4451761 Support, Wiring

4454842 Tie, Cable

4454835 Tie, Cable

INSTALLATION KIT

Miscellaneous

W10106920

Screws, Install
