Westomatic Primo MINI Manuel utilisateur

INSTALLATION GUIDE

MINI/MIDI

TECHNICAL INFORMATION - MINI

External Dimensions:

W409xD569xH520mm

Capacity Instant Canisters:

1x2.3L and 2x1.2L

Noise Emission: <70dB

Weight: 18kg

The Primo Mini is a slimline Instant

Machine. The machine has 3

canisters, is capable of 24 different

drink choices, and produce a drink

every 10 seconds:

TECHNICAL INFORMATION - MIDI

External Dimensions:

W409xD520xH569mm

Capacity Instant Canisters:

4x1.2L

Noise Emission: <70dB

Weight: 23kg

The Primo Midi is an Instant

Machine capable of 24 different

drink choices, and with 4 canisters

provides a great variety. The Midi

can produce a drink every 10

seconds:

Parts Included:

Primo Mini/Midi Machine

Drip Tray and Grid

Waste Bin (inside machine)

Cleaning Container

Power Cable

Westomatic Hose set

Canister Labels

Keys

Safety Instructions

Welcome Booklet

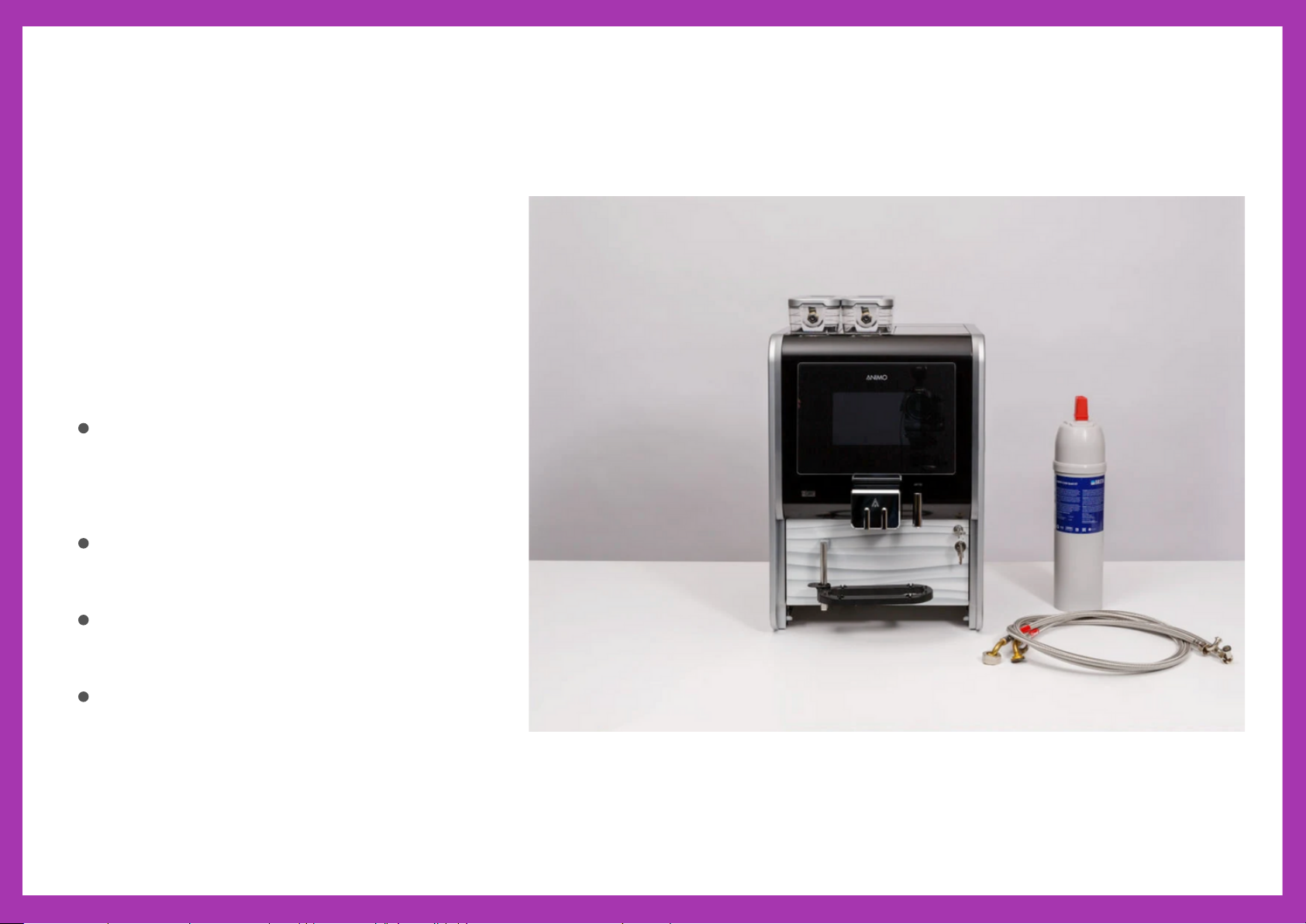

Check the contents:

NB: The machine will have been set up to your specifications and tested at Westomatic

HQ prior to install. All parts have been assembled on the machine. The QR code inside

the machine gives access to the We:Support pages with technical information.

Important:

Ensure genuine Westomatic

water hoses are used, fitted

with a water cut-off

Ensure the power supply has

a capacity of at least 2.5W.

Ensure the surface has a

capacity of at least 50kg

Water supply requirements:

Water Pressure: 0.2 - 1.0MPa

(2-8 Bar)

Westomatic strongly recommend

using a water filter to prevent

scale build up in the parts - if this

happens the warranty on the

machine becomes void.

Flow Rate: >1L/Min

Water Temperature: <25°C

Ensure the

protective foil is

removed from

the touchscreen.

Once in place -

Level the machine

Min Clearances:

Rear: 50mm

Above:250mm

Left: 100mm

Connect water

filter to main

water - set filter

to hardness of

local area

Place grill into

drip tray

Connect water

filter to Primo -

ensure new

hoses are used

Slide drip tray

into machine

Place the cup tray

grill onto tray and

firmly push down

to clip into place

Connect Primo

to an earthed

power socket

Westomatic will

have taken your

set up

specifications and

attached labels

Switch the Primo

Mini/Midi on -

switch located

below instant

canisters.

Machine is set

up and ready to

use or install

any accessories

Close the lid,

and the door.

Lock the door.

INSTALL WASTE TO BASE DRAIN

The Primo Drain Hose WVS

PN: 1057278 (Midi)

A screw driver

Combination Pliers

There is the option to have

plumbed drainage from the drip

tray to waste water drain:

Required Items:

NB: The machine must be

situation within close proximity

of a waste water drain - and

there needs to be height

differential to ensure the water

flows freely into the drain.

Remove the drip

tray from the

machine

Drill a 6mm hole

in drip tray

connector.

Route the hose

to the rear under

the machine.

Place and fix

the drain hose

in the waste

water drain.

Connect the

drain hose to

the drip tray

connector.

Replace drip

tray at the front

of the machine.

INSTALL CUP WARMER

External Dimensions Cup

Warmer:

W230xD420xH455mm

External Dimensions Total:

W530xD515xH600mm

Noise Emission: <70dB

Weight: 11kg (Total: 49kg)

The cup warmer is designed for

pre-heating coffee cups and

glasses used with the Primo

Mini/Midi:
