Western Tornado Manuel utilisateur

This document supersedes all editions with an earlier date.

August 15, 2016

Lit. No. 76455, Rev. 00

Tornado™ UTV Hopper Spreader

#78600

Owner's Manual

Original Instructions

This manual is for WESTERN®Tornado UTV hopper spreaders with

serial numbers 160901 and higher.

CAUTION

Read this manual before installing or

operating the spreader.

Western Products, PO Box 245038, Milwaukee, WI 53224-9538 • www.westernplows.com

Lit. No. 76454/76455/76456, Rev. 00 3 August 15, 2016

TABLE OF CONTENTS

PREFACE.................................................................... 5

Owner's Information.............................................. 5

SAFETY INFORMATION............................................ 6

Safety Deﬁnitions .................................................. 6

Warning/Caution Labels ....................................... 6

Serial Number Label ............................................. 7

Safety Precautions................................................ 8

Personal Safety..................................................... 8

Fire and Explosion ................................................ 9

Cell Phones........................................................... 9

Ventilation ............................................................. 9

Battery Safety ....................................................... 9

LOADING.................................................................. 10

Material Weights ................................................. 10

Certiﬁcation......................................................... 10

Determining Vehicle Payload.............................. 11

MOUNTING THE SPREADER ................................. 12

OPERATING THE SPREADER – CAB CONTROL .14

Starting and Stopping Motor............................... 14

Adjusting Auger/Spinner Speed.......................... 14

Spreading Tips.................................................... 14

Auto-Reverse "AR" Feature....................................15

MAINTENANCE........................................................ 16

Lubrication .......................................................... 16

After Each Use.................................................... 16

Storage ............................................................... 16

At the End of Each Season or

After Extended Storage............................. 16

TROUBLESHOOTING GUIDE ................................. 17

Lit. No. 76455, Rev. 00 5 August 15, 2016

PREFACE

This manual has been prepared to acquaint you with

the safety information, operation and maintenance of

your new hopper spreader. Please read this manual

carefully and follow all recommendations. This will

help ensure proﬁtable and trouble-free operation of

your hopper spreader. Keep this manual accessible. It

is a handy reference in case minor service is required.

When service is necessary, bring your hopper

spreader to your distributor. They know your spreader

best and are interested in your complete satisfaction.

NOTE: This spreader is designed to spread snow

and ice control materials only. Do not use it

for purposes other than those speciﬁed in this

manual.

OWNER'S INFORMATION

Owner's Name: ______________________________________________________________________

Date Purchased: _____________________________________________________________________

Outlet Name: ______________________________________________ Phone:_________________

Outlet Address: ______________________________________________________________________

Vehicle Model: _______________________________________________ Year: _______________

Spreader Type (Model):________________________________ Serial #:______________________

Length:________________________ Weight: __________________ lb/kg: _________________

Lit. No. 76454/76455/76456, Rev. 00 6 August 15, 2016

SAFETY DEFINITIONS

NOTE: Indicates a situation or action that can lead

to damage to your spreader and vehicle or other

property. Other useful information can also be

described.

SAFETY INFORMATION

WARNING/CAUTION LABELS

Please become familiar with the Warning and Caution

labels on the spreader.

NOTE: If labels are missing or cannot be read, see

your sales outlet.

CAUTION

Indicates a potentially hazardous situation

that, if not avoided, may result in minor or

moderate injury. It may also be used to alert

against unsafe practices.

WARNING

Indicates a potentially hazardous situation

that, if not avoided, could result in death or

serious personal injury.

• Read Owner’s Manual for Installation Instructions.

• Secure spreader to truck with ratchet straps.

• Anchor spreader securely to truck body with bolt kit provided to

prevent slipping or sliding.

• Routinely check straps and handware to make sure they are secure.

D6548

NO STEP

• Slippery Surface When Wet.

• May Cause Severe Injury

D6545

ROTATING PARTS AND FLYING OB-

JECTS CAN CAUSE INJURY OR DEATH

• Keep hands, arms, feet and loose clothing away

• Shut o power ans stop engine before servicing

• Read owners manual before operating.

• Keep bystanders at least 60 ft away.

D6544

Lit. No. 76454/76455/76456, Rev. 00 7 August 15, 2016

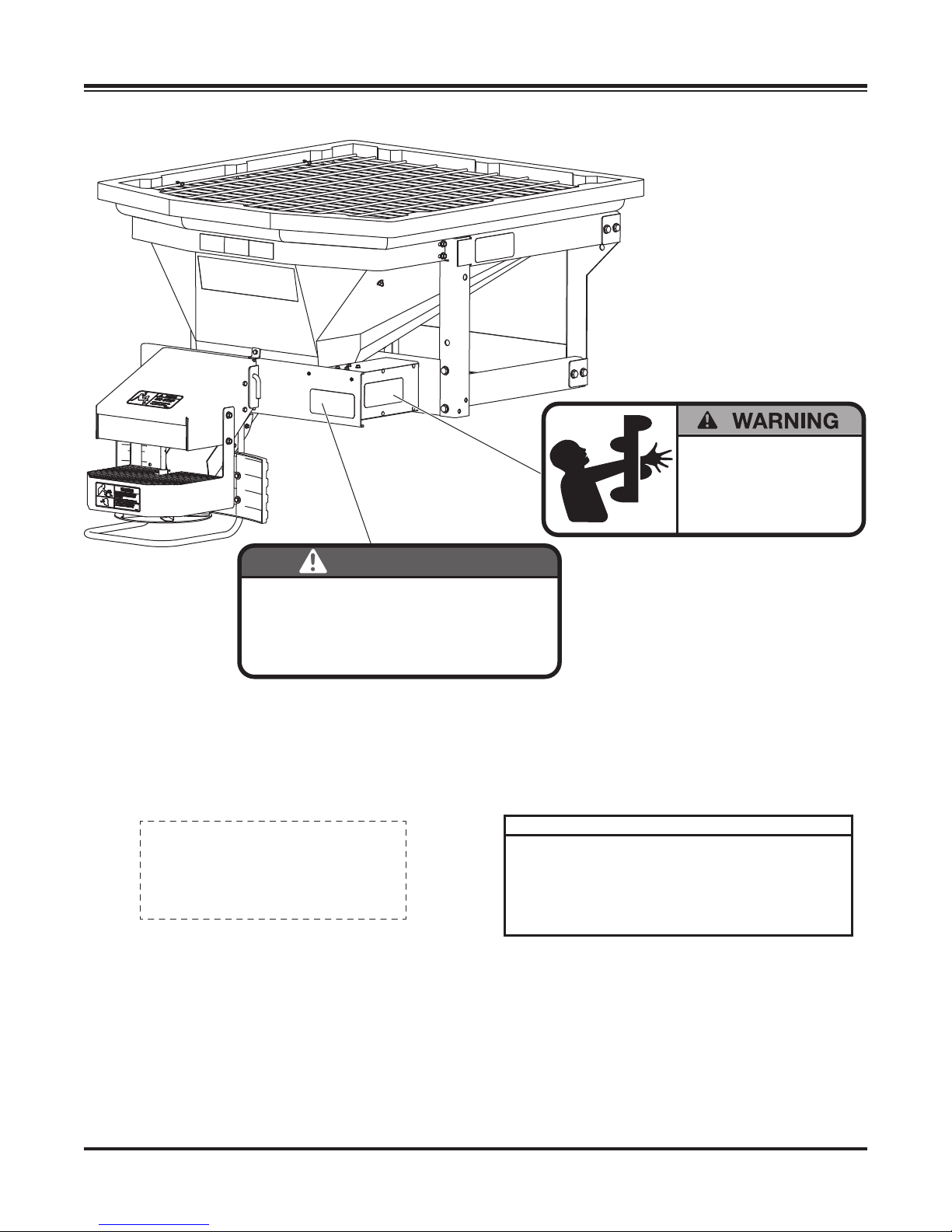

SERIAL NUMBER LABEL

Code Deﬁnition

YY 2-Digit Year

MM 2-Digit Month

DD 2-Digit Day

#### 4-Digit Sequential Number

PPPPP 5-Digit Assembly PN

ROTATING AUGER CAN CAUSE

SERIOUS INJURY OR DEATH

• Keep arms, hands, and loose clothing

away from auger.

• Shut o control and unplug spreader

before servicing. D6335

YYMMDD####PPPPP

SERIAL NO.

11 cu ft

MODEL NO.

SAFETY INFORMATION

• DO NOT REMOVE SPREADER WITH MATERIAL IN HOPPER

• FASTEN SPREADER DOWN WITH APPROVED RATCHET

STRAPS AND BOLT KIT

• REAR FRAME LOCATOR BARS MUST BE IN PLACE BEFORE

OPERATING VEHICLE

DANGER

D6547

Lit. No. 76454/76455/76456, Rev. 00 8 August 15, 2016

SAFETY INFORMATION

SAFETY PRECAUTIONS

Improper installation and operation could cause

personal injury and/or equipment and property

damage. Read and understand labels and the

Owner's Manual before installing, operating or making

adjustments.

WARNING

• Driver to keep bystanders minimum of

25 feet away from operating spreader.

• Before working with the spreader, secure all

loose-ﬁtting clothing and unrestrained hair.

• Before operating the spreader, verify all

safety guards are in place.

• Before servicing the spreader, wait for

auger and spinner to stop.

• Do not climb into or ride on spreader.

WARNING

Overloading could result in an

accident or damage. Do not exceed

GVWR of UTV. See Loading Section

to determine maximum volumes of

spreading material.

CAUTION

• Do not operate a spreader in need of

maintenance.

• Before operating the spreader, reassemble

any parts or hardware removed for cleaning

or adjusting.

• Before operating the spreader, remove

materials such as cleaning rags, brushes,

and hand tools from the spreader.

• While operating the spreader, use auxiliary

warning lights, except when prohibited by law.

CAUTION

Disconnect electric and/or hydraulic power

and tag out if required before servicing or

performing maintenance.

CAUTION

DO NOT leave unused material in

hopper. Material can freeze or solidify,

causing unit to not work properly.

Empty and clean after each use.

NOTE: Lubricate grease ﬁttings after each use.

Use a good quality multipurpose grease.

PERSONAL SAFETY

• Remove ignition key and put the vehicle in park

or in gear to prevent others from starting the UTV

during installation or service.

• Wear only snug-ﬁtting clothing while working on

your vehicle or spreader.

• Do not wear jewelry or a necktie, and secure long

hair.

• Wear safety goggles to protect your eyes from

battery acid, gasoline, dirt and dust.

• Avoid touching hot surfaces such as the engine,

radiator, hoses and exhaust pipes.

• Always have a ﬁre extinguisher rated BC handy,

for ﬂammable liquids and electrical ﬁres.

Lit. No. 76454/76455/76456, Rev. 00 9 August 15, 2016

VENTILATION

BATTERY SAFETY

SAFETY INFORMATION

FIRE AND EXPLOSION

Be careful when using gasoline. Do not use gasoline

to clean parts. Store only in approved containers away

from sources of heat or ﬂame.

CELL PHONES

A driver's ﬁrst responsibility is the safe operation of

the vehicle. The most important thing you can do

to prevent a crash is to avoid distractions and pay

attention to the road. Wait until it is safe to operate

Mobile Communication Equipment such as cell

phones, text messaging devices, pagers or two-way

radios.

CAUTION

Batteries normally produce explosive gases

which can cause personal injury. Therefore,

do not allow ﬂames, sparks or lit tobacco

to come near the battery. When charging or

working near a battery, always cover your

face and protect your eyes, and also provide

ventilation.

• Batteries contain sulfuric acid which burns

skin, eyes and clothing.

• Disconnect the battery before removing or

replacing any electrical components.

WARNING

Vehicle exhaust contains lethal fumes.

Breathing these fumes, even in low

concentrations, can cause death. Never

operate a vehicle in an enclosed area without

venting exhaust to the outside.

WARNING

Gasoline is highly ﬂammable and gasoline

vapor is explosive. Never smoke while

working on vehicle. Keep all open ﬂames

away from gasoline tank and lines. Wipe up

any spilled gasoline immediately.

Lit. No. 76454/76455/76456, Rev. 00 10 August 15, 2016

This Manual covers vehicles which have been

recommended for carrying the hopper spreader.

Please see your local dealer for proper vehicle

applications.

MATERIAL WEIGHTS

WARNING

Overloading could result in an accident or

damage. Do not exceed GVWR of UTV.

CAUTION

Read and adhere to manufacturer's

ice-control material package

labeling including Material Safety

Data Sheet requirements.

Autres manuels pour tornado

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Western Épandeur

Western

Western WB-100B Mode d'emploi

Western

Western Tornado 78000-1 Manuel utilisateur

Western

Western PRO-FLO 300W Mode d'emploi

Western

Western LOW-PRO Mode d'emploi

Western

Western PRO-FLO Manuel utilisateur

Western

Western Striker 98825 Manuel utilisateur

Western

Western WB-160D Mode d'emploi

Western

Western PRO-FLO 2 Manuel utilisateur

Western

Western 110 Manuel utilisateur

Western

Western PRO-FLO Manuel utilisateur

Western

Western LOW-PRO 300 Mode d'emploi

Western

Western Tornado 78000-1 Manuel utilisateur

Western

Western 1000 Manuel utilisateur

Western

Western 78600 Manuel utilisateur

Western

Western Striker 98805 Manuel utilisateur

Western

Western tornado Manuel utilisateur

Western

Western Striker 98810 Manuel utilisateur

Western

Western ICE BREAKER Hopper Spreader Manuel utilisateur

Western

Western Drop 250 Mode d'emploi

Western

Western ICE BREAKER Manuel utilisateur

Western

Western Striker Series Manuel utilisateur

Western

Western LOW-PRO 300G Mode d'emploi

Western

Western PRO-FLO 2 Manuel utilisateur

Manuels Épandeur populaires d'autres marques

PEQUEA

PEQUEA GT-100 Manuel utilisateur

Herculano

Herculano H2RS9 Manuel utilisateur

Epoke

Epoke SKE8 Manuel utilisateur

GEA

GEA EL44 Fiche technique

Boss Snowplow

Boss Snowplow TGS 800 Manuel utilisateur

Fisher

Fisher EMERSON 168 Series Manuel utilisateur

Fisher

Fisher POLY-CASTER 78601 Manuel utilisateur

TurfEx

TurfEx RS7200 Manuel du propriétaire

Ferris

Ferris Pathfinder Series Manuel utilisateur

Fayat Group

Fayat Group DYNAPAC S100 Guide de dépannage

Art's-Way Manufacturing

Art's-Way Manufacturing X700 Manuel d'installation et d'exploitation

EASTMAN

EASTMAN CR 500 Manuel utilisateur

Nogueira

Nogueira RoyalFlow-600 Manuel utilisateur

Buyers

Buyers TGS05B Manuel utilisateur

Magnum

Magnum V-BOX PV Series Supplément

Meyer's

Meyer's VB280 Manuel utilisateur

SnowEx

SnowEx VX-4210 Manuel utilisateur

Kramer

Kramer VM-400HDCP Manuel utilisateur
