Ultrastar® Data102

Regulatory Model: H4102-J

December 2020

Rev. 1.3

1ET1639

Recommended Rack

Configurations Table of Contents

Table of Contents

Revision History......................................................................................................................................ii

Points of Contact.................................................................................................................................. iii

Notices...................................................................................................................................................iv

Chapter 1. Overview.........................................................................................................1

Ultrastar Data102 Rack Requirements.................................................................................................2

Rack Safety........................................................................................................................................... 3

CMA Standard Recommended Racks................................................................................................ 4

CMA Lite Recommended Racks......................................................................................................... 5

Vertical Rack Rail Settings...................................................................................................................6

Recommended PDUs and Available Installation Space.................................................................... 7

Chapter 2. CMA Standard Rack Specifications.......................................................... 10

CRENLO/EMCOR................................................................................................................................. 11

AFCO/Legrand.....................................................................................................................................11

TRIPP LITE............................................................................................................................................12

APC/Schneider....................................................................................................................................13

Chapter 3. CMA Lite Rack Specifications................................................................... 14

CRENLO/EMCOR.................................................................................................................................15

AFCO/Legrand.................................................................................................................................... 15

TRIPP LITE............................................................................................................................................16

APC/Schneider.................................................................................................................................... 17

Chapter 4. Installation................................................................................................... 18

PDU Mounting Bracket Installation (KIT-MBVPT-1B).......................................................................... 19

PDU Mounting Bracket Installation (KIT-MB-40)............................................................................... 25

Recommended Rack

Configurations Revision History

Revision History

Date Revision Comment

March 2018 Revision 1.0 Initial Release

February 2019 Revision 1.1 Added CMA Lite

December 2019 Revision 1.2 Rebranded document to WD design

December 2020 Revision 1.3 Added UK Import Representation

Contact

Recommended Rack

Configurations Points of Contact

Points of Contact

For further assistance with a Western Digital product, contact Western Digital Datacenter Platforms technical

support. Please be prepared to provide the following information: part number (P/N), serial number (S/N),

product name and/or model number, and a brief description of the issue.

Email:

support@wdc.com

Website:

https://portal.wdc.com/Support/s/

UK Import Representation Contact

Western Digital UK Limited Hamilton House, Regent Park, Kingston Road Leatherhead, Surrey KT22 7PL, GB,

United Kingdom

Telephone: +44 1372 366000

iii

Recommended Rack

Configurations Notices

Notices

Western Digital Technologies, Inc. or its affiliates' (collectively “Western Digital”) general policy does not

recommend the use of its products in life support applications where in a failure or malfunction of the

product may directly threaten life or injury. Per Western Digital Terms and Conditions of Sale, the user of

Western Digital products in life support applications assumes all risk of such use and indemnifies Western

Digital against all damages.

This document is for information use only and is subject to change without prior notice. Western Digital

assumes no responsibility for any errors that may appear in this document, nor for incidental or consequential

damages resulting from the furnishing, performance or use of this material.

Absent a written agreement signed by Western Digital or its authorized representative to the contrary,

Western Digital explicitly disclaims any express and implied warranties and indemnities of any kind that may,

or could, be associated with this document and related material, and any user of this document or related

material agrees to such disclaimer as a precondition to receipt and usage hereof.

Each user of this document or any product referred to herein expressly waives all guaranties and warranties

of any kind associated with this document any related materials or such product, whether expressed or

implied, including without limitation, any implied warranty of merchantability or fitness for a particular

purpose or non-infringement. Each user of this document or any product referred to herein also expressly

agrees Western Digital shall not be liable for any incidental, punitive, indirect, special, or consequential

damages, including without limitation physical injury or death, property damage, lost data, loss of profits or

costs of procurement of substitute goods, technology, or services, arising out of or related to this document,

any related materials or any product referred to herein, regardless of whether such damages are based on

tort, warranty, contract, or any other legal theory, even if advised of the possibility of such damages.

This document and its contents, including diagrams, schematics, methodology, work product, and

intellectual property rights described in, associated with, or implied by this document, are the sole and

exclusive property of Western Digital. No intellectual property license, express or implied, is granted by

Western Digital associated with the document recipient's receipt, access and/or use of this document or the

products referred to herein; Western Digital retains all rights hereto.

Western Digital, the Western Digital logo, SanDisk, CloudSpeed, and Ultrastar are registered trademarks

or trademarks of Western Digital Corporation or its affiliates in the US and/or other countries. Broadcom

and MegaRAID are among the trademarks of Broadcom. All other marks are the property of their respective

owners. Product specifications subject to change without notice. Pictures shown may vary from actual

products. Not all products are available in all regions of the world.

Western Digital

5601 Great Oaks Parkway

San Jose, CA 95119

Western Digital

Overview

This section provides an overview of rack requirements and

recommendations.

In This Chapter:

- Ultrastar Data102 Rack Requirements..........2

- Rack Safety..................................................... 3

- CMA Standard Recommended Racks...........4

- CMA Lite Recommended Racks....................5

- Vertical Rack Rail Settings.............................6

- Recommended PDUs and Available

Installation Space.............................................7

Recommended Rack Configurations 1. Overview

1.1 Ultrastar Data102 Rack Requirements

The Ultrastar Data102 is designed to be installed into a rack that meets the EIA-310 standard at a minimum

1181-1197 mm (46.5in. - 47.13in.) of usable rack space, frame to frame. The vertical rack rails must be set

between 812.8mm - 914.4mm / 32 in. - 36 in. to support the enclosure. It requires 4U of rack space, and it

should be installed into the rack at the lowest possible U height to keep the load on the rack balanced.

Table 1: Required Rack Specifications

Parameter Requirement

Rack Depth 1181-1197 mm (46.5in. - 47.13in.) of usable rack space, frame to frame

Rack Width 450mm with (17.72in.) with 465mm (18.31in.) ± 1.5mm

nominal hole spacing. See EIA-310 Rack Standard

Rack Units (U) 4U

Vertical Rack Rail Spacing 812.8mm - 914.4mm / 32 in. - 36 in.

Static Load Rating 1360.7 kg. / 3000 lbs.

Dynamic Load Rating 1020.5 kg. / 2250 lbs.

Warning: When extended out of the rack on the rail system, the Ultrastar Data102 will be

~950 mm / 37.4in. extended outward. This may be a potential tipping hazard depending on

the configuration of the rack. Ensure that leveling feet, anti-tilt, and any other safety features

recommended by the specific rack manufacturers have been deployed before servicing.

The following section provides specific information necessary to install, service, and remove the Ultrastar

Data102. The installation of the Ultrastar Data102 requires two people and a space of 1524mm / 60in. in front

of the installation space. The servicing of the enclosure requires one person and a minimum of 1219.2mm /

48in. of space in front of the installation space. The removal of the enclosure requires two people, 1371mm /

54in. of space in front of the installation space, and 24in. on either side of the enclosure for two people to

remove the enclosure.

Warning: The handles on the front of the chassis are not intended to be used to support the

weight of the Ultrastar Data102. Lifting the unit by the chassis handles or trying to support the

unit on the handles can cause them to fail. This can cause serious damage to the unit or serious

bodily harm to those handling the unit. Always team lift the chassis by gripping the underside

of the unit, and never try to lift a chassis that is filled with drives.

Recommended Rack Configurations 1. Overview

1.2 Rack Safety

Figure 1: Installation, Servicing, and Removal

Attention: Do not install or remove the enclosure while it is populated with drives. The fully

populated enclosure exceeds the amount of weight that a team of two should lift.

1.2 Rack Safety

When extended out of the rack on the rail system, the Ultrastar Data102 will be ~950 mm / 37.4in. extended

outward. This may be a potential tipping hazard depending on the configuration of the rack. Ensure that

leveling feet, anti-tilt, and any other safety features recommended by the specific rack manufacturers have

been deployed before servicing.

The handles on the front of the chassis are not intended to be used to support the weight of the Ultrastar

Data102. Lifting the unit by the chassis handles or trying to support the unit on the handles can cause them

to fail. This can cause serious damage to the unit or serious bodily harm to those handling the unit. Always

team lift the chassis by gripping the underside of the unit, and never try to lift a chassis that is filled with

drives.

If the chassis is being installed into a rack that will be shipped fully assembled, you must install eight (four

per side) of the included M5 x 12mm T15 Flat Head Torx screws into the two brackets at the front of the

chassis in the following locations. These screws should be tightened to 3.38-3.61 Nm / 30-32 in-lbf using a

Long T15 Torx Screwdriver.

Recommended Rack Configurations 1. Overview

1.3 CMA Standard Recommended Racks

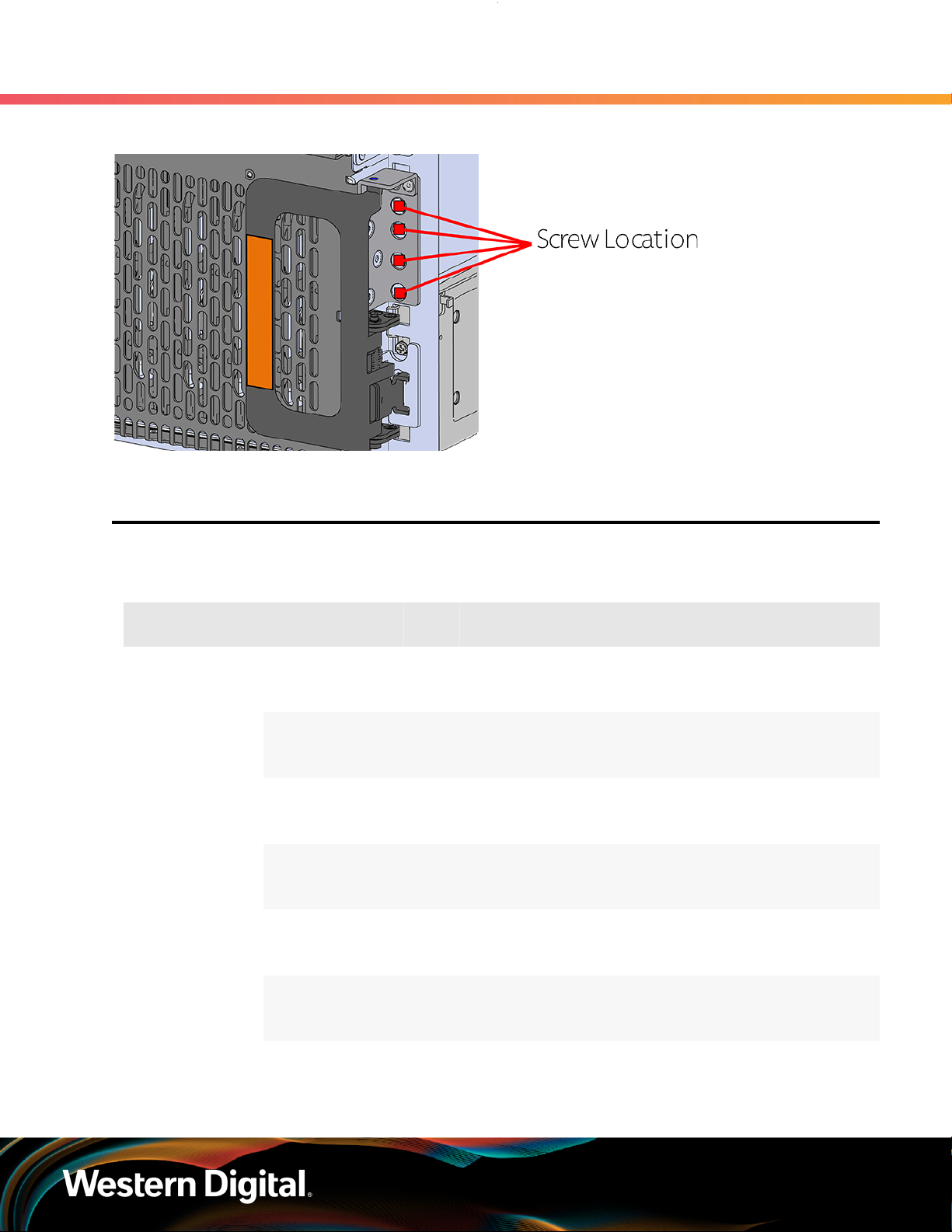

Figure 2: Shipping Bracket Screw Locations

1.3 CMA Standard Recommended Racks

The following is a list of racks that are recommended for the Ultrastar Data102 using CMA Standard.

Table 2: Recommended Racks

Vendor Part Number Rack

Units Dimensions Notes

AS-160099-03 42 H: 2060mm x W: 600mm x D:

1200mm/

H: 81.1in. x W: 23.6in. x D: 47.2in.

N/AEMCOR/CRENLO

DC-42U2448-G 42 H: 2057mm x W: 600mm x D:

1270mm/

H: 80.98in. x W: 23.6in. x D: 50in.

N/A

WEDIT602 52 H: 2989.2mm x W: 609.6mm x D:

1317.6mm/

H: 98in. x W: 24in. x D: 51.9in.

N/A

WEDIT603 48 H: 2311.4mm x W: 609.6mm x D:

1317.6mm/

H: 91in. x W: 24in. x D: 51.9in.

N/A

WEDIT604 45 H: 2178.1mm x W: 609.6mm x D:

1317.6mm/

H: 85.75in. x W: 24in. x D: 51.8in.

N/A

AFCO/Legrand

WEDIT605 42 H:2044.7mm x W: 609.6mm x D:

1317.6mm/

H: 80.5in. x W: 24in. x D: 51.8in.

N/A

Recommended Rack Configurations 1. Overview

1.4 CMA Lite Recommended Racks

Vendor Part Number Rack

Units Dimensions Notes

WEDIT606 51 H: 2444.8mm x W: 609.6mm x D:

1317.6mm/

H: 96.25in. x W: 24in. x D: 51.8in.

N/A

APC/Schneider AR3300W 42 H: 1991mm x W: 600mm x D:

1222mm

H: 78.4in. x W: 23.6in. x D: 48.18in.

The rear door

must be removed

when using the

standard CMA

with this rack.

TRIPP LITE w/

Rack Extender

Rack:SR42UBDP

Extender:

SREXTENDER

42 H: 2444.8mm x W: 609.6mm x D:

1200mm or 1403.2mm w/ Rack

Extender/

H: in. x W: in. x D: in. w/ Rack

Extender

N/A

1.4 CMA Lite Recommended Racks

The following is a list of racks that are recommended for the Ultrastar Data102 using CMA Lite.

Table 3: Recommended Racks

Vendor Part Number Rack

Units Dimensions Notes

AS-160099-03 42 H: 2060mm x W: 600mm x D:

1200mm/

H: 81.1in. x W: 23.6in. x D: 47.2in.

N/AEMCOR/CRENLO

DC-42U2448-G 42 H: 2057mm x W: 600mm x D:

1270mm/

H: 80.98in. x W: 23.6in. x D: 50in.

N/A

WEDIT602 52 H: 2989.2mm x W: 609.6mm x D:

1317.6mm/

H: 98in. x W: 24in. x D: 51.9in.

The enclosure

cannot be

installed into

the U spaces

that are in line

with the front

door stiffeners

or the door latch

in the CMA Lite

configuration.

AFCO/Legrand

WEDIT603 48 H: 2311.4mm x W: 609.6mm x D:

1317.6mm/

H: 91in. x W: 24in. x D: 51.9in.

The enclosure

cannot be

installed into

the U spaces

that are in line

Autres manuels pour Ultrastar Data102

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Western Digital Stockage

Western Digital

Western Digital My Passport Essential SE WDBACY5000A Series Manuel utilisateur

Western Digital

Western Digital WDG2NC10000 - My Book World Edition II Manuel utilisateur

Western Digital

Western Digital My Book Mirror Edition Manuel utilisateur

Western Digital

Western Digital My Book World Edition WDH1NC10000 Manuel utilisateur

Western Digital

Western Digital Caviar WD7500AAKS Manuel

Western Digital

Western Digital My Book 3.0 WDBAAK0020HCH Instructions d'installation

Western Digital

Western Digital Caviar Green WD7500AZRX Manuel d'utilisation

Western Digital

Western Digital WDBAAC2500ACH - My Passport Elite Manuel utilisateur

Western Digital

Western Digital WDBACG0020HCH - My Book Live Manuel utilisateur

Western Digital

Western Digital My Passport Ultra Manuel utilisateur

Western Digital

Western Digital Ultrastar Serv60+8 Manuel utilisateur

Western Digital

Western Digital WDBAAG0010HCH - My Book For Mac Manuel utilisateur

Western Digital

Western Digital WD5000LUCT Manuel utilisateur

Western Digital

Western Digital My Passport WDBAAB3200ACH Manuel utilisateur

Western Digital

Western Digital My Book WDH1U10000 Manuel utilisateur

Western Digital

Western Digital SiliconEdge Blue Series Manuel utilisateur

Western Digital

Western Digital WDG1U7500 - My Book Essential Manuel utilisateur

Western Digital

Western Digital WD5000AVCS Manuel d'utilisation

Western Digital

Western Digital WDBAAH0015HCH - My Book Elite Manuel utilisateur

Western Digital

Western Digital Passport series Manuel utilisateur

Western Digital

Western Digital Caviar Black WD1002FAEX Manuel d'utilisation

Western Digital

Western Digital WD Elements WDBAAU0010 Manuel utilisateur

Western Digital

Western Digital My Passport WDBAAB3200ACH Manuel utilisateur

Western Digital

Western Digital WD1600AAJB - Caviar 160 GB Hard Drive Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Dell

Dell PowerVault MD3600f Series Manuel utilisateur
