Weslo CADENCE LX25 Manuel utilisateur

Model No. WLTL42570

_;eria[ No.

Serial

Number

Decal

QUESTIONS?

As amanufacturer, we are com-

rn_ed to providing complete

customer satisfaction. If you

have questions, or if there are

mLssJng or damaged parts, we

will guarantee complete s_tis-

faction through direct assistance

from our factory.

TO AVOID UNNECESSARY DE-

LAYS, PLEASE CALL DIRECT TO

OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our Customer Hot Line

will provide immediate assis-

ta_ce_ free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.-FrL, 6 a.m.-6 p.rn, MST

USER'S MANUAL

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 2

BEFORE YOU BEGIN ....................................................................... 4

ASSEMBLY ............................................................................... 5

OPERATION AND ADJUSTMENT ............................................................. 7

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 10

MAINTENANCE AND TROUBLE-SHOOTiNG ................................................... 12

CONDITIONING GUIDELINES ............................................................... 14

ORDERING REPLACEMENT PARTS .................................................. gsck Cover

LIMITED WARRANTY ............................................................... Back Cover

Note: An EXPLODED DRAWING and aPART LIST are attached to the center of this manual Save the

EXPLODED DRAWING and PART LIST for future reference,

iMPORTANT PRECAUTIONS

extension _e_d.

12, Keep the power _ord arid _he surge protector

6. Ke_p_hfldren ur_derthe _ge of 12 and pets away from heate_lsurfaces_

avl_y f_t the treadmill at 811times. 13. Neve? move the walldng belt whil_ the power

7. Tt_ treadmill _hould be used only by persons

weighing 250 pounds or less.

8, Neveralfowntorethanonepersononthe

treadmill at a tlm_.

is turned off, Do not operate the treadmil_ if

the. power cord or plt_J is damaged= or If the

treadmill is not working properly. (See

REFORE YOU BEGtN on pagr8 4if the tread-

mill is not working properly.)

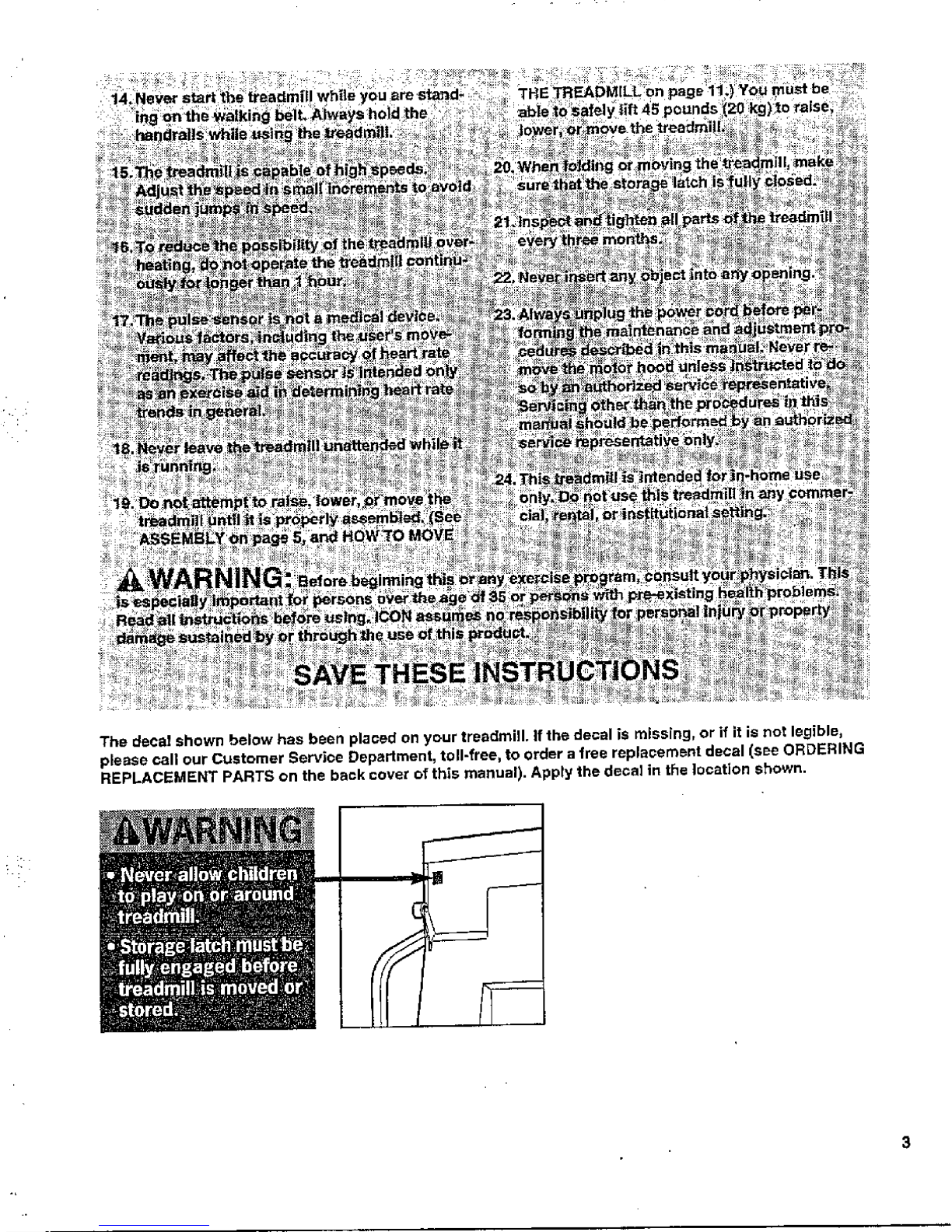

The deca! shown below has been placed on your treadmill. If the decal IS miss'rig, or If d "s no! legible

please call our Customer s_rvice Department, toll-free, to order a|ree repla_em_t_t decat (.see ORDERING

REPLACEMENT pARTS on the back cover of this manual). Apply the decal in t_e Iccatlon shown.

BEFORE YOU BEGIN

Thank you for select[ng the WESLO CADENC_ LX25

lreedmill, Tile CADENCE LX25 treadmill combines ad-

vanced technology witr_ innovative design to let you

enjoy an excellent form of cardiovascular exercise in

the convenience and privacy of your home. And when

you're not exercising, the unique CADENCE LX25 can

be folded up, requiring less than halt the floor spaca of

other treadmills.

For your benefit, read this manual carefully before

using the treadmill, Lfyou have additional questions,

please calf our Customer S_ice Department toLl-tree

at 1-800-999-3758, Monday through Friday, 6 a.m.

until 6 p.m. Mountain Time (excluding holidays). To

help us assist you, please note the product model

number and serial number betor_ calling. The model

number of the treadmill is WLTL42570. The sedal

number can be found on a decal attached to the tread-

mill (see the front cover of this manual for the location).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Water Bottle Holder

IWater Bcttfe is not Towel Rack

Accesso WTray

Storage L

Mandmils

Waikin

RtGHT SIDE

Circuit

Breaker

Power

CoG

BACK Incline Leg Cushioned Walkit'_j Platform

for maximum ex_l'cise comfort

ASSEMBLY

.... is Done

Assembly requires two people Set the treadmlg In acteared arsa and remove all packing maten_ .

dispose of the packing materials until assembly is completed. Refer to the drawings below to }denfify the parts

Used.in assembly: Assembly requires the fo!lowing tools: The include_ alien wtenchnch_and your own

phghp" ._=rewdr,ver _ and adjustable wrench _ .

U©

Handrail Washer (16)-2

L_.tch Screw (13)-2 Console pJate Screw (89)-8

Handrai_ Screw (32)-2

Extension Leg Screw (34)-2

i •

1. W_th the help of asecond person, carefulfy Jaythe

treadmill on its right side. (See the drawing _n page 4to

identify the dghl side, if necessary.) Insert the Extension

Legs (41) into the treadmill as shown. Make sure that the

Extension Legs are turned so the Base Pads (36) are on

the indicated sides. Attach each Exlension Leg with an

Extension Leg Screw (34).

With the help of B second person, carefully raise the

treadmill to the upright position se the ExtensTon Legs

(41) are resting flat on the floor.

2, Refer to HOW TO LOWER THE TREADMILL FOR USE

on page 11. Foflow the irlstr_ctions in step 2 to lower the

treadmill.

Wgh the help of a second person, insert aHenchalt (2)

into each side of the Oonsore (11) as shown. Align the

holes in the bottom of the Console with the holes in the

Handrails. Tighten eight Console Plate Screws (89) into

the bottom of the Console,

3. With the help of asecond person, hold the Console (11 )

near the right Upright (14) as shown.

Insert the Wire Harness (26) into the Right Upright (14).

Route the Wire Harness (26) through the notch in the

bracket on the dght Handrail (2) as shown. Insert the

bracket into the right Upright (14). Make sure that the

Wire Harness is not pinched.

4. Set the Handrails (2) on the Uprights (14) as shown.

Thread a Handrail Bolt (15) with a Handrail Washer (16)

into each Upright and Handrail. Do not tighter= the

Hsndrail Bolts yet.

Tighten a Handrail Screw (32) into the lower end ol each

Handrail (2), Be sure to push on the heads of the Handrail

Screws while tightening them. Next. tighte_ the Handrail

Bolts (15).

5. Attach the Storage Latch (12) 1othe left Upright (14) with

two Latch Screws (13). Be careful not to overtighten the

Latch Screws.

6. Remove the backing from the Adhesive Clip (74). Press

the Adhesive Clip onto the base of the Uprights (14} in

the indicated location. Press the AIMn Wrench (73) into

the Adhesive Clip.

Bracket. _ 12

7. Make sure that all parts are tightened before you use

the treadmill, TO protect the floor or carpet, place a

B mat under the treadmgl.

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features awalking belt coated with

PERFORMANT LUBE TM, a high-performance lubricant.

Important: Never apply silicone spray or other sub*

stances to the walking belt or the walking platform.

They wgl deteriorate the walking belt and cause ex-

cessive wear.

HOW TO PLUG IN THE POWER CORD

not fit the O_ et t'm_,ea proper Outlet _1

stailed by aqua_lf,_d _lect ricJ_an_ .....

Your treadmill, like any ether type of sophisticated

electronic equipment, can be seriously damaged fay

sudden voltage changes in your home's power,

Voltage surges, spikes, and noise interference can re-

sult from weather conditions or from other appli_.nces

being turned on or off.

To decrease the pos-

sibigty of your tread-

mill being damaged,

atways use a surge

protector (not in-

cluded) with your

treadmgl.

Surge prolectors are

sold at most hardware

stores and department

stores, Use onty aUL-

listed surge p_ctector,

rated at 15 amps, with a

14-gauge cord Qffive

feet or tess in length.

This product must be

grounded. If ft should

malfunction or break

down, grounding pro-

vides a path of least re-

sistance for electric cur-

rent to reduce the risk of

MetJ

electric shock, This product is equipped with a cord

having an equipment-grounding conductor and a

grounding plug. Plug the power cord into asurge

protector, and plug the surge protector into an ap-

propriate outlet that is properly installed and

grounded in accordance with all Ioca! codes and

ordinances.

This product is for use on a nominal 120-volt cimuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 berow. A temporary adapter that

looks like the adapter glustrated in drawing 2may he

used to connect the surge protector to a 2-pole recep-

tacle as shown in drawing 2 if a properly grounded out-

let is not available.

The temporary adapter should be used only until a

propedy grounded outlet (drawing 1) can be insta!led

by aqualified electrician.

The green-colored rigid ear, lug, orthe like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover,

Whenever the adapter is used it must be held in place

by a metal screw, Some 2-pole receptacle outlet box

covers 8r_ Rot grounded. Contact a qualified elec-

tribian to determine if the outlet box cover is

grounded before using an adapter.

/Grounded Outlet Box

/Grounding Pi.n

_undlng Plug

_munded Outlet

Treadmill Power Cord_

Groundin

Grounding Pin,_

Grounded Outlet Box

'Surge Protector

DIAGRAM OF THE CONSOLE

Inct_eSu(ton Monitor Disp(ays Speed Cont_l

Key Note: If there is athin sheet _f

clear plastic on the face of the

_nsole, remove it.

BA'R'ERY INSTALLATION

The co_oJe requires either two Dr three "AA"

batteries (not included); alkaline batte es a e

recommended.

To install batteries, first press the tab on the batte_

cover atld o_etl the balte_j cover. Press the batteries

intothebatterycompartment,withthenegativeendsof

the batteries (m_rked "-") touching the springs. Press

the tab on the battery coverandcio_e the battery

cover.

REMOVE THIS EXPLODED DRAWING AND

PART LIST FROM THE MANUAL. Save this

EXPLODED DRAWING and PART LIST for

future reference.

Note: Specifications are subject to change without notice. For information about

ordering replacement parts, sea the back cover of the User's Manual.

EXPLODED DRAWiNG--Model No. WLTL42570 RO997B

22 67 32

87 86 39 63

74 75 51

72 i.
