USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts, we

will guarantee complete satis-

faction through direct assis-

tance from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

Model No. WLEX28080

Serial No.

Patent Pending

Write the serial number in the

space above for future reference.

Visit our website at

www.weslo.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO USE THE PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

MAINTENANCE AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions before

using the WESLO¨PURSUIT 680s.

1. Read all instructions in this manual before

using the 680s.

2. It is the responsibility of the owner to ensure

that all users of the 680s are adequately

informed of all precautions. Use the 680s

only as described in this manual.

3. Use the 680s indoors on a level surface.

Keep the 680s away from moisture and

dust. Place a mat under the 680s to protect

the floor or carpet.

4. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

5. Keep children under the age of 12 and pets

away from the 680s at all times.

6. The 680s should not be used by persons

weighing more than 250 pounds.

7. Wear appropriate clothing when exercising;

do not wear loose clothing that could

become caught on the 680s. Always wear

athletic shoes when using the 680s.

8. Always keep your back straight when using

the 680s. Do not arch your back.

9. If you feel pain or dizziness at any time

while exercising, stop immediately and

begin cooling down.

10. The 680s is intended for in-home use only.

Do not use the 680s in a commercial, rental,

or institutional setting.

11. CAUTION DECAL PLACEMENT: The decal

shown below has been placed on the 680s.

If the decal is missing, or if it is not legible,

please call our Customer Service Department

toll-free at 1-800-999-3756 to order a free

replacement decal. Apply the decal in the

location shown.

WARNING: Before beginning this or any exercise program, consult your physician. This is espe-

cially important for persons over the age of 35 or persons with pre-existing health problems. Read

all instructions before using. ICON assumes no responsibility for personal injury or property dam-

age sustained by or through the use of this product.

Note: Decal is shown

at 75% actual size

Do not allow children on or

around machine.

Keep hands and feet away

from moving parts and contact

points.

Read owner's manual and

follow instructions.

BEFORE YOU BEGIN

Thank you for selecting the innovative WESLO¨

PURSUIT 680s. The PURSUIT 680s offers a unique

form of low-impact exercise that offers greater cardio-

vascular benefits and increased muscle toning. And

the 680s features adjustable resistance to let you

tailor your exercise to the level thatÕs perfect for you.

For your benefit, read this manual carefully before

you use the PURSUIT 680s. If you have additional

questions, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, please

mention the product model number and serial number

when calling. The model number is WLEX28080. The

serial number can be found on a decal attached to the

PURSUIT 680s (see the front cover of this manual for

the location of the decal).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Seat Handle

Handlebar with

Pulse Sensor

FRONT

Seat

Seat Upright

Wheel

Seat Frame

Backrest

Pedal

Strap

Console Water Bottle Holder

(Bottle not Included)

Handlebar Post

LEFT SIDE

ASSEMBLY

Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the

packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable wrench .

PART CHART

Use the drawings below to identify the small parts used in assembly. The number in parenthesis below

each drawing refers to the key number of the part; the second number refers to the quantity used in assembly.

Note: Some small parts may have been pre-attached for shipping. If a part is not in the parts bag, check

to see if it has been pre-assembled.

M8 x 100mm Hex Head Bolt (12)Ð2

M6 x 16mm Hex Head

Screw (46)Ð8

#8 x 1/2Ó Screw (43)Ð5

M8 Nylon Locknut (55)Ð12

M8 x 70mm Carriage Bolt (27)Ð2

M8 x 65mm Carriage Bolt (52)Ð4

M8 x 55mm Carriage Bolt (11)Ð4

M8 Washer (26)Ð2

M8 x 15mm Button

Screw (53)Ð7

M8 x 19mm

Washer (54)Ð7

1. Loosen the Frame Knob (29) on the right side of the

Frame (1). Slide the Seat Frame (2) out until it

stops. Tighten the Frame Knob.

Attach the Stabilizer (30) to the Seat Frame (2) with

two M8 x 70mm Carriage Bolts (27) and two M8

Nylon Locknuts (55).

2. Attach the Resistance Control (31) to the Handlebar

Post (3) with the Resistance Control Screw (56).

Insert the Resistance Cable (70) up through the

Handlebar Post as shown.

Next, connect the short cable on the Resistance

Control (31) to the Resistance Cable (70) as follows:

¥ Insert the tip of the short cable into the wire clip as

shown in drawing A.

¥ Firmly pull the short cable and slide it into the

metal bracket as shown in drawings B and C.

Make sure that the tip of the short cable is held by

the wire clip as shown.

3. Route both Pulse Wires (59) into the Handlebar Post

(3) and up through the indicated hole. Attach the

Handlebar (57) to the Handlebar Post with two M8 x

15mm Button Screws (53) and two M8 x 19mm

Washers (54). Make sure that the Screws are

threaded into the indicated holes. Do not tighten

the Screws yet.

Important: All drawings in this manual show the

Handlebar (57) attached to the front of the

Handlebar Post (3). However, the Handlebar can

be attached to the back of the Handlebar Post,

as shown in the inset drawing. Choose the posi-

tion that is the most comfortable for you.

Short Cable

Hole

57 53

4. Connect the two Pulse Wires (59) to the correspond-

ing wires on the Console (33). Make sure that the

wires with ÒXÓ tags are connected to each other.

If your Console (33) has a ground wire, attach it to

the Handlebar Post (3) with a #8 x 1/2Ó Screw (43).

Next, insert the long console wire down through the

Handlebar Post (3).

Console

Wires

Long

Console

Wire

Ground

Wire

ÒXÓ Tags

B C

Wire

Clip

7. Finish attaching the Handlebar (57) to the

Handlebar Post (3) with two more M8 x 15mm

Button Screws (53) and two more M8 x 19mm

Washers (54). Tighten all four Hex Head Screws.

The Console (33) requires two ÒAAÓ batteries (not

included)Ñalkaline batteries are recommended.

Refer to the inset drawing. Open the battery cover

(not shown) on the back of the Console. Press two

batteries into the battery clip. Make sure that the

negative (Ð) ends of the batteries are touching

the springs. Close the battery cover.

5. Attach the Console (33) to the Handlebar Post (3)

with four #8 x 1/2Ó Screws (43). Be careful to avoid

pinching the wires and cables.

Next, press the Resistance Knob (32) onto the

Resistance Control (31). Attach the Resistance

Knob with the Knob Screw (71). Press the Knob

Cover (72) onto the Resistance Knob.

8. Attach the Seat Upright (64) to the Seat Frame (2)

with four M8 x 55mm Carriage Bolts (11) and four

M8 Nylon Locknuts (55). Note: It may be helpful to

tip the exercise cycle on its side to attach the Seat

Upright.

6. Connect the long console wire to the Reed Switch

Wire (42). Next, attach the Handlebar Post (3) to

the Frame (1) with three M8 x 15mm Button Screws

(53) and three M8 x 19mm Washers (54). Be care-

ful not to pinch the Reed Switch Wire (42) or the

Resistance Cable (70).

Battery Clip

Batteries

Long

Console

Wire

71 72

54 53

12. Attach the Backrest (45) to the Seat Upright (64)

with four M6 x 16mm Hex Head Screws (46).

25 12

10. Attach the Seat (44) to the Seat Bracket (63) with

four M6 x 16mm Hex Head Screws (46).

11. Attach the Seat Handles (25) to the Seat Bracket

(63) with two M8 x 100mm Hex Head Bolts (12),

two M8 Washers (26), and two M8 Nylon Locknuts

(55).

9. Attach the Seat Bracket (63) to the Seat Upright

(64) with four M8 x 65mm Carriage Bolts (52) and

four M8 Nylon Locknuts (55).

13. Identify the Left Pedal (39) (there is an ÒLÓ on the

Left Pedal). Using an adjustable wrench, tighten the

Left Pedal counterclockwise into the left arm of the

Crank (7).

Tighten the Right Pedal (not shown) clockwise into

the right arm of the Crank (7). 7

14. Make sure that all parts are properly tightened before you use the exercise cycle.

HOW TO USE THE EXERCISE CYCLE

HOW TO ADJUST THE POSITION OF THE SEAT

FRAME

The Seat Frame (2) can be adjusted to the position

that is the most comfortable for you. To adjust the

Seat Frame, first loosen the Frame Knob (29) on the

right side of the Frame (1). Slide the Seat Frame for-

ward or backward to the desired position. Tighten the

Frame Knob.

HOW TO ADJUST THE PEDAL STRAPS

To adjust each Pedal Strap (10), first pull the Pedal

Strap off the adjustment tab on the pedal. Align a dif-

ferent hole in the Pedal Strap with the adjustment tab.

Press the Pedal Strap onto the adjustment tab.

HOW TO ADJUST THE PEDALING RESISTANCE

The pedaling

resistance can

be adjusted

with the

Resistance

Knob (32) locat-

ed on the

Console (33).

To increase the

resistance, turn

the Resistance Knob clockwise; to decrease the resis-

tance, turn the Resistance Knob counterclockwise.

Adjustment Tab

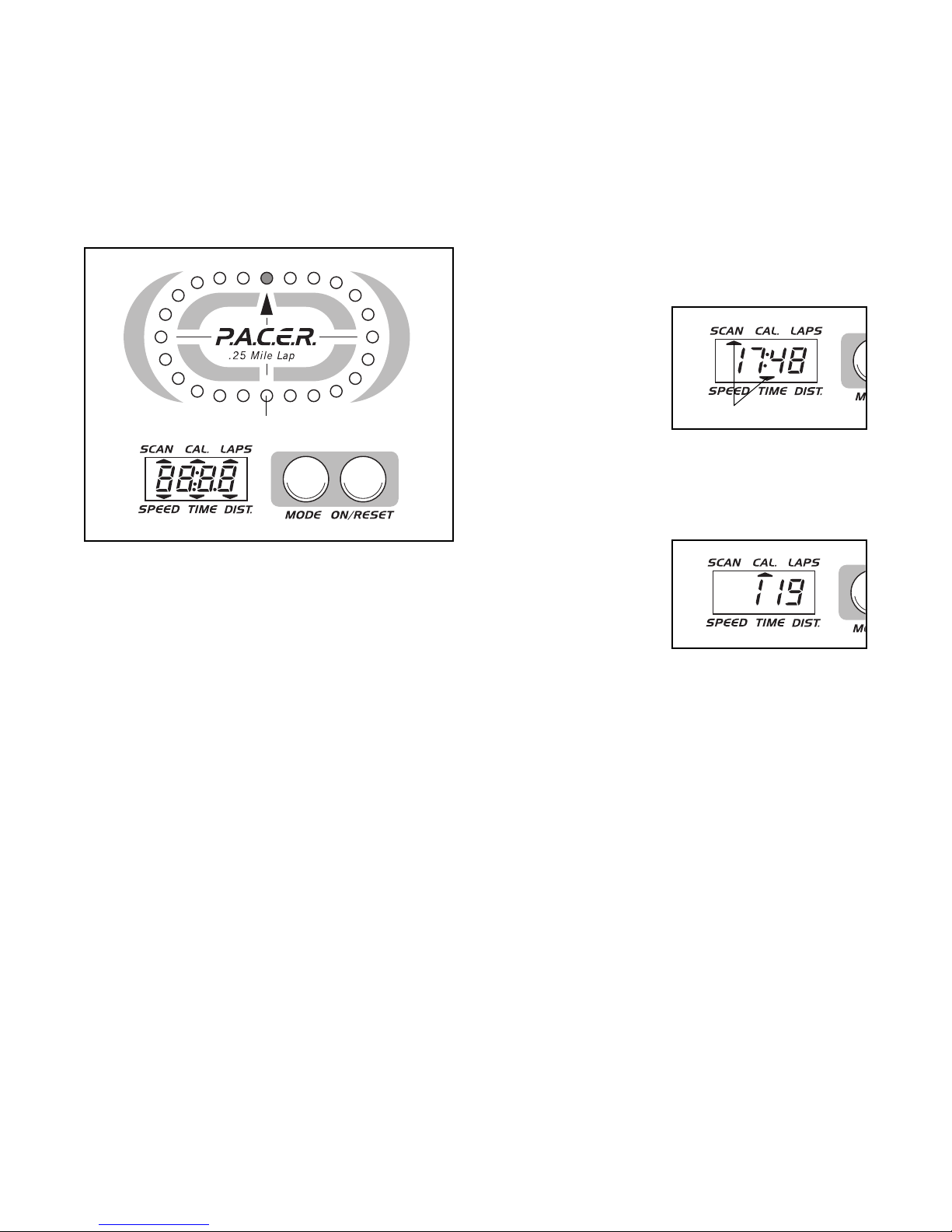

DESCRIPTION OF THE CONSOLE

The console is designed to help you get the most

from your workouts. As you exercise, you can watch

your progress around the LED track, while the

display provides continuous exercise feedback. You

can even measure your heart rate using the built-in

pulse sensor. The modes of the display are described

below.

SpeedÑThis mode displays your pedaling speed, in

miles per hour.

TimeÑThis mode displays the elapsed time. Note: If

you stop exercising, the time mode will pause.

DistanceÑThis mode displays the total distance you

have pedaled, in miles.

LapsÑThis mode displays the number of 1/4-mile

laps you have completed around the LED track.

CalorieÑThis mode displays the approximate number

of Calories you have burned.

ScanÑThis mode displays the speed, time, distance,

laps and calorie modes, for 5 seconds each, in a

repeating cycle.

PulseÑThis mode displays your heart rate when the

pulse sensor is used (see page 11).

BATTERY INSTALLATION

Before the console can be operated, two ÒAAÓ batter-

ies must be installed (see assembly step 7 on page 7).

HOW TO OPERATE THE CONSOLE

If there is a thin sheet of clear plastic on the face of

the console, remove it.

1. To turn on the power, press the on/reset button or

simply begin pedaling. When the power is turned

on, one LED indicator will light in the LED track,

and the entire display will appear for two seconds.

The console will then be ready for operation.

2. Select one of the modes:

Scan modeÑWhen

the power is turned

on, the scan mode

will automatically

be selected. One

mode indicator will

show that the scan

mode is selected,

and a flashing mode indicator will show which

mode is currently displayed. Note: If a different

mode is selected, you can select the scan mode

again by repeatedly pressing the mode button.

Speed, time,

distance, laps

or calorie modeÑ

To select one of

these modes for

continuous

display, press the

mode button repeatedly. The mode indicators will

show which mode is selected. (Make sure that the

scan mode is not selected.)

Pulse modeÑTo use the pulse mode, see page 11.

3. The LED track represents a distance of 1/4 mile.

As you exercise, the indicators around the track

will light one at a time until you have completed 1/4

mile. A new lap will then begin.

4. To reset the display, press the on/reset button.

5. To turn off the power, simply wait for about four

minutes. The console has an Òauto-offÓ feature.

If the pedals are not moved and the console

buttons are not pressed for four minutes, the

power will turn off automatically in order to

conserve the batteries.

LED Track Mode Indicators

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weslo vélo d'appartement

Weslo

Weslo Easy Fit WLIVEX38010.0 Manuel utilisateur

Weslo

Weslo Pursuit 30 Manuel utilisateur

Weslo

Weslo Vector 503 Bike Manuel utilisateur

Weslo

Weslo Pursuit 640s Guide de démarrage rapide

Weslo

Weslo Aero A5 Bike Manuel utilisateur

Weslo

Weslo Pursuit 102 Manuel utilisateur

Weslo

Weslo WLIVEX79210.0 Manuel utilisateur

Weslo

Weslo II.Ox Pro WLEX31810.0 Manuel utilisateur

Weslo

Weslo Pursuit R 60 Bike Manuel utilisateur

Weslo

Weslo Pursuit 102 Manuel utilisateur

Weslo

Weslo Pursuit 675 Manuel utilisateur

Weslo

Weslo PURSUIT 360R Manuel utilisateur

Weslo

Weslo Pursuit 310 Cs Manuel utilisateur

Weslo

Weslo Pursuit R 20 Bike Manuel d'utilisation et d'entretien

Weslo

Weslo Pursuit T 89 Bike Manuel du système

Weslo

Weslo Pursuit T 169 Bike Manuel utilisateur

Weslo

Weslo Vector 402 Manuel utilisateur

Weslo

Weslo Pursuit S 85 Bike Manuel d'utilisation et d'entretien

Weslo

Weslo pursuit 525 CS WLEVEX14910 Manuel utilisateur

Weslo

Weslo Pursuit T 169 Bike Guide de démarrage rapide

Weslo

Weslo WLEVEX71417.0 Manuel utilisateur

Weslo

Weslo WLIVEX79410.0 Manuel utilisateur

Weslo

Weslo PURSUIT 620S WLEVEX11990 Manuel utilisateur

Weslo

Weslo WLEVEX12920 Manuel utilisateur

Manuels vélo d'appartement populaires d'autres marques

TOORX

TOORX BRX85 Manuel utilisateur

Matrix

Matrix KranKcycle Manuel utilisateur

Matrix

Matrix IC3 Manuel utilisateur

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manuel utilisateur

Monark

Monark 827E Manuel utilisateur

Stamina

Stamina 1310 Manuel utilisateur

American Fitness

American Fitness SPR-BK1072A Manuel utilisateur

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manuel utilisateur

BH FITNESS

BH FITNESS H9158H Manuel de l'opérateur

Body Sculpture

Body Sculpture BC-7220G Manuel utilisateur

Cateye

Cateye EC-2300 Manuel utilisateur

FYTTER

FYTTER RACER RC MSR Manuel utilisateur

Kikos

Kikos HM-9090M Manuel utilisateur

Pro-Form

Pro-Form 345 Zlx Bike Guide de l'utilisateur

Fuel Fitness

Fuel Fitness SU135-40 Manuel utilisateur

NordicTrack

NordicTrack Gxr 4.2 Bike Manuel utilisateur

Vision Fitness

Vision Fitness U70 Manuel utilisateur

Stamina

Stamina 15-0340A Manuel utilisateur
