USER’S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. WLEVEX34830

Serial No.

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, please call:

Or write:

ICON Health & Fitness, Ltd.

Customer Service Department

Unit 4

Revie Road Industrial Estate

Revie Road

Beeston

Leeds, LS118JG

email: [email protected]

08457 089 009

Class HC Fitness Product

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

WESLO is a registered trademark of ICON Health & Fitness, Inc.

1. Read all instructions in this manual before

using the exercise cycle. Use the exercise

cycle only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

3. Use the exercise cycle indoors on a level sur-

face. Keep the exercise cycle away from

moisture and dust. Place a mat under the

exercise cycle to protect the floor.

4. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

5. Keep children under the age of 12 and pets

away from the exercise cycle at all times.

6. Wear appropriate clothing when exercising;

do not wear loose clothing that could become

caught on the exercise cycle. Always wear

athletic shoes for foot protection.

7. The exercise cycle should not be used by

persons weighing more than 115 kg (250 lbs.).

8. Always keep your back straight whilst using

the exercise cycle; do not arch your back.

9. If you feel pain or dizziness whilst exercising,

stop immediately and cool down.

10.The pulse sensor is not a medical device.

Various factors, including the user’s move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

11.The exercise cycle is intended for home use

only. Do not use the exercise cycle in a com-

mercial, rental, or institutional setting.

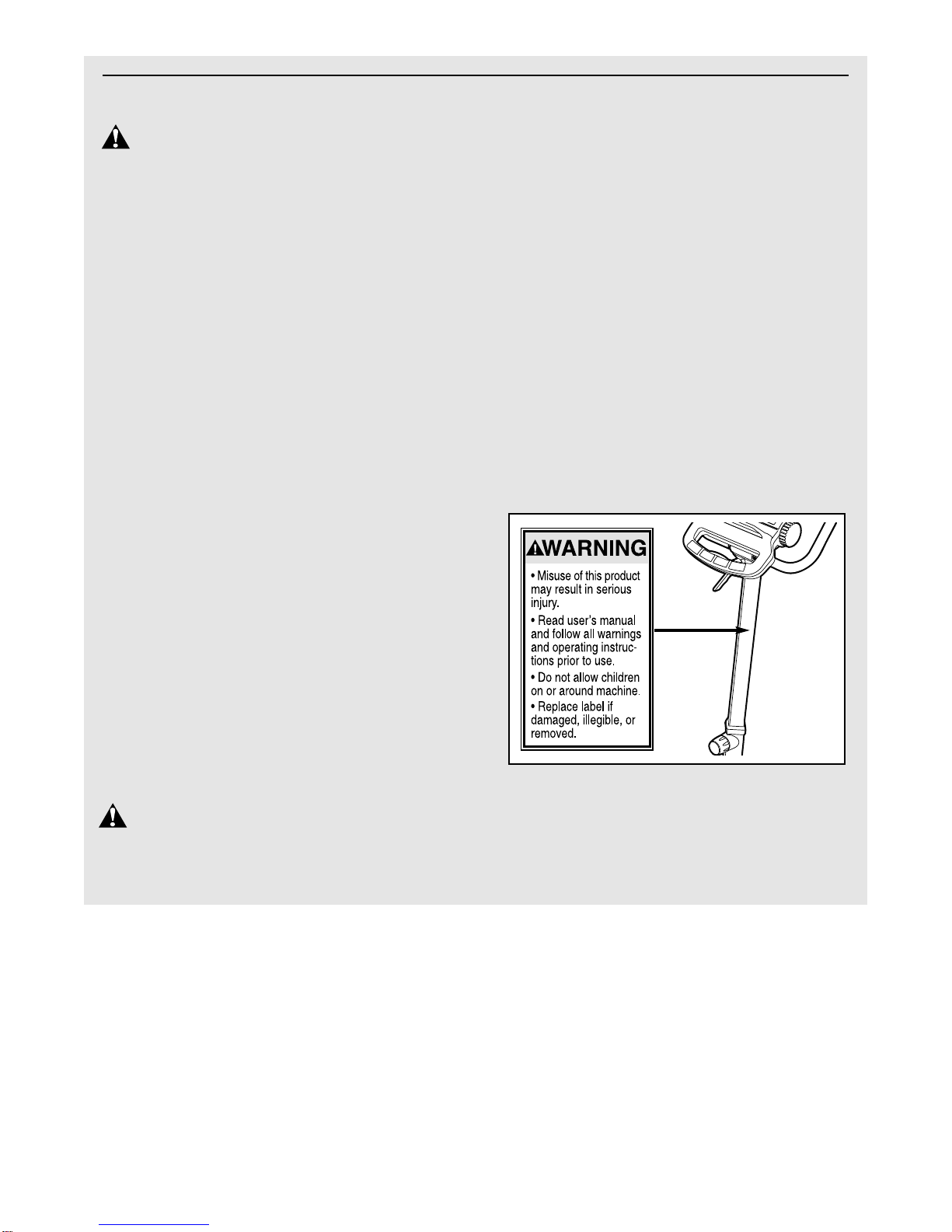

12.The warning decal shown below is found on

the exercise cycle in the indicated location. If

the decal is missing or illegible, call 08457

089 009 and order a free replacement decal.

Apply the decal in the location shown.

WARNING:Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the exercise cycle.

Congratulations for selecting the new WESLO®

VECTOR 503 exercise cycle. Cycling is one of the

most effective exercises for increasing cardiovascular

fitness, building endurance, and toning the body. The

VECTOR 503 exercise cycle offers a selection of fea-

tures designed to let you enjoy this healthful exercise

in the convenience and privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please call our Customer

Service Department at 08457 089 009. To help us

assist you, please note the product model number and

serial number before calling. The model number is

WLEVEX34830. The serial number can be found on a

decal attached to the exercise cycle (see the front

cover of this manual for the location of the decal).

Before reading further, please familiarise yourself with

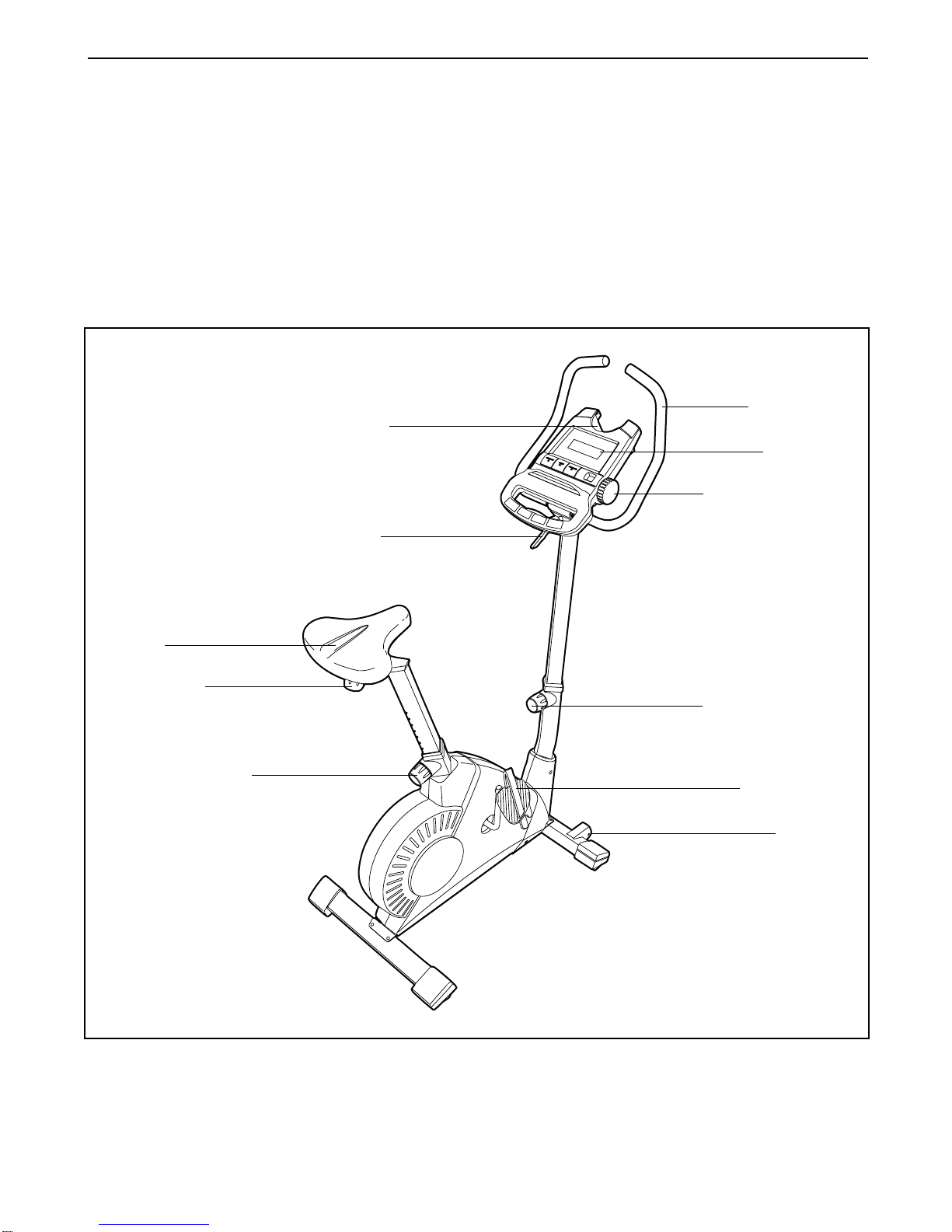

the parts that are labelled in the drawing below.

Water Bottle Holder*

*No water bottle is included

Resistance Knob

REAR

FRONT

Seat

Adjustment Knob

Pedal/Strap

Console

Seat Knob

Handlebar

Adjustment Handle

Wheel

RIGHT SIDE

BEFORE YOU BEGIN

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable spanner , Phillips screw-

driver , and pliers .

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below

each drawing refers to the key number of the part, from the PART LIST on page 18. The second number refers

to the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a

part is not in the parts bag, check to see if it has been pre-attached.

M8 Nylon

Locknut (10)–7 M8 Flat

Washer (51)–3

Earth Screw

(27)–1

M5 x 12mm

Screw (49)–4

M8 x 51mm Carriage Bolt (30)–4

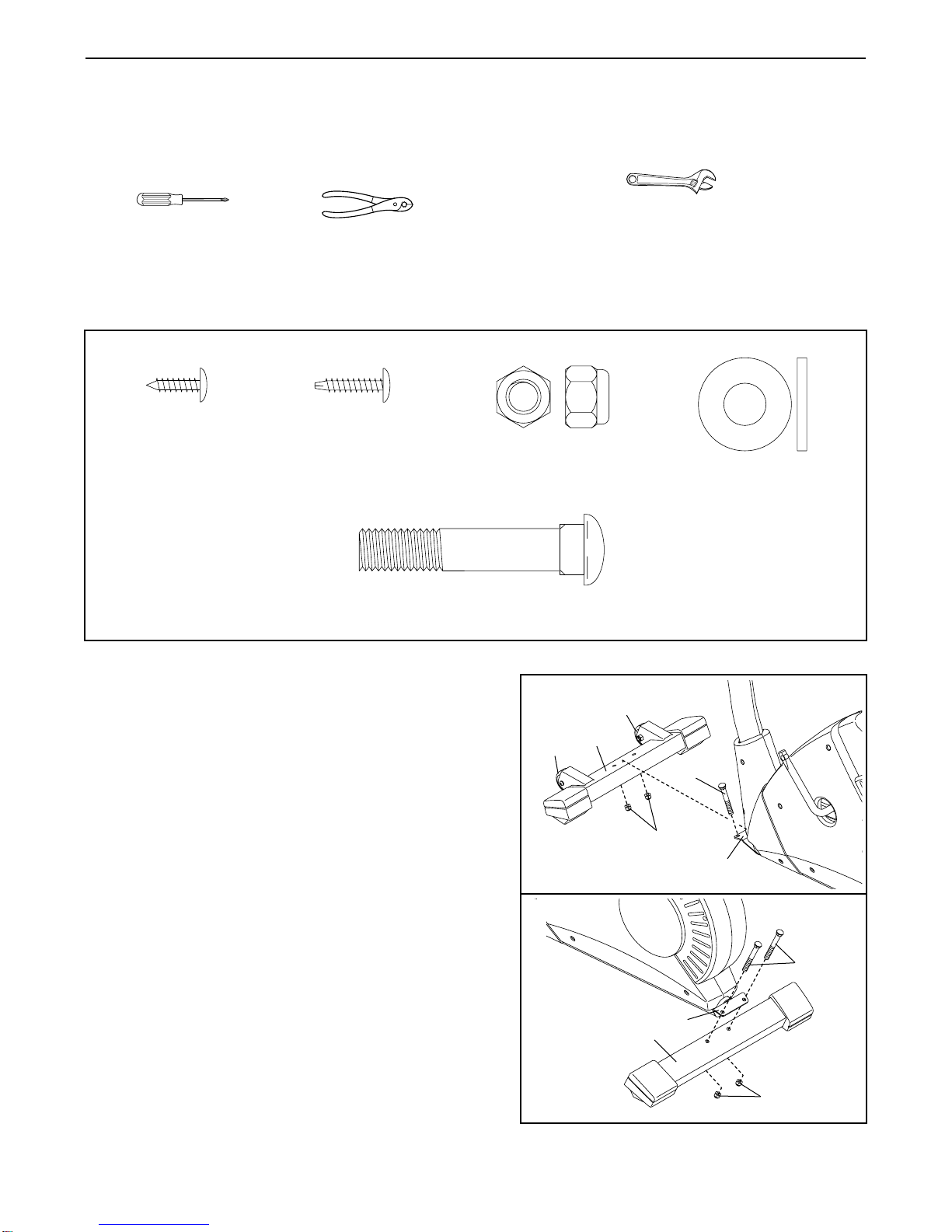

1. Orient the Front Stabiliser (2) so the Wheels (23) are on

the side shown. Whilst another person lifts the front of

the Frame (1) slightly, attach the Front Stabiliser with

two M8 x 51mm Carriage Bolts (30) and two M8 Nylon

Locknuts (10). 2

2. Whilst another person lifts the rear of the Frame (1)

slightly, attach the Rear Stabiliser (6) with two M8 x

51mm Carriage Bolts (30) and two M8 Nylon Locknuts

(10). 30

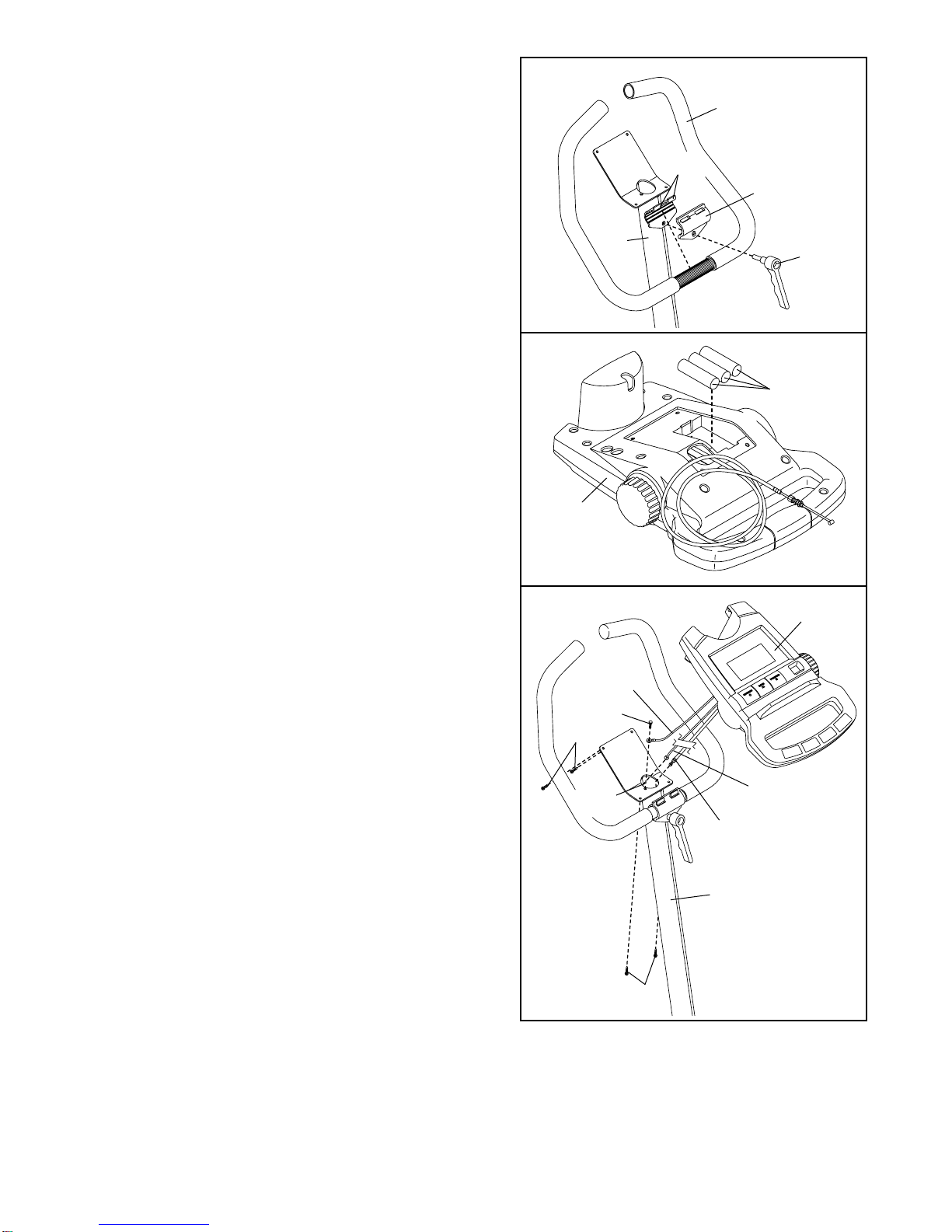

3. Slide the two slots in the Handlebar Clamp (42) onto the

two indicated tabs on the Upright (13). Lift the bottom of

the Handlebar Clamp away from the Upright, and insert

the Handlebar (15) between the Handlebar Clamp and

the Upright. Centre the Handlebar and rotate it to the

desired position.

Insert the Adjustment Handle (53) into the Handlebar

Clamp (42) and tighten the Adjustment Handle into the

Upright (13). Note: The Adjustment Handle works like a

spanner. Turn the Handle clockwise, pull it away from

the Upright, turn it counterclockwise, push it toward the

upright, and then turn it clockwise again.

4. The Console (16) requires three “AA” batteries; alka-

line batteries are recommended. Insert three batteries

into the Console. Make sure that the batteries are

oriented as shown by the diagram inside the

Console.

Batteries

5. Hold the Console (16) near the Upright (13). Insert the

console cable and the console wire into the indicated

hole and down through the Upright. Attach the earth

wire to the Upright with the Earth Screw (27).

Insert the excess cable and wire into the Upright (13).

Attach the Console (16) to the Upright with four M5 x

12mm Screws (49). Be careful to avoid pinching the

wires.

Be careful to

avoid pinching

the wires.

49 27

Earth

Wire

Console

Wire

Console

Cable

Hole

Tabs

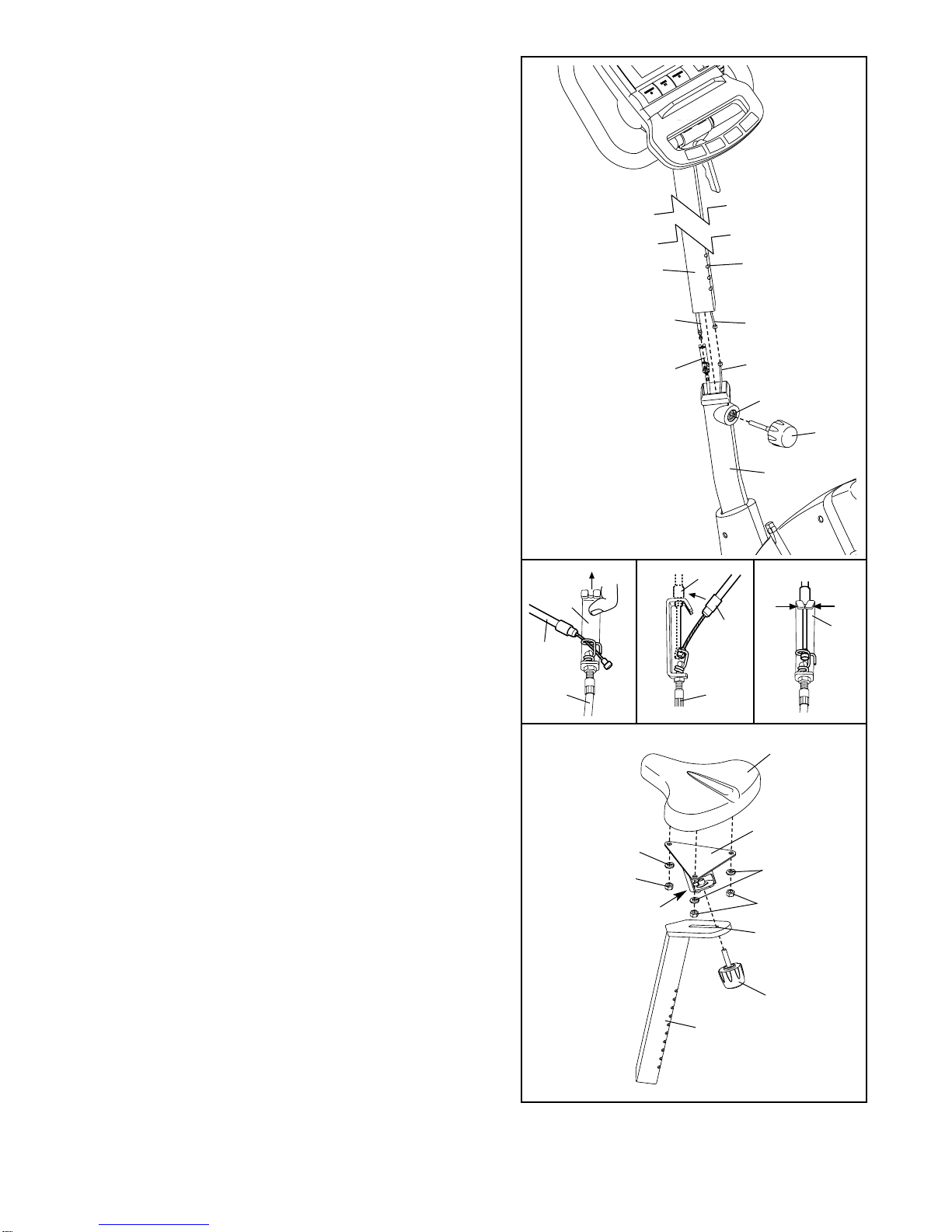

7. Attach the Seat (12) to the Seat Bracket (50) with three

M8 Nylon Locknuts (10) and three M8 Flat Washers

(51). Note: The Nylon Locknuts and Flat Washers may

be preattached to the underside of the Seat.

Orient the Seat (12) and the Seat Post (5) as shown.

Insert the pin on the bottom of the Seat Bracket (50)

into the indicated slot in the Seat Post. Insert the Seat

Knob (36) into the Seat Post and the Seat Bracket, and

turn the Knob clockwise until it is tight.

6. Whilst another person holds the Upright (13) in the

position shown, connect the console wire to the Reed

Switch Wire (43). Next, connect the console cable to

the Lower Cable (45) in the following way:

• See inset drawing A. Pull up on the metal bracket (A)

on the Lower Cable (45), and insert the tip of the

console cable (B) into the wire clip inside of the

metal bracket.

• See inset drawing B. Firmly pull the console cable

(B) and slide it into the metal bracket (A) on the

Lower Cable (45) as shown.

• See inset drawing C. Using pliers, squeeze the

prongs on the upper end of the metal bracket (A)

together.

Carefully push the excess wire and cable down into the

Frame (1), and insert the Upright (13) into the Frame.

Be careful to avoid pinching the wires and cables.

Next, align one of the adjustment holes in the Upright

with the indicated hole in the Frame. Insert the

Adjustment Knob (9) into the Frame and the Upright,

and turn the Knob clockwise until it is tight. Make sure

that the Knob is inserted through one of the

adjustment holes in the Upright.

Console Wire

Hole

Console Cable

Adjustment

Holes

Pin Slot

Be careful

to avoid

pinching the

wires.

AB C

10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is

completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.

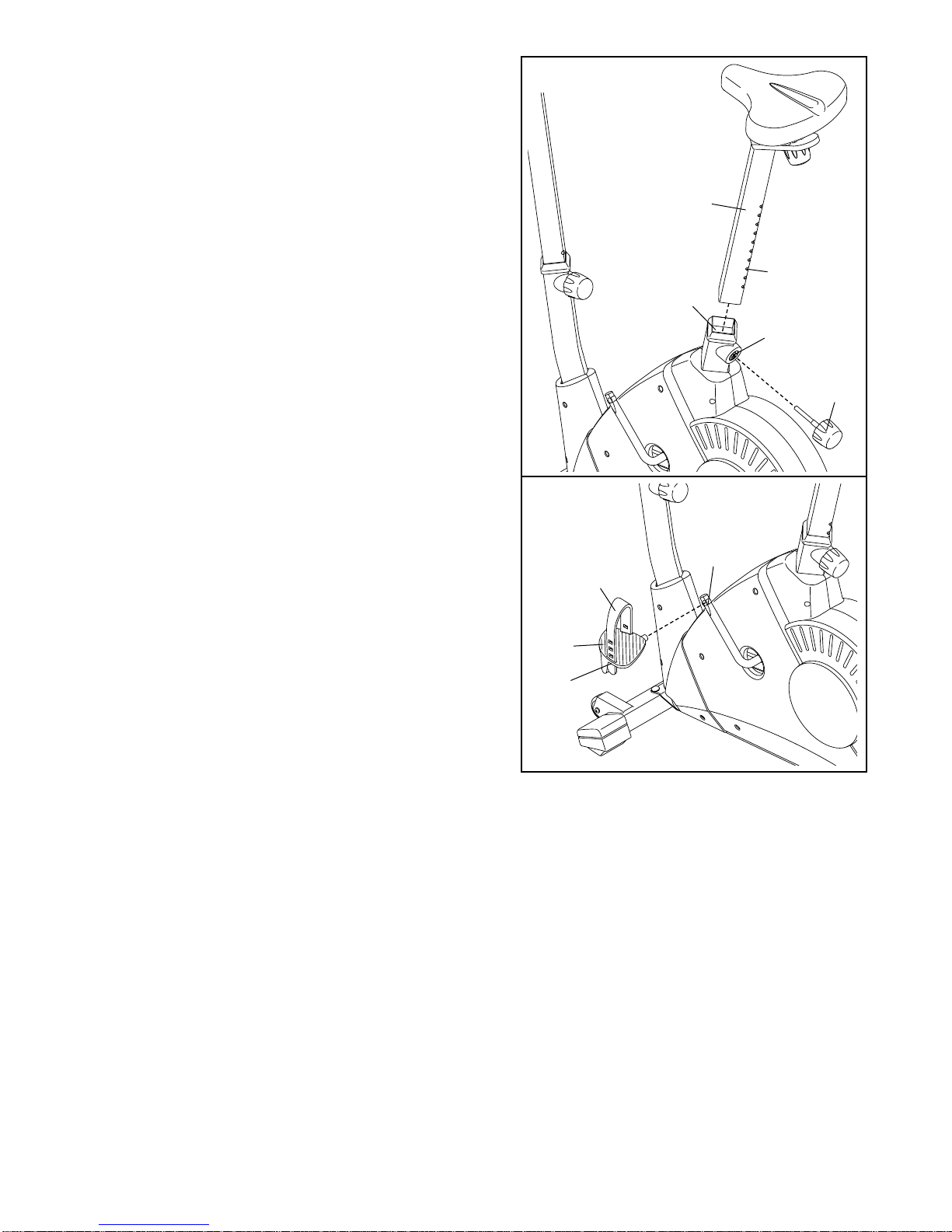

9. Identify the Left Pedal (24), which is marked with an

“L.” Using an adjustable spanner, firmly tighten the

Left Pedal counterclockwise into the left arm of the

Crank (21). Tighten the Right Pedal (not shown) clock-

wise into the right arm of the Crank. Important:

Tighten both Pedals as firmly as possible. After

using the exercise cycle for one week, retighten the

Pedals. For best performance, the Pedals must be

kept tightened.

Adjust the left Pedal Strap (25) to the desired position,

and press the end of the Pedal Strap onto the tab on

the Left Pedal (24). Adjust the right Pedal Strap (not

shown) in the same way.

8. Turn the indicated Adjustment Knob (9) counterclock-

wise and remove it. Insert the Seat Post (5) into the

Frame (1). Align one of the adjustment holes in the

Seat Post with the indicated hole in the Frame. Insert

the Adjustment Knob into the Frame and the Seat Post,

and turn the Knob clockwise until it is tight. Make sure

that the Knob is inserted through one of the

adjustment holes in the Seat Post.

Hole

Adjustment

Holes

Tab

HOW TO USE THE CHEST PULSE SENSOR

HOW TO PUT ON THE CHEST PULSE SENSOR

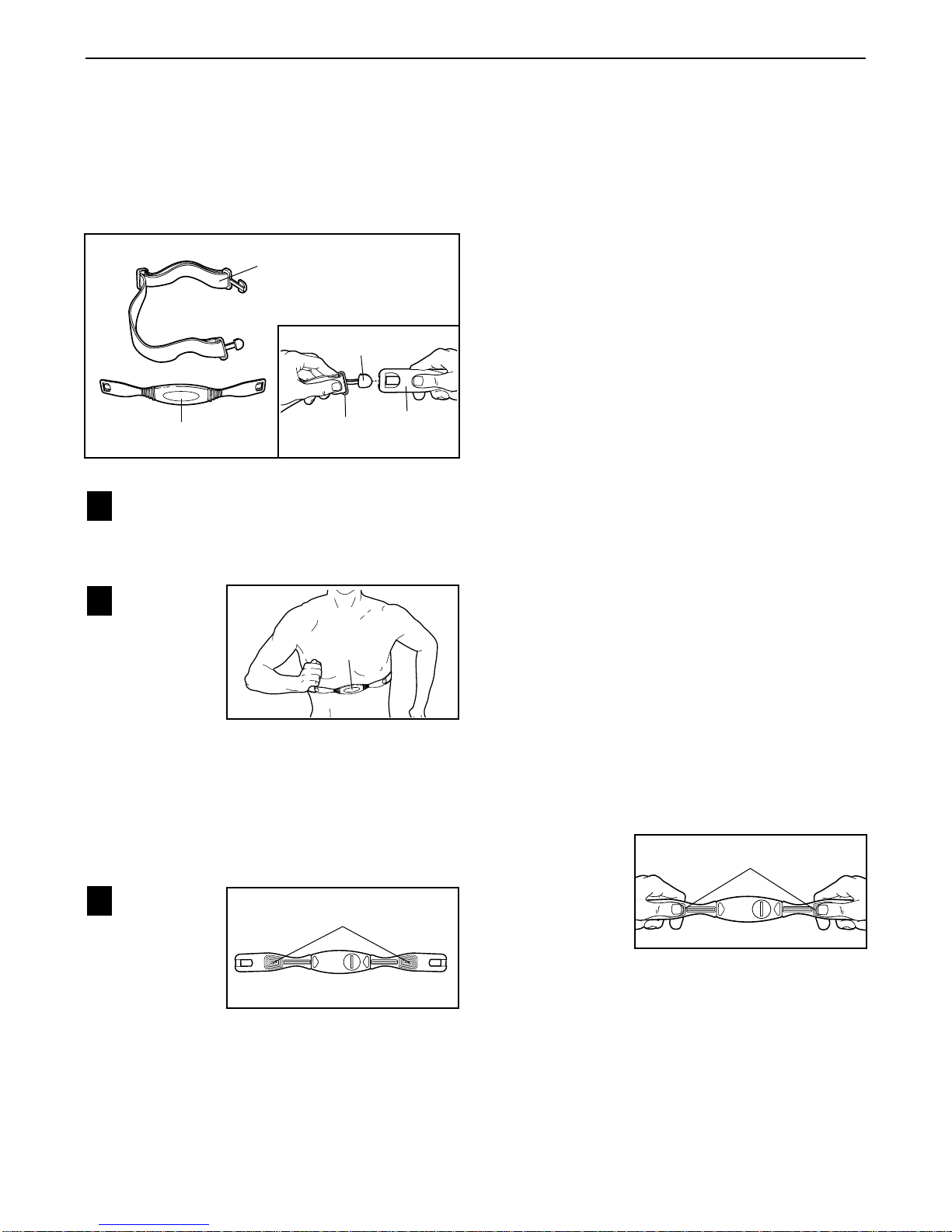

The chest pulse sensor consists of two components:

the chest strap and the sensor unit. Follow the steps

below to put on the chest pulse sensor.

See the inset drawing above. Insert the tab on

one end of the chest strap through one end of the

sensor unit. Press the end of the sensor unit

under the buckle on the chest strap.

Wrap the

chest pulse

sensor

around

your chest.

Attach the

free end of

the chest

strap to the

sensor unit as described above. Adjust the length

of the chest strap, if necessary. The chest pulse

sensor should be under your clothes, against

your skin, and as high under the pectoral mus-

cles or breasts as is comfortable. Make sure that

the logo is right-side-up and facing forward.

Pull the

sensor unit

away from

your body

a few inch-

es and

locate the

two elec-

trode areas on the inner side. Using a saline

solution such as saliva or contact lens solution,

wet both electrode areas. Return the sensor unit

to a position against your chest.

CHEST PULSE SENSOR TROUBLESHOOTING

If the chest pulse sensor does not function proper-

ly, or if the displayed heart rate is excessively high

or low, try the troubleshooting steps below.

• Make sure that you are wearing the chest pulse sen-

sor as described at the left. If the chest pulse sensor

does not function when positioned as described,

move it slightly lower or higher on your chest.

• Each time you use the chest pulse sensor, use

saline solution such as saliva or contact lens solu-

tion to wet the two electrode areas on the sensor

unit (see the drawing below). If heart rate readings

do not appear until you begin perspiring, re-wet the

electrode areas.

• Make sure that you are within arm’s length of the

console. For the console to display heart rate

readings, the user must be within arm’s length of

the console.

• The chest pulse sensor is designed to work with

people who have normal heart rhythms. Heart rate

reading problems may be caused by medical condi-

tions such as premature ventricular contractions

(pvcs), tachycardia bursts, and arrhythmia.

• The operation of the chest pulse sensor can be

affected by magnetic interference caused by high

power lines or other sources. If it is suspected that

magnetic interference may be causing a problem,

try relocating your exercise equipment.

• If the chest pulse sensor still does not function prop-

erly, test the chest pulse sensor in the following way:

Hold the chest

pulse sensor

and place your

thumbs over

the electrode

areas as

shown. Next,

hold the chest

pulse sensor near the console. Whilst holding one

thumb stationary, begin tapping the other thumb

against the electrode area at a rate of about one tap

per second. Check the heart rate reading on the

console.

Chest Strap

Sensor Unit

Tab

Buckle

Electrode Areas

Sensor

Unit

Electrode Areas

Logo

•If the chest pulse sensor does not function properly

after you have followed all of the above instructions,

the battery should be replaced in the following way:

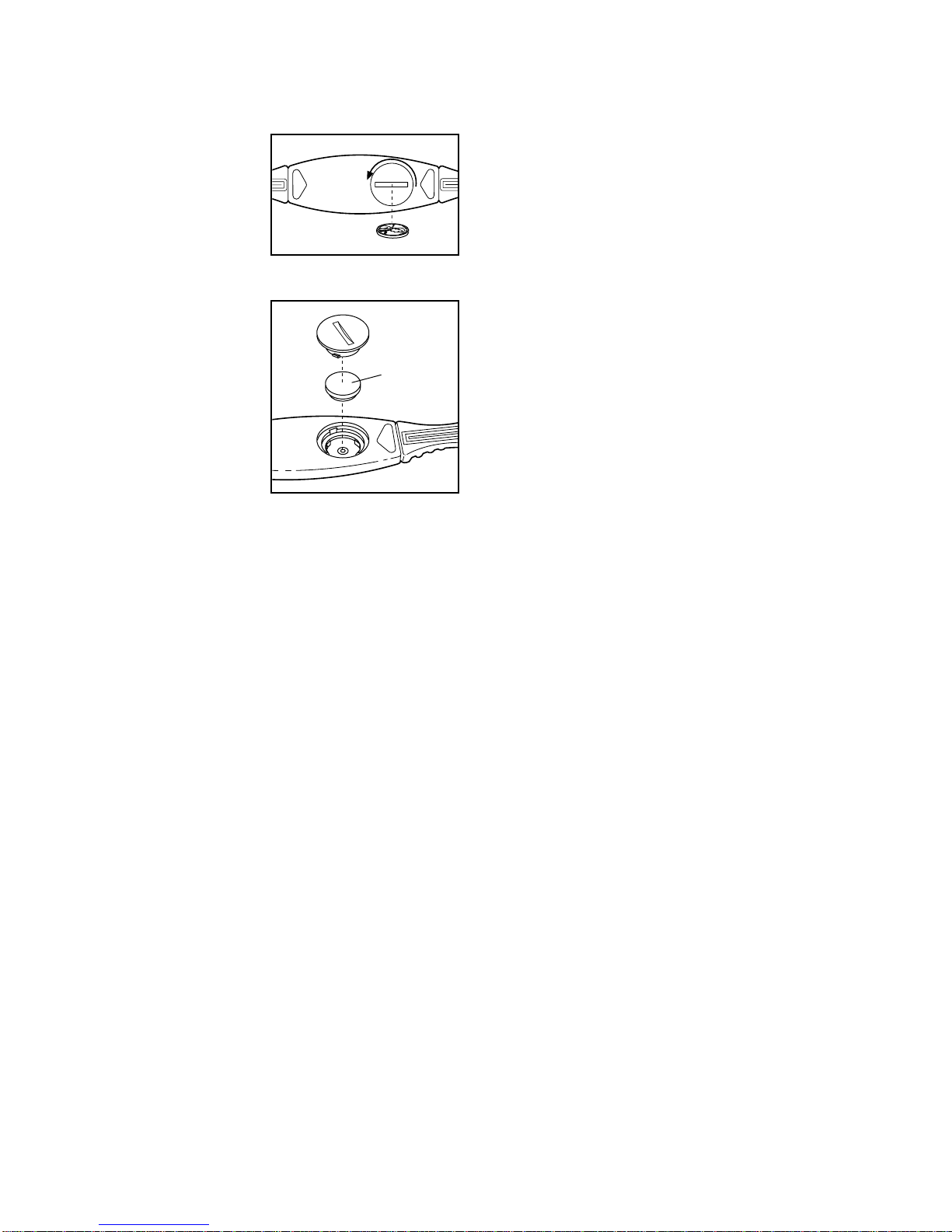

Locate the battery

cover on the back of

the sensor unit. Insert

a coin into the slot in

the cover, turn the

cover counterclock-

wise, and remove the

cover.

Remove the old bat-

tery and insert a new

CR 2032 battery.

Make sure that the

battery is turned so

the writing is on top.

Replace the battery

cover and turn it

clockwise to close it.

CHEST PULSE SENSOR CARE

• Thoroughly dry the chest pulse sensor after each

use. The chest pulse sensor is activated when the

electrode areas are wetted and the chest pulse sen-

sor is put on; the chest pulse sensor shuts off when

it is removed and the electrode areas are dried. If

the chest pulse sensor is not dried after each use, it

may remain activated longer than necessary, drain-

ing the battery prematurely.

• Store the chest pulse sensor in a warm, dry place.

Do not store the chest pulse sensor in a plastic bag

or other container that may trap moisture.

• Do not expose the chest pulse sensor to direct

sunlight for extended periods of time. Do not expose

the chest pulse sensor to temperatures above 50° C

(122° F) or below -10° C (14° F).

• Do not excessively bend or stretch the sensor unit

when using or storing the chest pulse sensor.

• Clean the sensor unit using a damp cloth—never

use alcohol, abrasives, or chemicals. The chest

strap may be hand washed and air dried.

CR 2032

Battery

Autres manuels pour Vector 503 Bike

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weslo vélo d'appartement

Weslo

Weslo Pursuit R 30 Bike Guide de l'utilisateur

Weslo

Weslo Pursuit CT 1.5 WLEX31310.0 Manuel utilisateur

Weslo

Weslo Pursuit T 89 Bike Guide de l'utilisateur

Weslo

Weslo EasyFit WLIVEX86011.0 Manuel utilisateur

Weslo

Weslo Vector 303 Bike Manuel d'utilisation et d'entretien

Weslo

Weslo Pursuit 102 Bike Manuel utilisateur

Weslo

Weslo Pursuit T 39 Exercise Bike Manuel du système

Weslo

Weslo Pursuit S 35 Bike Manuel utilisateur

Weslo

Weslo Pursuit E 26 Bike Manuel utilisateur

Weslo

Weslo Pursuit 625s Manuel d'utilisation et d'entretien

Weslo

Weslo Pursuit T 169 Bike Manuel utilisateur

Weslo

Weslo Sport 50 Bike Manuel utilisateur

Weslo

Weslo Pursuit R 20 Bike Guide de l'utilisateur

Weslo

Weslo Pursuit T 169 Bike Manuel utilisateur

Weslo

Weslo WLIVEX79410.0 Manuel utilisateur

Weslo

Weslo PURSUIT CT 3.8R Manuel utilisateur

Weslo

Weslo Pursuit 640s Manuel d'utilisation et d'entretien

Weslo

Weslo Pursuit 202 Manuel du système

Weslo

Weslo Pursuit 616s Manuel utilisateur

Weslo

Weslo Purcuit4.2 Bike Guide de l'utilisateur

Weslo

Weslo Pursuit S 35 Bike Guide de l'utilisateur

Weslo

Weslo Pursuit 655s Manuel utilisateur

Weslo

Weslo Pursuit 2.3 U Bike Guide de configuration

Weslo

Weslo Aero A6 Manuel d'utilisation et d'entretien

Manuels vélo d'appartement populaires d'autres marques

TOORX

TOORX BRX85 Manuel utilisateur

Matrix

Matrix KranKcycle Manuel utilisateur

Matrix

Matrix IC3 Manuel utilisateur

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manuel utilisateur

Monark

Monark 827E Manuel utilisateur

Stamina

Stamina 1310 Manuel utilisateur

American Fitness

American Fitness SPR-BK1072A Manuel utilisateur

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manuel utilisateur

BH FITNESS

BH FITNESS H9158H Manuel de l'opérateur

Body Sculpture

Body Sculpture BC-7220G Manuel utilisateur

Cateye

Cateye EC-2300 Manuel utilisateur

FYTTER

FYTTER RACER RC MSR Manuel utilisateur

Kikos

Kikos HM-9090M Manuel utilisateur

Pro-Form

Pro-Form 345 Zlx Bike Guide de l'utilisateur

Fuel Fitness

Fuel Fitness SU135-40 Manuel utilisateur

NordicTrack

NordicTrack Gxr 4.2 Bike Manuel utilisateur

Vision Fitness

Vision Fitness U70 Manuel utilisateur

Stamina

Stamina 15-0340A Manuel utilisateur
