Weslo Pursuit E25 WLEX0996.1 Manuel utilisateur

Visit our website at

www.weslo.com

new products, prizes,

fitness tips, and much more!

USERʼS MANUAL

Model No. WLEX0996.1

Serial No.

Write the serial number in the

space above for reference.

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete cus-

tomer satisfaction. If you have

questions, or if parts are damaged

or missing, PLEASE DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: You must note the

product model number and seri-

al number (see the drawing

above) before contacting us:

CALL TOLL-FREE:

1-866-699-3756

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m–4 p.m. MT

ON THE WEB:

www.wesloservice.com

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manu-

al for future reference.

Serial Number

Decal

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEEXERCISECYCLE ........................................................8

MAINTENANCEANDTROUBLESHOOTING ...................................................10

EXERCISEGUIDELINES ...................................................................11

PARTLIST ..............................................................................14

EXPLODEDDRAWING ....................................................................15

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

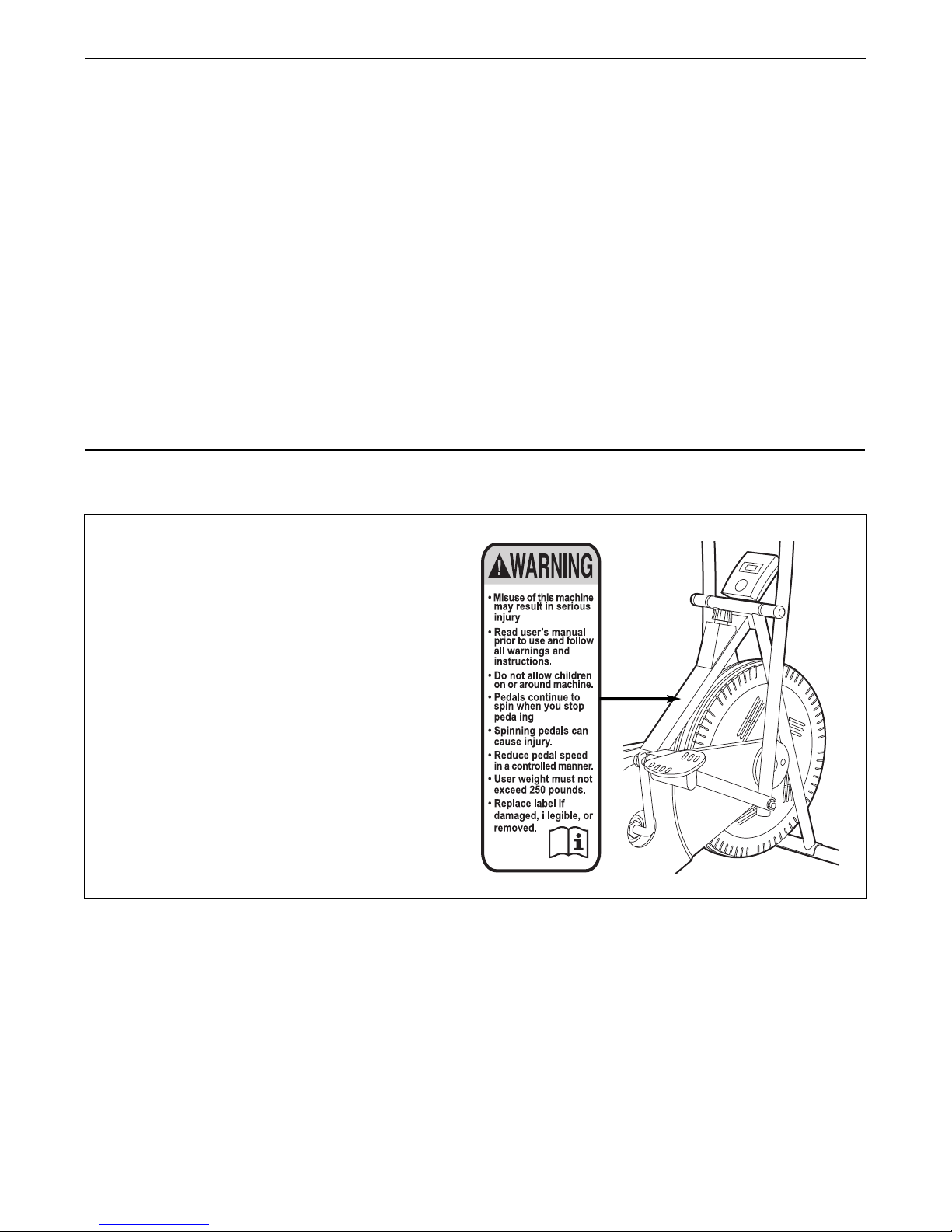

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the

warning decal(s). If a decal is missing or

illegible, call the telephone number on the

front cover of this manual and request a

free replacement decal. Apply the decal in

the location shown. Note: The decal(s) may

not be shown at actual size.

WESLO is a registered trademark of ICON IP, Inc.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise cycle before using your exercise

cycle. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

3. The exercise cycle is intended for in-home

use only. Do not use the exercise cycle in a

commercial, rental, or institutional setting.

4. eep the exercise cycle indoors, away from

moisture and dust. Place the exercise cycle

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is enough clearance around the exer-

cise cycle to mount, dismount, and use it.

5. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

6. The exercise cycle should not be used by

persons weighing more than 250 lbs.

(113 kg).

7. eep children under age 12 and pets away

from the exercise cycle at all times.

8. Wear appropriate clothing when exercising; do

not wear loose clothing that could become

caught on the exercise cycle. Always wear

athletic shoes for foot protection.

9. When adjusting the seat, insert the seat knob

into one of the holes in the seat post (see

the drawing on page 7). Do not insert the

seat knob under the seat post.

10. Always keep your back straight when using

the exercise cycle; do not arch your back.

11. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

12. The exercise cycle does not have a free

wheel; the pedals and the handlebars will

continue to move until the flywheel stops.

13. Use the exercise cycle only as described in

this manual.

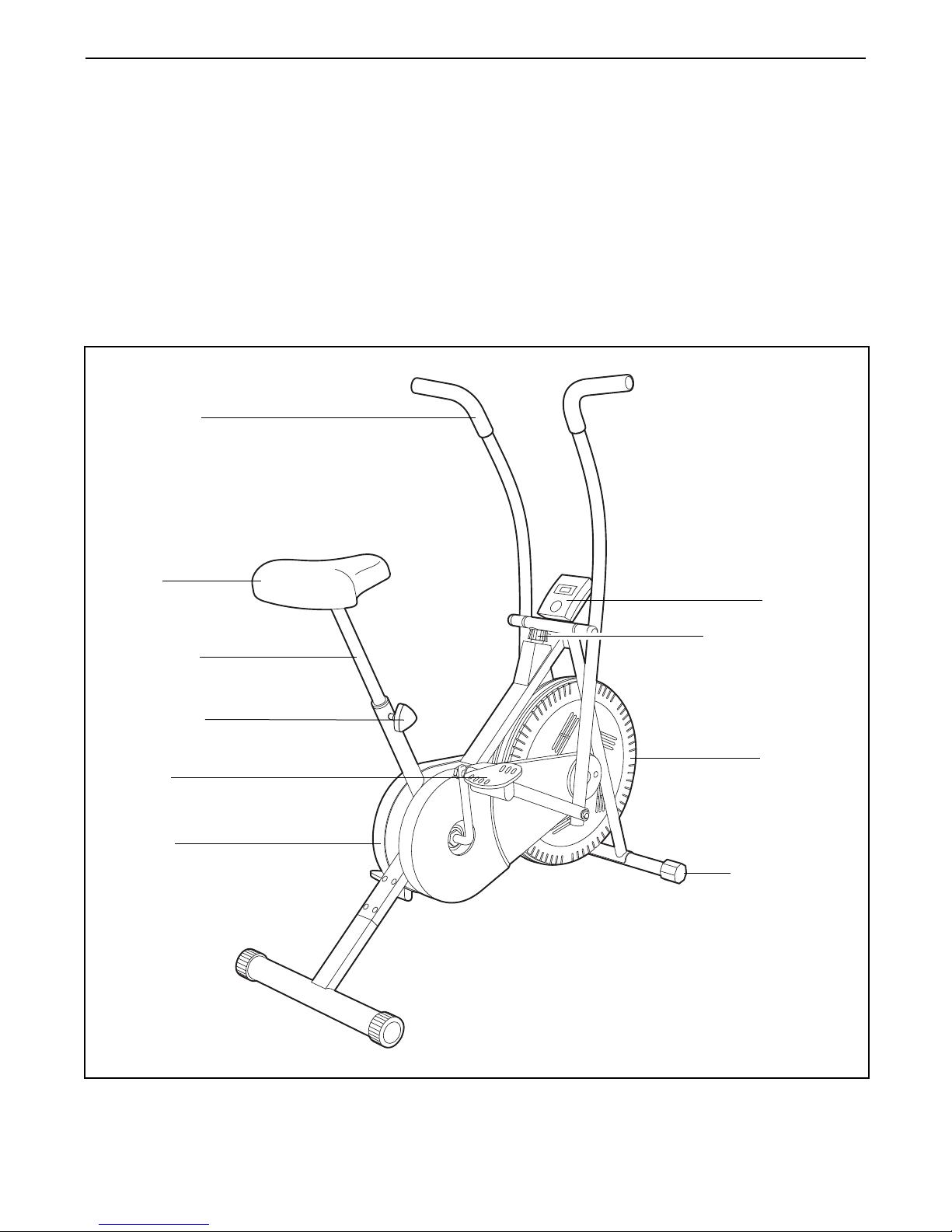

BEFORE YOU BEGIN

Handlebar

Resistance nob

Flywheel

Seat

Seat Post

Pedal

Shield

Seat nob

Console

Leveling Cap

Thank you for selecting the new WESLO®PURSUIT

E 25 exercise cycle. The PURSUIT E 25 exercise

cycle blends advanced engineering with contemporary

styling to provide you with effective, low-impact work-

outs in the convenience and privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please see the front cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

To avoid a registration fee for any service needed

under warranty, you must register the exercise

cycle at www.wesloservice.com/registration.

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

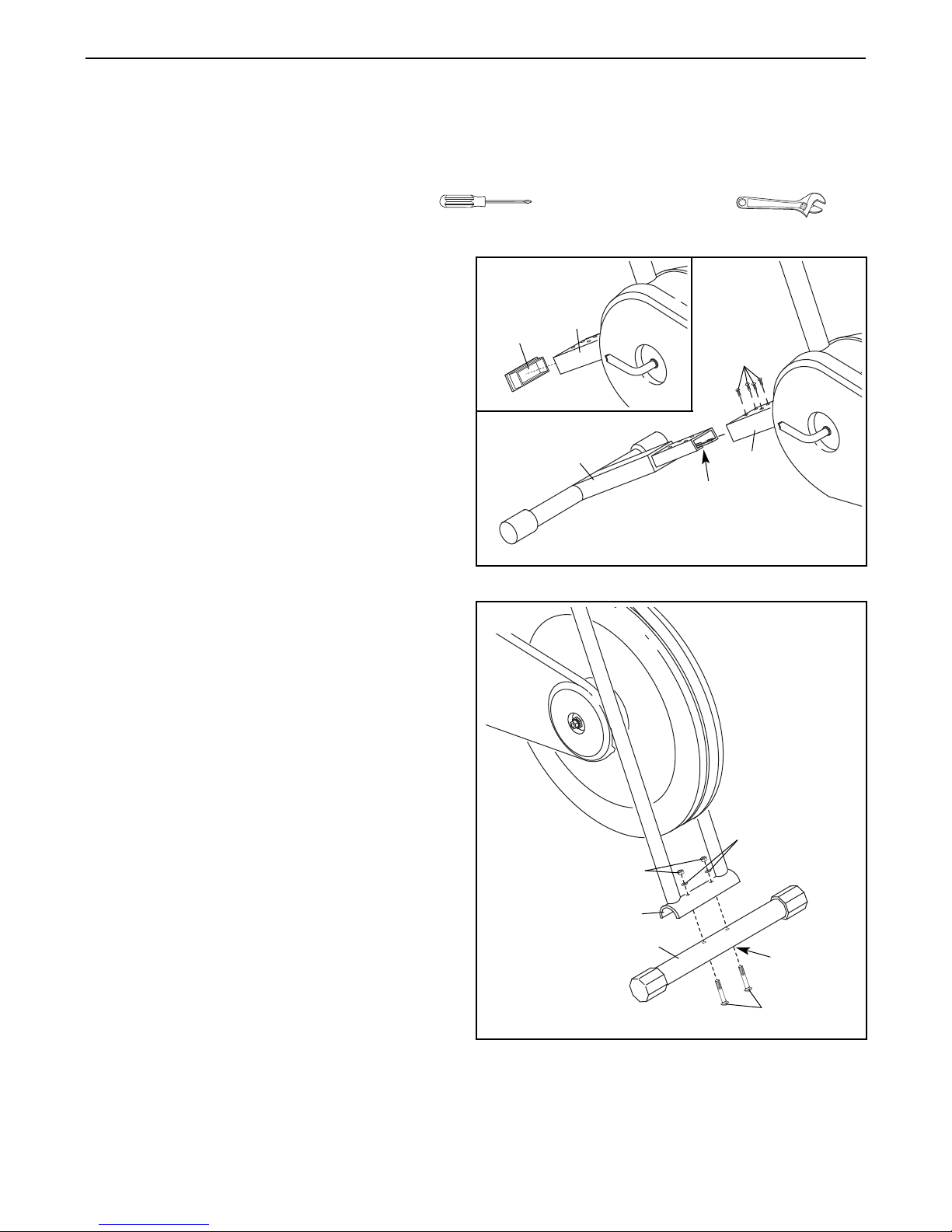

ASSEMBLY

To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed. In addition to the included hex

keys, assembly requires a Phillips screwdriver and an adjustable wrench .

Asmall amount of liquid soap is also required.

1. See the inset drawing. Remove the Shipping

Insert (54) from the Frame (1) and discard it.

Turn the Rear Stabilizer (2) so that the slot

faces downward, and insert the Rear Stabilizer

into the Frame (1). Attach the Rear Stabilizer

with four M5 x 10mm Machine Screws (32).

2. Align the Front Stabilizer (5) with the saddle

bracket on the front of the Frame (1). Turn the

Front Stabilizer so the square holes are fac-

ing away from the Frame. Attach the Front

Stabilizer with two M8 x 40mm Carriage Bolts

(18), two M8 Curved Washers (14), and two M8

Locknuts (9).

Slot

Square

Holes

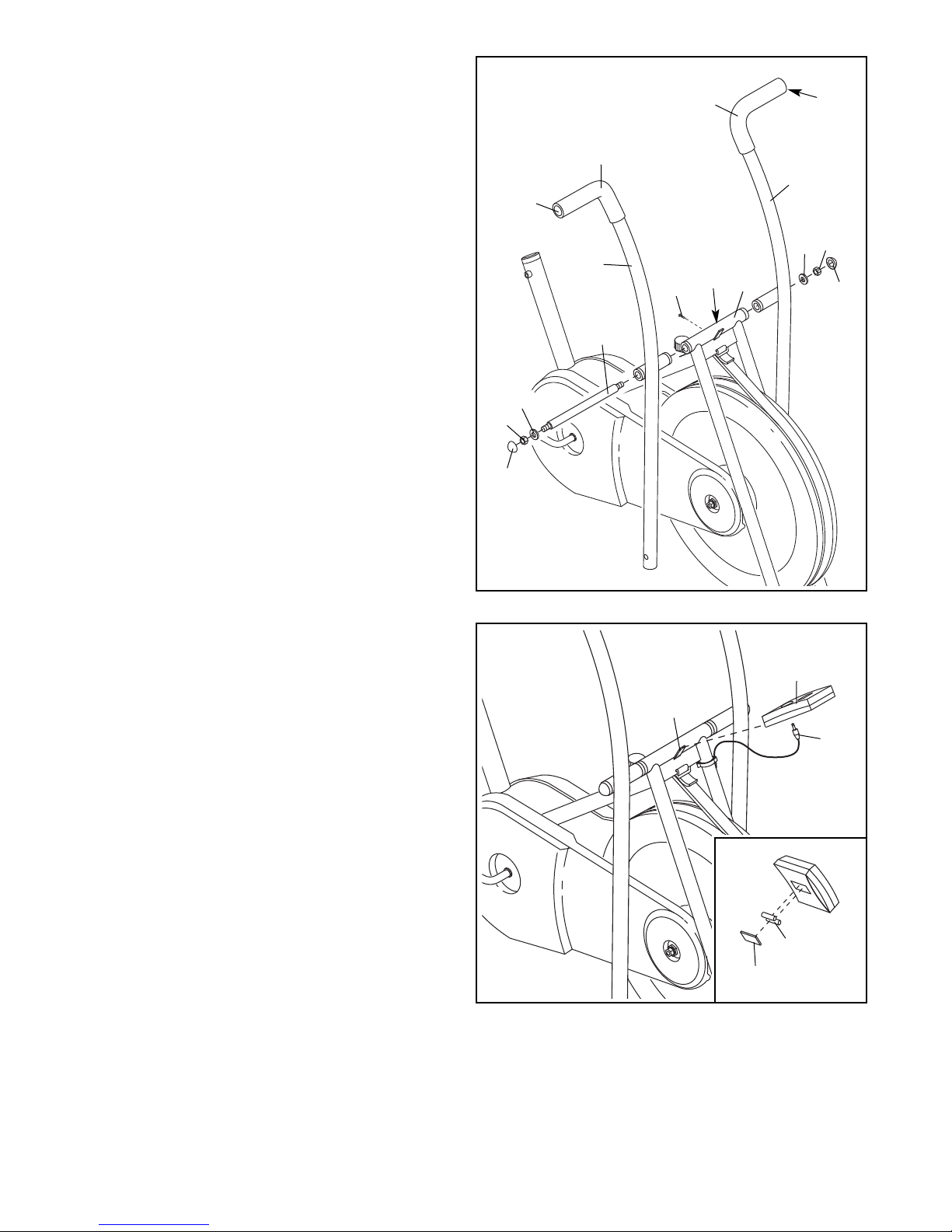

4. The Console (7) requires one “AAA” battery (not

included); an alkaline battery is recommended.

See inset drawing. Remove the battery door

from the back of the Console and insert the bat-

tery into the Console. Make sure that the bat-

tery is oriented as shown by the diagram

inside the battery compartment. Then, reat-

tach the battery door.

Next, plug the Reed Switch Wire (28) fully into

the socket on the back of the Console (7).

Slide the Console (7) onto the console plate.

Note: The Console is held by friction; it does not

snap into place.

Battery Door

Battery

Console

Plate

3. Remove all parts from the Pivot Axle (3). Insert

the Pivot Axle into the Frame (1). Align the hole

in the center of the Pivot Axle with the hole in

the center of the Frame. Tighten an M5 x 10mm

Machine Screw (32) into the Frame and the

Pivot Axle.

Slide the Left and Right Handlebars (40, 41)

onto the ends of the Pivot Axle (3). Slide an M8

Flat Washer (38) onto each end of the Pivot

Axle, and then thread an M8 Locknut (9) onto

each end of the Pivot Axle. Tighten each

Locknut until at least two threads on the end of

the Pivot Axle extend past the Locknut. Make

sure that the Handlebars move freely.

Press a Pivot Cap (50) onto each end of the

Pivot Axle (3).

Apply a small amount of liquid soap to the upper

end of each Handlebar (40, 41). Slide a Foam

Grip (42) onto each Handlebar. Make sure that

there is a Handlebar Cap (55) in each

Handlebar.

32 Hole

38 9

7. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hard-

ware may be left over after assembly is completed. Place a mat under the exercise cycle to protect the

floor or carpet from damage.

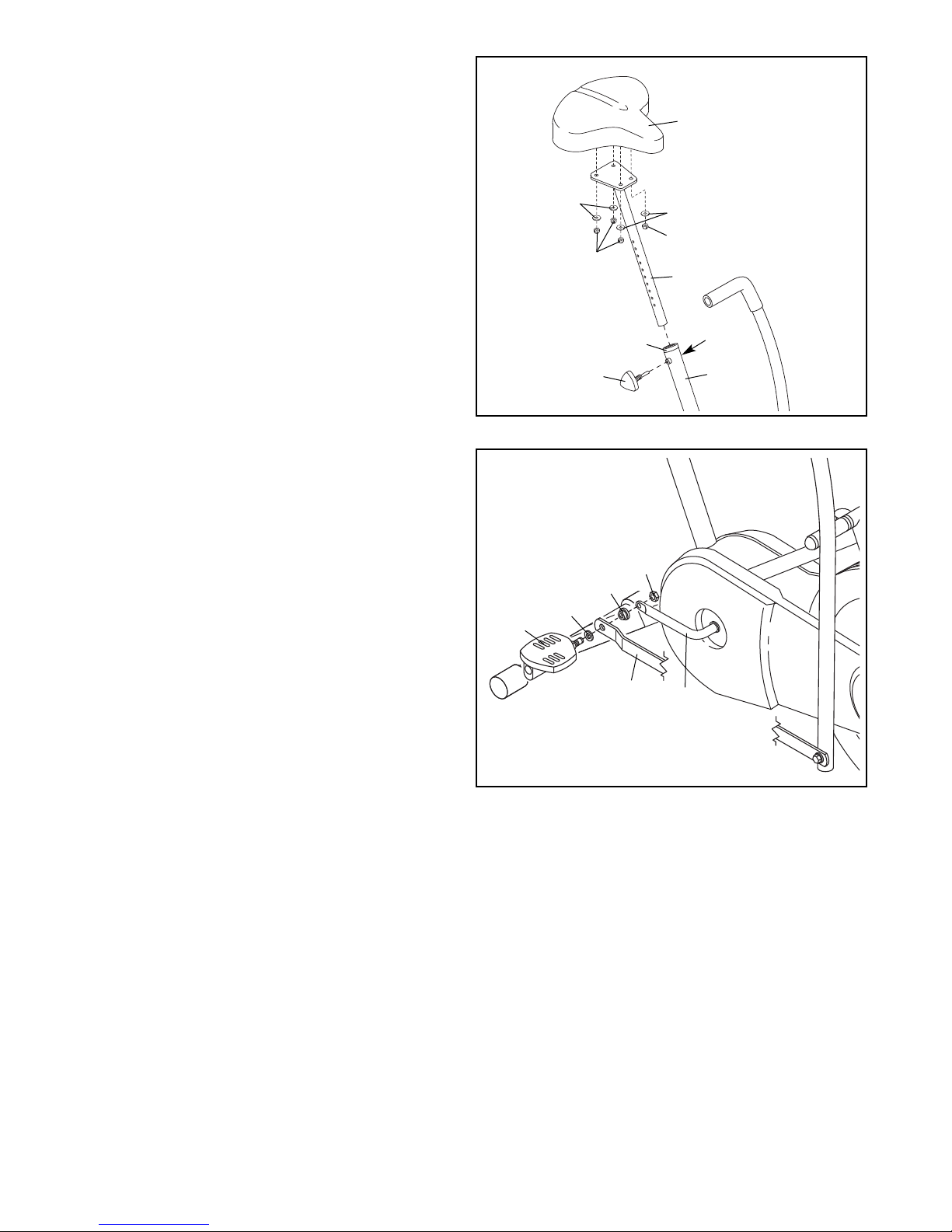

6. Identify the Right Pedal (22), which is marked

with an “R.” Remove only the Right Pedal Nut

(47) and the Pedal Bushing (46) from the Pedal.

Next, insert the shaft of the Pedal into the right

Pedal Arm (49). Slide the Pedal Bushing onto

the Pedal, and position the Pedal Bushing so

that it slides into the Pedal Arm. Tighten the

shaft of the Pedal clockwise into the right arm of

the Crank (20) as firmly as possible. Tighten the

Pedal Nut clockwise onto the Pedal. Make sure

that the Pedal and the Pedal Nut are tight-

ened as firmly as possible.

Repeat this step to attach the Left Pedal (not

shown), turning the Pedal and the Left Pedal

Nut (not shown) counterclockwise.

49 20

5. Attach the Seat (11) to the Seat Post (10) with

four M8 Locknuts (9) and four M8 Spring

Washers (8). Note: The Locknuts and Spring

Washers may be pre-attached to the Seat.

Press the Frame Bushing (4) into the Frame (1).

(Note: The Frame Bushing may be pre-assem-

bled.) Next, insert the Seat Post (10) into the

Frame.

Align one of the holes in the Seat Post (10) with

the hole in the Frame (1). Insert the Seat nob

(31) into the Frame and the Seat Post. Make

sure that the Seat nob is inserted into one

of the holes in the Seat Post; do not insert

the Seat nob under the Seat Post. Tighten

the Seat nob into the Frame.

Hole

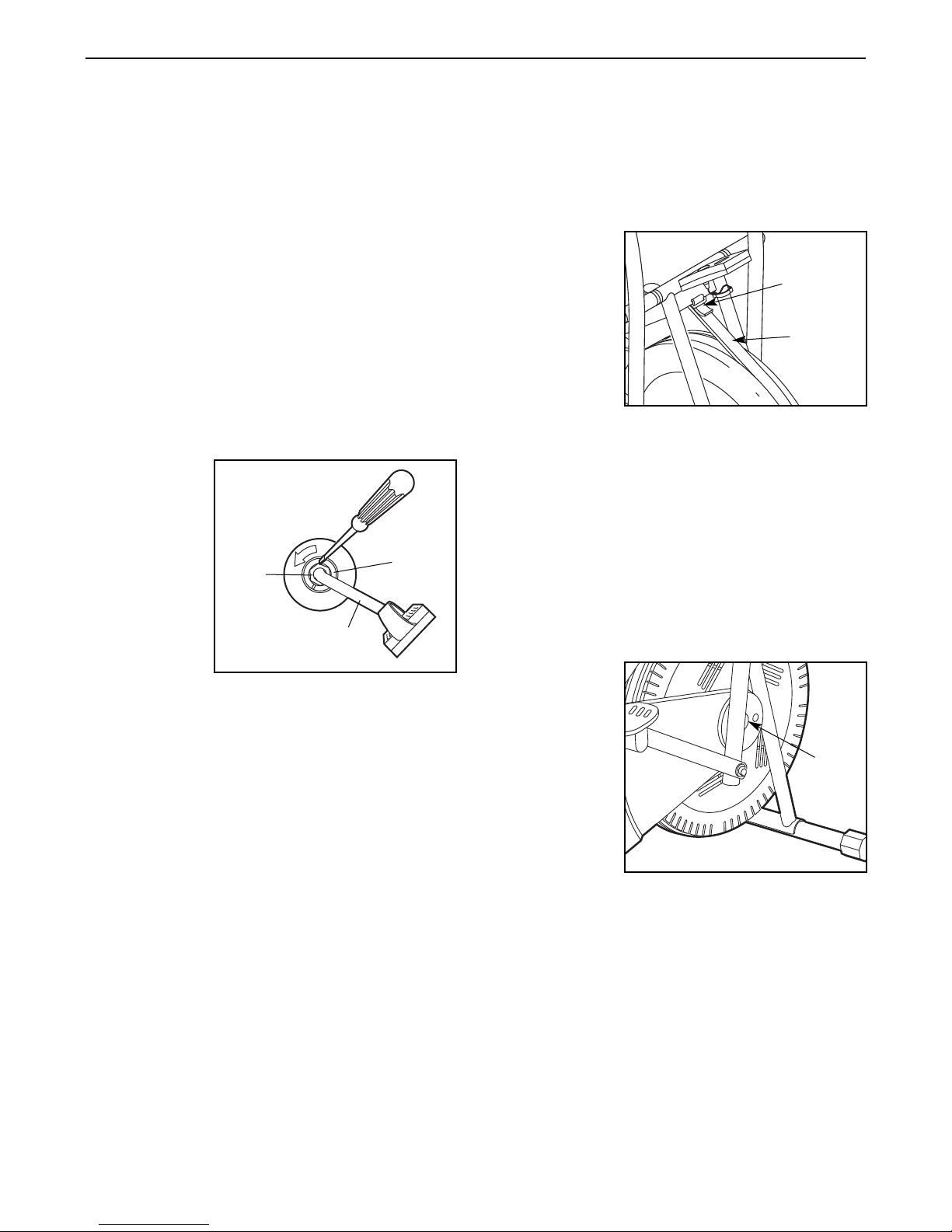

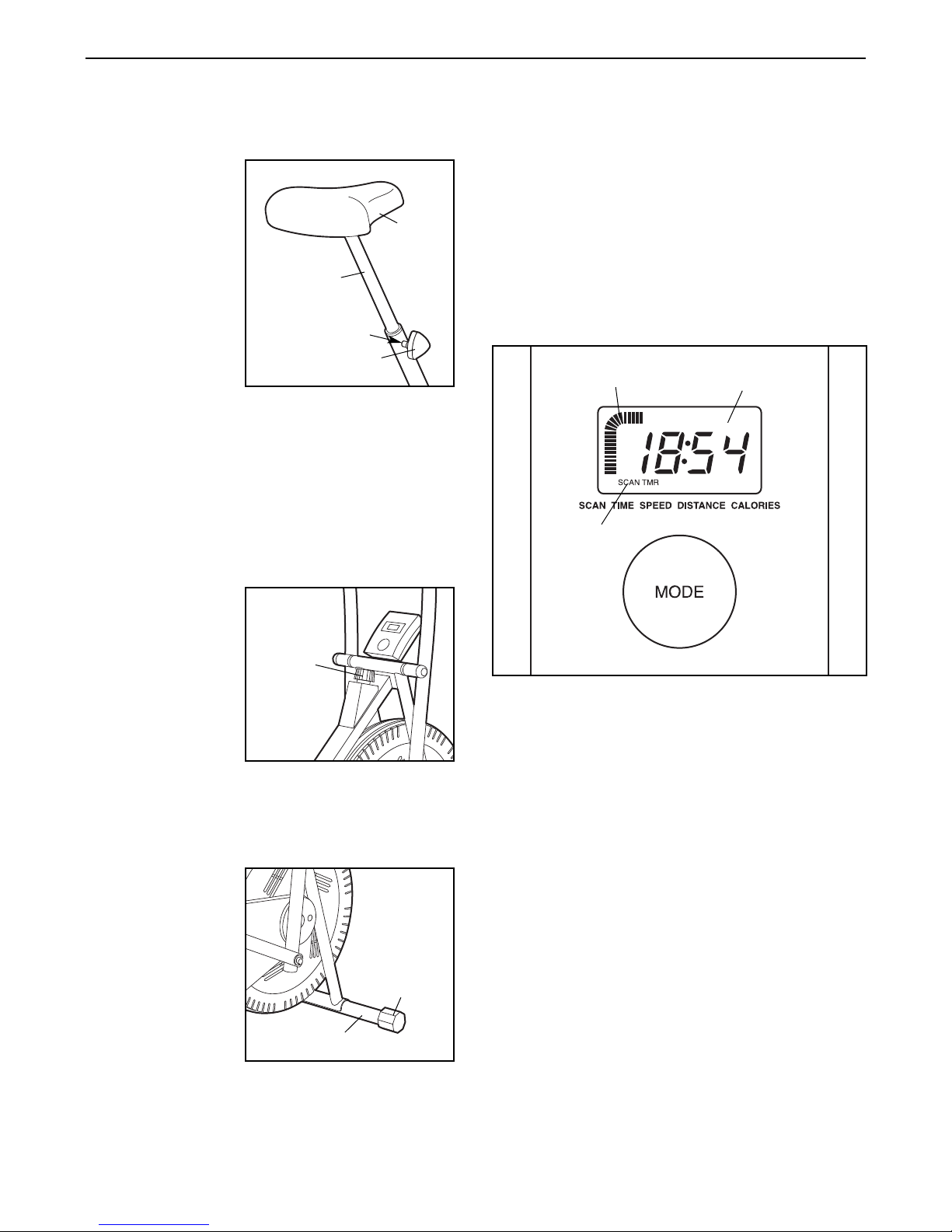

HOW TO ADJUST THE SEAT

For effective exer-

cise, the seat

must be at the

proper height. As

you pedal, there

should be a slight

bend in your

knees when the

pedals are in the

lowest position. To

adjust the seat,

first hold the seat

and turn the seat

knob counter-

clockwise to remove it. Next, align a different hole in

the seat post with the indicated hole in the frame, and

insert the seat knob into the frame and the seat post.

Make sure to insert the seat knob into the seat

post; do not insert the seat knob under the seat

post. Tighten the seat knob into the frame.

HOW TO ADJUST THE PEDALING RESISTANCE

To vary the inten-

sity of your exer-

cise, the pedaling

resistance can be

adjusted. To

increase the resis-

tance, turn the

resistance knob

clockwise; to

decrease the

resistance, turn the

knob counterclockwise.

HOW TO LEVEL THE EXERCISE CYCLE

Locate the level-

ing caps on the

front stabilizer. If

the exercise cycle

rocks slightly on

your floor when it

is used, turn one

or both of the lev-

eling caps until

the rocking motion

is eliminated.

BATTERY INSTALLATION

Before the console can be operated, one “AAA” bat-

tery must be installed. If you have not installed a bat-

tery, see assembly step 4 on page 6.

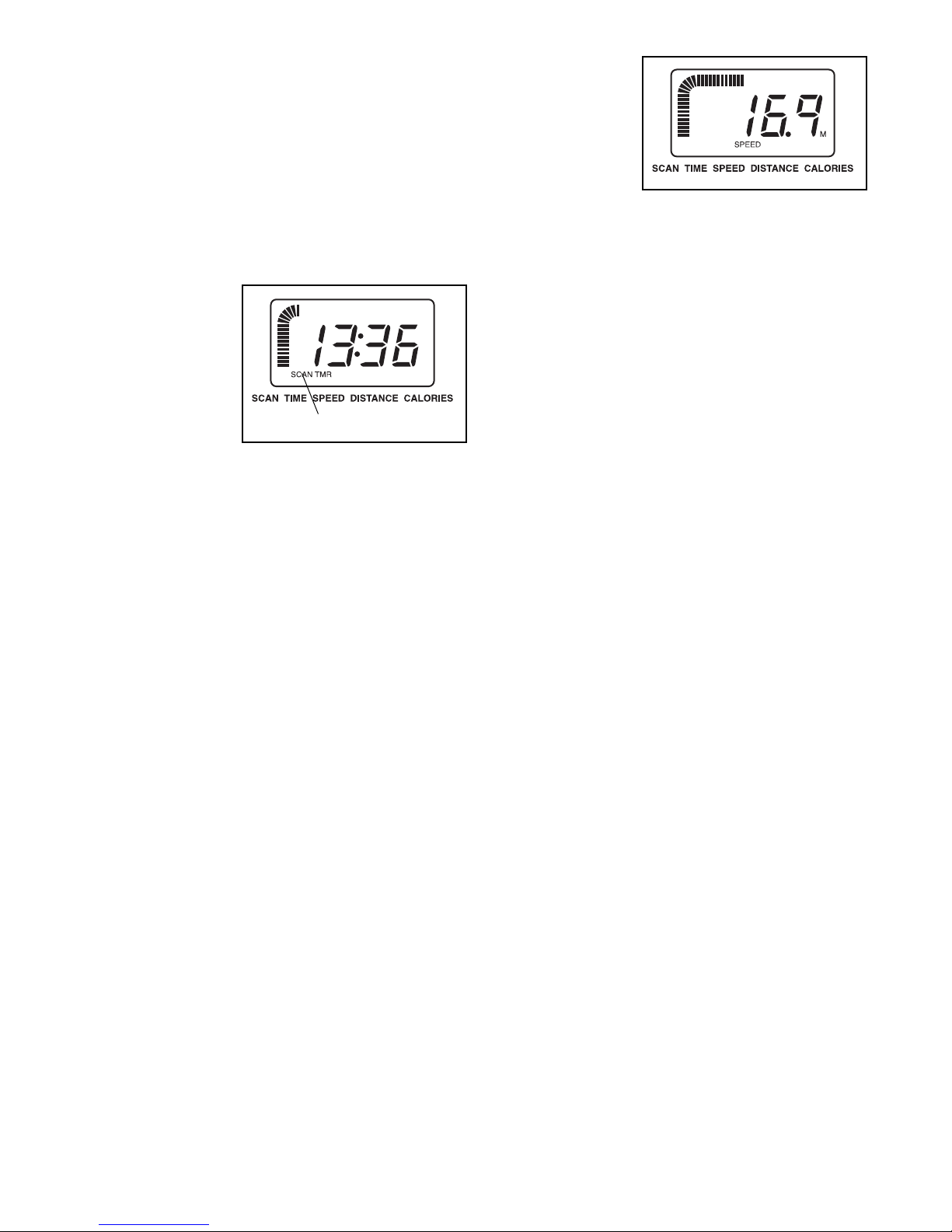

DESCRIPTION OF THE CONSOLE

The console features five modes that provide instant

exercise feedback during your workouts. The modes

are described below.

• Scan mode—Displays the speed, time, distance, and

calories modes, for five seconds each, in a repeating

cycle.

• Time mode—Displays the elapsed time. Note: If you

stop pedaling for five seconds or longer, the time

mode will pause and a stop symbol will appear in

the upper right-hand corner of the display.

• Speed mode—Displays your pedaling speed, in

miles per hour.

• Distance mode—Displays the total distance you

have pedaled, in miles.

• Calories mode—Displays the approximate number

of calories you have burned.

Note: The console also features a speed display. As

you increase your pedaling speed, additional segments

will appear in the bar.

HOW TO USE THE EXERCISE CYCLE

Seat Post

Seat nob

Resistance

nob

Speed Display Display

Mode

Indicators

Leveling

Cap

Stabilizer

Seat

Hole

HOW TO OPERATE THE CONSOLE

Note: If there is a piece of clear plastic on the face of

the console, remove it before operating the console.

1. To turn on the power, press the mode button or sim-

ply begin pedaling. When the power is turned on,

the entire display will appear for two seconds. The

console will then be ready for operation.

2. Select one of the five modes:

Scan mode—

When the power

is turned on, the

scan mode will

automatically be

selected. One

mode indicator

will show that

the scan mode

is selected, and

a second mode indicator will show which mode is

currently displayed. Note: If a different mode is

selected, you can select the scan mode again by

repeatedly pressing the mode button.

Time, speed,

distance, or

calories

mode—To

select one of

these modes for

continuous dis-

play, press the

mode button

repeatedly. The mode indicators will show which

mode is selected. Make sure that the scan mode is

not selected.

3. To reset the display, hold down the mode button for

two seconds. After the display is reset, the scan

mode will be selected.

4. To turn off the power, simply wait for about four min-

utes. Note: The console has an “auto-off” fea-

ture. If the pedals are not moved and the mode

button is not pressed for four minutes, the

power will turn off automatically in order to con-

serve the battery.

Mode Indicators

Inspect and tighten all parts of the exercise cycle reg-

ularly. Replace any worn parts immediately.

The exercise cycle can be cleaned with a soft, damp

cloth. Avoid spilling liquid on the console. eep the

console out of direct sunlight or the display may be

damaged. Remove the battery when storing the exer-

cise cycle.

BATTERY REPLACEMENT

If the console does not function properly, the battery

should be replaced. See assembly step 4 on page 6.

In addition, make sure that the reed switch wire is

plugged fully into the console.

HOW TO TIGHTEN THE CRAN

If the arms of

the crank

become

loose, they

should be

tightened in

order to pre-

vent exces-

sive wear.

Loosen the

crank nut on

the left arm of

the crank.

Place the end of a standard screwdriver in one of the

slots in the slotted crank nut. Lightly tap the screw-

driver with a hammer to turn the slotted crank nut

counterclockwise until the arms are no longer loose.

Do not overtighten the slotted crank nut. When the

slotted crank nut is properly tightened, retighten the

crank nut.

HOW TO ADJUST THE RESISTANCE STRAP

If there is not enough pedaling resistance when the

resistance knob is turned to the highest setting, the

resistance strap may need to be adjusted. To adjust

the resistance

strap, first turn

the resistance

knob counter-

clockwise to

the lowest set-

ting. Next,

locate the slot-

ted tab on the

front of the

exercise cycle.

Grip the

longest part the resistance strap underneath the slot-

ted tab and pull it towards the slot. When a little slack

is created, pull the end of the resistance strap tight.

Turn the crank for a moment to make sure that there

is not too much resistance.

HOW TO ADJUST THE CHAIN

The exercise cycle features a chain that must be kept

properly adjusted. If the chain causes excessive noise

or slips as you pedal, the chain should be adjusted.

To tighten the

chain, loosen,

but do not

remove, the

axle nuts on

both sides of

the flywheel.

Pull the fly-

wheel forward

slightly. Make

sure that the

flywheel is

straight and

retighten the axle nuts.

MAINTENANCE AND TROUBLESHOOTING

Crank

Nut

Slotted

Crank

Nut

Crank

Arm

Axle

Nut

Slotted

Tab

Resistance

Strap

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weslo vélo d'appartement

Weslo

Weslo Pursuit 3.2 R Bike Manuel utilisateur

Weslo

Weslo Pursuit T 169 Bike Manuel du système

Weslo

Weslo Pursuit 2.3 U Bike Manuel utilisateur

Weslo

Weslo Pursuit 2.9 Bike Manuel du système

Weslo

Weslo Pursuit 250 Fm Bike Manuel utilisateur

Weslo

Weslo Pursuit R 20 Bike Guide de l'utilisateur

Weslo

Weslo Aero 1500 Manuel utilisateur

Weslo

Weslo Pursuit 250 Fm Bike Manuel d'utilisation et d'entretien

Weslo

Weslo Pursuit 102 Manuel utilisateur

Weslo

Weslo Pursuit 203 Bike Manuel d'utilisation et d'entretien

Weslo

Weslo Pursuit 700s Manuel utilisateur

Weslo

Weslo Aero A8 Guide de démarrage rapide

Weslo

Weslo Pursuit S 25 Exercise Bike Guide de l'utilisateur

Weslo

Weslo EasyFit WLIVEX83010.1 Manuel utilisateur

Weslo

Weslo Pursuit 250 Fm Bike Guide de démarrage rapide

Weslo

Weslo PURSUIT CT 3.8R Manuel utilisateur

Weslo

Weslo Pursuit 610s Manuel utilisateur

Weslo

Weslo Pursuit 93 Bike Manuel utilisateur

Weslo

Weslo Pursuit 3.2 R Bike Manuel utilisateur

Weslo

Weslo Sport 25 Bike Manuel d'utilisation et d'entretien

Weslo

Weslo Pursuit T 169 Bike Manuel utilisateur

Weslo

Weslo Sprint 215 Manuel utilisateur

Weslo

Weslo Pursuit 690s Manuel utilisateur

Weslo

Weslo Pursuit E21 Manuel utilisateur

Manuels vélo d'appartement populaires d'autres marques

TOORX

TOORX BRX85 Manuel utilisateur

Matrix

Matrix KranKcycle Manuel utilisateur

Matrix

Matrix IC3 Manuel utilisateur

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manuel utilisateur

Monark

Monark 827E Manuel utilisateur

Stamina

Stamina 1310 Manuel utilisateur

American Fitness

American Fitness SPR-BK1072A Manuel utilisateur

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manuel utilisateur

BH FITNESS

BH FITNESS H9158H Manuel de l'opérateur

Body Sculpture

Body Sculpture BC-7220G Manuel utilisateur

Cateye

Cateye EC-2300 Manuel utilisateur

FYTTER

FYTTER RACER RC MSR Manuel utilisateur

Kikos

Kikos HM-9090M Manuel utilisateur

Pro-Form

Pro-Form 345 Zlx Bike Guide de l'utilisateur

Fuel Fitness

Fuel Fitness SU135-40 Manuel utilisateur

NordicTrack

NordicTrack Gxr 4.2 Bike Manuel utilisateur

Vision Fitness

Vision Fitness U70 Manuel utilisateur

Stamina

Stamina 15-0340A Manuel utilisateur
