Well SW-HDMI1.3/4-RC-WL Manuel utilisateur
MINI HDMI Amplifier Switcher 3x1
Note: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
USER MANUAL
Table Of Contents
1.0 Introduction........................................................................01
2.0 Features...............................................................................01
3.0 Specifications.......................................................................02
4.0 Package Contents................................................................02
5.0 Panel Descriptions...............................................................03
6.0 Connection And Operation................................................03
MINI HDMI Amplifier Switcher 3x1
Note: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
MINI HDMIAmplifier Switcher 3x1
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Phase
keep this manual for future reference1.0 Introduction
1.0 Introduction
The 3x1 HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and
digital audio from any one of the three sources to display unit. Three inputs accommodate the
simultaneous connection of up to five high definition video sources, such as satellite systems
and HD DVD players
The output sends the high definition audio/video signals to a high definition display. This kind
of the HDMIAmplifier Switcher not only has the key-press-switching function, but also has the
IR remote control and intelligent function.
1.1 Intelligent Function
1) When supplied with power, this switcher will select the power-on source device depending on
the sequence automatically (input1>input2>input3)
2) Once the source device is turned on or plugged in (should stay power-on mode), the switches
will automatically select this source
3) Once the source device is turned off or plugged out, the switches will automatically select the
next power-on source depending on the sequence automatically (input 1>input2>input3)
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off,
Otherwise this switches can not meet intelligent function
2) When plugged in or out, this switches is completely intelligent
2.0 Features
* Multifunctional on switching; intelligent or mechanical
* Support HDMI1.3b HDCP pass-through
* Support high Definition resolution 1080p
* High performance up to 2.5Gbps.
* CEC Pass-through
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital
（including DTS-HD and Dolby True HD）
1
MINI HDMI Amplifier Switcher 3x1
Note: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
3.0 Specifications
Input DDC Signal
5 volts p-p (TTL)
Maximum Single Link Range
1920x1080p
Output Video
HDMI1.3b
Vertical Frequency Range
50/60Hz
Video Amplifier Bandwidth
2.5Gbps/250MHz
Interlaced(50&60Hz)
480i,576i,1080i
Progressive(50&60Hz)
480p,576p,720p,1080p
Limited Warranty
1 Year Parts and Labor
Operating Temperature
0 ℃to +70℃
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
-10℃to +80℃
Storage Humidity
5% to 90 % RH (no condensation)
Extend Power supply
No power needed for standard product
Power consumption (Max)
5W
IR extender receiver
IIR Remote
User Manual
English Version
Note:
1) Specifications are subject to change without notice.
2）Please switch on three input sources at the same time when using this no power needed switcher
with PS4
4.0 Package Contents
1) Main unit.
2) Remote control
3) IR extender receiver
4) User's Manual
2
MINI HDMI Amplifier Switcher 3x1
Note: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.

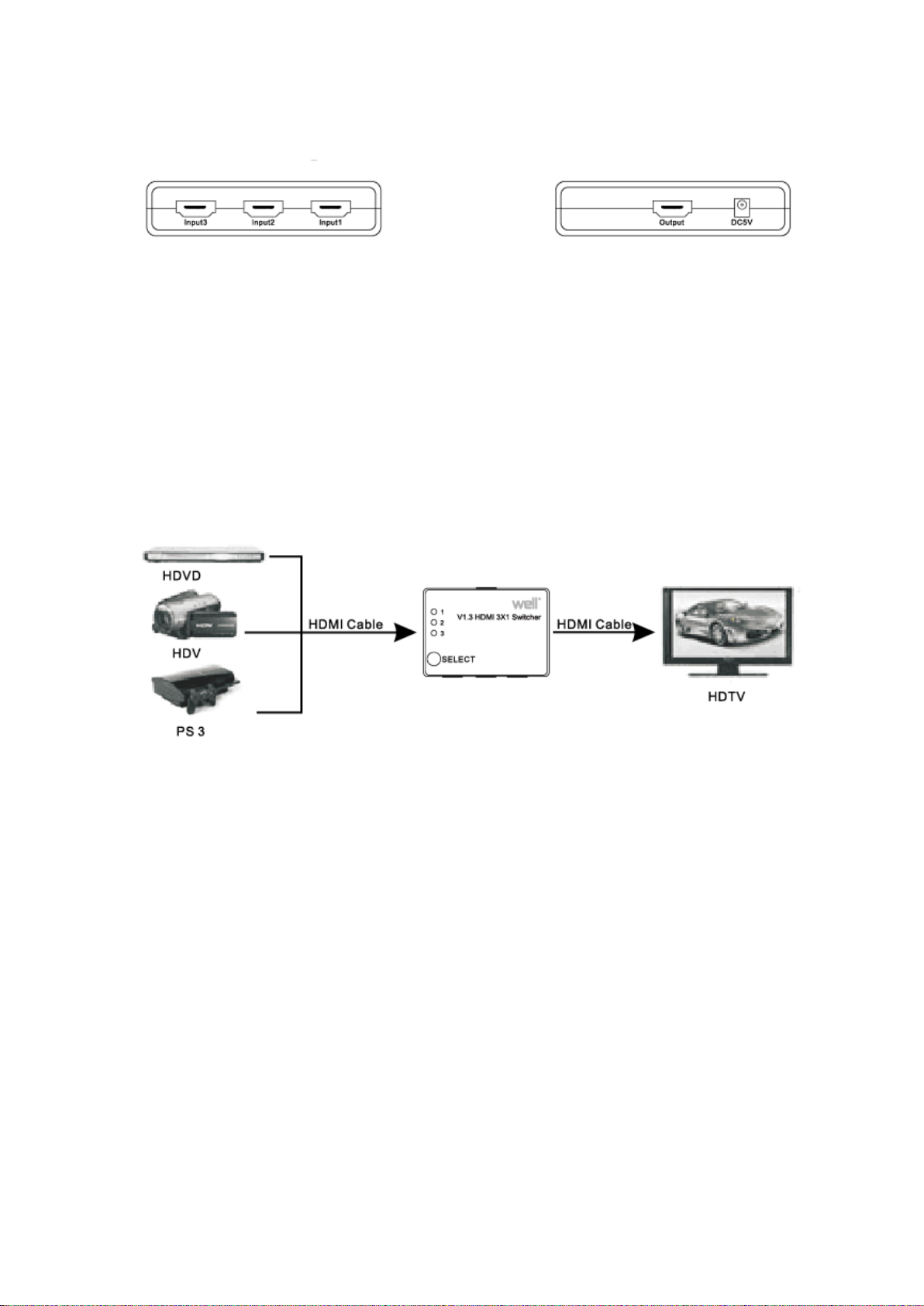

5.0 Panel Descriptions
6.0 ConnectionAndAperation
1) Connect the HDMI input source into 3x1 HDIM Switch
2) Connect the HDMI output display into 3x 1 HDMI Switch
Attention: Insert / Extract cable gently.
6.1 Connection Diagram
3
