Weidmüller Premium Line IE-SW-PL08M Series Manuel
Managed Fast Ethernet Switches
Premium Line
IE-SW-PL08M Series
(valid for product Rev. 2.0.0)
Hardware Installation Guide
Fifth Edition, July 2019
1243350000/04/07.19
Important note:
This document, the detailed user manual, additional product
information, configuration tool and latest firmware can be
downloaded using following link:
http://www.weidmueller.com
► Select Product Catalogue
Select „Industrial Ethernet active“
Select „PremiumLine managed Switches“
Select Product model
Click and expand section „Downloads“
Download needed software or documentation
Copyright Notice
Copyright 2019 Weidmüller Interface GmbH & Co. KG
All rights reserved.
Reproduction without permission is prohibited.
-
2
-
Package Checklist
Your Ethernet Switch is shipped with the following items. If any of these
items is missing or damaged, please contact your Weidmüller customer
service for assistance.
1 Ethernet Switch of IE-SW-PL08M series
Hardware Installation Guide (printed)
RJ45 to DB9 Console port cable
Protective caps for unused ports
Optional Accessories (must be ordered separately)
EBR-MODULE RS232 Art.No.: 1241430000
(External module for backing up and restoring the configuration via
Switch´s RS-232 Console Port)
RM-KIT Art.No.: 1241440000
(Kit for 19"-rack mounting)
IE-WALLMOUNT-KIT-46MM Art.No.: 1504440000
(Kit for wall mounting)
Brief Information for quick access to the
Web interface
The Web interface of the managed Switch can be accessed
via IP address 192.168.1.110 and subnet mask
255.255.255.0 (Factory default value).
Connect the PC to any port of the managed Switch and set
the PC’s IP address to a free one of range 192.168.1.0 /
255.255.255.0
Start a web browser and enter the IP address of the
connected Switch into the browser’s address line.
http://192.168.1.110
After the appearance of the l
ogin prompt, please enter
following login data (factory settings):
User name:
admin
Password:
Detmold
Note: The Web interface uses Java Runtime applets for
displaying some Switch parameters. For this reason, your
PC must have installed the Java Runtime Engine to be able
to configure the Switch without any limitations.
For general settings of the Switch parameters please
refer to the manual.
-
3
-

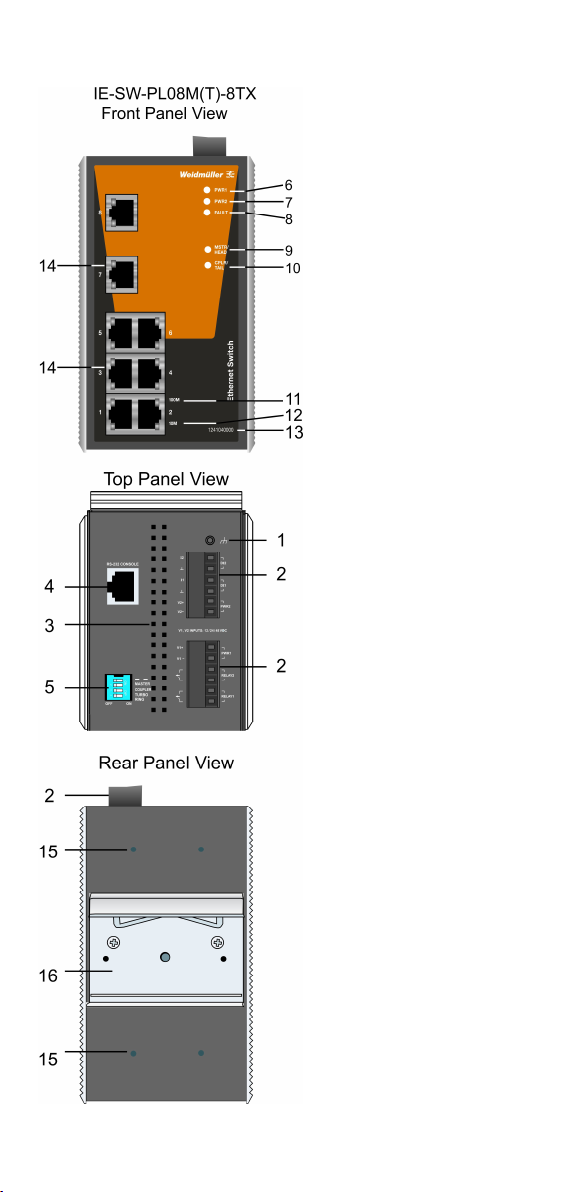

Panel Layout of IE-SW-PL08M(T)-8TX
1. Grounding screw
2. Terminal block for power input
PWR1/PWR2 and relay output
3. Heat dissipation orifices
4. Console port
5. DIP switches
6. Power input PWR1 LED
7. Power input PWR2 LED
8. Fault LED
9. MSTR/HEAD: LED indicator
10. CPLR/TAIL: LED indicator
11. TP port's 100 Mbps LED
12. TP port's 10 Mbps LED
13. Article Number
14. 10/100BaseT(X) ports
15. Screw hole for wall mounting kit
16. DIN-Rail kit
-
4
-
Panel Layout of IE-SW-PL08M(T)-6TX-2SC(S)
1. Grounding screw
2. Terminal block for power input
PWR1/PWR2 and relay output
3. Heat dissipation orifices
4. Console port
5. DIP switches
6. Power input PWR1 LED
7. Power input PWR2 LED
8. Fault LED
9. MSTR/HEAD: LED indicator
10. CPLR/TAIL: LED indicator
11. TP port's 100 Mbps LED
12. TP port's 10 Mbps LED
13. Article Number
14. 10/100BaseT(X) ports
15. 100BaseFX ports
16. FX port's 100 Mbps LED
17. Screw hole for wall mounting kit
18. DIN-Rail kit
-
5
-

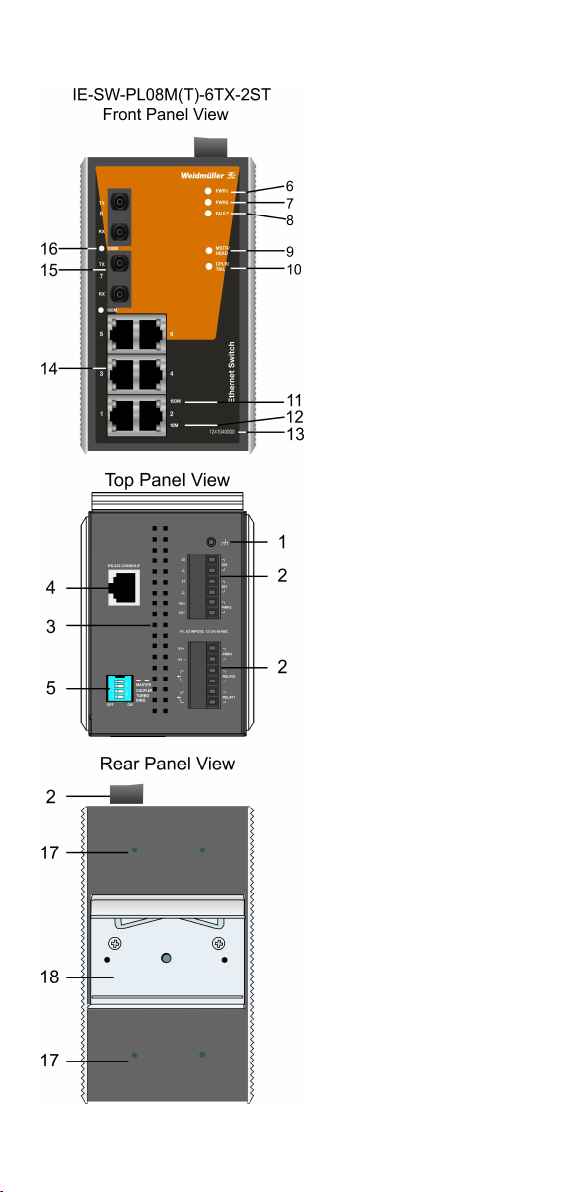

Panel Layout of IE-SW-PL08M(T)-6TX-2ST
1. Grounding screw
2. Terminal block for power input
PWR1/PWR2 and relay output
3. Heat dissipation orifices
4. Console port
5. DIP switches
6. Power input PWR1 LED
7. Power input PWR2 LED
8. Fault LED
9. MSTR/HEAD: LED indicator
10. CPLR/TAIL: LED indicator
11. TP port's 100 Mbps LED
12. TP port's 10 Mbps LED
13. Article Number
14. 10/100BaseT(X) ports
15. 100BaseFX ports
16. FX port's 100 Mbps LED
17. Screw hole for wall mounting kit
18. DIN-Rail kit
-
6
-

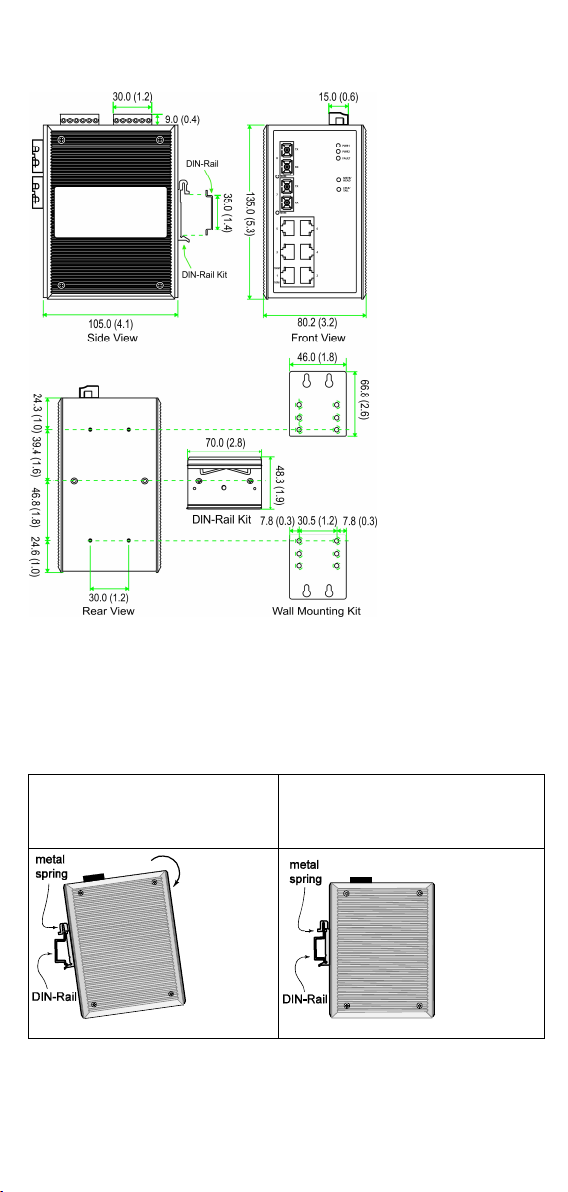

Mounting Dimensions (unit = mm)
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the
back panel of the Ethernet Switch when you take it out of the box. If you
need to reattach the DIN-Rail attachment plate, make sure the stiff
metal spring is situated towards the top, as shown in the figures below.
STEP 1:
Insert the top of the DIN-Rail into
the slot just below the stiff metal
spring.
STEP 2:
The DIN-Rail attachment unit will
snap into place as shown below.
To remove the Ethernet Switch from the DIN-Rail, simply reverse Steps
1 and 2 above.
-
7
-

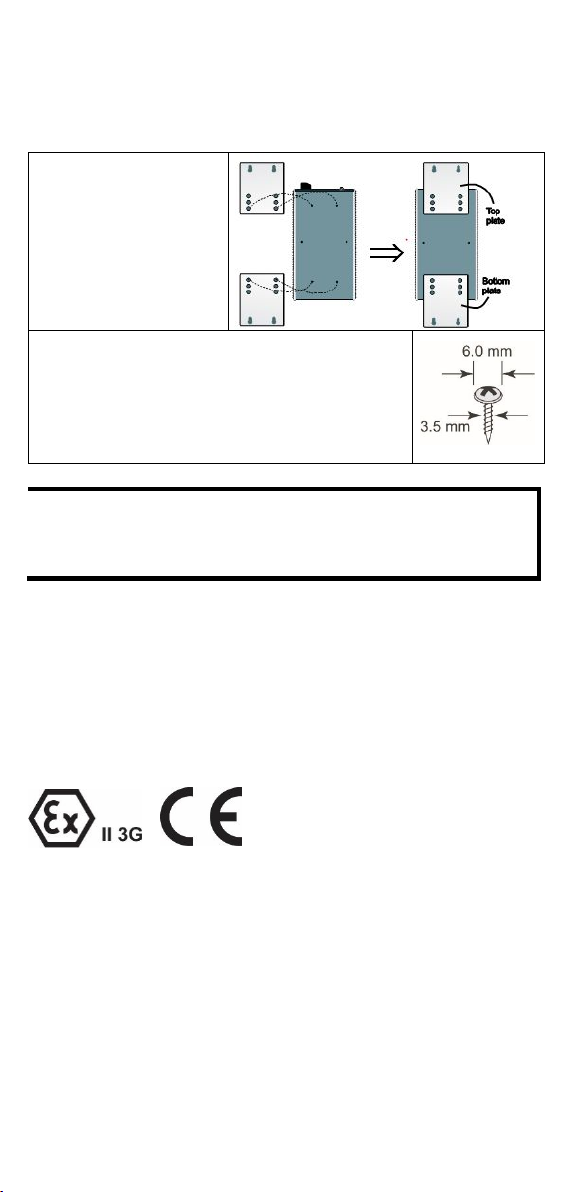

Wall Mounting (with optional kit)
For some applications, you will find it convenient to mount the Switch on
the wall, as shown in the following figures.
STEP 1:
Remove the aluminum
DIN-Rail attachment plate
from the switch´s rear
panel and then attach the
wall mount plates as
shown in the diagram at
the right.
STEP 2:
Mounting the switch on the wall requires 4 screws.
Use the switch, with wall mount plates attached, as a
guide to mark the correct locations of the 4 screws.
The heads of the screws should be less than 6.0 mm
in diameter, and the shafts should be less than 3.5
mm in diameter, as shown in the figure at the right.
NOTE Before tightening the screws into the wall, make sure the
screw head and shank size are suitable by inserting the
screw into one of the keyhole-shaped apertures of the wall
mounting
plates.
Do not screw the screws in completely—leave about 2 mm to allow
room for sliding the wall mount panel between the wall and the screws.
STEP 3:
Once the screws are fixed on the wall, insert the four screw heads
through the large parts of the keyhole-shaped apertures, and then slide
the switch downwards, as indicated. Tighten the four screws for added
stability.
ATEX Information
1. Certificate number DEMKO 19 ATEX 2220X
2. Ambient range: -40°C ≤ Tamb ≤ 75°C (models with suffix –T),
-10°C ≤ Tamb ≤ 60°C (models without suffix –T)
3. Certification string: Ex nA nC IIC T4 Gc
4. Standards covered:
EN 60079-0:2012+A11:2013, EN 60079-15:2010,
5. The conditions of safe usage:
The equipment shall only be used in an area of at least pollution
degree 2, as defined in IEC/EN 60664-1.
The equipment shall be installed in an enclosure that provides a
minimum ingress protection of IP 54 in accordance with IEC/EN
60079-0.
-
8
-
Wiring Requirements
WARNING
The power for this product is intended to be supplied by a
Listed Power Unit, with output marked LPS, and rated to
deliver 12 to 48 VDC at a maximum of 600 mA.
WARNING
Safety First!
Be sure to disconnect the power cord before installing
and/or wiring your Ethernet Switch.
Calculate the maximum possible current in each power wire
and common wire. Observe all electrical codes dictating the
maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring
could overheat, causing serious damage to your equipment
Be sure to read and follow these important guidelines:
Use separate paths to route wiring for power and devices. If power
wiring and device wiring paths must cross, make sure the wires are
perpendicular at the intersection point.
NOTE: Do not run signal or communications wiring and power wiring
through the same wire conduit. To avoid interference, wires with
different signal characteristics should be routed separately.
Use the type of signal transmitted through a wire to determine which
wires should be kept separate. The rule of thumb is that wiring that
shares similar electrical characteristics can be bundled together.
Keep input wiring and output wiring separate.
It is strongly advised that you label wiring to all devices in the
system.
Grounding the Ethernet Switch
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from
the ground screw to the grounding surface prior to connecting devices.
A 4 mm2 conductor must be used when connection to the external
grounding screw is utilized.
ATTENTION
This product is intended to be mounted to a well-grounded
mounting sur
face, such as a metal panel.
-
9
-

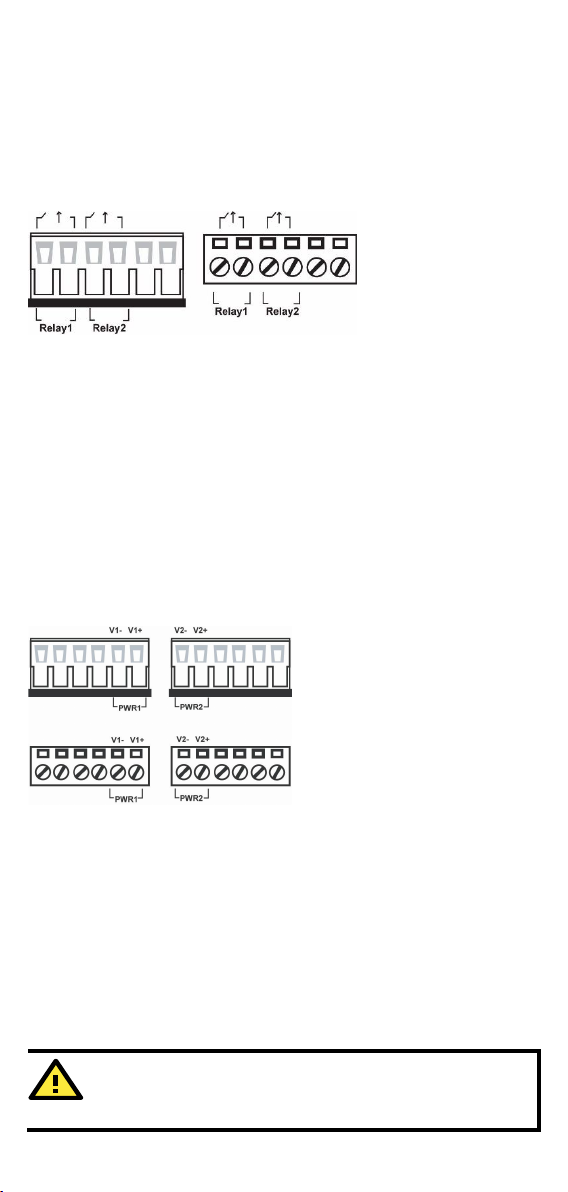

Wiring the Relay Contact
The IE-SW-PL08M has two sets of relay output—relay 1 and relay 2.
Each relay contact consists of two contacts of the terminal block on the
IE-SW-PL08M´s top panel. Refer to the next section for detailed
instructions on how to connect the wires to the terminal block
connector, and how to attach the terminal block connector to the
terminal block receptor.
The fault circuit will open if:
1. A relay warning event is triggered, OR
2. The IE-SW-PL08M Switch is the Master of a Turbo Ring, and the
Turbo Ring is broken, OR
3. Start-up failure.
If none of these three conditions is met, the fault circuit will remain
closed.
Wiring the Redundant Power Inputs
The IE-SW-PL08M switch has two sets of power inputs - power input 1
and power input 2. Top view of both terminal block connectors is shown
below.
Take the following steps to wire the redundant power inputs:
STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals.
STEP 2: To keep the DC wires from pulling loose, use a small flat-
blade
screwdriver to tighten the wire-
clamp screws on the front of the terminal
block connector.
STEP 3: Insert the plastic terminal block connector prongs into the
terminal block receptor, which is located on the Ethernet Switch top
panel.
ATTENTION
Before connecting the Ethernet Switch to the DC power
inputs, make sure the DC power source voltage is stable.
-
10
-

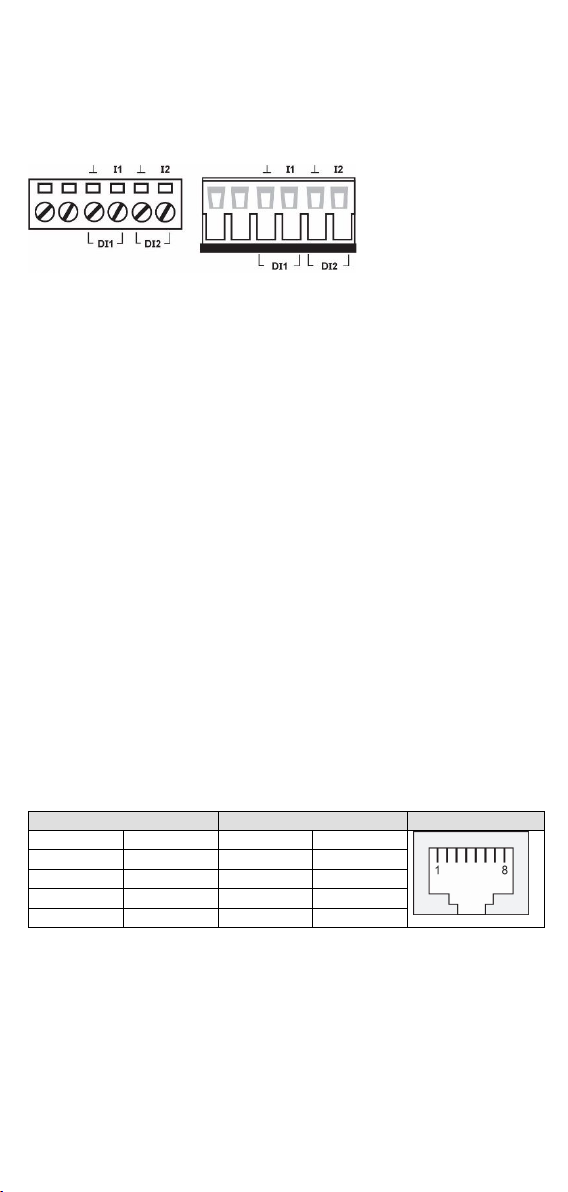

Wiring the Digital Inputs
The IE-SW-PL08M switch has two sets of digital inputs, DI 1 and DI 2.
Each DI consists of two contacts of the 6-pin terminal block connector
on the Ethernet Switch´s top panel. Top and front views of the terminal
block connector are shown below.
Take the following steps to wire the digital inputs:
STEP 1: Insert the negative (ground)/positive DI wires into the ┴/I1
terminals.
STEP 2: To keep the DI wires from pulling loose, use a small flat-blade
screwdriver to tighten the wire-
clamp screws on the front of the
terminal block connector.
STEP 3: Insert the plastic terminal block connector prongs into the
terminal block receptor, which is located on the IE-SW-
PL08M`s
top panel.
Communication Connections
The IE-SW-PL08M models have 8 or 6 10/100BaseT(X) Ethernet ports,
and 0 (zero) or 2 100BaseFX (SC/ST-type connector) fiber ports
10/100BaseT(X) Ethernet Port Connection
The 10/100BaseT(X) ports located on Ethernet Switch’s front panel are
used to connect to Ethernet-enabled devices.
Next, we show pinouts for both MDI (NIC-type) ports and MDI-X
(HUB/Switch-type) ports, and show cable wiring diagrams for straight-
through and cross-over Ethernet cables.
MDI Port Pinouts
MDI
-
X Port Pinouts
8
-
pin RJ45
Pin
Signal
Pin
Signal
1
Tx+
1
Rx+
2
Tx
-
2
Rx
-
3
Rx+
3
Tx+
6
Rx
-
6
Tx
-
RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring
Autres manuels pour Premium Line IE-SW-PL08M Series
1
Ce manuel convient aux modèles suivants
9
Table des matières
Autres manuels Weidmüller Changer
Weidmüller
Weidmüller Gigabit Advanced IE-SW-AL08M-8GTPoE Manuel
Weidmüller
Weidmüller Substation IE-SW-SL26M-24TX-2GC Manuel utilisateur
Weidmüller
Weidmüller IE-SW-EL08-8GTPoE Manuel
Weidmüller
Weidmüller IE-SW-EL05-5GT Manuel
Weidmüller
Weidmüller Gigabit Advanced IE-SW-AL06M-4GTPoE-2GESFP Manuel
Weidmüller
Weidmüller IE-SW-EL10-8GTPoE-2GESFP Manuel
Weidmüller
Weidmüller Premium Line IE-SW-PL08M Series Manuel
Weidmüller
Weidmüller IE-SW-SL28M Manuel utilisateur
Weidmüller
Weidmüller ValueLine IE-SW-VL08-GT Series Manuel
Weidmüller
Weidmüller 2682340000 Manuel
Weidmüller
Weidmüller IE-SW-EL16-14TX-2FESFP Manuel
Weidmüller
Weidmüller Basic Line IE-SW-BL05-4GTPoE Series Manuel
Weidmüller
Weidmüller IE-SW-EL08-8PoE Manuel
Weidmüller
Weidmüller IE-SW-AL24M-24TX Manuel
Weidmüller
Weidmüller IE-SW-EL24-24TX Manuel
Weidmüller
Weidmüller IE-SW-EL18-16TX-2GC Manuel
Weidmüller
Weidmüller IE-SW-AL05M-5TX Manuel utilisateur
Weidmüller
Weidmüller Premium Line IE-SW-PL10M Series Manuel
Weidmüller
Weidmüller Premium Line IE-SW-PL10M Series Manuel
Weidmüller
Weidmüller IE-SW-AL08M-8GT Manuel
