26" RIDING MOWER

SIDE DISCHARGE

ELECTRIC START

Catalog No.

WE261

532 43 32-03 Rev. 9

'MPORTANT:

Read and follow all Safety

Rules and Instructions before

,operating this equipment.

Patents Pending

Warranty ................................................. 2

Safety Rules ........................................... 3

Product Specifications ............................ 6

Assembly/Pro-Operation ........................ 7

Operation .............................................. 10

Maintenance Schedule ......................... 16

Maintenance ......................................... 16

Service and Adjustments ...................... 20

Storage ................................................. 24

Troubleshooting .................................... 25

Repair Parts .......................................... 27

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured isfree from defects ir_materi-

als and workmanship. For a period cf two (2) years from date of purchase by the original consumer purchaser, we will repair or

replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due

to materials or workmanship, This Warranty is sub)octto the fotlow_ng limitations and exclas_cns.

I. This warranty does not apply te the engine, battery (except as noted below} or components parts thereof. Please refer to

the opplicable manufacturer's warran.tyon these items.

2. Transparta.tien charges for the movement of any power eqL_ipmentunit or attachment are the raspcnsiblllty cf the purchas-

er, Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser

unless such return is requested by the manufacturer.

3. Battery Warranty: On products equipped with a Battery, we will replase, without charge to yea, any battery which we find

to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days. we will exchange the

Battery, charging you t/12 ofthe price of anew Battery for each full month f_om the date of the originalsale. Sattery must

be maintained in accordance with the instructions furnished.

4. The Warranty does not apply to any products used for renta! ar commercial purposes.

5. This Warranty applies only to products which have been properIy assembled, adjusted, operated, and maintained in ac-

cordance with the instructionsfurnished, This Warrar, ty does not appIy to any product which hes been subjected to altera-

tion, misuse, ab_se, improper assembIy or iastallatleo, delivery damage, or to normal wear of the product.

6. Exclusion: Excluded from this Warranty ere belts, blades, blade adapters, normal wear, normal adjustments, standa_

hardware and normal maintenance,

7. in the event you have a claim under"this Warranty. you must return the product tc ar_authorized service deaJec

Should you have any unanswered questions eaneeming this Warraoty, please contact:

HOP In Canada contact'.

Outdoor Produ_.-tsCastcmar Service Sept. HOP

9335 Hands Corners Parkway 5855 Terry Pc×Way

Charlotte, NC 282.6g USA Missiaseuga, Ontario

L5V 3E4

giving the model number, serial number and date of purchase of your product and the name and address of the authorized

dealer from whom it was purchased,

THIS WARP.AN'I'Y DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPUED WARRAN-

TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR E_PRESSEO WARRANTIES. Some ames

do not alIow the limitation of consequential damages or limEtatiansof how long an implied Warranty may last, so the above

limitations ar exclusions may not apply to you. This Warranty gives you specific leg_ rights, and you may have other dghfs

which very from locale to lccale.

This isa limited Warranty within the meaning of that term as defined tn the Magnasen*Mass Act of 1975.

DANGER: Thiscutting machine iscapable ofamputaUng hands andfeet and throwing

objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IbWARNING: In orderto preventacciden-

tal starting when setting up, transporting,

adjusting or making repairs, always discon-

nectspark plug wire and place wire where

it cannot contact spark plug.

_WARNING: Do not coast down a hill in

neutral, you may lose control of the riding

mower.

_WARNING: Engine exhaust, some of its

constituents, andcertain vehiclecomponents

contain oremit chemicals known tothe State

ofCaliforniato causecancer and birthdefects

or other reproductive harm.

_IbWARNING:This unit is not intended for

towing, or use of wheel weights. Only use

attachments designed specifically for this

riding mower.

A(_WARNING; Batteryposts,terminals and

related accessories contain lead and lead

compounds, chemicals known tothe State of

California to cause cancer and birth defects

or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

•Read, understand, and follow all instruc-

tions on the machine and in the manual

before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

- Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked up

and thrown by the blade.

-Be sure the area is clear of bystanders

before operating. Stopmachine ifanyone

enters the area.

•Never carry passengers.

- Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

•Never direct discharged material toward

anyone. Avoid discharging material

against awall or obstruction. Material may

ricochet backtoward the operator. Stopthe

blade when crossing gravel surfaces.

• Do notoperate machinewithoutthe entire

grass catcher, discharge chute, or other

safety devices in place and working.

-Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blade, set park-

ing brake, stop engine, and remove keys

before dismounting.

-Disengage blade when not mowing. Shut

off engine and wait for all parts to come

to a complete stop before cleaning the

machine, removing the grass catcher, or

unclogging the discharge chute.

- Operate machine only in daylight or good

artificial light.

.Do not operate the machine while under

the influence of alcohol or drugs.

- Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or unloading

the machine into a trailer or truck.

•Always wear eye protection when operat-

ing machine.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

•Keep machine free of grass, leaves or

other debris build-up which can touch hot

exhaust/engine parts and burn. Do not

allow the mower deck to plow leaves or

other debris which can cause build-up to

occur.Clean any oi!or fuel spillage before

operating or storing the machine. Allow

machine to cool before storage.

I!. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Operation

on all slopes requires extra caution. If you

cannot back upthe slope or ifyoufeel uneasy

on it, do not mow it.

* Mow up and down slopes (15° Max), not

across.

- Watch for holes, ruts, bumps, rocks, or

other hidden objects, Uneventerrain could

overturn the machine. Tailgrass can hide

obstacles.

. Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

• Do not mow on wet grass. Tires may lose

traction,

• Always keep the machine in gear when

going down slopes. Do not shift to neutral

and coast downhill.

. If machine stops while going uphill,

disengage blade, shift into reverse and

back down slowly.

- Avoid starting, stopping, or turning on a

slope. Ifthetires losetraction, disengage

the blade andproceedslowly straight down

the slope.

* Keepall movement on the s!opesslow and

gradual. Do not make sudden changes

in speed or direction, which could cause

the machine to roll over.

. Use extra care while operating machine

with grass catchers or other attachments;

they can affectthe stability ofthe machine.

o Do no use on steep slopes.

oDo not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches, or

embankments. The machine could sud-

denly roll over if awheel is over the edge

or if the edge caves in.

IlL CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out ofthe mowing area and

inthe watchful care of a responsible adult

other than the operator.

• Be alert and turn machine off if a child

enters the area.

° Before and while backing, lookbehind and

down for small children.

• Never carry children, even with the blade

shut off. They may fall off and beseriously

injured or interfere with safe machine

operation. Children who have beengiven

rides in the past may suddenly appear in

themowing areafor another rideand berun

over or backed over bythe machine.

• Never allow children to operate the ma-

chine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline,

Gasoline is extremely flammable and the

vapors are explosive.

•Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

•Never fuel the machine indoors.

•Never store the machine or fuel container

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

•Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

• Remove gas-powered equipment from the

truck or trailer and refuel it on the ground.

If this is not possible, then refuel such

equipment with aportable container, rather

than from a gasoline dispenser nozzle.

. Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do not

use a nozzle lock-open device.

• lffuelisspi]ledon clothing, changeclothing

immediately.

•Never overfill fuel tank. Replace gas cap

and tighten securely.

GENERAL SERVICE

•Never operate machine in a closed area,

.Keep all nuts and bolts tightto be sure the

equipment is in safe working condition.

• Never tamper with safety devices. Check

their proper operation regularly.

• Keep machine free of grass, leaves, or

otherdebris build-up. Clean oilorfuelspill-

age and remove any fuel-soaked debris.

Allow machine to cool before storing.

•If you strike a foreign object, stop and

inspectthe machine. Repair,if necessary,

before restarting.

.Never make any adjustments or repairs

with the engine running.

•Check grasscatcher components and the

discharge chute frequently and replace

with manufacturer's recommended parts,

when necessary.

- Mower blade is sharp. Wrapthe blade or

wear gloves, and use extra caution when

servicing them,

• Check brake operation frequently. Adjust

and service as required.

•Maintain or replace safety and instruction

labels, as necessary.

• Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

iGasoine Capacty 1.2 qt.

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

API-SG-SL): SAE5W-30(below32°F)

Oil Capacity: 20 oz,

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 0-4 mph

Reverse: 0-1 mph

Blade Bolt Torque: 45-55 Ft. Lbs.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules,

• Follow a regular schedule in maintaining,

caring for and using your riding mower.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_.WARNtNG: This riding mower is

equipped with an internal combustion en-

gine and should not be used on or near any

unimproved forest-covered, brush-covered

or grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order bythe operator,

Inthestate ofCaliforniathe above isrequired

bylaw (Section4442 ofthe California Public

Resources Code), Other states may have

similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is

available through your nearest authorized

service center.

(I) LargeFiatWasher

Steering Wheel Insert Steering Wheel (1) 1/2-20 Jam Nut

(t) Pin 0

_j_ (1) 5116 Fiat Washer

Steering Wheel Adapter

Steering Cover

(1) Washer

Seat (1) Knob

(1) 5/16-18 Lock Nut

(1) 5/16-18 x 1 1/2

Hex Bolt

Steering

Shaft Cover

Steering Shaft

(2) Key i

Slope Sheet

Yournewridingmowerhasbeenassembledatthefactorywiththeexceptionofthose

partsleftunassembledforshippingpurposes.Toensuresafeandproperoperationofyour

ridingmowerallpartsandhardwareyouassemblemustbetightenedsecurely.Usethe

correcttoolsasnecessarytoinsurepropertightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench

(1) 1/2" wrench

(1) Utility knife

(I) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the steer-

ing wheel).

TO REMOVE RIDING MOWER FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four panels

ofcarton, Remove carton and topframe

as one unit,

2. Remove packing materials from riding

mower.

NOTE: Only cut cartonwith a short blade

utility knife,along blade or saw can puncture

tires on unit.

HOW TO SET UP YOUR RIDING

MOWER

INSTALL STEERING COLUMN

1. Insert steering shaft intomountand se-

curely fasten with bolt, washer,and nut

provided.

2. Insert pin into hole in steering shaft,

3, Slide plastic cover over steering shaft

and into position. Shaft

Plastic Cover

4. Slidesteedng shaft protective foamcover

over shaft,

5. Positionfront wheelsof the riding mower

so they are pointing straight forward.

Wheel

,Foam Cover

SteeringShaft_\\

6. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft.

7. Press steering wheel into position on

shaft, install large washer, and tighten

nut securely.

8. Snap steering wheel insert into center of

steering wheel securely.

INSTALL SEAT

1. Pivot seat upward and remove from the

cardboard packing, Remove the card-

board packing and discard,

2. Placeseatonseatpan so head ofshoul-

der bolt is positioned over large slotted

hole in pan.

3. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

riding mower.

Pin Steering

Shaft

Mount

Seat

Bolt

4. Pivot seat and pan forward and assemble

adjustment knob and fiat washer _oosely.

Do not tighten.

Fiat Washer

5. Lower seat into operating position and

sit in seat.

6. Slide seat until a comfortable position is

reached which allows you to pressclutch!

brake pedal all the way down.

7. Get off seat without moving its adjusted

position.

8. Raise seat andtighten adjustment knob

securely.

CHECK BATTERY

Make sure battery is securely 1astened,

and that all wires are securely connected.

• Battery is located under the seat.

• Battery has been fully charged from the

factory, before installation.

Battery

NOTE: You may now roll your riding

mower off the skid. Follow the appropriate

instruction below to remove the riding mower

from the skid.

=O=WARNING: Before starting, read, un-

derstand and follow alt instructions in the

Operation section of this manual. Be sure

riding mower is in a well-ventilated area.

Be sure the area in front of riding mower is

clear of other people and objects.

TO ROLL RIDING MOWER OFF

SKID (See Operation section for

location and function of controls)

1, Raise deck lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3, Engage freewheel control. See "TO

TRANSPORT" in the operation section

of this manual.

4. Roll riding mower forward off skid.

CHECK TIRE PRESSURE

The tires on your riding mower were

overinflated at the factory for shipping pur-

poses, Correct tire pressure is important

for best cutting performance.

•Reduce tire pressureto PSI shown on

tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. Sea"TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITON OF

MOWER DRIVE BELT

See the figure that is shown for replacing

the mower drive belt inthe service and

adjustment section of this manual, Verify

that the belt isrouted correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your rid-

ing mower, check to see that the brake

isoperating properly. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

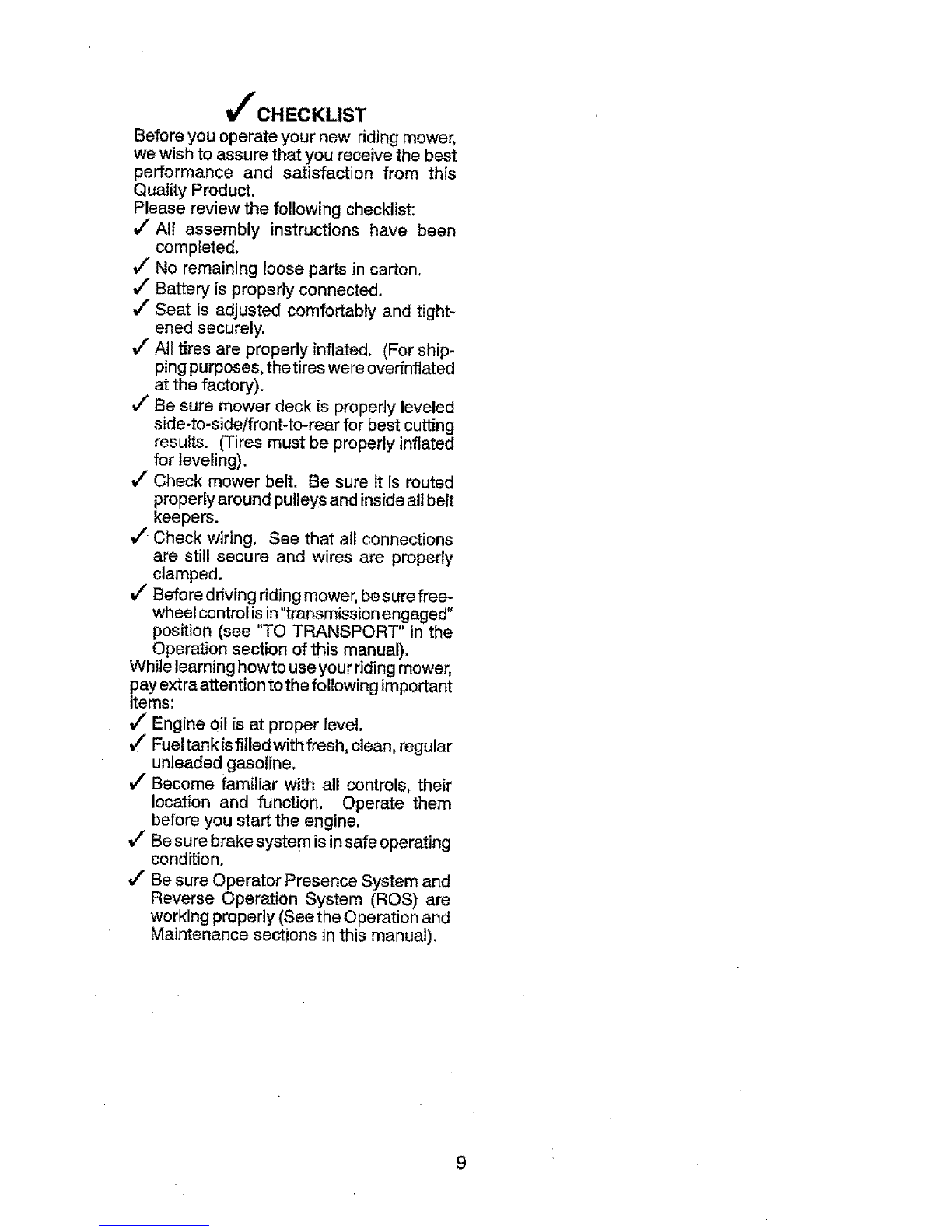

t//fCHECKLIST

Before you operate your new riding mower,

we wish to assure that you receive the best

performance and satisfaction from this

Quality Product,

Please review the following checklist:.

J All assembly instructions have been

completed.

vz No remaining loose parts in carton,

_/"Battery is properly connected.

vf Seat is adjusted comfortably and tight-

ened securely.

J All tires are properly inflated. (For ship-

pingpurposes, thetires wereoverinflated

at the factory).

vt Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

J" Check mower be[t. Be sure it is routed

properly around pulleys and inside allbelt

keepers.

J" Check wiring, See that all connections

are still secure and wires are properly

clamped.

J Before driving riding mower, besure free-

wheel controlis in"transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning howto use your riding mower,

pay extraattention to thefollowing important

items:

Engine oil is at proper level.

J Fueltank isfitledwithfresh, clean,regular

unleaded gasoline,

,f Become familiar with all controls, their

location and function. Operate them

before you start the engine.

J Be sure brake system isin safe operating

condition,

if Besure Operator Presence System and

Reverse Operation System (ROS) are

working properly (See the Operation and

Maintenance sections in this manual).

These symbols may appear on your riding mower or in literature supplied with the prod-

uct. Learn and understand their meaning,

R N H L I\1

REVERSE NEUTRAL NIGH LOW CHOKE FAST

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE

OPERAT[ION

SYSTEM (ROe)

OVER TEMP FUEL OIL PRESSURE

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

SLOW

IGNITION SWITCH

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

,, ÷

BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

FREEWREELCONTROL

DISENGAGED

BRAK_CLUTCHpEDAL

FREEWHEEL CONTROL

ENGAGED

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious Injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious iniury.

CAUTION indicates ahazard which, if not avoided.

might resutt in minor or moderate {niury,

CAUTION when used without the alert symbol,indicates asituation that could result In damage

to the tractor and!or engine.

HOT SURFACES indicates ahazard which,

if net avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard whig.h, i{ not avoided,

could result in death, serious injuw and/or

property damage,

Autres manuels pour One WE261

Table des matières

Autres manuels Weed Eater Tondeuse à gazon

Weed Eater

Weed Eater WET2242STB Manuel utilisateur

Weed Eater

Weed Eater 191087 Manuel utilisateur

Weed Eater

Weed Eater WE5N22SH4F Manuel du propriétaire

Weed Eater

Weed Eater wex375d20 Manuel utilisateur

Weed Eater

Weed Eater WE16542E Manuel utilisateur

Weed Eater

Weed Eater 191064 Manuel utilisateur

Weed Eater

Weed Eater 186849 Manuel utilisateur

Weed Eater

Weed Eater 168207 Manuel utilisateur

Weed Eater

Weed Eater S165H42A Manuel utilisateur

Weed Eater

Weed Eater WE12538B Manuel utilisateur

Weed Eater

Weed Eater WE1338A Manuel utilisateur

Weed Eater

Weed Eater ONE Manuel du propriétaire

Weed Eater

Weed Eater PE550 Manuel utilisateur

Weed Eater

Weed Eater 180083 Manuel utilisateur

Weed Eater

Weed Eater 438181 Manuel utilisateur

Weed Eater

Weed Eater W17542H Manuel utilisateur

Weed Eater

Weed Eater WET2242STA Manuel utilisateur

Weed Eater

Weed Eater 177677 Manuel utilisateur

Weed Eater

Weed Eater One WE261 Manuel utilisateur

Weed Eater

Weed Eater WE13538LT Manuel utilisateur

Weed Eater

Weed Eater 96112009000 Manuel utilisateur

Weed Eater

Weed Eater WE12538K Manuel utilisateur

Weed Eater

Weed Eater 186073 Manuel utilisateur

Weed Eater

Weed Eater 174193 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
