Weed Eater WE20C Manuel utilisateur

EXPLODED VIEW

ITEM NO. PART NO. DESCRIPTION QTY

1 532439900 Deck 1

2 532439896 Rear Enclosure 1

3 532439890 Screw 6

4 532439913 Side discharge chute 1

5 532439889 Side discharge cover assy. 1

5-1 532439912 Side discharge cover 1

5-2 532439696 Side discharge axle 1

5-3 532439857 Rubber bushing 2

5-4 532439695 Spring 1

5-5 532439697 Side discharge bracket 1

5-6 532439698 Bolt 2

6 532439906 Height adjustment plate (R) 1

7 532439748 Cord guide 1

8 532439708 Screw 2

9 532439706 Cord clip 1

10 532439849 Screw 2

11 532439893 Spring for rear cover (L) 1

12 532439901 Axle for rear cover 1

13 532439911 Rear cover 1

14 532439684 Screw 1

15 532439688 Screw 2

16 532439690 Resistance clamp 1

17 532439689 Nut 2

18 532439691 Screw 2

19 532439892 Spring for rear cover (R) 1

20 532439859 Spring bushing 2

21 532439854 Clip 1

22 532439683 Resistance heat radiator 1

23 532439852 Nut 1

24 532439855 Spring washer 1

25 532439685 Resistor and bracket 1

26 532439683 Rectifier heat radiator 1

27 532439702 12 A Motor assy. 1

27-1 532439899 Brush 2

28 532439845 Bolt 1

29 532439679 Rectifier (KBPC2504) 1

30 532439678 Screw 1

31 532439910 Motor cover 1

32 532439858 Cover seal 1

33 532439914 Motor vent 1

34 532439676 Screw 4

35 532439898 Grass catcher assy. 1

35-1 532439920 Grass catcher 1

35-2 532439902 Grass catcher bracket 1

36 532439895 Rear plug 1

37 532439917 Rear shield 1

38 532439684 Screw 2

39 532439907 New cord clamp 2

40 532439687 Nut 2

PARTS LIST

41 532439903 Height adjustment plate (L) 1

42 532439759 Bolt 4

43 532439788 Height adjustment handle (lower) 1

44 532439789 Height adjustment handle (upper) 1

45 532439888 Height adjustment bar 1

46 532439894 Spring 1

47 532439757 Cir-clip 1

48 532439905 Lower handle 1

49 532439792 Cord hook 2

50 532439764 Handle knob 2

51 532439897 Cam lock assy. 2

52 532439793 Upper handle and switch assy. USA 1

52 532440983 Upper handle and switch assy. Brazil 1

53 532439918 10” Wheel cover 2

54 532439853 Clip Ø 12 4

55 532439919 Wheel (10 X 1.5) 2

56 532439856 Wheel bushing 2

57 532439704 Nut 2

58 532439909 Spring 1

59 532439887 Rear wheel axle 1

60 532439916 Link bar decoration (R) 1

61 532439915 Link bar decoration (L) 1

62 532439891 Screw 4

63 532439904 Link bar 1

64 532439860 Front wheel axle 1

65 532439753 Wheel bushing 2

66 532439762 Nut M10 4

67 532439850 Screw 4

68 532439689 Nut M5 4

69 532439845 Bolt M6 X 18 3

70 532439765 Motor bushing 1

71 532439766 Fan 1

72 532439908 20” blade 1

73 532439769 Blade baffle 1

74 532439771 Square baffle 1

75 532439772 Nut 1

76 532439754 Wheel (7 X 1.5) 2

77 532439756 Washer 4

78 532439791 Cord retainer 1

79 532439758 7” Wheel cover 2

Table des matières

Autres manuels Weed Eater Tondeuse à gazon

Weed Eater

Weed Eater 138698 Manuel utilisateur

Weed Eater

Weed Eater One 28600 Manuel utilisateur

Weed Eater

Weed Eater WE16542D Manuel utilisateur

Weed Eater

Weed Eater 187637 Manuel utilisateur

Weed Eater

Weed Eater WE1538A Manuel utilisateur

Weed Eater

Weed Eater WET2242STC Manuel utilisateur

Weed Eater

Weed Eater WE13538LT Manuel utilisateur

Weed Eater

Weed Eater WE1538C Manuel utilisateur

Weed Eater

Weed Eater 182983 Manuel utilisateur

Weed Eater

Weed Eater ONE WELRV1 Manuel utilisateur

Weed Eater

Weed Eater 385080 Manuel utilisateur

Weed Eater

Weed Eater 186391 Manuel utilisateur

Weed Eater

Weed Eater 96142009401 Manuel du propriétaire

Weed Eater

Weed Eater SGT18H46C Manuel utilisateur

Weed Eater

Weed Eater WE12538M Manuel utilisateur

Weed Eater

Weed Eater VIP 152336 Manuel utilisateur

Weed Eater

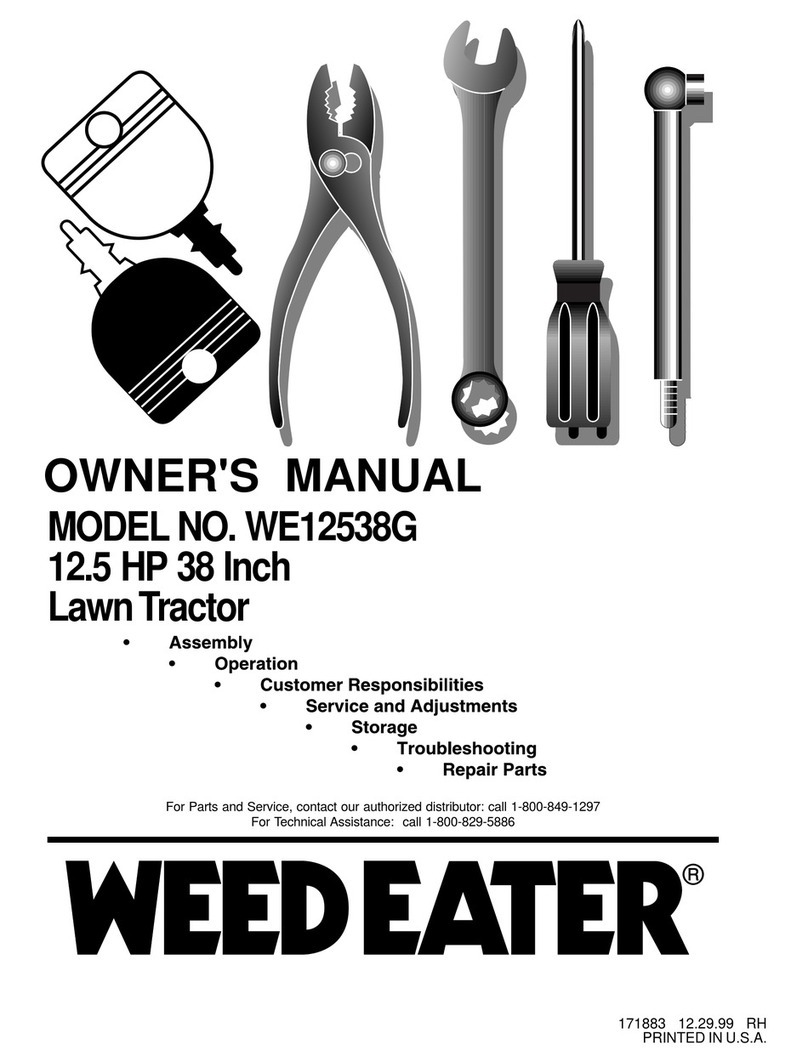

Weed Eater 171883 Manuel utilisateur
