weBoost Drive Reach Manuel utilisateur
______
Index
Package Contents
1
STEP 1: Mount Outside Magnetic Antenna
2
STEP 2: Mount Inside Antenna
4
STEP 3: Connect Coax Cables To Booster
5
STEP 4: Connect Power Supply To Booster
6
STEP 5: Plug Power Adapter Into Vehicle’s Power Supply
7
Booster Light Patterns
8
Troubleshooting
9
Safety Guidelines
10
Specifications
11
Warranty
12
DRIVE REACH VEHICLE SIGNAL BOOSTER 1
________
Package
Contents
Booster
& Bracket
Outside
Antenna
Inside
Antenna
Power
Supply
Optional: Adhesive disk for aluminum vehicles
2VEHICLE SIGNAL BOOSTER DRIVE REACH
______
Step 1: Mount Outside
Magnetic Antenna
WORKS WITH ALL VEHICLES
Identify a location on the top of your vehicle that is:
Near the center of the roof
At least 12 inches away from any other antennas
At least 12 inches away from any windows
(including sunroofs)
Clean the surface where you will place the outside
antenna.
Mount the outside antenna by placing on top of vehicle.
NOTE: For aluminum roofs, use the included adhesive disk to secure outside
antenna in place.
12 in. away from windows
(including sunroofs)
DRIVE REACH VEHICLE SIGNAL BOOSTER 3
NOTE: When going through car wash,
remember to remove your antenna.
NOTE: The cable is strong enough that it
may be routed under weather stripping
and shut in most vehicle doors without
damaging the cable.
Car/Sedan: Cable routed
into rear side door.
SUV/Van/Hatchback: Cable
routed into top of hatchback door.
Truck: Cable routed into
side door.
______
(STEP 1 cont.)
See options below on how cable can be routed with
different vehicles.
4VEHICLE SIGNAL BOOSTER DRIVE REACH
______
Step 2: Mount Inside Antenna
Identify a place to mount the 4G In-Vehicle Antenna, either on
the side of the seat or on the dash and mount. The location
should be at least 18 inches but no more than 36 inches
from where the cellular device will be used. Use the Velcro®
adhesive strip or the 2-sided adhesive strip provided and
attach to the side of the antenna labeled “MOUNTING SIDE”.
Then mount to desired location.
In-Vehicle Antenna
Dash Mount
Velcro® strip
In-Vehicle Antenna
Seat Mount
WARNING: DO NOT MOUNT WHERE AIRBAGS WILL DEPLOY.
DRIVE REACH VEHICLE SIGNAL BOOSTER 5
______

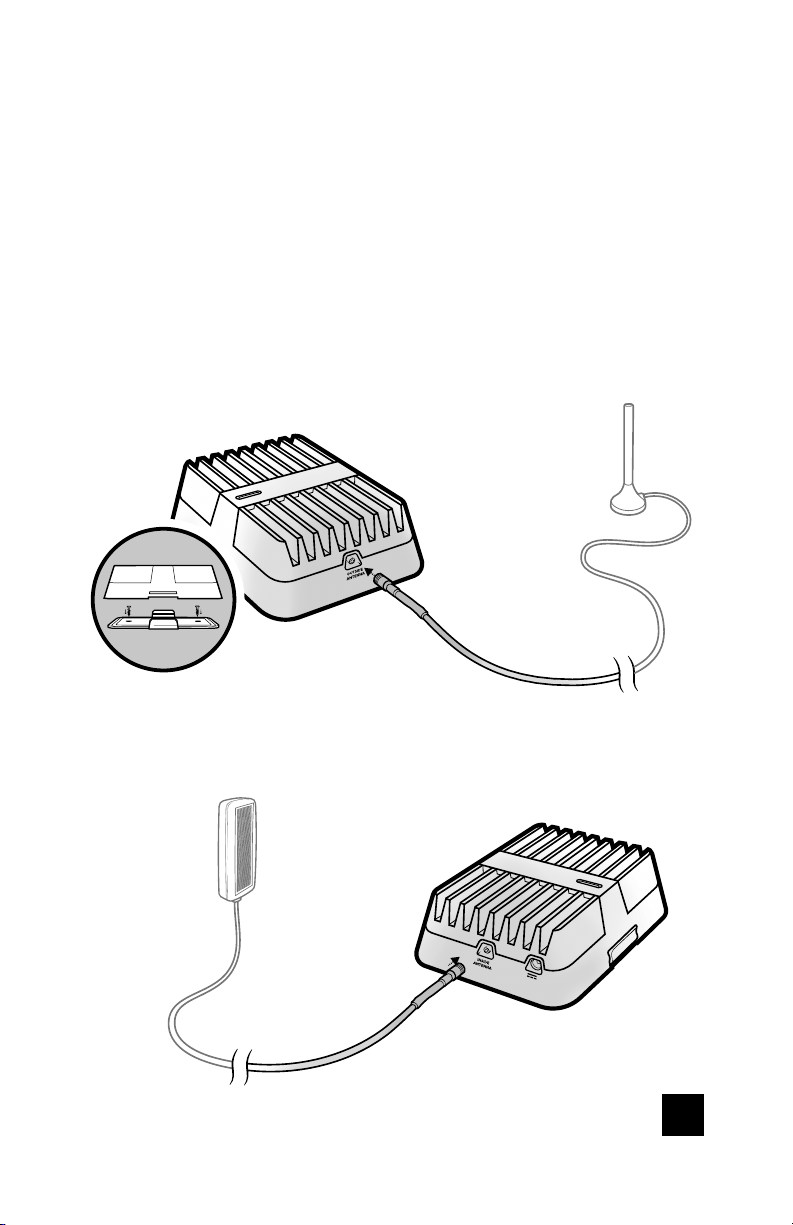

Step 3: Connect Coax Cables
To Booster
Connect the cable from the Mini-Mag Mount Antenna to the
port labeled “Outside Antenna” on the Drive Reach booster.
Connect the cable from the 4G In-Vehicle Antenna to the port
labeled “Inside Antenna” on the booster.
from Outside Antenna
from Inside Antenna
NOTE: Bracket can be used to fasten booster in a specific location if desired.
The Velcro® strip on the bottom of the bracket can also be used to keep
booster from sliding around.
bracket
Drive Reach
6VEHICLE SIGNAL BOOSTER DRIVE REACH
______
Step 4: Connect Power
Supply To Booster
Connect the power supply cord to the end of the booster,
labeled “ .”
NOTE: Do NOT connect the power to the Signal Booster until you have
connected both the Inside and Outside Antennas.
Power Supply
from Outside Antenna
from Inside Antenna
DRIVE REACH VEHICLE SIGNAL BOOSTER 7
______
Step 5: Plug Power Adapter
Into Vehicle’s Power Supply
Plug the power adapter into vehicle’s 12V DC power supply.
The Drive Reach will automatically power on when plugged in.
If your Drive Reach is working correctly, the light on the power
adapter will be red, and the light on the booster will be green.
Use only the power supply provided in this package.
NOTE: If the 12V Cigarette Lighter port on your car is always on (even when
your vehicle is turned o) and you will be parking for extended periods of
time (more than a day), we recommend you turn the booster o by pushing
the LED light, which is also a button. This will prevent the Drive Reach from
draining the battery in your vehicle.
DC Power Adapter
NEED HELP? SignalBooster.com 855.846.2654
8VEHICLE SIGNAL BOOSTER DRIVE REACH
______
Booster Light Patterns
NEED HELP?
Solid Green
This indicates that your booster is functioning properly and there are no issues with
installation.
Blinking Red, Then Solid Green
This indicates that one or more of the booster bands has reduced power due
to a minor feedback loop condition called oscillation. This is a built in safety
feature to prevent harmful interference with a nearby cell tower. If you are already
experiencing the desired signal boost, then no further adjustments are necessary.
If you are not experiencing the desired boost in coverage then refer to the
Troubleshooting section.
Solid Red
This is due to a major oscillation (feedback) loop. This is a built in safety feature
that causes a band to shut off to prevent harmful interference with a nearby cell
tower. Refer to Troubleshooting section.
Light O
If the Drive Reach Signal Booster’s light is off, verify your power supply has power.
NOTE: The Signal Booster can be reset by disconnecting and reconnecting
the power supply.
After troubleshooting you must initiate a new power cycle by disconnecting and
then reconnecting power to the Booster.
SignalBooster.com 855.846.2654
