THIS GAS APPLIANCE IS DESIGNED

FOR OUTDOOR USE ONLY.

42370 US 10/01/05

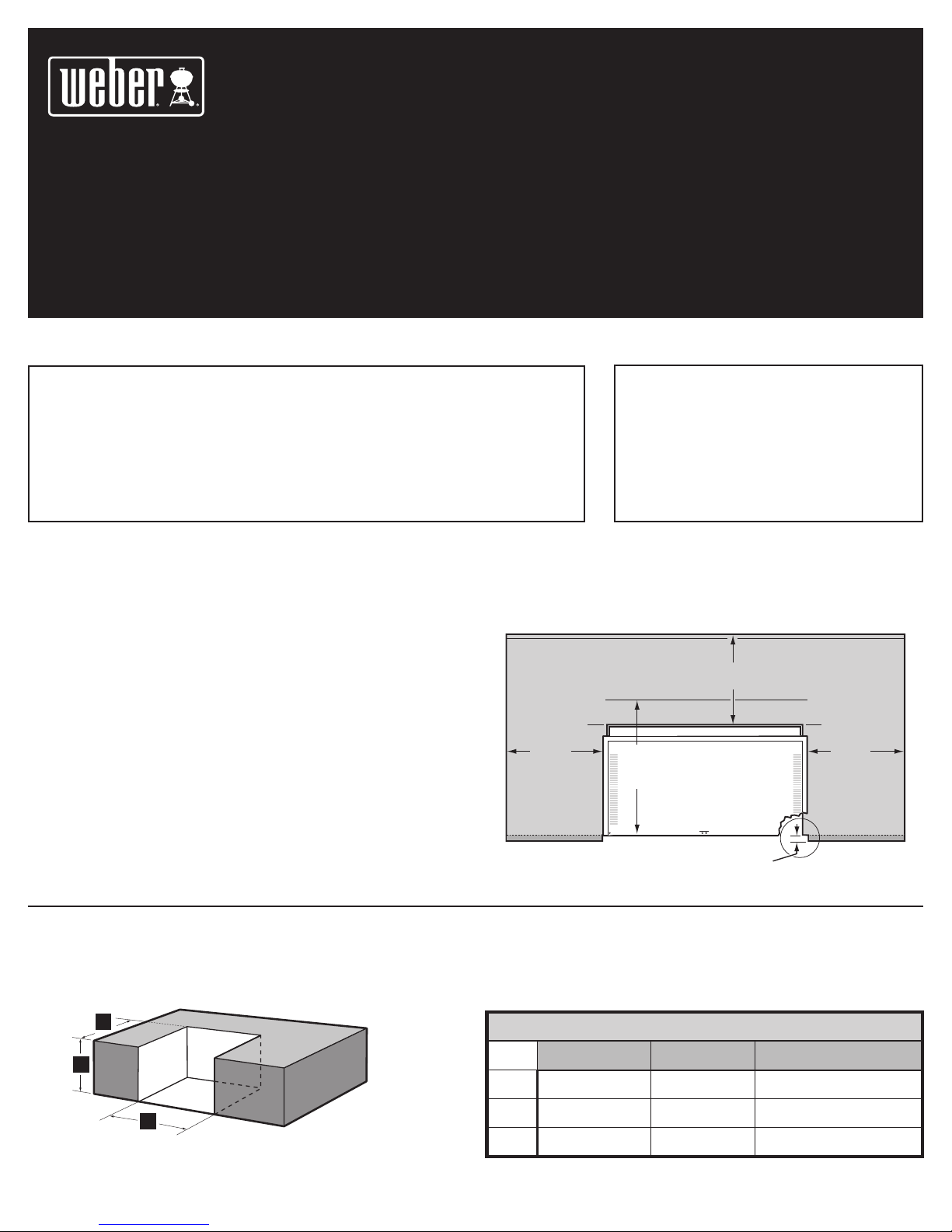

LOCATING YOUR GRILL

When determining a suitable location for your Summit®gas grill installation, give attention to concerns such as exposure to wind, proximity to trafﬁc paths, and

keeping any gas supply lines as short as possible. Never locate the Summit®gas grill in a garage, breezeway, shed, under an unprotected overhang, or other

enclosed area. Locate the grill and structure so there is enough room to safely evacuate the area in case of a ﬁre.

CLEARANCE FROM SURFACES OR STRUCTURES

WARNING: Clearance from any surface or structure is

24 inches (609.6 mm) from the back and sides of the grill.

Refer to “Typical Gas Supply Installation” before starting

installation.

WARNING: The structure, “island”, countertops, and

adjacent work areas for the built-in grill installation must be

built from noncombustible materials only.

NOTE: If you have questions on what materials are considered noncombustible,

contact your local building materials supplier or ﬁre department.

ace

Any Surface

24 inches (61 cm) Any Surface

24 inches

(61 cm)

24 inches

(61 cm)

Grill Frame

Note: For a countertop treatment: Recommended 3/4 inch

(

19.1 cm) overhang. Notch front edge for frame to fully

slide in.

27 inches (685.8 mm) min. for

lid clearance

BUILT-IN NG GAS GRILL INSTALLATION GUIDE

PLATINUM D4 / D6

SUMMIT®

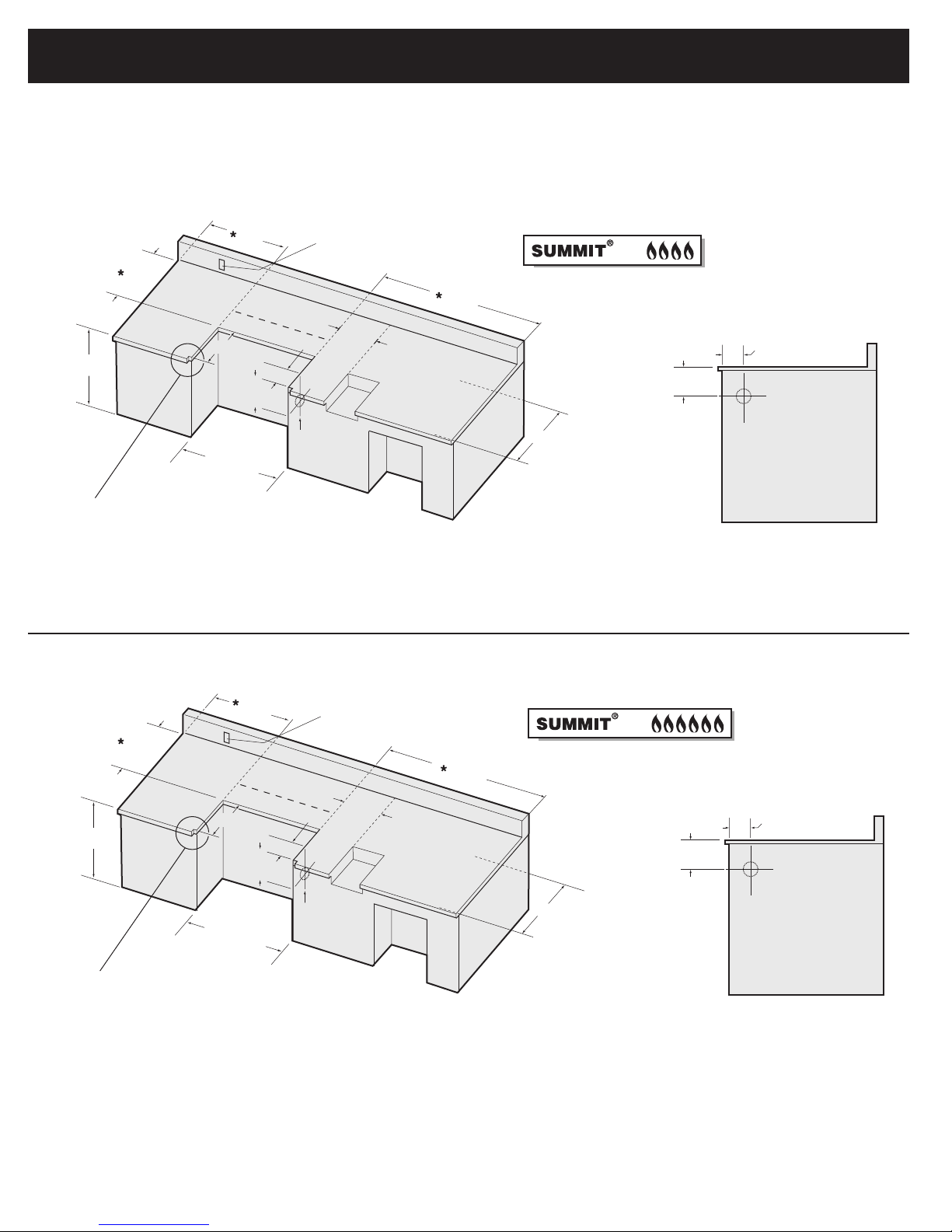

BUILT-IN STRUCTURE CUTOUT DIMENSIONS

ALL DIMENSIONS ARE TO FINISHED SURFACES.

WARNING: All countertop ﬁnished surfaces must be

constructed of a noncombustible material.

Built-In Cutout Dimensions

D4 D6 Tolerances

130

1/4

˝ 38

1/4

˝+

1/4

” -

1/4

234

1/4

˝ 34

1/4

˝+

1/4

” -

1/4

321˝ 21˝ +

1/4

” -

1/4

42370

42370_NG BIinstll.indd 1 9/23/05 11:08:10 AM

30 1/4"

Built-In

Frame

34 1/4"

24"

min.

21"

Access for electric

on left hand side

1/4"

3 3/4"

Gas Inlet

Note: For a countertop treatment:

Recommended 3/4inch overhang.

Notch front edge for frame to fully slide in.

6 1/4"

3 3/4"

Gas Inlet

24"

min.

24"

min.

*Clearance from any surface or structure is at least 24 inches from the back and

sides of the grill.

27 inches min.

distance from front

edge of the cutout

for open lid clearance

10 1/2"

min.

Side Burner

Opening

38 1/4"

Built-In

Frame

34 1/4"

24"

min.

21"

Access for electric

on left hand side

1/4"

3 3/4"

Gas Inlet

Note: For a countertop treatment:

Recommended 3/4inch overhang.

Notch front edge for frame to fully slide in.

6 1/4"

3 3/4"

Gas Inlet

24"

min.

24"

min.

*Clearance from any surface or structure is at least 24 inches from the back and

sides of the grill.

27 inches min.

distance from front

edge of the cutout

for open lid clearance

10 1/2"

min.

Side Burner

Opening

GENERAL CONSTRUCTION DETAILS

Summit®Built-In unit and all other accessory units should be on site before construction begins. All dimensions have a tolerance of plus or minus (+/-)

1/4

inch.The grill frame rests directly on the Island Structure top ﬁnished surface. Make sure this surface is level. Do not support the grill from the bottom. If the

supporting structure is going to have an electrical outlet for a rotisserie, it should be on the left side of the structure.

BUILT-IN CUTOUT DIMENSIONS

42370_NG BIinstll.indd 2 9/23/05 11:08:16 AM

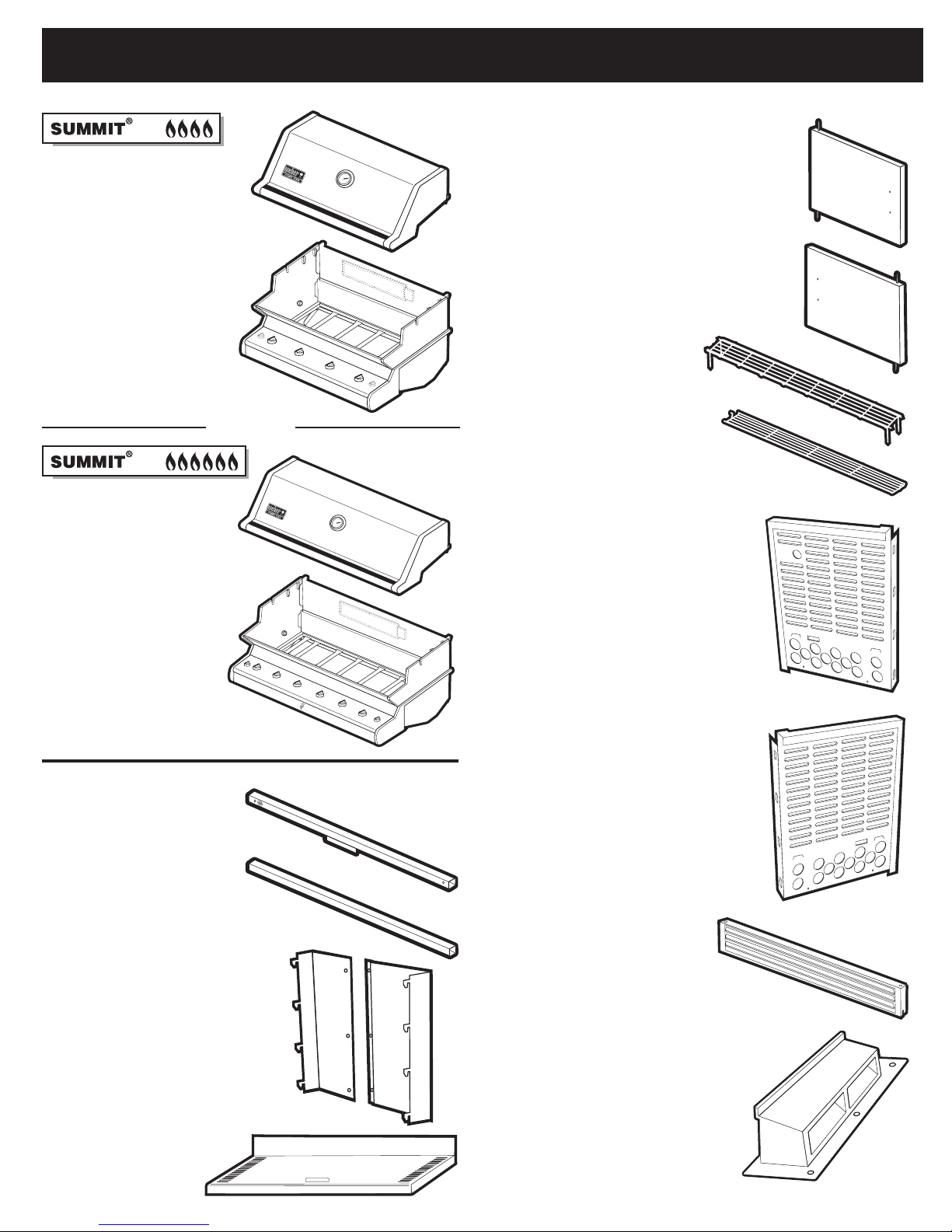

PARTS LIST

Lid - 1

Cookbox - 1

Bottom Shelf - 1

Rear Panel

Assembly- 1

Left Door - 1

Right Door - 1

Warming Rack - 1

Warm-Up™Rack - 1

Front Frame Rail - 1

Rear Frame Rail - 1

Right Enclosure Panel - 1

Left Enclosure Panel - 1

Front Vent Panel - 1

Lid - 1

Cookbox - 1

Rear Vent - 1

42370_NG BIinstll.indd 3 9/23/05 11:08:17 AM

Rotisserie Bracket - 1

Flavorizor®Bars - 2 Sets

Smoker - 1

Stainless Steel

Cooking Grates

Bottom Tray - 1

Catch-Pan Holder - 1

Catch-Pan - 1

Disposable Drip Pans - 2

Rotisserie - 1

Rotisserie Motor - 1

7/16 inch Wrench - 1

1/2 inch Bolts

(1/4 x 20 x 1/2 inch Bolt) - 8

Hinge Pin- 2

Hair Pin Cotter- 2

Wrench - 1

Nylon Washer - 8

#10-32 x 1/4 inch Steel Screws - 5

x10 Sheet Metal Screws - 3

Plastic Anchors - 3

- 2

- 3

Corrugated gas line - 1

Keps Nuts (1/4 x 20 Blk Zinc) - 2

Rotisserie Bracket Hardware- 2

Right Front Vent Clip - 1

Left Front Vent Clip - 1

1/2" Flare Gasket - 2

3/8" Flare Gasket - 2

Handle - 2

Handle Hardware - 4

PARTS LIST (CONTINUED)

42370_NG BIinstll.indd 4 9/23/05 11:08:21 AM

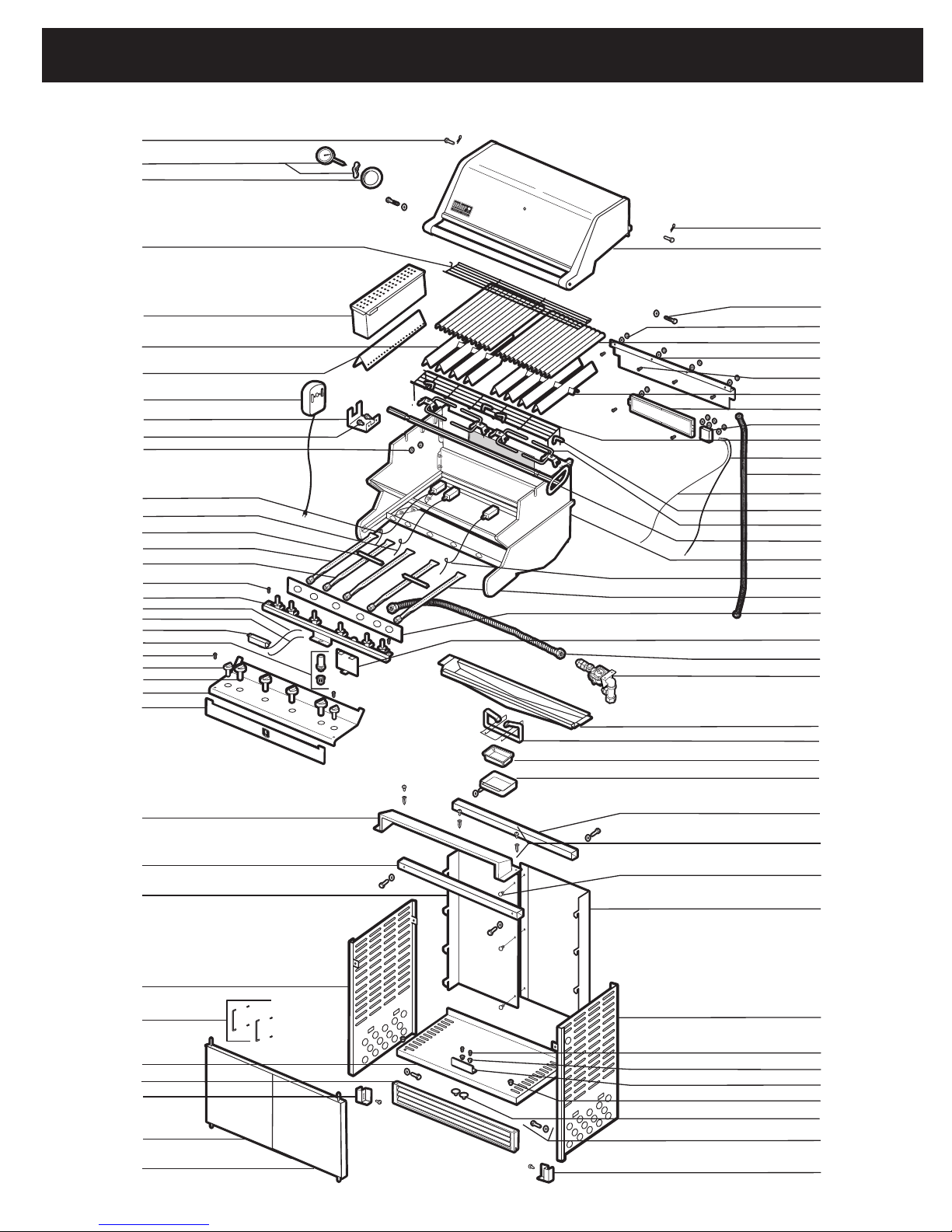

EXPLODED VIEW - PLATINUM D4

5340501 - Summit®Platinum D4 NG Built-In 091905

42370_NG BIinstll.indd 5 9/23/05 11:08:23 AM

6EXPLODED VIEW LIST - PLATINUM D4

1. Hinge Pin

2. Thermometer Hardware

3. Thermometer Bezel

4. Warm-Up™Basket

5. Smoker Assembly

6. Flavorizer®Bar Assembly w/ Smoker

7. Smoker Box Chip Grate

8. Rotisserie Motor

9. Motor Bracket

10. Motor Bracket Screw

11. 1/4 - 20 inch Keps Nut

12. Smoker Electrode Assembly

(10 1/2 inch wire)

13. Electrode Assembly (8 3/4 inch wire)

14. Crossover®Tube

15. Smoker Burner Tube

16. Left Burner Tube

17. 10 - 24 x 1/2 inch Black Screw

18. Manifold

19. Negative Ignition Switch Wire

20. Positive Ignition Switch Wire

21. Four Output Ignition Module Assembly

22. Ignition Switch Button Assembly

23. 10 - 24 x 1/2 inch Black Screw

24. Small Control Knob

25. Control Knob

26. Control Panel

27. Front Panel

28. Vent Cover Assembly

29. Front Frame Rail

30. Left Rear Panel

31. Left Panel

32. Handle Assembly

33. Bottom Shelf

34. Toe Kick Vent

35. Left Vent Bracket

36. Left Door Assembly

37. Right Door Assembly

38. Hair Pin Cotter

39. Lid Assembly

40. 1/4 - 20 x 1 1/4 inch Bolt

41. IR Rain Cover Hardware

42. 12 inch Cook Grate

43. IR Rain Cover

44. 10 - 24 x 1/2 inch Stainless Steel Screw

45. Right Flavorizer®Bar Assembly

46. IR Burner

47. IR Cover Box

48. Warming Rack

49. Thermocouple

50. IR Gas Line

51. IR Electrode Wire

52. Rotisserie Fork Screw

53. Rotisserie Fork

54. Rotisserie Shaft

55. Cookbox Assembly

56. Electrode Assembly (16 1/4 inch wire)

57. Right Burner Tube

58. Heat Shield

59. Battery Shield Assembly

60. Main Gas Line

61. Bulkhead Assembly

62. Bottom Tray

63. Summit Catch Pan Holder

64. Summit Catch Pan

65. Summit Drip Pan

66. Rear Frame Rail

67. Rear Vent Hardware

68. Rear Panel Hardware

69. Right Rear Panel

70. Right Panel

71. 10 -16 x 3/4 Screw w/ Washer

72. Plastic Plug

73. Door Stop

74. Door Bushing

75. Door Plug

76. 1/4 - 20 x 1/2 inch Black Bolt

77. Right Vent Bracket

42370_NG BIinstll.indd 6 9/23/05 11:08:23 AM

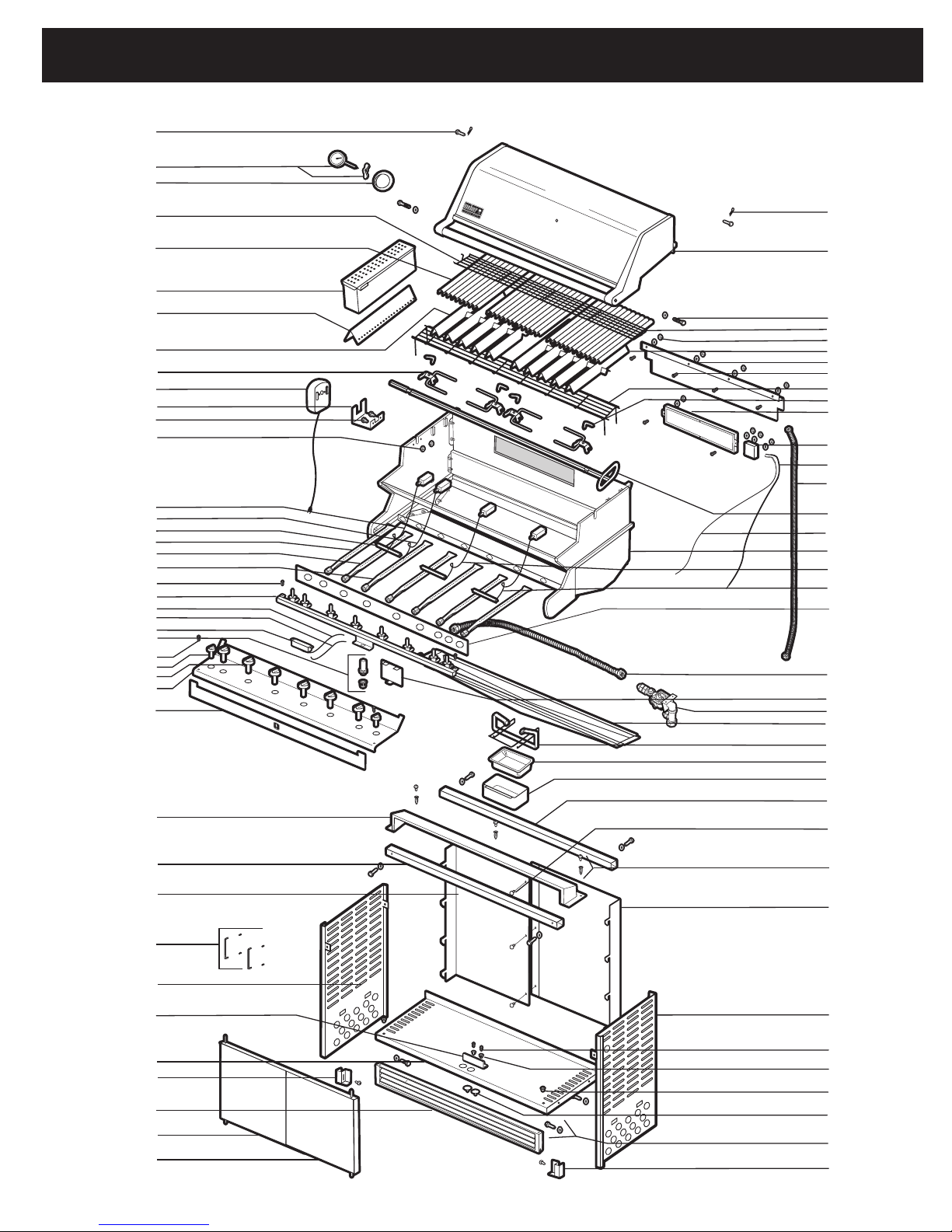

EXPLODED VIEW - PLATINUM D6

5390501 - Summit®Platinum D6 NG Built-In 092005

42370_NG BIinstll.indd 7 9/23/05 11:08:24 AM

8EXPLODED VIEW LIST - PLATINUM D6

1. Hinge Pin

2. Thermometer Hardware

3. Thermometer Bezel

4. Warm-Up™Basket

5. 8 inch Cooking Grate

6. Smoker Assembly

7. Smoker Box Chip Grate

8. Flavorizer®Bar Assembly w/ Smoker

9. Rotisserie Fork

10. Rotisserie Motor

11. Motor Bracket

12. Motor Bracket Screw

13. 1/4 - 20 inch Keps Nut

14. Smoker Electrode Assembly

(10 1/2 inch wire)

15. Electrode Assembly (8 3/4 inch wire)

16. Crossover®Tube

17. Smoker Burner Tube

18. Left Burner Tube

19. Right Burner Tube

20. 10 - 24 x 1/2 inch Black Screw

21. Manifold

22. Negative Ignition Switch Wire

23. Positive Ignition Switch Wire

24. Six Output Ignition Module Assembly

25. Ignition Switch Button Assembly

26. 10 - 24 x 1/2 inch Black Screw

27. Small Control Knob

28. Control Knob

29. Control Panel

30. Front Panel

31. Vent Cover Assembly

32. Front Frame Rail

33. Left Rear Panel

34. Handle Assembly

35. Left Panel

36. Door Stop

37. Bottom Shelf

38. Left Vent Bracket

39. Toe Kick Vent

40. Left Door Assembly

41. Right Door Assembly

42. Hair Pin Cotter

43. Lid Assembly

44. 1/4 - 20 x 1 1/4 inch Bolt

45. 12 inch Cook Grate

46. IR Rain Cover Hardware

47. Right Flavorizer®Bar Assembly

48. IR Rain Cover

49. 10 - 24 x 1/2 inch Stainless Steel Screw

50. Warming Rack

51. Rotisserie Fork Screw

52. IR Burner

53. IR Cover Box

54. Thermocouple

55. IR Gas Line

56. Rotisserie Shaft

57. IR Electrode Wire

58. Cookbox Assembly

59. Electrode Assembly (16 1/4 inch wire)

60. Electrode Assembly (25 1/2 inch wire)

61. Heat Shield

62. Main Gas Line

63. Battery Shield Assembly

64. Bulkhead Assembly

65. Bottom Tray

66. Summit Catch Pan Holder

67. Summit Catch Pan

68. Summit Drip Pan

69. Rear Frame Rail

70. Rear Vent Hardware

71. Rear Panel Hardware

72. Right Rear Panel

73. Right Panel

74. 10 -16 x 3/4 Screw w/ Washer

75. Plastic Plug

76. Door Bushing

77. Door Plug

78. 1/4 - 20 x 1/2 inch Black Bolt

79. Right Vent Bracket

42370_NG BIinstll.indd 8 9/23/05 11:08:24 AM

ATTENTION!

Do not fully tighten screws.

Clips should slide freely

when installed

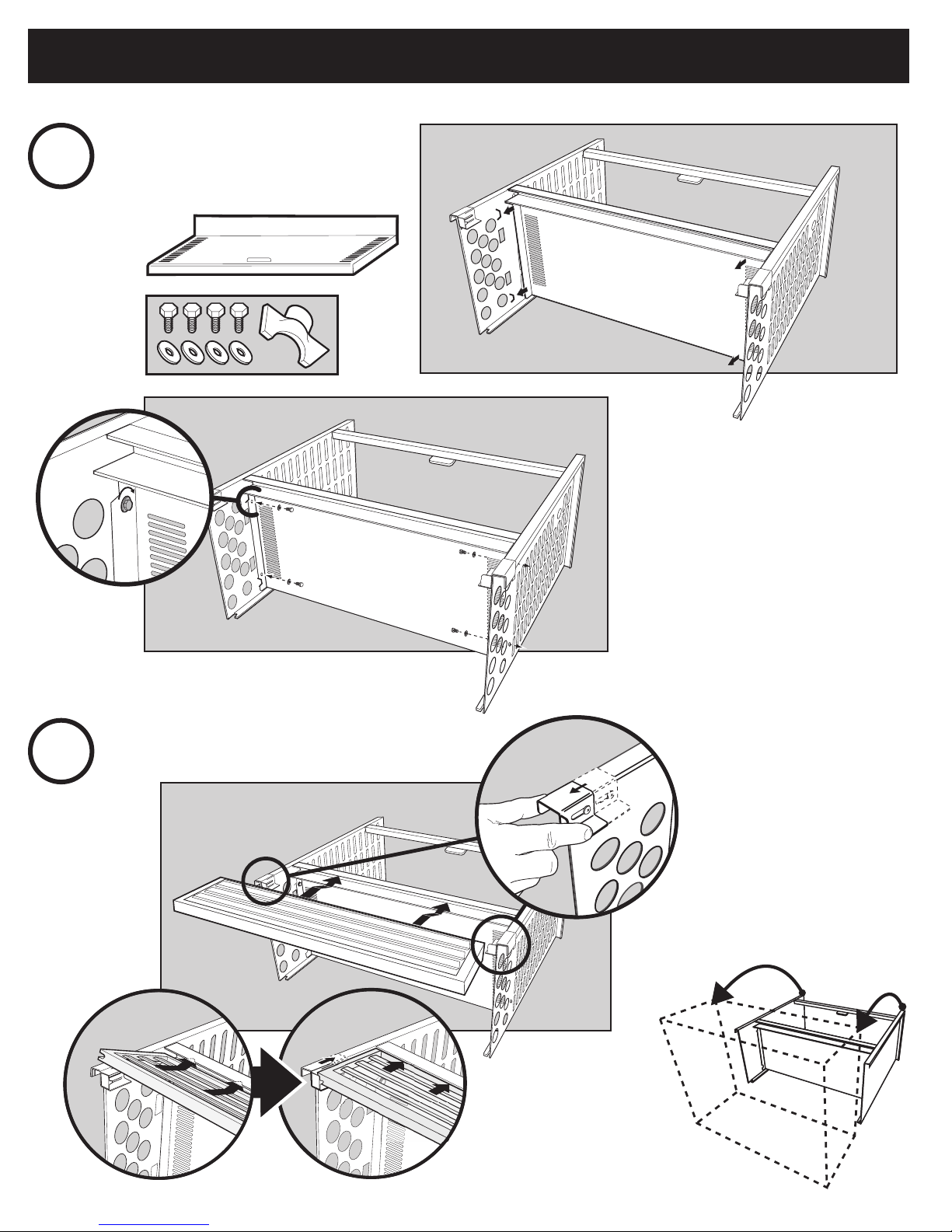

ASSEMBLY

Arrow stickers on

Frame Rail (1) and

Left Side Panel (2)

should point toward

each other (shown

above). Door Stop

Bracket (3) should

be positioned as

shown (left).

42370_NG BIinstll.indd 9 9/23/05 11:08:25 AM

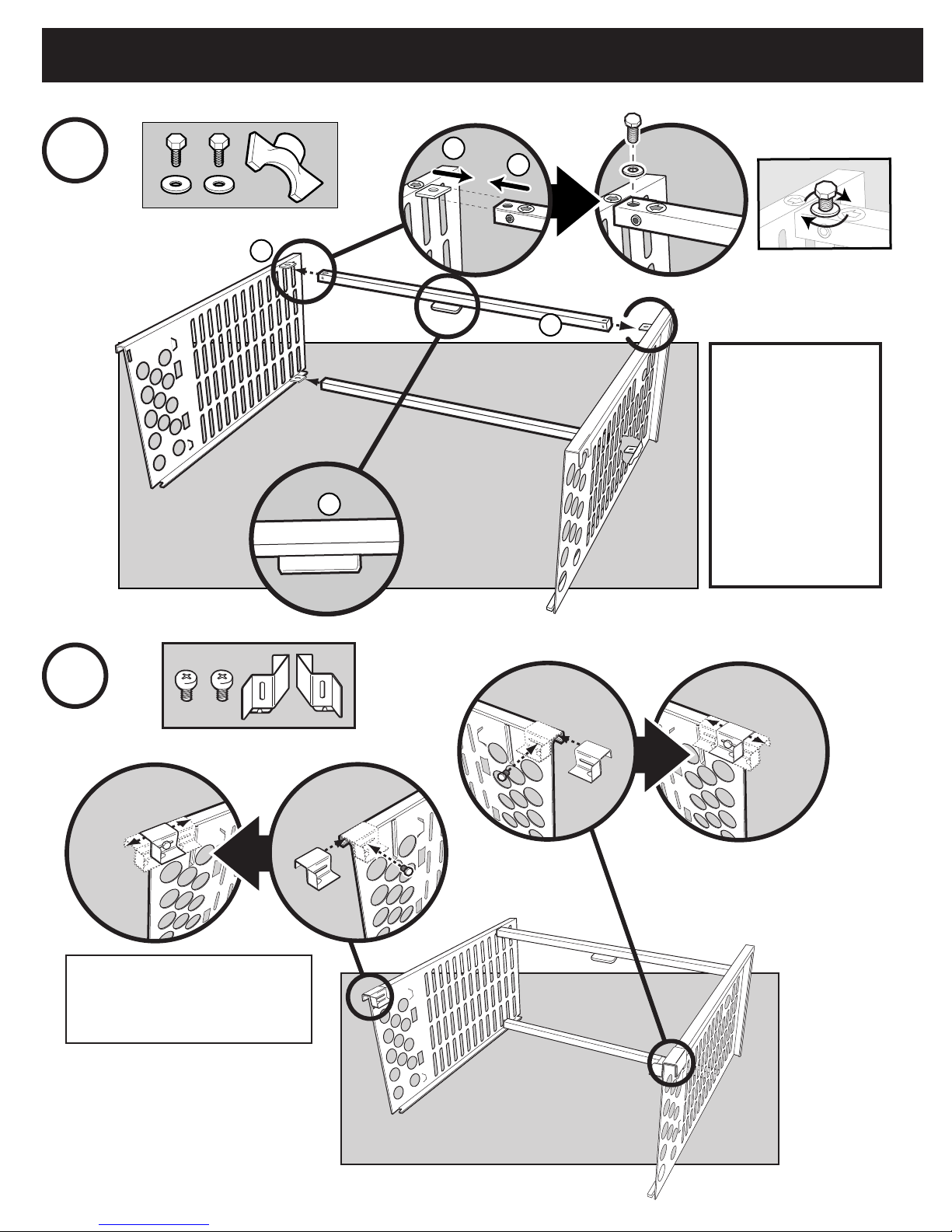

ASSEMBLY

42370_NG BIinstll.indd 10 9/23/05 11:08:26 AM
