WE-EF FLD121 #2 Manuel utilisateur

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Projector

FLD121 #2 LED

FLD131 #2 LED

Projector

FLD131 #2FLD121 #2

IP66, Class I, ta = 40°C

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

by a suitably qualiƂed and trained professional.

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

suitably qualiƂed professional in compliance with latest

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice: If the luminaire is modiƂed by anybody other

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Attention: The housing Lcontaining the LED light

source is factory-sealed and does not need to be

opened during installation.

Installation Procedure

1) Switch off mains electrical supply.

2) Remove mounting ƃange Aby loosening screws B.

Detach terminal connector C.

3) Determine position for Ƃxing screws D.

Drill relevant holes Eand insert wall plugs F.

Warning: Ensure not to damage any electric cable,

water pipe or other devices while drilling holes.

4) Feed mains supply cable Gthrough the pressure

screw I, while setting mounting ƃange Ain posi-

tion. The pre-installed packing ring His suitable

for cable diameters 7 to 9.5 mm. For larger cable

diameters (9 to 12 mm) use the auxiliary packing

ring supplied. Then tighten the pressure screw I

(Fig. I).

5) To Ƃx mounting ƃange A, pierce through nylon

plugs Pby inserting and tightening screws D.

Attention: Nylon plugs Pmust remain in position

to provide sealing.

6) Check that rating shown on luminaire label conforms

with mains electrical supply.

7) Connect mains supply cable Gleads to respective

terminals in terminal connector C:

a) ON/OFF (L = Phase, N = Neutral, = Earthing)

b) 1-10 V/DALI (L = Phase, N = Neutral,

= Earthing, DA/DA = DALI control line,

D–/D+ = 1-10 V control line).

8) Ensure that all surfaces are clean and dry. Position

luminaire over mounting ƃange Aand attach termi-

nal connector C. Tighten screws B.

9) Loosen screws Mand Nslightly. Aim luminaire

in desired direction, retighten screws Mand N.

Fig. I

www.we-ef.com

TO9211W0717 © WE-EF 2017

Technical speciƂcations are

subject to change.

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

United Kingdom

Tel +44 844 880 5346

Fax +44 844 880 5347

info.uk@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

info.asiapaciƂc@we-ef.com

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels WE-EF Projecteur

WE-EF

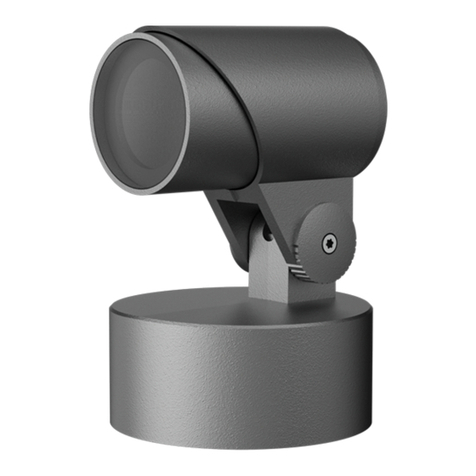

WE-EF FLC301 Manuel utilisateur

WE-EF

WE-EF FLD111 #3 LED Manuel utilisateur

WE-EF

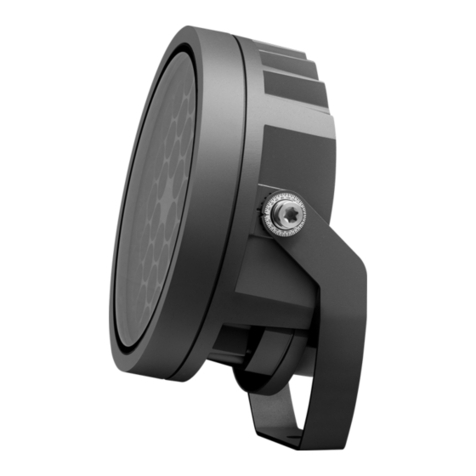

WE-EF FLC200 LED Series Manuel utilisateur
