Waudio Epic T12 Manuel utilisateur

Professional

Loudspeaker

Epic T12

USER MANUAL

Professional Loudspeaker Technology

CONTENTS PageNo.

1.INTRODUCTION 2

2.FEATURES 2

3.CARE&MAINTENANCE 3

4. TECHNICAL SPECIFICATIONS 4

5. PRODUCT DISPOSAL 5

W Audio Professional Loudspeaker User Manual

1-

1. INTRODUCTION

Thank you for purchasing this W Audio professional loudspeaker product. The Epic T12 is

a wide bandwidth two way passive coaxial speaker system with high performance. The

coaxial series loudspeaker is a range of portable loudspeaker enclosures designed for a

variety of portable sound reinforcement and club applications. It is perfect for live club

performance, night club installation, conference room, multifunction hall and stage

monitoring.

2．FEATURES

1. MDF trapezoid cabinet with scratch-resistance textured paint.

2. High intensity cabinet construction.

3. 10” high power LF speaker.

4. One compression driver with 1” throat.

5. 80°X 80°constant directivity horn.

6. Crossover: passive 12db octave and HF unit equalizer.

7. Two durable handle on the rear for easy carrying.

8. 12 X M8 flying points

W Audio Professional Loudspeaker User Manual

2-

3．CARE & MAINTENANCE

1) Do not use this speaker near water.

2) Clean only with dry cloth.

3) Do not block any ventilation openings. Install in accordance with the instructions.

4) Do not install near any heat sources such as radiators, stoves, or other apparatus

(including amplifiers) that produce heat.

5) Protect the power cable from being walked on or pulled particularly at plugs.

6) Only use attachments or accessories specified by the manufacturer.

7) Do not connect this speaker during lightning storms or when being unused for a long

period.

8) Choose a suitable cable for the loudspeaker, cable which is too small will not give a high

output.

W Audio Professional Loudspeaker User Manual

3-

4．TECHNICAL SPECIFICATIONS

Model: Epic T12

Compression Driver: 1 x1” Throat

Woofer: 1 x10” coaxial low/mid range speaker (Ferrite )

Power (AES): 500W

Impedance: 8 Ω

Sensitivity(1W/m) f>100Hz: 95dB

Max sound Pressure at 1m: 119dB continuous, 122dB peak

Frequency response: 65Hz-----19kHz

Nominal directivity@-6dB (H x V): 800x 800

Cabinet 15mm MDF

Accessory 12x M8 flying points

Dimensions (W x D x H) 320 x 300 x 480 mm

Net weight 12Kg

W Audio Professional Loudspeaker User Manual

4-

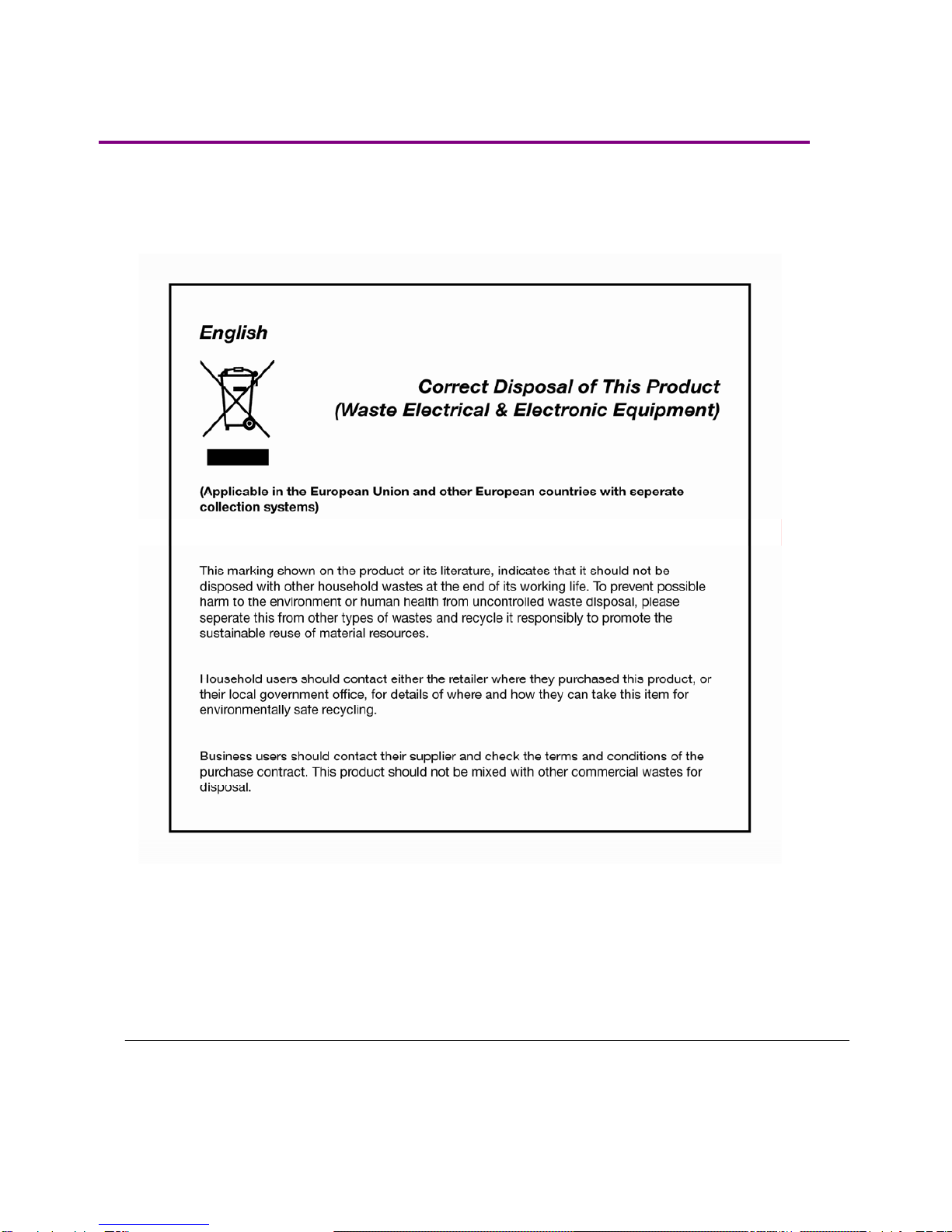

5. PRODUCT DISPOSAL

Specification is subject to change without prior notice.

W Audio Professional Loudspeaker User Manual

5-
