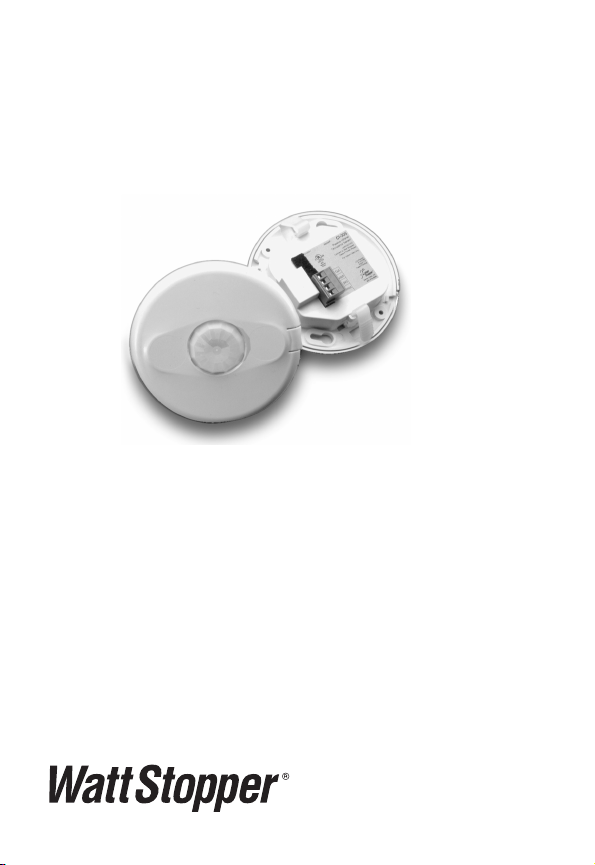

CI-305

360° Passive Infrared • Low Voltage

Occupancy Sensor

with Manual On feature

Specifications

Voltage ..........................18-28VDC/VAC, half wave rectiﬁed AC

Current Consumption .....................................................10 mA

Power Supply ..................................WattStopper Power Packs

Operating Temperature..................... 32° to 131°F (0° to 55°C)

Time Delay Adjustment....................30 seconds to 30 minutes

Walk-Through Mode ...3 minutes if no activity after 30 sec.

Test Mode............................... 5 sec. upon DIP switch reset

PIR Coverage

Model CI-305.................................................... up to 1200ft2

Model CI-305-1 ..................................................up to 500ft2

Sensitivity Adjustment ................. High or Low (DIP switch)

UL & CUL Listed for use with WattStopper Power Packs

Installation Instructions

Santa Clara, CA 95050

UNIT DESCRIPTION

The WattStopper CI-305 360° passive infrared (PIR) occupancy sensors turn lighting

systems on and off based on occupancy.

The sensors can be conﬁgured to turn lighting on, and hold it on as long as the

sensor detects occupancy. After no movement is detected for a user speciﬁed time

(30 seconds to 30 minutes) the lights are switched off. A “walk-through” mode can

turn lights off after only 3 minutes, if no activity is detected after 30 seconds of an

occupancy detection.

The CI-305 operates on 24V supplied by WattStopper Power Packs, 24VAC or half

wave rectiﬁed AC.

COVERAGE PATTERN

The CI-305 sensors provide a 360° coverage pattern. Two lens patterns are

available. The CI-305 provides up to 1200 square feet of coverage and the CI-305-1

provides up to 500 square feet of coverage. The coverage shown represents walking

motion at a mounting height of 8 feet. For building spaces with lower levels of

activity or with obstacles and barriers, coverage size may decrease.

Call 800.879.8585 for Technical Support

24 ft

7.3m

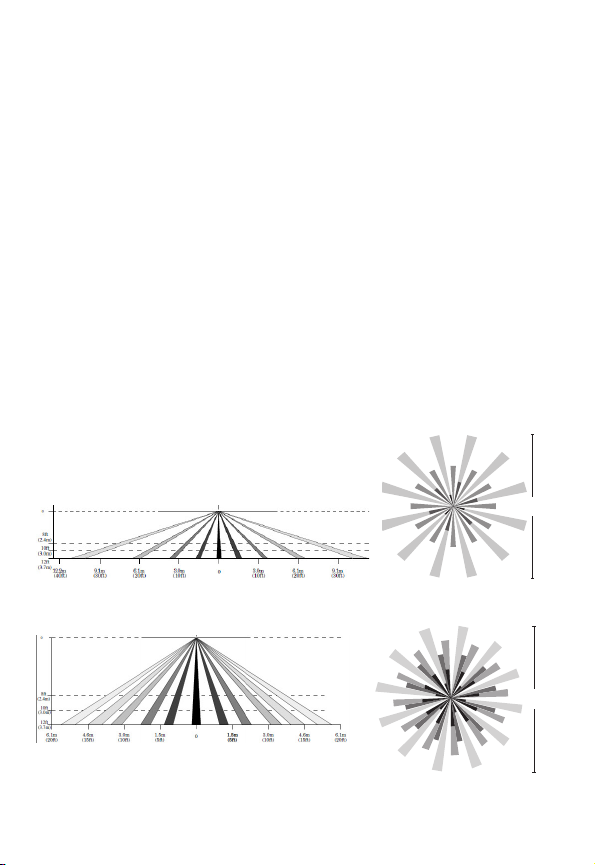

CI-305-1 Coverage Pattern (high density, reduced range lens)

44 ft

13.4m

CI-305 Coverage Pattern (standard lens)

Drawings not to scale.

Side View

Top View @ 8ft

PLACEMENT GUIDELINES

Depending upon obstacles such as furniture or partitions, the area of coverage may

be less or more than the sensing distances shown in the coverage pattern. This

must be considered when planning the number of sensors and their placement. It

is also recommended to place the sensor 4 to 6 feet away from air supply ducts as

rapid air currents or the differences in temperatures may cause false activations.

Mount the sensor to the ceiling. The CI-305 sensors are designed for a ceiling

height of about 8-10 feet. Mounting above or below this range will signiﬁcantly

affect the coverage patterns. Be aware that as you decrease the mounting height,

you decrease the range and increase the sensitivity to smaller motions. Conversely,

when you increase the height, you increase the range and decrease the sensitivity

to smaller motions. At heights of more than

12-14 feet, you may start to signiﬁcantly

reduce sensitivity. As a general rule, each

occupant should be able to clearly view the

sensor.

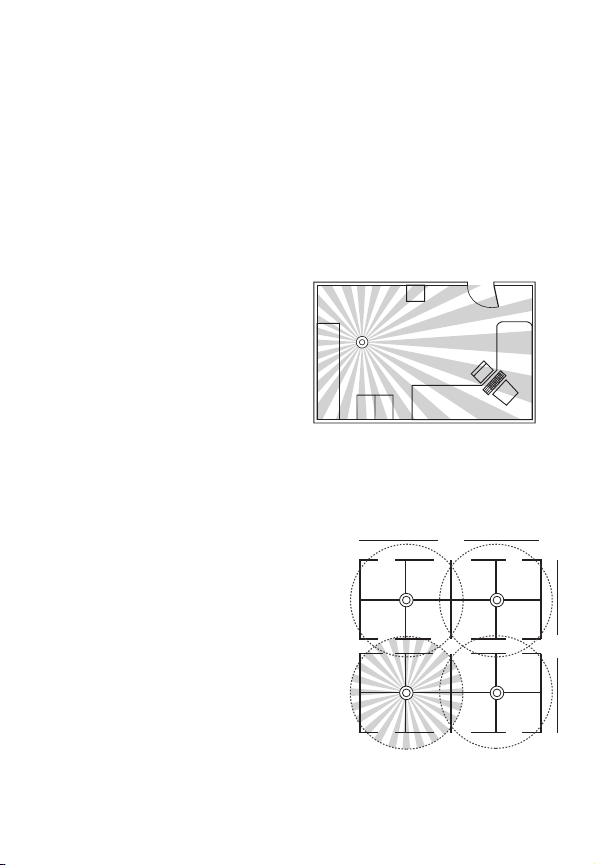

Often the best location to install a CI-305 in

a closed ofﬁce is off-center. Avoid placing

a sensor directly in line with an open door

through which it has a clear view out, as the

sensor may detect people walking by.

Masking the PIR Lens: Opaque adhesive tape is supplied so that sections of the PIR

lens can be masked. This restricts the sensor’s view and allows you to eliminate PIR

coverage in unwanted areas such as hallways outside of the desired coverage area.

Since masking removes bands of coverage, remember to take this into account

when troubleshooting coverage problems.

Open Ofce Area Coverage: To get complete

coverage in an open ofﬁce area, install

multiple sensors so that there is an overlap

with each adjacent sensor’s coverage area.

For open ofﬁce areas with partitions it is best

to place sensors over intersection of four

workstations.

For large areas of coverage use multiple

sensors.

CI-205

12'

18'

CI-205

36'

Visit our website for FAQs: www.wattstopper.com

WIRING DIRECTIONS

CAUTION

Turn power off at the circuit breaker before

installing power packs or sensors.

Each WattStopper BZ series power pack

can supply power for 14 CI-305 sensors.

When using more sensors than this,

multiple power packs are required.

Refer to the wiring diagram on the next

page for the following procedures:

Connect the low voltage:

• REDwire(+24VDC)frompowerpackto

 the+24V terminal on the sensor.

• BLACKwire(Return)frompowerpack

to Common terminal on the sensor.

• BLUEwirefrompowerpacktoControl

Out terminal on sensor.

To add a MANUAL SWITCH such as the

LVS-1 Momentary Toggle Switch, or RS2-3 Low Voltage Momentary Switch to the

above applications–connect:

• Wirefromonesideofswitchto+24terminalonsensor.

• WirefromothersideofswitchtoManSwitchterminalonsensor.

Call 800.879.8585 for Technical Support

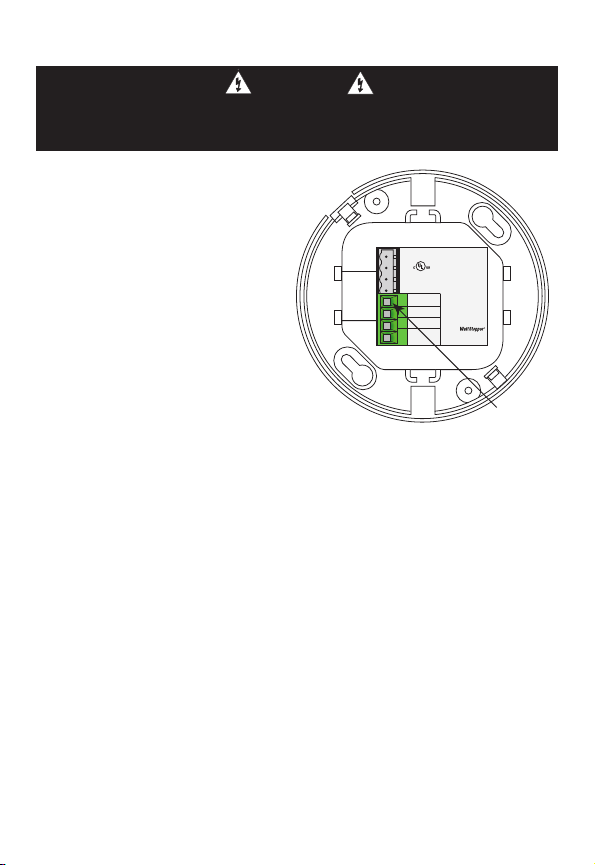

CI-305

Passive Infrared

Occupancy Sensor

U.S.Patents:

5,640,113

Patent Pending

+24VDC/VAC

Connect to Watt Stopper

Class 2 Power Packs

For Indoor Use Only

03083r2

www.wattstopper.com

800.879.8585

Control Out.

Man. Switch

+24V

Common

LISTED

88T9

Appliance

Control

Wiring

terminals

Visit our website for FAQs: www.wattstopper.com

Load #1

Load #2

(Optional)

CI-305

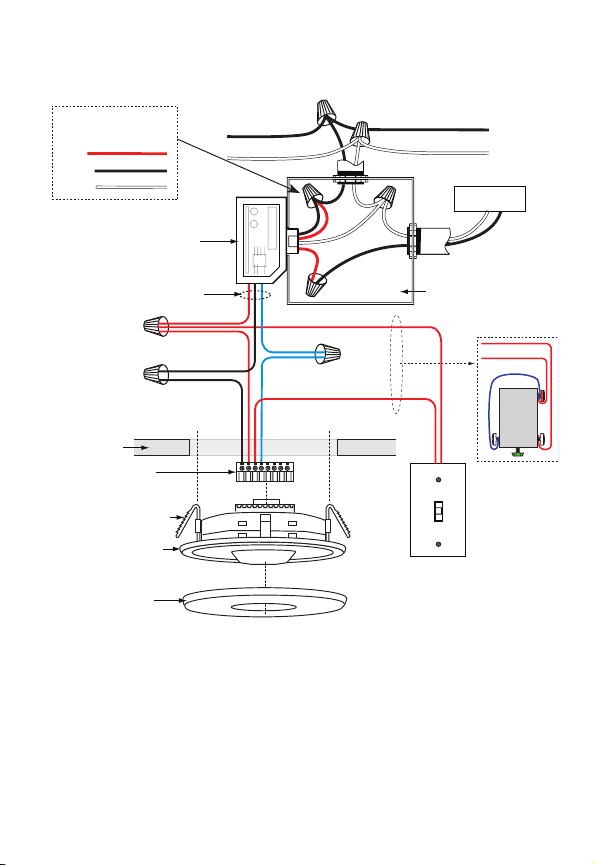

Standard wiring with local off switch

Rear Housing

Depluggable

Terminal

Front Cover

Ceiling

Spring Clips (2)

Blue

Control Out

+24V

Common

Low Voltage

Class 2

Line

Voltage

Line

Neutral Feed Through

Power Pack

Black

Red

#1 #2

Line Voltage

Switches

White

Black

Red

Line Voltage

Wire Color Legend

Standard wiring with local off switch

CONNECTING WIRES

• Careshouldbetakentoseparatehighvoltagepowerfromlowvoltage(Class2)

control wiring.

• Allconnectionstosensorarelowvoltage,Class2.

LVS-1

Load

Rear Housing

Depluggable

Terminal

Front Cover

Ceiling

Spring Clips (2)

Blue

Control Out

Black

+24V

Low Voltage

Class 2 Line Voltage

Line

Neutral Feed Through

Power Pack

Man.Switch

Red

CI-305

Common

Man.Switch

+24V

Jumper

Back

LVS-1

For low voltage momentary

switch set DIP switch #7 ON

White

Black

Red

Line Voltage

Wire Color Legend

Call 800.879.8585 for Technical Support

Manual-On wiring with low voltage momentary switch

Rear

housing

Depluggable terminal

Front

cover

Ceiling

Spring clips (2)

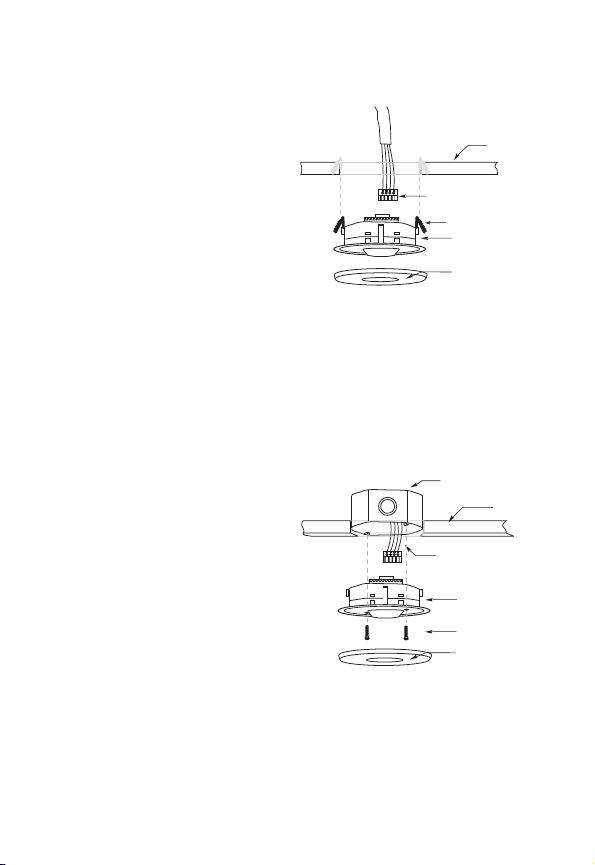

MOUNTING THE SENSOR

Directly to Ceiling

1. Attach the plastic spring clips to

the edge of the sensor in the slots

provided.

2. Cut a 3.5” to 4” round hole in

the acoustic ceiling tile at the

mounting location. A 3.5” hole is

recommended for a secure ﬁt.

3. Pull the low voltage wire from the

power pack to the sensor through

the hole.

4. Connect the low voltage wires to

the appropriate terminals on the

sensor.

5. Push the sensor up through the

hole until the Spring Clips hold the

sensor securely in place.

6. Snap the front cover onto the

sensor.

Using an Octagonal J-Box

1. Pull the low voltage wires from the

power pack into the J-Box through the

conduit knockout.

2. Connect the low voltage wires to the

appropriate terminals on the sensor.

3. Loosen the appliance mounting screws

attached to the J-Box

4. Align the sensor in the J-Box so that

the mounting screws on the box match

the key holes on the sensor’s rear

housing.

5. Push the sensor up into the J-Box and

twist it so that the mounting screws are

seated in the keyhole slots.

6. Tighten the two screws to secure the sensor to the J-Box.

7. Snap the front cover onto the sensor.

Ceiling MountCeiling Mount

J-Box Mount

Rear

Housing

Depluggable

Terminal

4" Octagonal J-Box

(at least 1.5" deep)

Front

Cover

Ceiling

Screws

Visit our website for FAQs: www.wattstopper.com

SENSOR ADJUSTMENT

This unit is pre-set for basic operation as described

in this guide. Adjustment is optional.

The sensors are factory preset to allow for quick installation in most applications.

Veriﬁcation of proper wiring or coverage, or customizing the sensor’s settings can

be done using the following procedures. To make adjustments, open the Front

Cover by pulling on the

cover tab.

There is a 30 second

warm-up period when

power is rst applied.

Before making

adjustments, make

sure the ofﬁce furniture

is installed, lighting

circuits are turned on,

and the HVAC systems

are in the overridden/on

position. VAV systems

should be set to their

highest airﬂow. Set the

DIP switches to the

desired settings. See “DIP Switch Setting”.

To Test Occupancy Sensors

1. Ensure the Time Delayis set for Test Mode* using the “Test Mode/20 minutes”

setting. (DIP switches 1 ,2, & 3 are OFF).

2. Remain still. The red LED should not ﬂash. The lights should turn off after

5 seconds. (If not, see “Troubleshooting.”)

3. Move about the coverage area. The lights should come on.

When testing and adjustment is complete, reset DIP Switches to the desired

settings, and replace the cover on the sensor.

* Test Mode is a temporary state that starts when you ﬁrst set the sensor’s DIP

switches for the “Test Mode/20 minutes” (switches 1, 2, 3 OFF). If you need to

invoke the Test Mode and the DIP switches are already set for Test Mode/20

minutes, toggle DIP switch 1 ON then back to the OFF position. This provides a

10 minute test period. During the test period, the Time Delay is only 5 seconds.

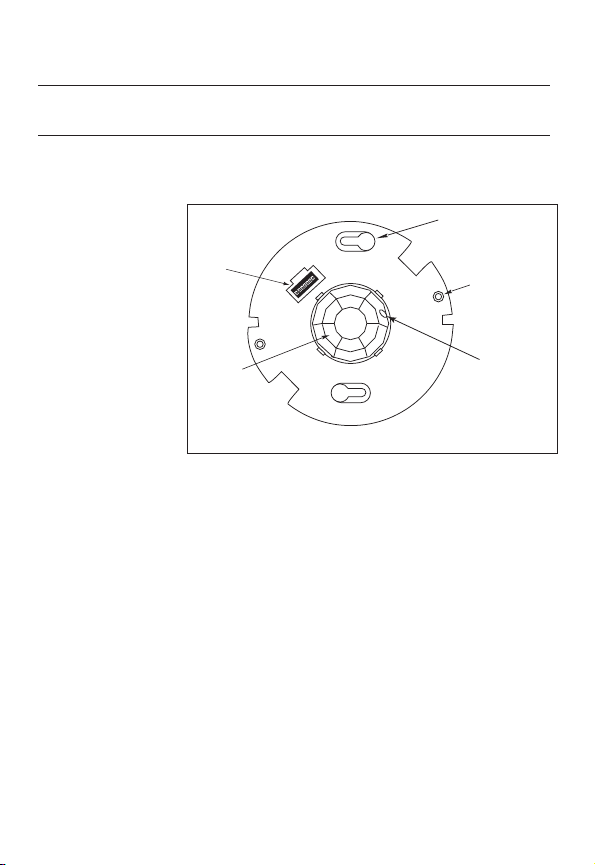

Keyhole slots

(for mounting to

4" octagonal box)

Double gang

mudring

mounting holes

DIP

switches

PIR lens

1234567

ECE

PIR Activity

LED (Red)

Call 800.879.8585 for Technical Support

DIP SWITCH SETTING

The CI-305 has 7 DIP switches under the cover.

Time Delay: Switches 1, 2, 3

The sensor will hold the lights ON as long as

occupancy is detected. The time delay countdown

starts when no motion is detected. After no motion

is detected for the length of the time delay, the

sensor will turn the lights OFF.

Walk Through Switch 4

Walk-through mode turns the lights OFF three

minutes after the area is initially occupied, if no

motion is detected after the ﬁrst 30 seconds. If

motion continues beyond the ﬁrst 30 seconds, the

selected time delay applies.

PIR Sensitivity: Switch 5

• Minimumforcesareduceddetectionrangefor

the PIR.

• Maximumforces the sensitivity to the maximum

coverage area. This setting is constantly updated.

Service: Switch 6

To override all sensor functions, set DIP switch 6 to

the ON position. The red LED will come on and stay

on for the duration of the override. This bypasses

the occupancy control functions of the sensor, but

still allows the lights to be manually controlled with

a light switch, if one is installed.

On Mode: Switch 7

The Manual ON function is facilitated by installing

a momentary switch such as a Watt Stopper LVS-1 Momentary Toggle Switch, or

RS2-3 Low Voltage Momentary Switch. This switch connects to the sensor’s Manual

(Man.)Switchand+24Vterminalsasshowninthewiringdiagram.Eachtimethe

switch is pressed, the load changes state. The sensor’s operation as related to the

manually operated switch is determined by the setting for DIP switch 7.

DIP Switch Setting Chart

Switch#

5 minutes

10 minutes

15 minutes

20 minutes

25 minutes

30 minutes

30 seconds

123

Time Delay



Test Mode/20 min

Maximum

PIR Sensitivity

Minimum



Normal

Service

Auto On

Manual On

On Mode

= ON

= OFF

= Factory Setting



Disabled

Enabled

Walk-Through

Visit our website for FAQs: www.wattstopper.com

Manual On: In this mode, the switch is required to turn on the load. The sensor is

then used to keep the load on, based on occupant activity. After the time delay ends,

if there is no movement detected within the 30 second re-trigger period the manual

switch must be used to turn ON the load.

Automatic On: This mode uses occupancy as well as switch activation to turn the

load ON. A manual switch provides the following additional functionality:

a. The load can be turned ON by manual switch activation and it stays on as long as

occupancy is detected. The sensor time delay operates as programmed. When

the load turns OFF due to lack of occupancy detection, the load can be turned ON

again by occupancy detection or switch activation.

b. Activating the manual switch while the load is ON turns the load OFF.

• WhentheloadisturnedOFF manually, as long as the sensor continues to

detect occupancy the load stays OFF. For the selected time delay, the lights

stay off and the sensor reverts to the automatic-on mode.

• WhentheloadisturnedOFF manually, pressing the switch again turns the

load ON and the sensor reverts to the automatic-on mode.

• Oncethesensorreturnstoautomatic-onmode,eithertheswitchor

occupancy detection can turn the load ON.

OVERLOAD PROTECTION

The occupancy sensor has a built in overload protection function that will

automatically turn off the control output when the load current exceeds

200mA. The sensor LED will then blink rapidly (~ 10Hz) to provide a

visual indication of an overload condition. When the load current is

corrected or returns to normal, the control output will turn back on.

Call 800.879.8585 for Technical Support

Table des matières

Autres manuels wattstopper Accessoires

wattstopper

wattstopper Legrand FM-105 Manuel utilisateur

wattstopper

wattstopper CI-24 Manuel utilisateur

wattstopper

wattstopper PW-100 Manuel utilisateur

wattstopper

wattstopper CI-200 Series Manuel utilisateur

wattstopper

wattstopper CI-200 Manuel utilisateur

wattstopper

wattstopper PW-103N Manuel utilisateur

wattstopper

wattstopper DT-355 Manuel utilisateur

wattstopper

wattstopper DSW-301 Manuel utilisateur

wattstopper

wattstopper UT-300-1 Manuel utilisateur

wattstopper

wattstopper DT-300 Manuel utilisateur

wattstopper

wattstopper W-500A Manuel utilisateur

wattstopper

wattstopper DT-200 Manuel utilisateur

wattstopper

wattstopper CH-250 Manuel utilisateur

wattstopper

wattstopper LMPX-100-4 Manuel utilisateur

wattstopper

wattstopper DW 100 Manuel utilisateur

wattstopper

wattstopper DW-200 Manuel utilisateur

wattstopper

wattstopper EW-200-120 Manuel utilisateur

wattstopper

wattstopper LMPW-102 Manuel utilisateur

wattstopper

wattstopper PW-301 Manuel utilisateur

wattstopper

wattstopper PW-100 Manuel utilisateur

wattstopper

wattstopper EW-100-120 Manuel utilisateur

wattstopper

wattstopper RD‑250 Manuel utilisateur

wattstopper

wattstopper LMDC-100 Manuel utilisateur

wattstopper

wattstopper DT-305 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur

wattstopper CI-305 Manuel utilisateur

Manuels Accessoires populaires d'autres marques
