Wattstopper CI-300 Manuel utilisateur

CI-300

360° Passive Infrared • Low Voltage

Occupancy Sensor

with Light Level, Isolated Relay and Manual On feature

Specifications

Voltage ........................ 18-28VDC/VAC, half wave rectiﬁed AC

Current Consumption .....................................................15 mA

Power Supply ..................................WattStopper Power Packs

Isolated Relay Rating ...................................... 1A @30VDC/VAC

Operating Temperature..................... 32° to 131°F (0° to 55°C)

Light Level One-Step Adjustment....................... 10FC—300FC

Time Delay Adjustment....................30 seconds to 30 minutes

Walk-Through Mode ...3 minutes if no activity after 30 sec.

Test Mode............................... 5 sec. upon DIP switch reset

PIR Coverage

Model CI-300................................................... up to 1200ft2

Model CI-300-1 ................................................. up to 500ft2

Sensitivity Adjustment................. High or Low (DIP switch)

UL & CUL Listed for use with WattStopper Power Packs

Installation Instructions

Santa Clara, CA 95050

UNIT DESCRIPTION

The WattStopper CI-300 360° passive infrared (PIR) occupancy sensors turn lighting

systems on and off based on occupancy and ambient light levels. The light level

feature keeps lights from turning on if the ambient light level is sufﬁcient.

The sensors can be conﬁgured to turn lighting on, and hold it on as long as the

sensor detects occupancy. After no movement is detected for a user speciﬁed time

(30 seconds to 30 minutes) the lights are switched off. A “walk-through” mode can

turn lights off after only 3 minutes, if no activity is detected after 30 seconds of an

occupancy detection.

The CI-300 operates on 24V supplied by Watt Stopper Power Packs, 24VAC, or half

wave rectiﬁed AC. CI-300 sensors also have an isolated relay with Normally Open

and Normally Closed contacts for interfacing with HVAC or EMS.

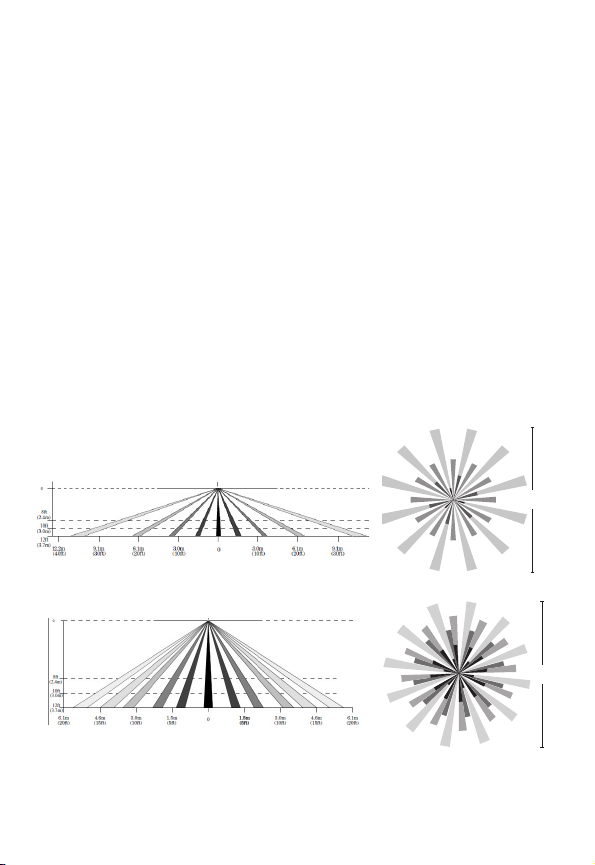

COVERAGE PATTERN

The CI-300 provides a 360° coverage pattern. Two lens patterns are available. The

CI-300 provides up to 1200 square feet of coverage and the CI-300-1 provides up to

500 square feet of coverage. The coverage shown represents walking motion at a

mounting height of 8 feet. For building spaces with lower levels of activity or with

obstacles and barriers, coverage size may decrease.

Call 800.879.8585 for Technical Support

24 ft

7.3m

CI-300-1 Coverage Pattern (high density, reduced range lens)

44 ft

13.4m

CI-300 Coverage Pattern (standard lens)

Drawings not to scale.

Top View @ 8ft

Side View

Visit our website for FAQs: www.wattstopper.com

PLACEMENT GUIDELINES

Depending upon obstacles such as furniture or partitions, the area of coverage may

be less or more than the sensing distances shown in the coverage pattern. This

must be considered when planning the number of sensors and their placement. It

is also recommended to place the sensor 4 to 6 feet away from air supply ducts as

rapid air currents or the differences in temperatures may cause false activations.

Mount the sensor to the ceiling. The CI-300 sensors are designed for a ceiling

height of about 8-10 feet. Mounting above or below this range will signiﬁcantly

affect the coverage patterns. Be aware that as you decrease the mounting height,

you decrease the range and increase the sensitivity to smaller motions. Conversely,

when you increase the height, you increase the range and decrease the sensitivity

to smaller motions. At heights of more than

12-14 feet, you may start to signiﬁcantly

reduce sensitivity. As a general rule, each

occupant should be able to clearly view the

sensor.

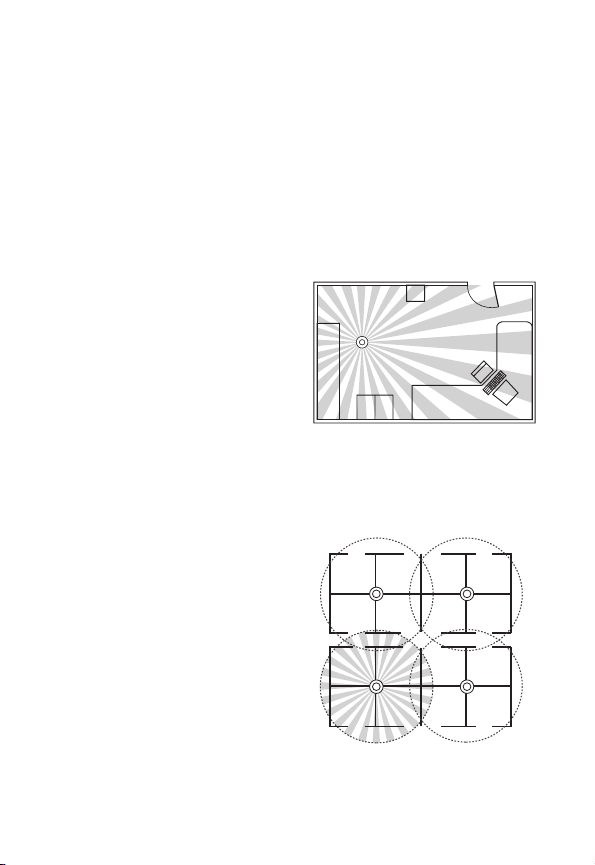

Often the best location to install a CI-300 in

a closed ofﬁce is off-center. Avoid placing

a sensor directly in line with an open door

through which it has a clear view out, as the

sensor may detect people walking by.

Masking the PIR Lens: Opaque adhesive tape is supplied so that sections of the PIR

lens can be masked. This restricts the sensor’s view and allows you to eliminate PIR

coverage in unwanted areas such as hallways outside of the desired coverage area.

Since masking removes bands of coverage, remember to take this into account

when troubleshooting coverage problems.

Open Ofce Area Coverage: To get

complete coverage in an open ofﬁce area,

install multiple sensors so that there is

an overlap with each adjacent sensor’s

coverage area.

For open ofﬁce areas with partitions it is

best to place sensors over intersection of

four workstations.

For large areas of coverage use multiple

sensors.

CI-205

12'

18'

CI-205

36'

WIRING DIRECTIONS

CAUTION

TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE

INSTALLING POWER PACKS OR SENSORS.

Each WattStopper BZ series power pack

can supply power for 8 CI-300 sensors.

When using more sensors than this,

multiple power packs are required.

Refer to the wiring diagram on the next

page for the following procedures:

Connect the low voltage:

•REDwire(+24VDC)frompowerpackto

 the+24V terminal on the sensor.

•BLACKwire(Return)frompowerpack

to Common terminal on the sensor.

•BLUEwirefrompowerpacktoControl

Out terminal on sensor.

To add a MANUAL SWITCH such as the LVS-1 Momentary Toggle Switch, or RS2-3

Low Voltage Momentary Switch to the above applications–connect:

•Wirefromonesideofswitchto+24terminalonsensor.

•WirefromothersideofswitchtoManSwitchterminalonsensor.

Wiring the ISOLATED RELAY: (The Isolated Relay is rated for 1A@30VAC/VDC)

Connect the wires necessary to the application that requires this output:

•RelayCommon(mustbeusedforproperoperation)

•N.O.(NormallyOpen)–Closedwhenoccupancyisdetected

•N.C.(NormallyClosed)–Openwhenoccupancyisdetected

Call 800.879.8585 for Technical Support

CI-300

Passive Infrared

Occupancy Sensor

U.S.Patents:

5,640,113

Patent Pending

+24VDC/VAC

Connect to Watt Stopper

Class 2 Power Packs

For Indoor Use Only

03079r3

LISTED

88T9

Appliance

Control

www.wattstopper.com

800.879.8585

Relay Com.

N.O.

N.C.

Control Out.

Man. Switch

+24V

Common

Wiring

terminals

Load #1

Load #2

(Optional)

CI-300

Rear Housing

Depluggable

Terminal

Front Cover

Ceiling

Spring Clips (2)

Blue

Control Out

+24V

Common

Low Voltage

Class 2

Line

Voltage

Line

Neutral Feed Through

Power Pack

Black

Red

#1 #2

Line Voltage

Switches

White

Black

Red

Line Voltage

Wire Color Legend

Visit our website for FAQs: www.wattstopper.com

Standard wiring with local off switch

CONNECTING WIRES

• Careshouldbetakentoseparatehighvoltagepowerfromlowvoltage(Class2)

control wiring.

• Allconnectionstosensorarelowvoltage,Class2.

White

Black

Red

Line Voltage

Wire Color Legend

LVS-1

Load

Rear Housing

Depluggable

Terminal

Front Cover

Ceiling

Spring Clips (2)

Blue

Control Out

Black

+24V

Low Voltage

Class 2 Line Voltage

Line

Neutral Feed Through

Power Pack

Man.Switch

Red

CI-300

Common

Man.Switch

+24V

Jumper

Back

LVS-1

For low voltage

momentary switch set

DIP switches #7 ON

Call 800.879.8585 for Technical Support

Manual-On wiring with low voltage momentary switch

Rear

housing

Depluggable terminal

Front

cover

Ceiling

Spring clips (2)

MOUNTING THE SENSOR

Directly to Ceiling

1. Attach the plastic spring clips to

the edge of the sensor in the slots

provided.

2. Cut a 3.5” to 4” round hole in

the acoustic ceiling tile at the

mounting location. A 3.5” hole is

recommended for a secure ﬁt.

3. Pull the low voltage wire from the

power pack to the sensor through

the hole.

4. Connect the low voltage wires to

the appropriate terminals on the

sensor.

5. Push the sensor up through the

hole until the Spring Clips hold the

sensor securely in place.

6. Snap the front cover onto the

sensor.

Using an Octagonal J-Box

1. Pull the low voltage wires from the

power pack into the J-Box through the

conduit knockout.

2. Connect the low voltage wires to the

appropriate terminals on the sensor.

3. Loosen the appliance mounting screws

attached to the J-Box

4. Align the sensor in the J-Box so that

the mounting screws on the box match

the key holes on the sensor’s rear

housing.

5. Push the sensor up into the J-Box and

twist it so that the mounting screws are

seated in the keyhole slots.

6. Tighten the two screws to secure the sensor to the J-Box.

7. Snap the front cover onto the sensor.

Ceiling MountCeiling Mount

J-Box Mount

Rear

Housing

Depluggable

Terminal

4" Octagonal J-Box

(at least 1.5" deep)

Front

Cover

Ceiling

Screws

Visit our website for FAQs: www.wattstopper.com

SENSOR ADJUSTMENT

This unit is pre-set for basic operation as described

in this guide. Adjustment is optional.

The sensors are factory preset to allow for quick installation in most applications.

Veriﬁcation of proper

wiring or coverage,

or customizing the

sensor’s settings can

be done using the

following procedures.

To make adjustments,

open the Front Cover by

pulling on the cover tab.

There is a 30 second

warm-up period when

power is rst applied.

Before making

adjustments, make

sure the ofﬁce furniture

is installed, lighting circuits are turned on, and the HVAC systems are in the

overridden/on position. VAV systems should be set to their highest airﬂow. Set the

DIP switches to the desired settings. See “DIP Switch Setting”, next page.

To Test Occupancy Sensors

1. Ensure the Time Delay is set for Test Mode* using the “Test Mode/20 minutes”

setting. (DIP switches 1,2, & 3 are OFF).

2. Ensure that the Light Level is at default (maximum). See the Light Level Feature

section of this document for instructions.

3. Remain still. The red LED should not ﬂash. The lights should turn off after 5

seconds. (If not, see “Troubleshooting.”)

4. Move about the coverage area. The lights should come on.

When testing and adjustment is complete, reset DIP Switches and Light Level to the

desired settings, and replace the cover on the sensor.

* Test Mode is a temporary state that starts when you ﬁrst set the sensor’s DIP

switches for the “Test Mode/20 minutes” (switches 1, 2, 3 OFF). If you need to

invoke the Test Mode and the DIP switches are already set for Test Mode/20

minutes, toggle DIP switch 1 ON then back to the OFF position. This provides a 10

minute test period. During the test period, the Time Delay is only 5 seconds.

Keyhole slots

(for mounting to

4" octagonal box)

Double gang

mudring

mounting holes

Light level

pushbutton

DIP

switches

PIR lens

1234567

ECE

PIR Activity

LED (Red)

Call 800.879.8585 for Technical Support

LIGHT LEVEL FEATURE

The Light Level feature holds lights off upon initial occupancy if adequate ambient

light exists. It will not turn the lights off if they are on. The default setting is for

maximum, meaning that even the brightest ambient light will not hold the lights

off.

Notes on Functionality

• Avoid mounting the sensor close to lighting ﬁxtures

• Adjust during daylight hours when ambient light in the area is at desired

level.

• Light Level cannot be enabled while Test Mode is active. Either wait for

Test Mode to expire or select any of the other Time Delay settings before

enabling the Light Level feature.

• PIR occupancy indicator LED may still respond when lights are being held

off. LED will also ﬂash periodically to indicate the sensor has Light Level

enabled.

• Light Level settings are only saved in the event of a power loss. Disabling

Light Level and then reenabling it will not return it to previous settings.

• If Test Mode is enabled after Light Level has been set, Light Level

functionality will cease to function throughout the duration of Test Mode.

When Test Mode period expires, the Light Level functionality will resume,

even if the Dip Switches remain set to Test Mode.

Setting Light Level

1. Make sure Test Mode is not active.

2. Toggle the state of the sensor, by brieﬂy pressing the Light Level button, to

include or exclude the lighting load from the light level calibration. Open the

Front Cover and locate the LIght Level pusbbutton. See Sensor Adjustment.

3. Press and hold the Light Level button for 2 or more seconds, or until the

detection LED turns On. Do not exceed 5 seconds.* The sensor enters

setup mode, as indicated by the rapidly ﬂashing LED. The LED will ﬂash

throughout the setup process. Occupancy indications from the LED is

disabled during setup.

4. Move away from the sensor to avoid interference with light level detection.

The sensor measures the light level for a 10 second period, then averages

the readings and automatically sets the level that will be used as the new

setting. The sensor will hold lights off when the ambient light exceeds this

setting.

Visit our website for FAQs: www.wattstopper.com

Call 800.879.8585 for Technical Support

5. When the LED stop ﬂashing, replace the Front Cover

*Disabling Light Level

Pressing the pushbutton for 5 seconds or more resets the light to default (maxi-

mum).

Press and hold the Light Level button for 5 seconds or until the detection LED

turns ON and then OFF. the LED ﬂashes rapidly for 10 seconds after the setting has

changed.

Table des matières

Autres manuels wattstopper Accessoires

wattstopper

wattstopper RD‑250 Manuel utilisateur

wattstopper

wattstopper CH-250 Manuel utilisateur

wattstopper

wattstopper LMLS-400 Manuel utilisateur

wattstopper

wattstopper CI-24 Manuel utilisateur

wattstopper

wattstopper DT-300 Manuel utilisateur

wattstopper

wattstopper DT-305 Manuel utilisateur

wattstopper

wattstopper PW-100 Manuel utilisateur

wattstopper

wattstopper FS-705 Manuel utilisateur

wattstopper

wattstopper CX-100 Manuel utilisateur

wattstopper

wattstopper RH-250-W Manuel utilisateur

wattstopper

wattstopper EW-205-24 Manuel utilisateur

wattstopper

wattstopper LMLS-600 Manuel utilisateur

wattstopper

wattstopper LMPW-102 Manuel utilisateur

wattstopper

wattstopper FM-105 Manuel utilisateur

wattstopper

wattstopper DSW-301 Manuel utilisateur

wattstopper

wattstopper DSW-301 Manuel utilisateur

wattstopper

wattstopper EW-200-120 Manuel utilisateur

wattstopper

wattstopper PW-301 Manuel utilisateur

wattstopper

wattstopper FSP-211 Manuel utilisateur

wattstopper

wattstopper PW-100 Manuel utilisateur

wattstopper

wattstopper LMPX-100-4 Manuel utilisateur

wattstopper

wattstopper Legrand FM-105 Manuel utilisateur

wattstopper

wattstopper CI-200 Series Manuel utilisateur

wattstopper

wattstopper DT-300 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur

wattstopper CI-300 Manuel utilisateur

Manuels Accessoires populaires d'autres marques
