Watchguard DVR8E(PACK) Manuel utilisateur

MODEL: DVR8E(PACK)

Professional Surveillance Pack

Digital Video Recorder with 8 Security Cameras

„QUICK INSTALLATION GUIDE‟

Digital Video Recorder

8 x 15m IR Day/Night Cameras

-Advanced H.264 Video Compression Technology

- High Quality Image sensor

-Multiplex Operation

- IR Night view range of 15 metres

-Long Recording Duration

- 650TVL Resolution

-Intelligent Video Motion Detection Recording

-Remote Network Surveillance & Backup Functions

-Easy to operate with remote or USB mouse.

-System Auto recovery after power loss (blackout)

N517

V4.0 260614

www.watchguardalarms.com.au

DVR8E Contents (Before installation, please ensure you have all the parts listed below).

Additional DVR8E(PACK) Contents (Only included when purchased as with the DVR8EPACK)

1 x 8ch Digital Video Recorder with 1TB Hard Disk Drive

● Advanced H.264 Video Compression Technology for High Quality Images

● Easy to Operate

● Can be Connected to a PC Network for Remote Viewing & Backup (Software on Disc)

1 x USB Mouse

● To operate the DVR

1 x IR Remote Control with batteries

● To operate the DVR

1 x HDMI Connection Cable

● Connect the DVR to a HDMI ready TV or Monitor

2 x Switch Mode Low Voltage Power Supplies

● 1 x 12v Power Supply for use with the DVR8E

● 1 x 12v Power Supply for use with the Power Split Cable to Power All Cameras (Pack)

8 x Day/Night Weatherproof Colour Cameras with Infrared LEDs - 20m Range

● IR LEDs for Viewing in Total Darkness up to 20m (B&W Mode)

● 650TVL Resolution

● Ideal for use Indoors and Out

8 x Camera Connection Cables

● Combined DC Power and Video Leads

● Pre-terminated - Allowing Simple Plug-in Connection –No Tools Required

● 4 x 10m, 2x 20m, 2 x 30m Leads Supplied

2 x Power Split Cable

● Allows You to Connect All 8 Cameras to 1 Power Supply

1 x Network Cable

● Allows You to Connect the LAN Port on the DVR to Your PC or Network to Facilitate

Remote Viewing or Backup Functions

Before installing this unit, please read through the following points:

Do not place cords from the AC adapter where they can be pinched or stepped on.

Leave at least 50mm of space between the DVR8E and other objects to allow air circulation.

Do not expose the DVR8E or Cameras to excessive heat, cold, or moisture.

Never immerse any component in water, and do not spray cleaners of solvents on the unit. Unplug

units before cleaning. When cleaning, use a damp, lint-free cloth only.

Do not place heavy objects on cords, or cover cords with rugs or carpet.

Service should be handled only by qualified technicians.

Rear Panel

VIDEO IN

Connect to analog camera, video input signal.

AUDIO OUT

Connect to video output device such as sound box.

AUDIO IN

Connect to audio input device such as speaker.

VGA

Connect to monitor using VGA cable.

HDMI

Connect to Digital Monitor with supplied HDMI cable.

USB

Connect to USB storage device, mouse, or DVD-RW.

Network port

Connect to LAN.

RS485

For RS485 PTZ Control.

DC12V

Connect to 12V power supply.

Power button

Powers on/off the DVR8E.

GROUND

Ground point.

WARNING

Please ensure you use the correct power

supply for each component. Plugging

either Power supply into the wrong deice

cause damage to it.

Connection Guide

1. Mount the 8 Cameras as required and connect the supplied combination DC Power and Video

leads.

2. Connect the 8 x corresponding camera Video leads (Yellow) into the camera inputs at the rear of

the DVR. Be sure to take note of the Camera input 1 –8, as this will determine the camera

channels.

3. Connect the 8 x camera Power leads (RED) into the Power Splitter Cable. Ensure your camera

power supply is connected to each of the cameras power cables.

4. Connect the 12V Power Supply to the DVR8E.

5. Plug power adaptor into a Power-point.

6. Switch DVR8E on from back of device. Then hold front Power button for 3 seconds.

7. The power LED at the front of the DVR8E should now be illuminated and the unit will make a

loud beep sound to indicate it is powered.

8. Connect the included mouse to the USB port on the front or back..

9. Connecting your local network or modem to the DVR8E (we recommend doing this last step

after all the cameras have been configured).

Front Panel

USB

USB port. Connect to USB storage device, mouse etc.

Alarm

Alarm indicator light

When an alarm occurs, the light becomes red to alert you.

Network status indicator light

The blue light becomes on when the network connection is

abnormal or offline.

HDD status indictor light

The red light becomes on when HDD is abnormal or HDD

space is below the threshold.

IR Receiver

Receives the signal from the remote control.

ESC

Go to previous menu, or cancel current operation.

One-window monitor mode, click this button to display

assistant function: PTZ control and image colour.

Enter

Confirm current operation

Power

The blue light becomes on when the power connection is OK.

Main Screen

Once booted, you will be presented with the screen below (camera may only be black if not yet set up)..

Each camera view will have one or more symbols from below:

Currently Recording

Video Loss

Motion Detected

Camera Lock

System Menu

Right Clicking will bring up the System Login screen and the onscreen keyboard.

Once Logged In, right clicking again will bring up a menu.

Selecting “MAIN MENU” will show the system menu.

Right click or press the ESC button to return to previous menus, click on the icon to enter menus.

Channel View Menu

Moving the mouse to the top of each channel in the live view screen will show a menu.

From left to right:

Playback: Show, in live view, the past few minutes of footage.

Search tag: Turn on search tag.

Save: Save the currently displayed file to USB device.

Close: Close the channel view menu.

Default:

The default username is admin, the password is also admin.

On the DVR8E physically, you may also use username of 888888, and the password 888888.

(Users can alter the password later. Please refer to the Advanced set up guide CD)

DVR8E only supports four cameras on screen.

Set the Time and Date

When using your DVR for the first time, you will have to set the SYSTEM TIME.

Right clicking anywhere on the screen will bring up the password menu.

Use the mouse to enter the DVR8E admin password with the on-screen keypad.

Then Right click to open the menu and select “MAIN MENU”.

Select “SETTING”

Select “GENERAL”

Set System Time, Date Format and DST (Daylight Saving Time) for your region.

Click Save before clicking OK

Important:

If you change the date or time on your DVR8E after the recording function is activated, the recorded data may

be deleted. After setting the date and time, it’s recommended to clear all HDD data, and start recording again.

To Set Up Recording Rates

Right click to open the menu and select MAIN MENU, then select CAMERAfollowed by ENCODE.

Here you may set individual encoding options for Regular, Motion Detect and Alarm Recording. While

any of the cameras may be set higher, please be aware that it will reduce the total recording time to less

than 2 weeks. We recommend:

Analogue cameras: Set to H.264 with a D1 resolution, 10fps, Bit Rate CBR of 512kbps.

Important: The EXTRASTREAM MUST be enabled if you wish to remote access the DVR8E system.

We recommend that it is always set to CIF resolution, 10fps, Bit Rate CBR of 320kbps

To Begin Recording

Once you have successfully set up the cameras, exit the Menu by right clicking or pressing the CLOSE

button. By default, the DVR8E will begin recording when it is properly connected to the cameras and has

an installed HDD. If it is recording, the recording icon “ ” will be displayed on screen.

Automatic Overwriting:

When the system is in full, the oldest recorded data will be overwritten automatically. This DVR8E

System is set to Overwrite by factory default but this can be changed in the “GENERAL” Menu.

Record Times:

The DVR8E system is capable of storing up to 4 weeks of recorded footage based on 1Tb of

storage and the 4 included Cameras set to D1 @ 10fps and CBR @ 512kb/s

Motion Detection

Should you wish to use Motion detect recording, it can be set per camera, per time period and

to detect in certain portions of the screen.

Right click to open the menu and select “MAIN MENU”.

Select “EVENT”

Select “DETECT”

Select „Motion Detect‟ from Event Type

Select channel from Channel drop down

Check the Enable box

Ensure Record Channel is checked, and a Region has been selected.

Click Save.

More Settings:

Latch

Time to wait after motion is detected, before checking for motion again.

Region

Select

Select region of feed within which motion detection will occur.

Click and drag with the mouse to arm/disarm areas of the feed.

Motion detected in red areas will cause recording, motion will not be detected in

grey areas. Press “ENTER” to save.

Sensitivity

Select from 1 to 6 the sensitivity of the recording, 6 being the most sensitive to

movement.

Right click to open the menu and select “MAIN MENU”.

Select “STORAGE”

Select “SCHEDULE”

Select a channel.

Choose a period and set the time options to the period you wish to motion record, bearing in

mind system uses 24 hour time.

Check MD for this period.

Click OK to save.

Table des matières

Autres manuels Watchguard Système de sécurité

Watchguard

Watchguard ALL-SIR2 Manuel utilisateur

Watchguard

Watchguard DVR8ENTPACK4 Manuel utilisateur

Watchguard

Watchguard WGWMSA Manuel utilisateur

Watchguard

Watchguard Firebox T30 Instructions d'installation

Watchguard

Watchguard WGAP864SMS Manuel de service

Watchguard

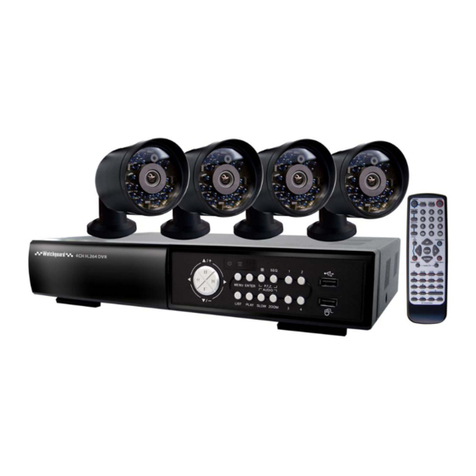

Watchguard DVR4ENTPACK4 Manuel utilisateur
