XTM 8 Series

Hardware Guide

XTM 810, 820, 830, 830-F

NS2BE10, NS2BE6F4

ii WatchGuard XTM 8 Series

ADDRESS

505 Fifth Avenue South

Suite 500

Seattle, WA 98104

SUPPORT

www.watchguard.com/support

U.S. and Canada +877.232.3531

All Other Countries +1.206.521.3575

SALES

U.S. and Canada +1.800.734.9905

All Other Countries +1.206.613.0895

ABOUT WATCHGUARD

WatchGuard offers affordable, all-in-one network and content security solutions that

provide defense-in-depth and help meet regulatory compliance requirements. The

WatchGuard XTM line combines firewall, VPN, GAV, IPS, spam blocking and URL

filtering to protect your network from spam, viruses, malware, and intrusions. The new

XCS line offers email and web content security combined with data loss prevention.

WatchGuard extensible solutions scale to offer right-sized security ranging from small

businesses to enterprises with 10,000+ employees. WatchGuard builds simple, reliable,

and robust security appliances featuring fast implementation and comprehensive

management and reporting tools. Enterprises throughout the world rely on our

signature red boxes to maximize security without sacrificing efficiency and

productivity.

For more information, please call 206.613.6600 or visit www.watchguard.com.

WatchGuard, the WatchGuard logo, LiveSecurity, and any other mark listed as a trademark in the “Terms of Use” portion of

the WatchGuard Web site that is used herein are either registered trademarks or trademarks of WatchGuard Technologies,

Inc. and/or its subsidiaries in the United States and/or other countries. All other trademarks are the property of their

respective owners.

Printed in the United States of America.

Part Number: 275-3426-001 Rev G

Revised: November 15, 2012

U.S. Patent Nos. 6,493,752; 6,597,661; D473,879. Other Patents Pending.

Notice to Users

Information in this guide is subject to change without notice. Updates to this guide are posted at:

http://www.watchguard.com/help/documentation/hardware.asp

Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this guide may be

reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express

written permission of WatchGuard Technologies, Inc.

Complete copyright, trademark, patent, and licensing information can be found in

the WatchGuard product documentation. You can find this document online at:

http://www.watchguard.com/help/documentation/

Hardware Guide 1

Hardware Specifications

WatchGuard® XTM security appliances deliver unparalleled unified threat management, superior

performance, ease of use, and value for your growing network. Our security subscriptions give you fully

integrated protection from spyware, spam, viruses, worms, trojans, web-based exploits, and blended threats.

From firewall and VPN protection to secure remote access, WatchGuard XTM devices support a broad range

of network environments.

This guide introduces the XTM 8 Series, a series of RoHS-compliant (lead-free) hardware products offered by

WatchGuard.

WatchGuard’s XTM 8 Series devices use dynamic, multi-layered security to proactively protect your network.

The XTM 8 Series has the reliability, redundancy, traffic management, and interface density that demanding,

high-speed networks require.

You can upgrade an XTM 8 Series device to a higher model in the XTM 8 Series line for more capacity and

performance with a simple software license key.

Fireware XTM OS

XTM 8 Series devices support WatchGuard’s next generation UTM OS—Fireware® XTM. Each XTM 8 Series

device includes Fireware XTM with a Pro upgrade and delivers exceptional protection against today's

sophisticated threats to make sure that your business stays connected. Fireware XTM with a Pro upgrade

offers additional advanced networking capabilities. For more information on the features of the Fireware XTM

OS, see the current Fireware XTM WatchGuard System Manager Help or Fireware XTM Web UI Help.

2WatchGuard XTM 8 Series

Hardware Specifications

Package Contents

Instructions to find this Hardware Guide

XTM 8 Series appliance

Quick Start Guide

Hardware warranty card

LiveSecurity® Service activation card

1 straight-through Ethernet cable (green)

1 cross-over Ethernet cable (red)

1 serial cable with a DB9 connector

1 power cord

4 rubber pads for the bottom of the device

1 rack-mounting kit

About Your Hardware

Hardware Specifications

XTM 8 Series

Processor 2 .66 GHz Quad Core

Memory: Flash 1 GB

Memory: RAM 2 GB

Power supply 100–240 VAC

Autosensing

Dimensions D=16” (40.6 cm)

W=17” (43.2 cm)

H=1.75” (4.4 cm)

Weight 13.1 lbs (5.96 Kg)

Hardware Guide 3

Hardware Specifications

Interface Specifications

Environmental Requirements

To safely install your XTM 8 Series device, we recommend that you:

Install it in a network rack

Put it in a secure area, such as a locked room, to keep the device from people who do not have

permission to use it

Connect it to a conditioned power supply to prevent damage from sudden power changes

Other environmental requirements:

Network interfaces

XTM 810, 820, 830

10x GbE Copper RJ45, 1000Base-T, 100Base-TX, or 10 Base-T (10/100/1000Mbps)

Network interfaces

XTM 830-F

6x GbE Copper RJ45, 1000Base-T, 100Base-TX, or 10 Base-T (10/100/

1000Mbps)

4x GbE SFP

oIncludes 4x1000BaseSX Optical Transceivers

o850 nm Vertical Cavity Surface Emitting Laser (VCSEL)

oLC-Duplex Fiber Connector

I/O interfaces 2 USB

1 DB9 serial

Operating temperature 0 – 45°C (32 – 113°F)

Operating relative humidity 10% - 85% Non-condensing

Non-operating temperature –40 – 70°C (–40 – 158°F)

Non-operating relative humidity 10% – 95% Non-condensing

4WatchGuard XTM 8 Series

Hardware Specifications

Hardware Description

Front View

The front of the device.

A close-up of the front right side of the device.

LCD indicator panel

Device status information appears on the LCD screen. Press the buttons below the screen to change

the information that appears on the screen.

For more information, see “Use the LCD Interface” on page 9.

LCD console buttons

Press the LCD console buttons to see status information and start recovery procedures.

To boot the device in safe mode, press and hold the down arrow button when you power on the

device.

For detailed information about the LCD indicator panel and the LCD console buttons, see “Use the

LCD Interface” on page 9.

Power ( )

When the device is powered on, the power indicator is green.

Arm/Disarm

When the device is armed, this indicator is green. When the device is disarmed, this indicator is red.

Storage ( )

When there is activity on the compact flash, this indicator is yellow.

Hardware Guide 5

Hardware Specifications

All interfaces are on the front of the device.

From the left, the indicators and connectors are:

Network interfaces — XTM 810, 820, 830

XTM 8 Series devices have a total of 10 network interfaces. The network interfaces have standard RJ45

connectors and are labeled 0, 1,2, 3…9.

Network interfaces — XTM 830-F (not shown)

The four network interfaces on the left have fiber connectors and are labeled 0,1,2, 3. The six

interfaces on the right have standard RJ45 connectors and are labeled 4, 5, 6, 7, 8, 9.

Indicators for RJ45 interfaces

At the top of each labeled RJ45 interface, there is a pair of indicators. The indicator at the left of the

interface is the activity indicator for that interface. The indicator at the right shows the connection

speed for that interface.

Activity indicator on fiber interfaces

On the XTM 830-F, the network interfaces numbered 0–3 are fiber interfaces. Each fiber interface has

an activity indicator, but the location of the activity indicator is different from the location of the

activity indicator for interfaces 4–11.

Indicator Indicator color Interface Status

Activity (upper left) Yellow Power on, connection established

Not lit Power off, no connections

Blinks

(speed of blink increases as the

data flow increases)

Data sent and received

Connection Speed

(upper right)

Not lit Operates at 10 Mbps

Green Operates at 100 Mbps

Yellow Operates at 1000 Mbps

Interface Indicator Location

0 At the top, between interfaces 0 and 1

1At the bottom, between interfaces 0 and 1

2 At the top, between interfaces 2 and 3

3At the bottom, between interfaces 2 and 3

Indicator Color Indicator Behavior

Yellow Power on, connection established

Blinks Data sent and received

6WatchGuard XTM 8 Series

Hardware Specifications

Dual USB interface

Connect a USB storage device to use for USB backup and restore, or to store a support snapshot.

For more information about USB functions, see the Fireware XTM WatchGuard System Manager Help

or Fireware XTM Web UI Help.

Rear View

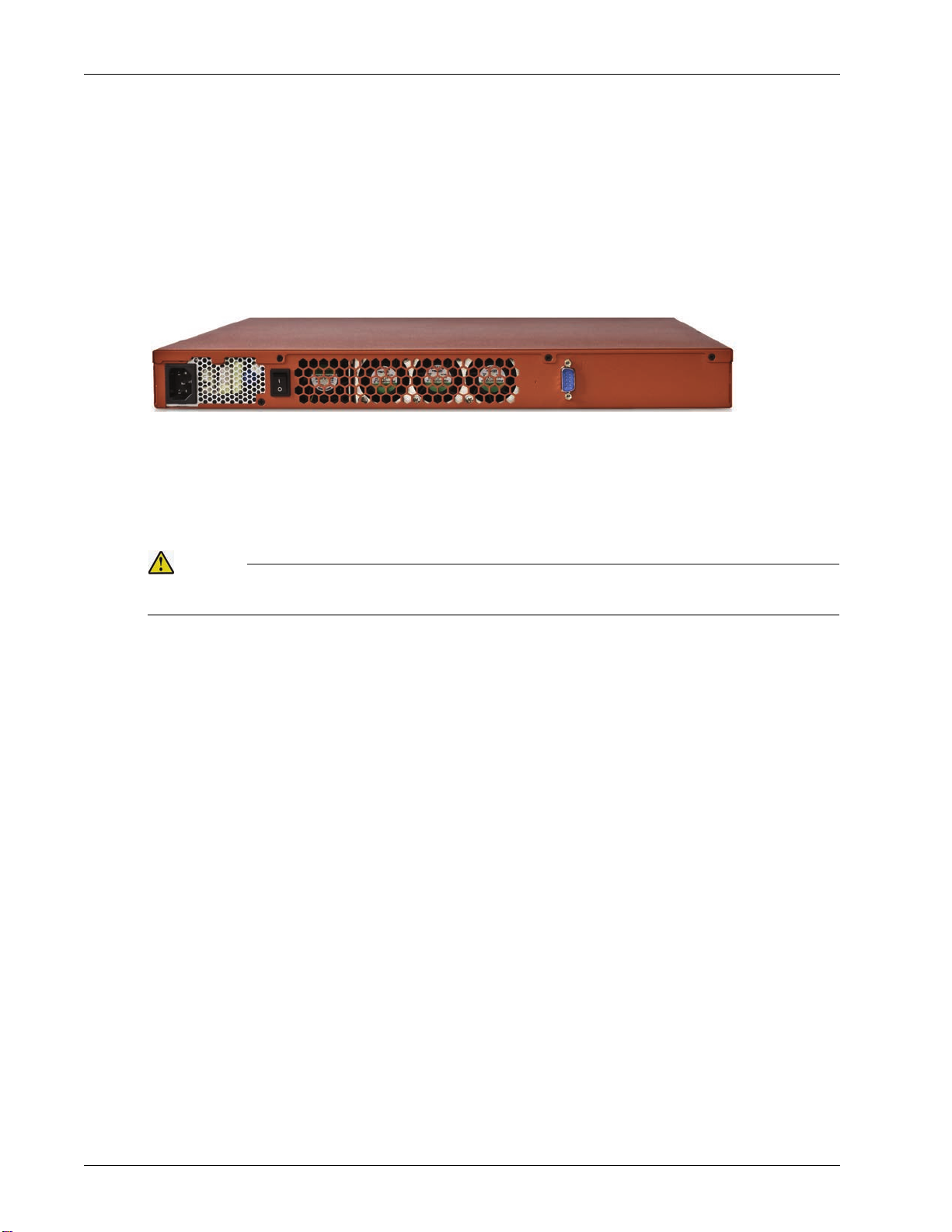

The AC receptacle, power switch, fans, and serial interface are on the rear of the device.

AC receptacle

Accepts a detachable AC power cord supplied with the device. The power supply for the device is a

WatchGuard standard auto-sensing AC power supply.

Power switch

Controls the power supplied to the device.

Caution

You must always disconnect the power supply before you remove the cover of the XTM 8

Series device.

Fans

The four fans decrease the internal temperature of the device.

Serial interface (Console)

A DB9 connector for the serial interface.

Hardware Guide 7

Hardware Specifications

Rack Mount Instructions

Each WatchGuard XTM 8 Series device is shipped with a rack mount kit. When you install the XTM 8 Series

device in a rack, make sure you consider:

Elevated Operating Ambient Temperature

If you install the XTM 8 Series device in a closed or multi-unit rack assembly, the operating ambient

temperature of the rack environment could be greater than the ambient temperature of the room.

The XTM 8 Series device is certified to operate correctly between 32–113°F (0–45°C).

Reduced Air Flow

When you install the XTM 8 Series device in a rack, make sure that the amount of air flow required for

safe operation of the equipment is not compromised.

Mechanical Loading

When you mount the XTM 8 Series device in the rack, avoid hazardous conditions caused by uneven

mechanical loading.

Circuit Overloading

Make sure you connect the XTM 8 Series device to the power supply circuit to make sure there is no

overloading of the circuits, and no impact on overcurrent protection and supply wiring.

Reliable Grounding

Make sure all rack-mounted equipment is correctly grounded. For example, use power strips instead

of direct connections to the branch circuit.

8WatchGuard XTM 8 Series

Hardware Specifications

Safety Notices

All WatchGuard products are designed and tested to meet strict safety requirements. These requirements

include product safety approvals and other global compliance standards. Read these instructions carefully

before you operate the product, and refer to them as needed for continued safe operation of your product.

Product Safety Certification

The WatchGuard product is safety certified for these standards:

oCAN/CSA C22.2 No.60950-1-07

oIEC 60950-1, Second Edition

oUL 60950-1, Second Edition

Safety Warning

oDo not place objects on the power cord.

oDo not obstruct the ventilation openings. These openings prevent overheating of the XTM device.

oNever push objects of any kind into slots or openings on this equipment. If you make contact with a

voltage point or short out a part, it can result in fire or electrical shock.

oIf the equipment is supplied with a three-conductor AC power cable, the power cable must be

plugged in to an approved three-contact electrical outlet with the grounding wire connected to an

electrical ground (safety ground) at the power outlet.

oWhen you remove or install an appliance, follow the general installation safety instructions provided

in this Hardware Guide to avoid injury or damage to the device.

oThe lithium battery used in the security appliance may not be replaced by the user. Return the

appliance to a WatchGuard authorized service center for replacement with the same or equivalent

type recommended by the manufacturer. If, for any reason, the battery or security appliance must be

disposed of, do so following the battery manufacturer’s instructions.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Watchguard Routeur réseau

Watchguard

Watchguard XTM 850 Instructions d'installation

Watchguard

Watchguard Firebox SOHO 6 Wireless Manuel utilisateur

Watchguard

Watchguard AP200 Manuel utilisateur

Watchguard

Watchguard Firebox T55 Instructions d'installation

Watchguard

Watchguard Firebox Vclass V100 Instructions d'installation

Watchguard

Watchguard XTM 25 Instructions d'installation

Watchguard

Watchguard Firebox T10-D Manuel utilisateur

Watchguard

Watchguard Firebox T35 Instructions d'installation

Watchguard

Watchguard AP430CR Manuel utilisateur

Watchguard

Watchguard XTM 5 Series Instructions d'installation

Watchguard

Watchguard Firebox T30 Instructions d'installation

Watchguard

Watchguard Firebox M200 Manuel utilisateur

Watchguard

Watchguard Firebox X10E Manuel utilisateur

Watchguard

Watchguard Firebox T20-W Manuel utilisateur

Watchguard

Watchguard C-100 Manuel utilisateur

Watchguard

Watchguard XTM 545 Instructions d'installation

Watchguard

Watchguard XTM 2 Series Instructions d'installation

Watchguard

Watchguard AP325 Manuel utilisateur

Watchguard

Watchguard Firebox T15 Manuel utilisateur

Watchguard

Watchguard SOHO Manuel utilisateur

Watchguard

Watchguard Wireless Router Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
