Firebox T80 Hardware Guide
WatchGuard® Firebox security appliances deliver unparalleled unified threat management, superior
performance, ease of use, and value for your small organization or branch office. Our security
subscriptions give you fully integrated protection from spyware, spam, viruses, worms, trojans, web-
based exploits, and blended threats. From firewall and VPN protection to secure remote access,
WatchGuard Firebox appliances support a broad range of network environments.
This guide introduces the Firebox T80, an RoHS-compliant (lead-free) tabletop Firebox.
Fireware OS
The Firebox T80 supports WatchGuard’s next generation OS—Fireware® OS. Each Firebox appliance
includes Fireware OS and delivers exceptional protection against today's sophisticated threats to
make sure that your business stays connected. For more information on the features of Fireware OS,
see Fireware Help.
Package Contents
Firebox T80 appliance
Quick Start Guide
1 straight-through Ethernet cable
1 120v power adapter
1 power cord (US, AU, EU, UK)
4 rubber feet
About Your Hardware
Hardware Specifications
Processor NXP LS1046A 1.2GHz
Memory: DDR4 DDR4 4 GB
Storage: SSD 128 GB
Power Supply Input Ratings: 90-264VAC, 2.22A, 47-63Hz
Output Ratings : 54VDC
Dimensions D = 205.5 mm (8.07")
W = 290 mm (11.42")
H = 43 mm(1.69")
Weight 2.6 kg (5.82 lbs)
Interface Specifications
Network
Interfaces 8 RJ45 connectors, 1000 Base-TX (10/100/1000Mbps)
Interfaces 6 and 7 support PoE (Power over Ethernet), compliant with the
IEEE 802.3at standard
01.11.22, 14:00
Firebox T80 Hardware Guide
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-t80-hardware-guide.html?cshid=10002
3/18
Expansion Bay
Options
1 Single port 10Gb SFP+ Interface Module (WG9010)
LTEInterface Module (WG9015)
(Micro SIM, 2 SMA-type antenna connectors)
Antenna Gain (Peak):
0.93 dBi (617-960 MHz)
2.71 dBi (1710-2690 MHz)
3.66 dBi (3300-4200 MHz)
4.37 dBi (5150-7150 MHz)
I/O Interfaces 2 USB 2.0
1 RJ45 Serial Port
Environmental Requirements
To safely install your Firebox, we recommend that you:
Install it in indoors.
Put it in a secure area, such as a locked room, to block the device from people who do not have
permission to use it.
Connect it to a conditioned power supply to prevent damage from sudden power changes.
Other environmental requirements:
Operating temperature: 0° to 40°C (32° to 104°F)
Operating humidity: 5% to 90% non-condensing
Non-operating temperature: –40° to 70°C (-40° to 158°F)
Non-operating humidity: 5% to 90%, non-condensing
Hardware Description
Front View
Front view of the Firebox:
Failover
The Failover indicator is lit when there is a WAN failover from the primary external interface to
the backup interface. After the external interface connection fails back to the primary external
interface, the indicator is not lit.
Network Interface Status Indicators
The Firebox T80 has eight network interfaces. On the front panel, the network interfaces are
labeled 7, 6, 5, 4, 3, 2, 1, 0. There are two status indicators for each interface. The light blinks
when data is sent and received. The speed of the blink increases as the data flow increases.
Indicator Indicator Interface Status
01.11.22, 14:00
Firebox T80 Hardware Guide
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-t80-hardware-guide.html?cshid=10002
4/18
1000
Yellow
On Link speed: 1000 Mbps
10/100
Green
On Link speed: 10 Mbps or 100 Mbps
A
This indicator is lit when an auxiliary interface module is installed.
Status
The Status indicator is red when there is a management connection to the device. The Status
indicator is lit for 30 seconds after you connect to the device with the Fireware Web UI or the
command line interface. It is also lit when the device is polled by WatchGuard System Manager.
Mode
The Mode indicator shows the status of the external network connection. If the device can
connect to the external network and send traffic, the indicator is green. The indicator flashes if
the device cannot send traffic to the external network.
Attn
The Attn indicator is yellow when you start the device with the Reset button pressed. For more
information, see Restore Factory-Default Settings.
Power ( )
The Power indicator is lit to indicate power status. It is green when the Firebox is powered on.

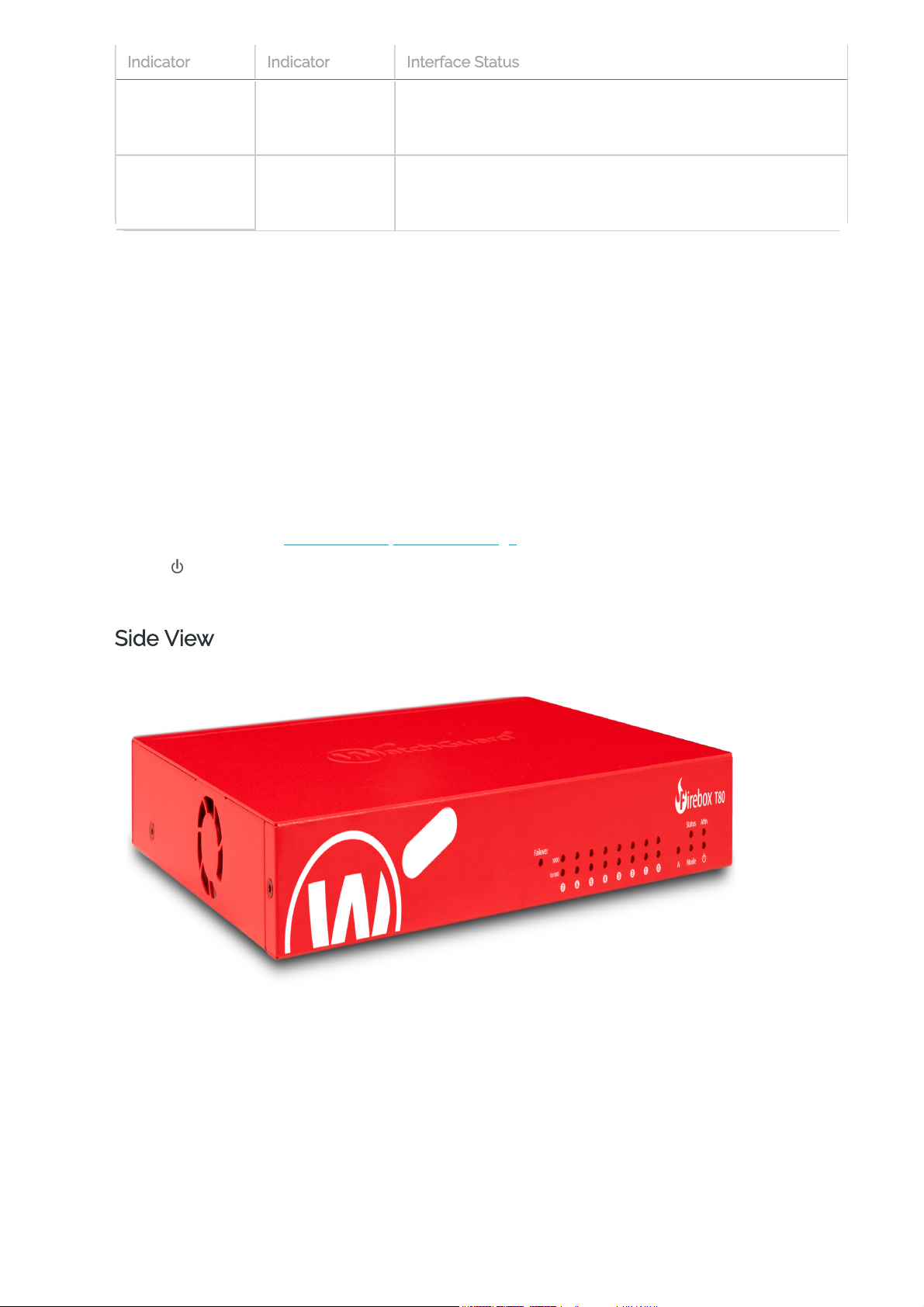

Side View
Side view of the Firebox:
The side of the Firebox has a cooling fan that runs when needed to decrease the internal
temperature of the device. By default, the fan might run for a few minutes when the Firebox boots
up. After the Firebox boots, an internal temperature sensor automatically turns the fan on and off as
needed to keep the Firebox temperature in the required operating range.At lower operating
temperatures, the T80 dissipates heat through the metal baseplate, and the fan does not run.
The fan was designed to start when the ambient room temperature reaches approximately 30°C
(86°F). However, other factors, such as stacked units, other heat sources, and air flow around the
device, can affect when the fan starts. When the ambient temperature drops to approximately
25°C(77°F), the fan stops automatically. Because some components can take some time to cool, the
fan might continue to run for a short time after the ambient temperature drops.
Indicator Indicator Interface Status
01.11.22, 14:00
Firebox T80 Hardware Guide
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-t80-hardware-guide.html?cshid=10002
5/18
The fan opening includes a stationary shroud that protects the fan and prevents access to the fan
blades from outside the device.
Do not insert a pointed object to attempt to touch or move the fan blades.
For more information about fan operation and status, see Firebox T80 Fan Operation and Diagnostics
in the
WatchGuard Knowledge Base
.
Rear View
Rear view of the Firebox:
Reset Button
This resets the device. To restore the device to factory-default settings, see Restore Factory-
Default Settings.
Power Switch
Controls the power supplied to the device. Move the switch to position 1 to power on the
device, or position 0 to power it off.
Power Input
An AC power adapter is included with your device. Connect the AC adapter to the device and to
a power source. The power supply tip is plus (+) polarity. Use only the supplied AC power
adapter.
Built-In Interfaces
Serial Port (Console)
The leftmost port is an RJ45 serial console port. An RJ45 serial cable is not included with the
device.
USB Interfaces
The device includes two USB interfaces. Connect a USB storage device for USB backup and
restore, or to store a support snapshot. For more information, see Fireware Help.
Network Interfaces
The Ethernet interfaces have standard RJ45 connectors and support link speeds of 10, 100, or
1000 Mbps. These interfaces are labeled 0/WAN, 1/LAN, 2, 3, 4, 5, 6-PoE, 7-PoE. Interfaces 6 and
7 are PoE (Power over Ethernet) interfaces, compliant with the IEEE 802.3at standard.
Interface Modules
The Firebox T80 includes an expansion bay for additional interface modules. You must install the
expansion module before you can configure the interfaces.
Expansion modules are not hot-swappable. To avoid damage to the system,
power off the Firebox before you install or remove expansion modules.
01.11.22, 14:00
Firebox T80 Hardware Guide
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-t80-hardware-guide.html?cshid=10002
6/18
1 Port 10Gb SFP+ Interface Module
This interface module features a 10Gb SFP+ Copper Ethernet port (WG9010).
The SFP+ port has one LED indicator above the port.
Solid Yellow Connection, no traffic
Blinks Green and Yellow Connection, traffic
You can purchase compatible SFP+ modules from an authorized WatchGuard reseller.
SFP+ multi-mode transceivers (10GBase-SR/1000Base-SX, 850 nm)
WatchGuard WG8583
Finisar FTLX8571D3BCV
Finisar FTLX8571D3BCL
Cisco SFP-10G-SR
SFP multi-mode transceivers (1000Base-SX, 850nm)
WatchGuard WG8585
Finisar FTLF8519P3BNL
Avago AFBR-5710PZ
SFP single-mode transceivers (1000Base-LX, 1310nm, up to 10km)
Finisar FTLF1318P3BTL
SFP+ single-mode transceiver (10GBase-LR-LW, 1310nm, up to 10km)
Finisar FTLX1471D3BCL
SFP+ single-mode transceiver (10GBase-ER, 1550nm, up to 80km)
Finisar FTLX1672D3BCL (40km)
Finisar FTLX1871D3BCL (80km)
SFP copper transceivers
WatchGuard WG8584
Olink OLST12R-CNS1
Fiberstore SFP-1GT-1MA-JU
LTEInterface Module
The LTE interface module (WG9015) enables you to install a SIMcard for a 4G LTE cellular connection.
You can use this cellular connection as an external interface on the Firebox for WANconnectivity.
Indicator Interface Status
01.11.22, 14:00
Firebox T80 Hardware Guide
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-t80-hardware-guide.html?cshid=10002
7/18
Verizon is currently not yet supported for 4G LTE access on the T80 LTE module.
The LTEmodule comes with two external antennas. Insert the antennas in the SMA-type antenna
connectors on the module, then turn clockwise to tighten. We recommend you install the antennas at
a 45 degree angle to optimize signal strength and reduce interference.
To install the SIM card, insert a Micro or Nano SIM card into the slot on the LTE interface module
before you install the module into the Firebox.
The LTEinterface module comes with an adapter that enables you to insert a Nano
SIM card into the SIMcard slot.
01.11.22, 14:00
Firebox T80 Hardware Guide
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-t80-hardware-guide.html?cshid=10002
8/18
Align the direction of the SIM card and the placement of the diagonal edge based on the diagram
beside the SIM card slot.
Make sure the SIMcard is fully inserted into the slot.
01.11.22, 14:00
Firebox T80 Hardware Guide
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-t80-hardware-guide.html?cshid=10002
9/18
Install an Interface Module
Interface Modules are not hot-swappable. To avoid damage to the system, you
must disconnect the Firebox from the power source before you install or remove
an interface module.
To install an interface module:
1. Power off the Firebox, and disconnect the power cable.
2. Loosen the two captive screws on the expansion bay cover of the Firebox and remove the
cover.
The expansion bay contains guideposts on both sides to help you align the module.
3. Align the metal plate on the bottom of the interface module between the guideposts on both
sides.
4. Insert the interface module into the expansion bay, and push the module firmly into place.
5. Tighten the two captive screws on the interface module.
6. Reconnect the power cable to the Firebox.
7. Power on the Firebox.
When the Firebox starts, Fireware automatically detects all installed interfaces.
Remove an Interface Module
01.11.22, 14:00
Firebox T80 Hardware Guide
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-t80-hardware-guide.html?cshid=10002
10/18
Before you remove an installed interface module, make sure that the interfaces
on that module are not enabled in the Firebox configuration. You cannot manage
a Firebox if an enabled interface has been removed.
To remove an installed interface module:
1. Power off the Firebox, and disconnect the power cable.
2. Loosen the two screws on the installed interface module.
3. Slide the interface module out of the expansion bay.
4. Put the removed interface module on an antistatic surface.
5. Install the expansion bay cover and tighten the two captive screws.
ACPower Adapter
The AC power adapter supplies power for the Firebox. Before you connect the adapter, verify that the
color band on the cord matches the color ring around the power plug on the Firebox.
The Firebox T80 includes a power cable to connect to the AC power adapter.
The suffix on the Firebox SKU indicates the type of power plug included with the device. Note that the
suffix is not restrictive – for instance, though tagged as “AU” for Australia, the Type I plug is also used
in China, New Zealand, and Argentina. If your country does not use one of these four plugs, use an
adapter with one of these plugs.
-US A US, Canada, Japan, Taiwan, Central America,
Some countries in South America, Philippines
-UK G United Kingdom, Ireland, Hong Kong, Singapore,
Malaysia, some African countries
-EU C Europe, Middle East, Korea, Indonesia, some
African countries
-AU I China, Australia, New Zealand
Restore Factory-Default Settings
SKUSuffix
Plug
Type Used in regions Photo
Autres manuels pour Firebox T80
2
Table des matières
Autres manuels Watchguard Matériel réseau
Watchguard
Watchguard Firebox T40-CW Instructions d'installation
Watchguard
Watchguard Firebox T25 Instructions d'installation
Watchguard
Watchguard Firebox T85-PoE Instructions d'installation
Watchguard
Watchguard Firebox M290 Manuel utilisateur
Watchguard
Watchguard Firebox T80 Manuel utilisateur
Watchguard
Watchguard Firebox T45-W-PoE Manuel utilisateur
Watchguard
Watchguard Firebox M270 Manuel utilisateur
Watchguard
Watchguard Firebox T20 Instructions d'installation
Watchguard
Watchguard XTM 800 Series Manuel utilisateur
Watchguard
Watchguard Firebox T45-PoE Instructions d'installation
Manuels Matériel réseau populaires d'autres marques
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur
B&B Electronics
B&B Electronics ZXT9-IO-222R2 Manuel utilisateur
Yudor
Yudor YDS-16 Manuel utilisateur
D-Link
D-Link ShareCenter DNS-320L Manuel utilisateur
Samsung
Samsung ES1642dc Instructions d'utilisation
Honeywell Home
Honeywell Home LTEM-PV Instructions de montage
