Wasp WLR8950 Manuel utilisateur

Wasp Barcode Technologies

1400 10th Street

Plano,TX75074

www.waspbarcode.com

Wasp Logo

NOTE: LOGO USAGE ON BLACK BACKGROUND

WLR8950

Quick Start Guide

this page intentionally left blank

Table of Contents

Installation 2-3

Setup and Configuration 4

Factory Default 4

Auto-Sense Stand Mode 5

Magnetic Switch 5

Keyboard Connection 6

Interface Selections 6

Bi-Color Light Source Settings 7

Upper/Lower Case 8

Beep Settings 8

Keyboard Language 9

Terminator 10

Code ID 10

Barcode Test Symbols 11-13

Rev. 4/30/2012

QSG

Installation

Trigger

Scanning Aperture Din-6M

Din-6F

Trigger

Scanning Aperture

USB Port

1. Plug the USB of the WLR8950 Scanner directly into your PC’s USB port.

1. Turn off your computer.

2. Unplug your PC keyboard cable and plug the male end (Din 6) of

the WLR8950 Scanner directly into your PC keyboard port. Plug your

keyboard cable into the other end (female Din 6) of the the scanner.

3. Turn your computer on.

USB Scanner

PS2 Scanner

Your Wasp WLR8950 Scanners are ready for use. The default settings of

the scanners have been pre-programmed for the most common barcode

configurations. Use the “WLR8950 Setup & Configuration” sections only

to customize the scanners settings. Please review the “Enable Barcode

Symbologies” configuration in the WLR8950 User Manual to see the list of

barcode symbologies which are enabled by default.

Tip:

 • Usethe“BarcodeTestSymbols”sectionbeginningonpage11asa

test chart to practice scanning.

USB Connection

PS2 Connection

1. Plug the USB of the WLR8950 Scanner directly into your PC’s USB port.

KEYBOARD

Y-CABLE

BACK OF PC

KEYBOARD MOUSE

DO NOT PLUG

IN MOUSE PORT!

KEYBOARD

WLR 8900

PS2 Scanner

WLR 8905

USB Scanner

USB Connector

KEYBOARD

Y-CABLE

BACK OF PC

KEYBOARD MOUSE

DO NOT PLUG

IN MOUSE PORT!

KEYBOARD

WLR 8900

PS2 Scanner

WLR 8905

USB Scanner

USB Connector

QSG

Use the Factory Default barcode to reset the scanner to the default

settings.

Factory Default

In order to configure Wasp WLR8950 Scanners, you must familiarize

yourself with the setup procedures on the following pages. The default

settings of the Wasp WLR8950 Scanners are identified on each page and

clearly marked using an asterisk (*). The default settings have been

preprogrammed for the most common barcode configurations. Use the

Setup & Configuration only to customize the Wasp WLR8950 Scanner

settings. If you need to configure the scanner, the default settings will

be overwritten. All the programmed settings are stored permanently in

non-volatile memory; therefore, your configuration will be maintained even

if the keyboard power to Wasp WLR8950 Scanners is removed by turning

off your PC.

In order to configure Wasp WLR8950 Series Scanners,

two basic steps need to be followed:

(1) Locate the group that contains the options to be changed.

(2) Scan the barcode representing the option to be changed.

The scanner will sound two beeps.

Setup & Configuration

Factory Default

QSG

AUTO-SENSE & MAGNETIC SWITCH

*Default

Scan the Auto-Sense Mode Enable barcode to enable the hands-free

autosense feature of the WLR8950 Scanners. To turn this mode “off,” scan

the Trigger Only barcode.

Auto-Sense Stand Mode and Magnetic Switch

Auto-Sense Mode Enable

QSG

Trigger Only

Magnetic Switch is available after activating Auto-Sense Stand Mode.

• The Magnetic Switch is automatically activated when Auto-Sensing

Mode is on.

• To enable Magnetic Switch, the scanner should be paired with an

Auto-Sense Stand to perform the Auto-Sensing function.

• When Magnetic Switch is disabled, the scanner will perform the

Auto-Sensing function without an Auto-Sense Stand.

Magnetic Switch On Magnetic Switch Off

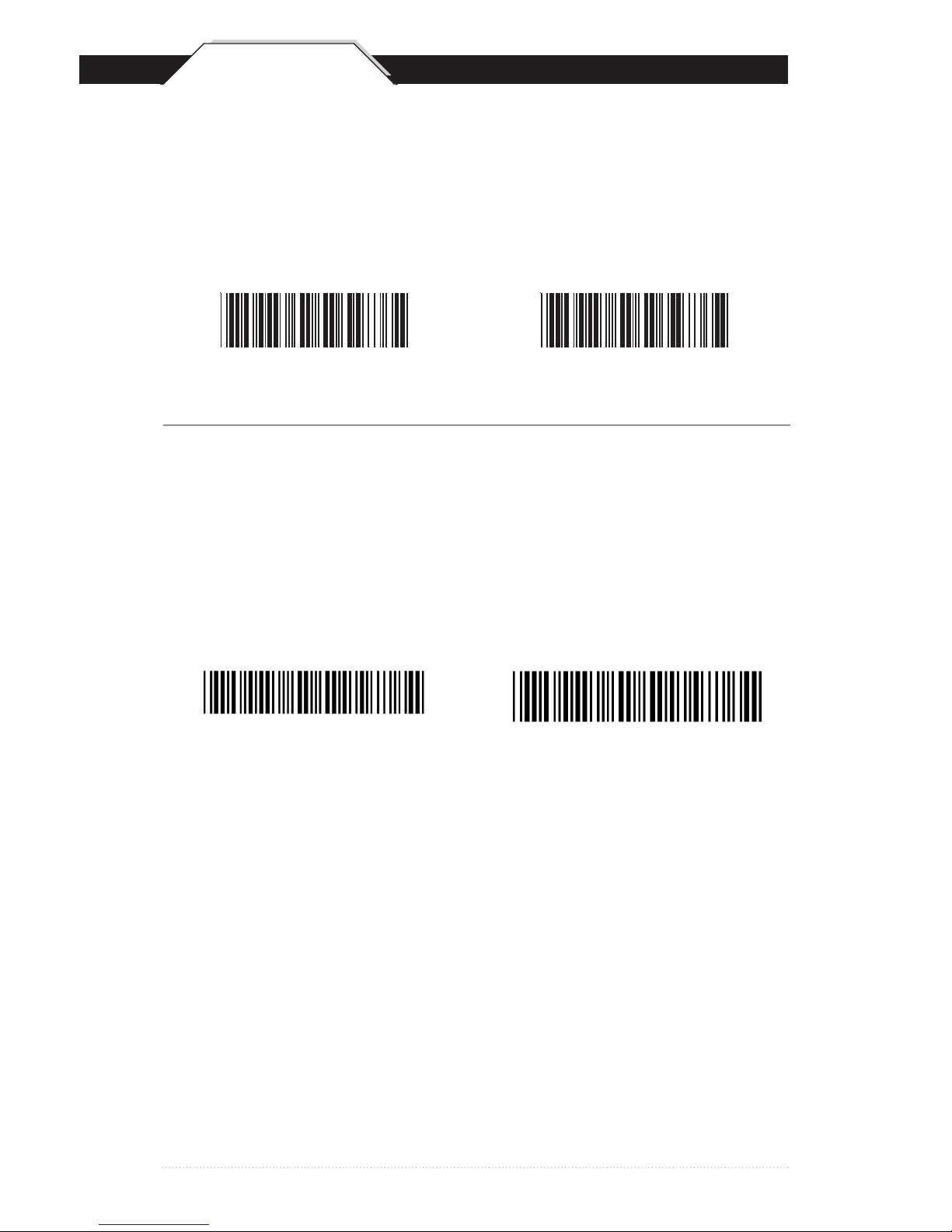

KEYBOARD CONNECTION & INTERFACE

*Default

QSG

PC (USB or PS/2) * Notebook

The Keyboard Connection is used to program the Wasp WLR8950

Scanners for the type of computer to which it is attached.

Keyboard Connection

Interface Selections

PS2

The Interface Selections barcodes allow you to switch interfaces based on

your connection type.

The scanner is designed to switch easily between interface options. To

switch from one interface to another, the appropriate cable must be in-

stalled. After changing to a new cable, be sure to reset the interface setting.

USB HID

Keyboard

BI-COLOR LIGHT SOURCE SETTINGS

*Default

QSG

The following settings are supported by bi-color models.

Green > Red Red > Green

Green > Bi-color Red > Bi-color

Bi-color

NOTES:

1. Illumination color will switch back and forth from one to the other when a good

read does not occur.

2. Illumination color will remain as the one used at the last good read.

Single Mode

Cycle Mode

Green

Red

NOTES:

1. Illumination color will remain single

BI-COLOR LIGHT SOURCE SETTINGS

*Default

QSG

The following settings are supported by bi-color models.

Green > Red Red > Green

Green > Bi-color Red > Bi-color

Bi-color

NOTES:

1. Illumination color will switch back and forth from one to the other when a good

read does not occur.

2. Illumination color will remain as the one used at the last good read.

Single Mode

Cycle Mode

Green

Red

NOTES:

1. Illumination color will remain single

WLR8950_QSG_412.indd 6 5/7/2012 10:04:44 AM

UPPER/LOWER CASE & BEEP SETTINGS

 • CapsLockAuto(ForPCXT/ATonly):

In Auto Trace mode, the scanner will keep track of the Caps

Lock status automatically. For some PCs, the scanning

performance may be compromised because of the auto tracing.

If the scanning performance is poor (or cannot scan) or the

scanner cannot output the upper/lower case characters correctly,

try to select one of the next two choices instead of auto tracing.

 • CapsLockOff:

When the keyboard is in the unshifted state (Caps Lock is not

pressed), select “Lower Case.”

 • CapsLockOn:

When the keyboard is in the shifted state (Caps Lock is on),

select “Upper Case.”

Caps Lock On Caps Lock Off *

Caps Lock Auto

*Default

QSG

The ‘Beep’ configuration supports the general control options for the Wasp

WLR8950 Scanners. The High, Low and Med settings refer to the tone of

the beep, not the volume.

Beep Off

Beep Settings

Beep High

Beep Med

Beep Low

KEYBOARD LANGUAGE

The ‘Keyboard Language’ setting controls the key codes for your

keyboard’s language.

*Default

QSG

English UK

French

German

Italian

Czech (QWERTY)

Japan (106 Key Only)

Spanish

Swiss

Universal Code

U.S.*
