Walker Edison B48ARB2DR Manuel utilisateur

P.1

202

Walker Edison Furniture Co., LLC. All rightsreserved.

Please visit our websitefor the most current instructions, assemblytips, report damage,

or request parts. www.walkeredison.com

Revised 09/06/2020 (I)

Walker Edison

AssemblyInstructions

Item#:B48ARB2DR

P.2

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

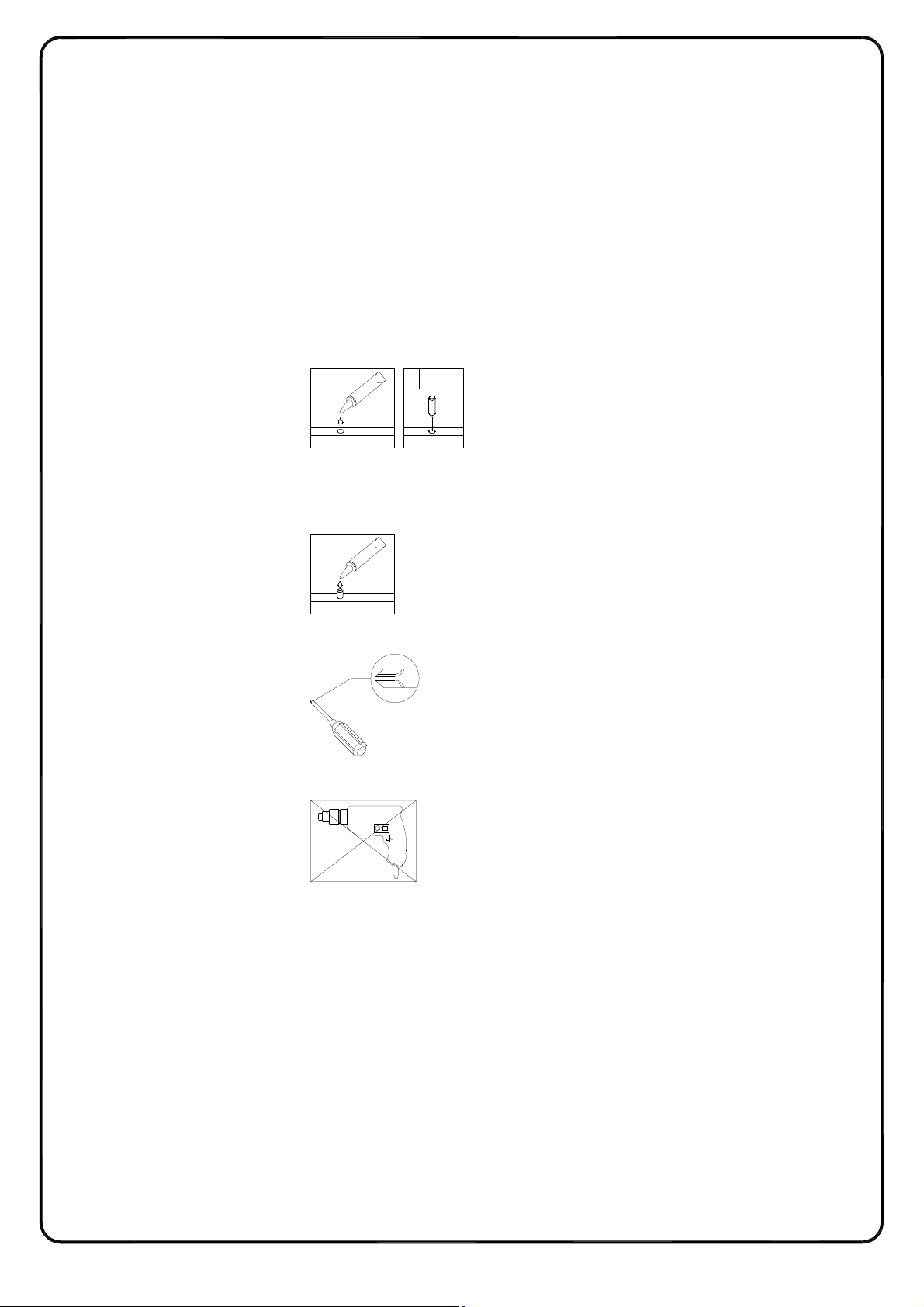

GeneralAssembly Guidelines

I.Ensure thatallpartsandhardware are available beforebeginning assembly.

II.Followeachstepcarefullytoensure theproper assembly of this product.

III.Twopeoplearerecommendedfor easeintheassembly of this product.

IV.Thethreemaintypesofhardwareusedtoassemble this product are: wood

dowels,screwsandbolts.

V.Theprovidedglueistosecurewooddowelsin place.Whenfirstinserting dowels ,

locatetheappropriatehole forthedowel,placeasmallamount of glue inthe hole

andinsertthedowel .Wipeawayexcessglue immediately.

Infutureassemblystepswhendowelsarenecessary toattachassembly parts

together,placeasmall amountofglue on theendof the dowelbeforeattaching

partstogether.Wipeawayexcessglueimmediately.

VI.APhillipsheadscrewdriverisrequiredfortheassemblyofthis product .

VII.Powertoolsshouldnotbeusedtoassemblethis product .

P.3

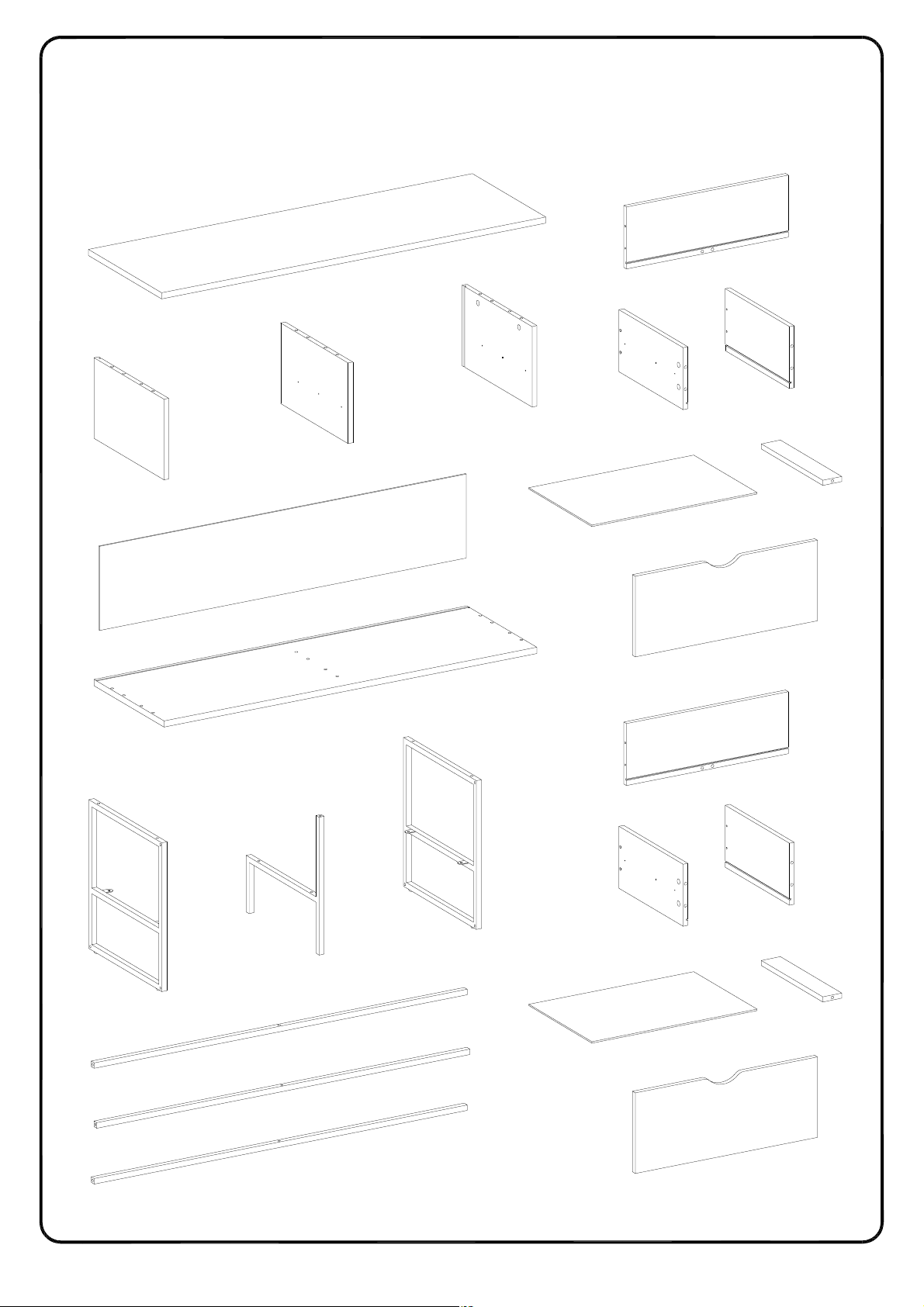

Parts List

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

P.4

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

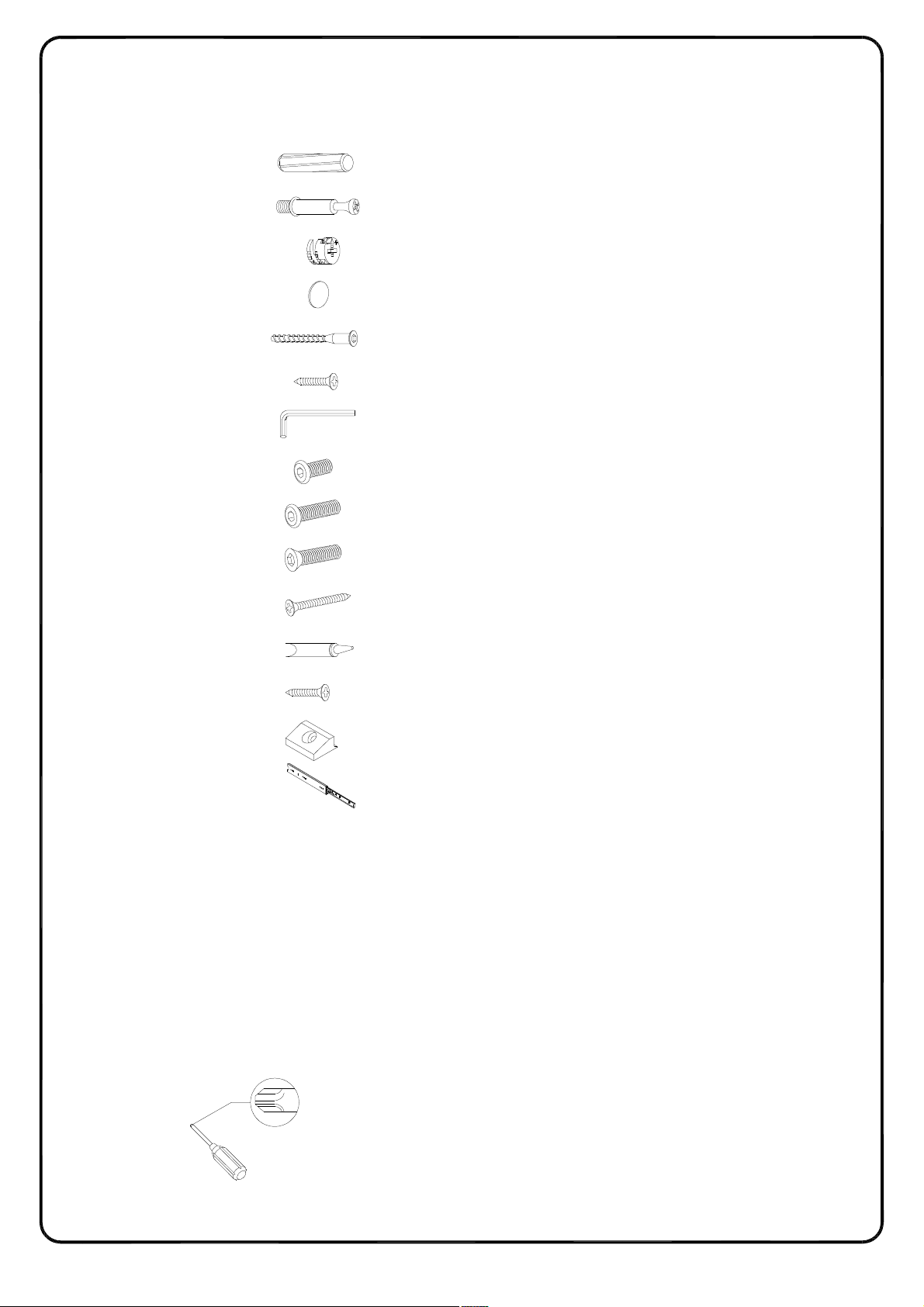

HardwareList

The hardware quantities listed above are required for proper assembly.

Someextrahardware may also have been included.

Philipsheadscrewdriverrequiredforassembly

(notincluded)

Ø8x30mm WoodendowelA 12 pcs

Ø6x35mm CamboltB 16 pcs

Ø15x11mm CamlockC 16 pcs

Ø30mm StickerD 16 pcs

Ø6x38mm ScrewE 6 pcs

Fpcs

M4 HexkeyG 1 pc

Ø3x12mm Screw

QDrawerslider 2 sets

*Note:Thispiece comes preassembled for

shippingpurposesand must bedisassembled

tocompletethe deskassembly.

pcsØ1/4''x12mm Bolt 4

pcsØ1/4''x25mm Bolt 7

pcsØ4x32mm Screw 12

JpcsØ1/4''x25mm Bolt 8

MpcGluetube 1

PpcsPlasticwedge 6

NpcsScrew 6Ø3x17mm

P.5

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 1

34 5

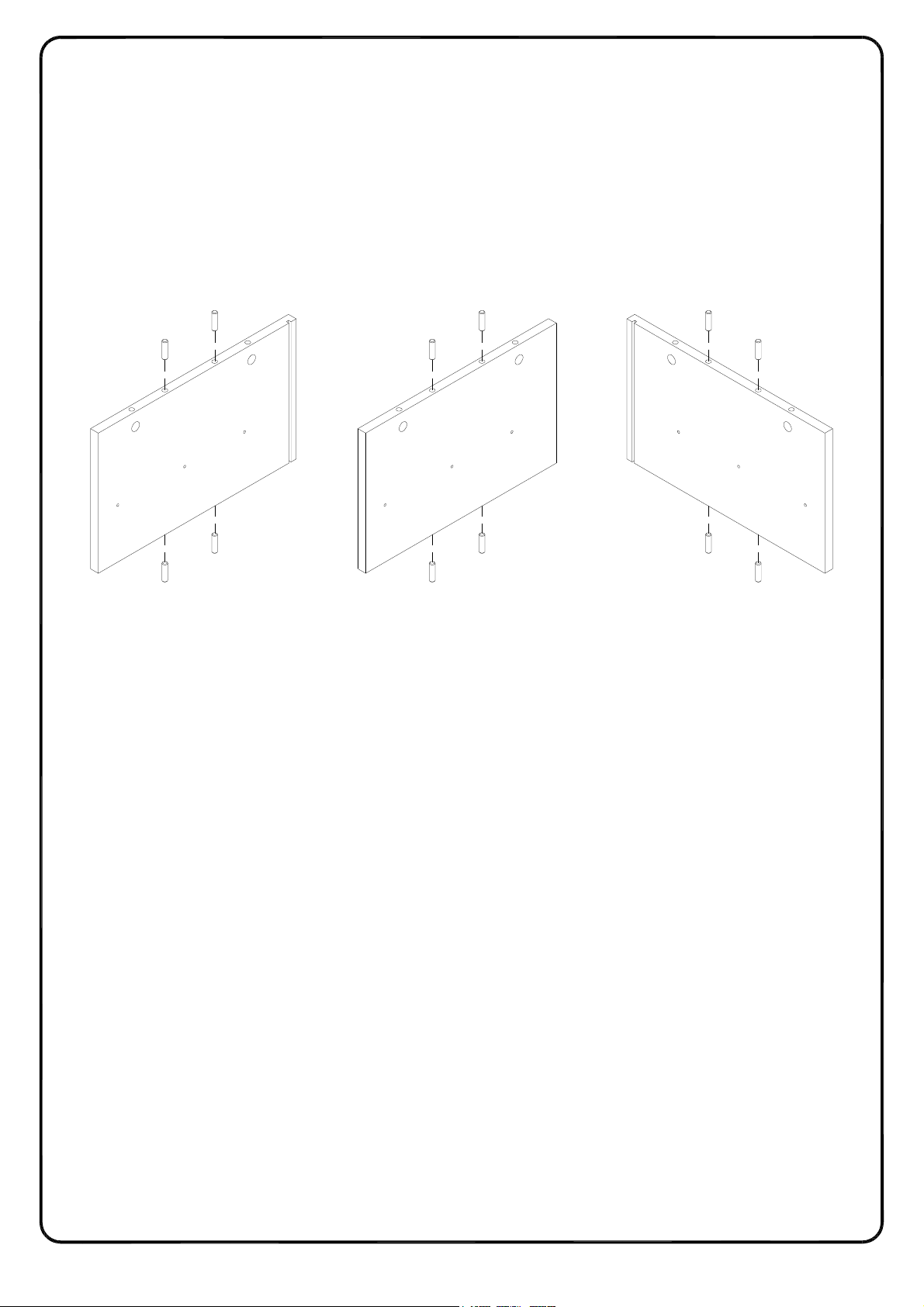

Insert wooden dowel (A) into parts (3,4,5) as per diagram.

P.6

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

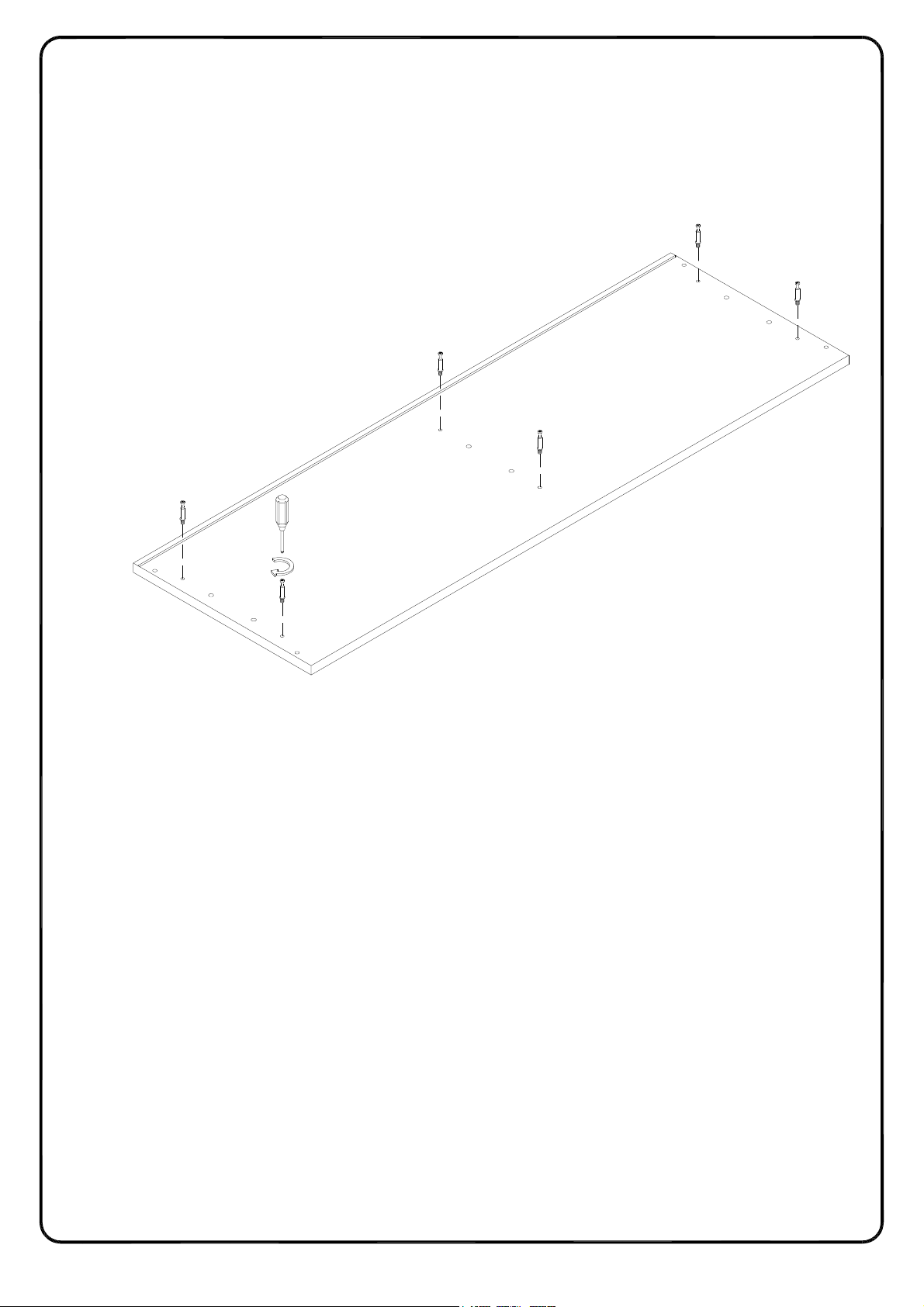

Step 2

Secure cam bolt (B) into part (1) with Philips head screwdriver as per diagram.

Sliderarm

Sliderbracket

Sliderarm

Sliderbracket

Step 3

P.7

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

Pick up the slider arm (Q) and separate the slide Runner for the following Steps. Extend

the Slide .Runner all the way forward,press the plastic release lever of the alider arm up

and pull the Slide Runner Complete out .

Step 4

P.8

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

Finished edge

Using Screw (F) attach part (Q) to parts (3,4,5) with Philips head screwdriver as per diagram.

P.9

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 5

Using Screw (F) attach part (Q) to parts (13,14) with Philips head screwdriver as per diagram.

P.10

2020

Walker Edison Furniture Co., LLC. All rightsreserved.

Step 6

Finished edge

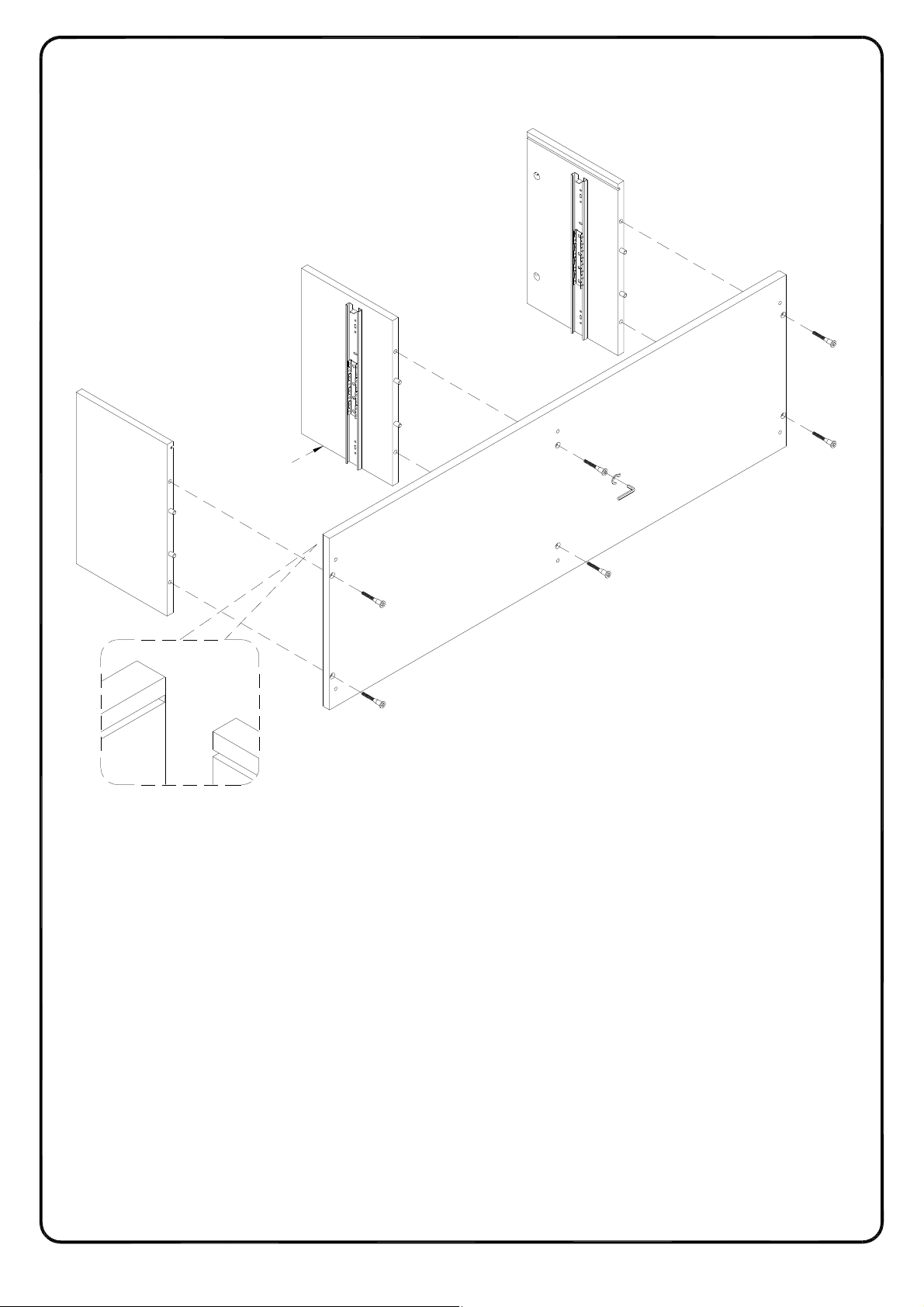

Using Screw (E) attach part (2) to parts (3,4,5) with Hex key (G) as per diagram.
