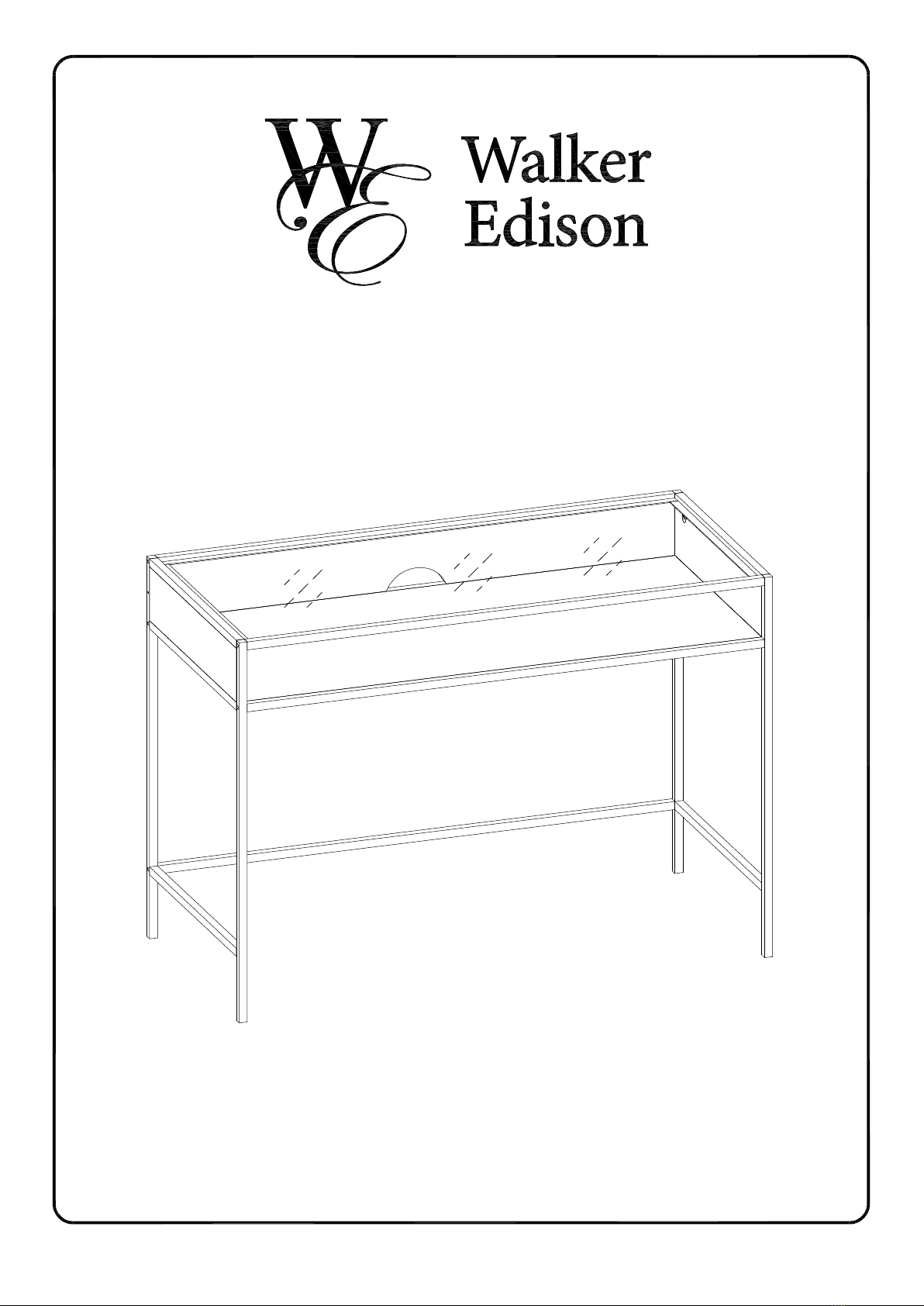

Walker Edison DM42JER Manuel utilisateur

P.1

Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.

furniture company

®

Assembly Instructions

Revised 02/2018

Please visit our website for the most current instructions, assembly tips, report damage,

or request parts. www.walkeredison.com

Item # : DM42JER

P.2

General Assembly Guidelines

I. Ensure that all parts and hardware are available before beginning assembly.

II. Follow each step carefully to ensure the proper assembly of this product.

III. Two people are recommended for ease in the assembly of this product.

IV. The two main types of hardware used to assemble this product are :

screws and bolts.

V. A Phillips head screwdriver is required for the assembly of this product .

VI. Power tools should not be used to assemble this product .

Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.

P.3

Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.

Parts List

1

77

3

8

2

9

10

4

4

6

5

Step 2

Step 1

Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.5

B

E

4

6

C

C

4

6

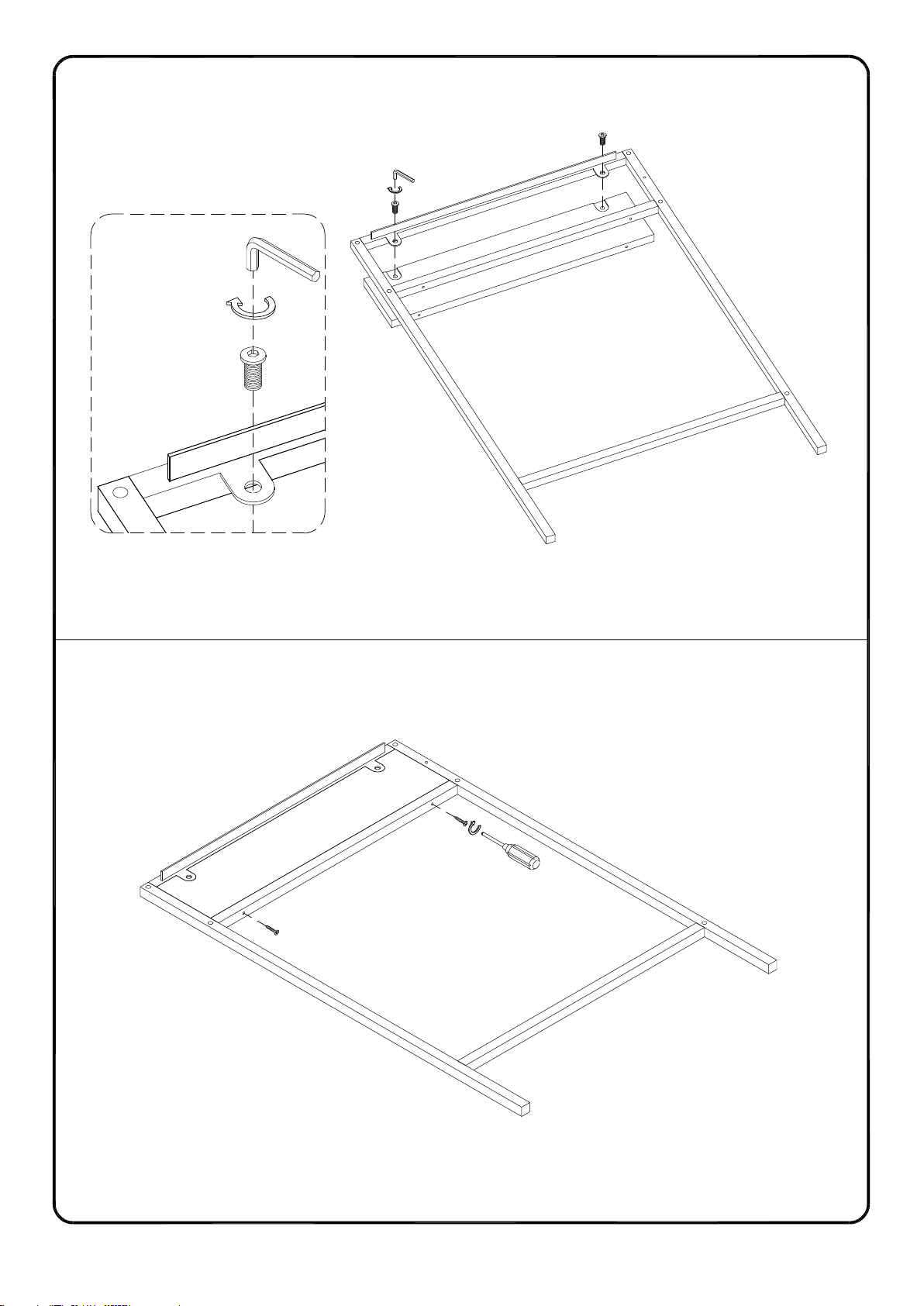

Attach part (6) to part (4) using bolt (B) with hex key (E).

Attach part (6) to part (4) using screw (C) with screwdriver.

Step 4

Step 3

Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.6

5

5

4

C

C

4

E

B

Attach part (5) to part (4) using screw (C) with screwdriver.

Attach part (5) to part (4) using bolt (B) with hex key (E).

Attach part (9) to part (2) using bolt (B) with hex key (E).

Attach part (8) to part (2) using bolt (B) with hex key (E).

Step 8

Step 7

Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.8

8

C

C

3

3

7

7

10 9

8

6

E

A

C

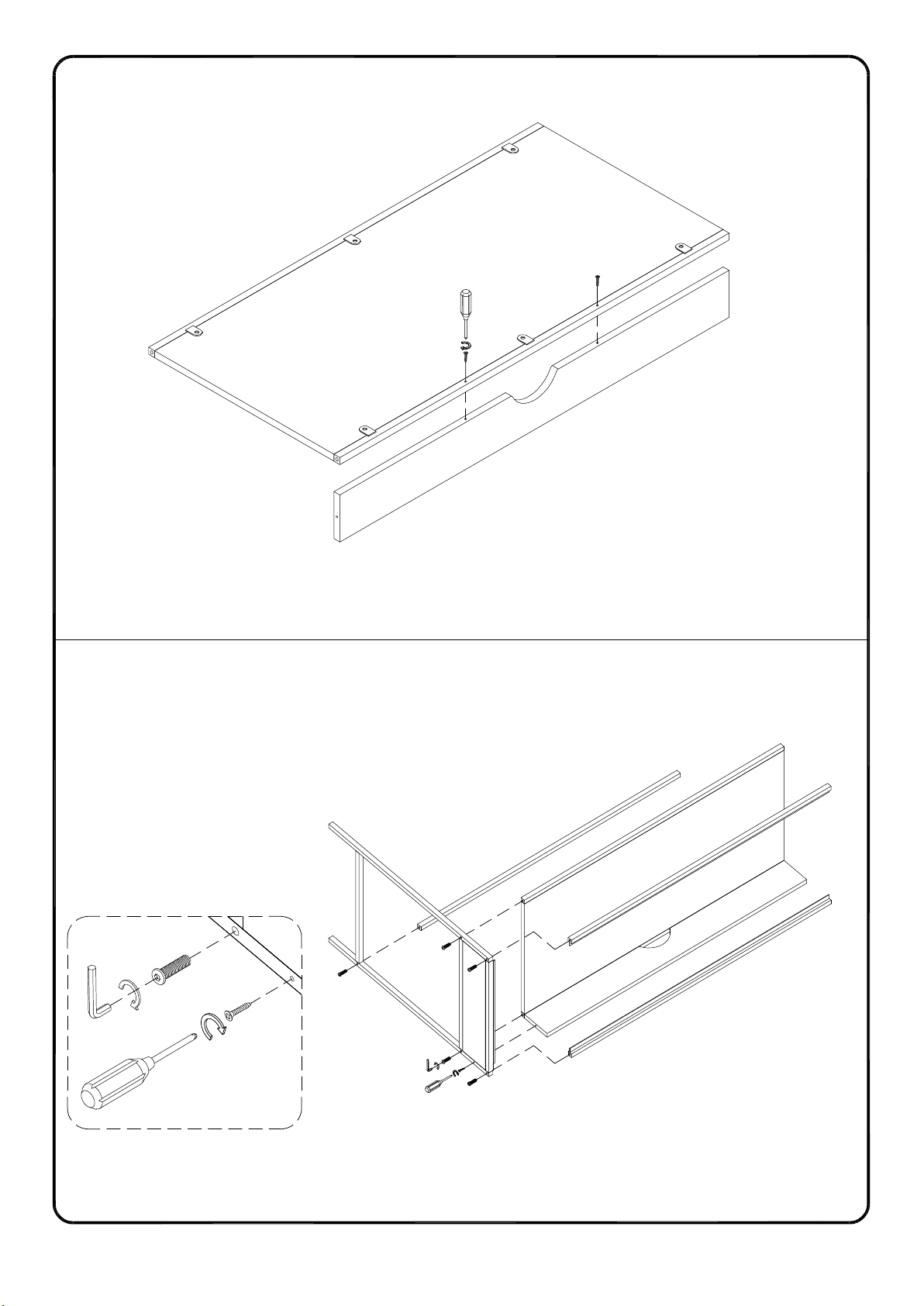

Attach part (8) to part (3) using screw (C) with screwdriver.

Attach part (6) to part (3,7,8,9,10) using bolt (A) with hex key (E) and screw (C) with screwdriver.

Step 9

Step 10

Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.9

E

A

C

3

7

7

10

9

8

5

D

D

D

D

D

D

D

D

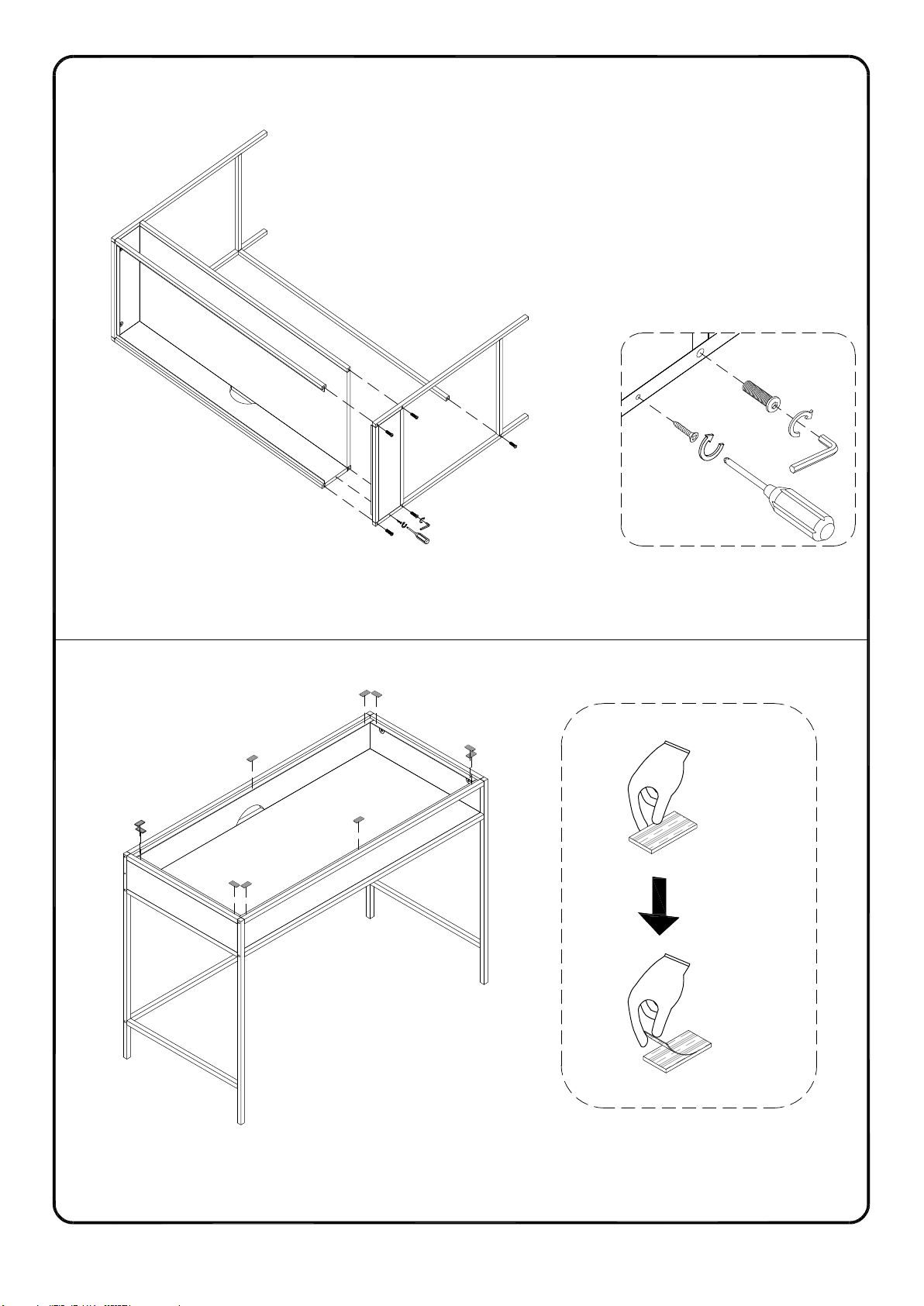

Attach part (5) to part (3,7,8,9,10) using bolt (A) with hex key (E) and screw (C) with screwdriver.

Remove cover tape on glass pads (D), then stick it as diagram.

Final Assembly

Step 11

Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.10

Step 12

1

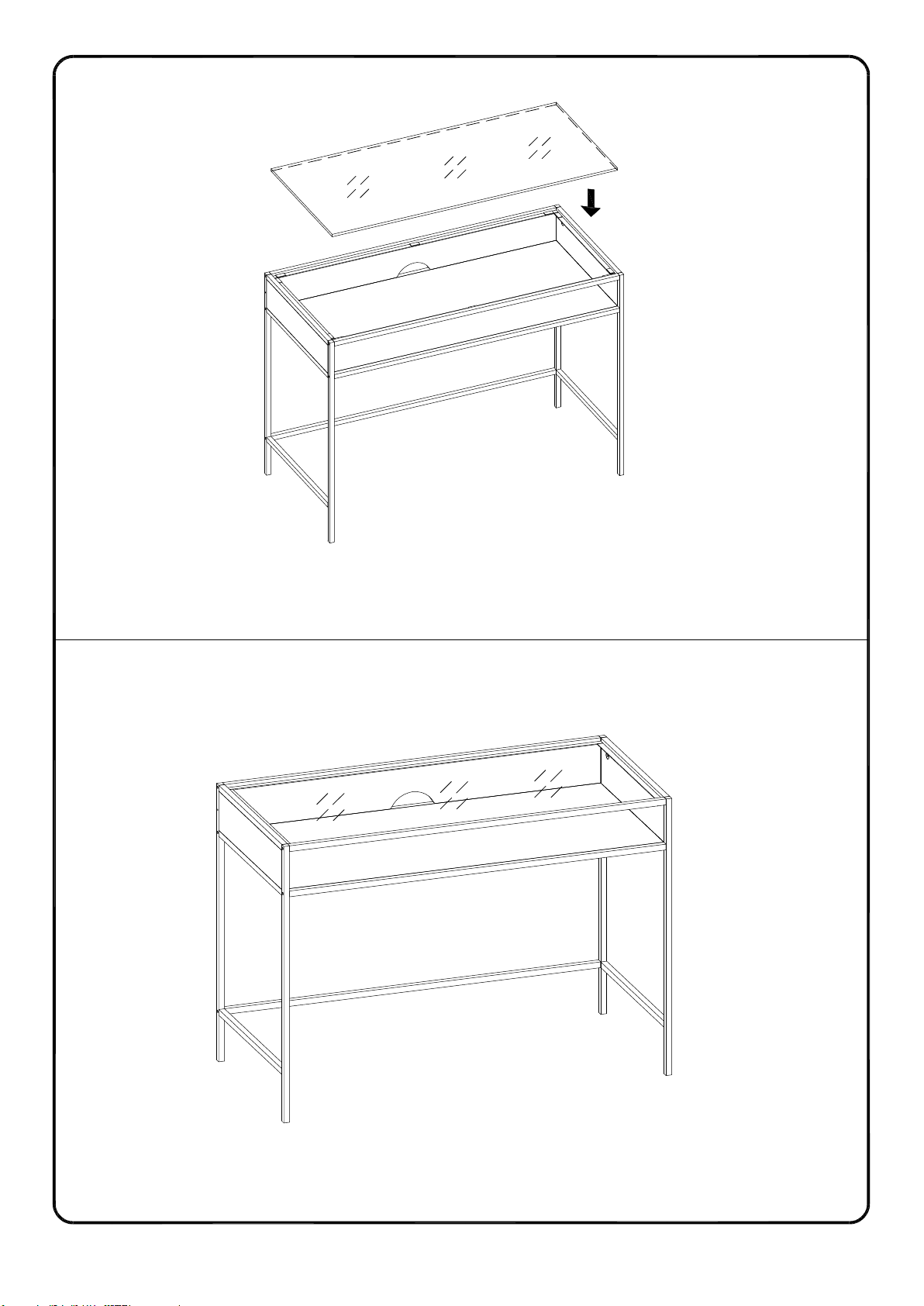

Place Glass (1) into desk frame carefully as per diagram.
