WAGNER TexPerfect Manuel utilisateur

2 year

Guarantee

2 Jahre

Garantie Spray attachment

Sprühaufsatz

GB/D

TexPerfect

TexPerfect spray attachment

15-20 cm



A B

 

TexPerfect spray attachment



 



TexPerfect spray attachment

............................................................................ 1 - 8

.......................................................................... 9 - 16

TexPerfect spray attachment

Before using the attachment, read these operating instructions and familiarise

yourself with the operating instructions for the basic unit. The safety instructions

for the basic unit apply to this TexPerfect spray attachment.

The TexPerfect spray attachment has been specially designed for applying masonry

paint, ne plaster, undercoats and sealing primer. A high feed rate and working speed

are the main features of this spray attachment.

iFor best results, the TexPerfect spray attachment should only be used with

Wagner HVLP devices with a power output of 570 watts or higher.

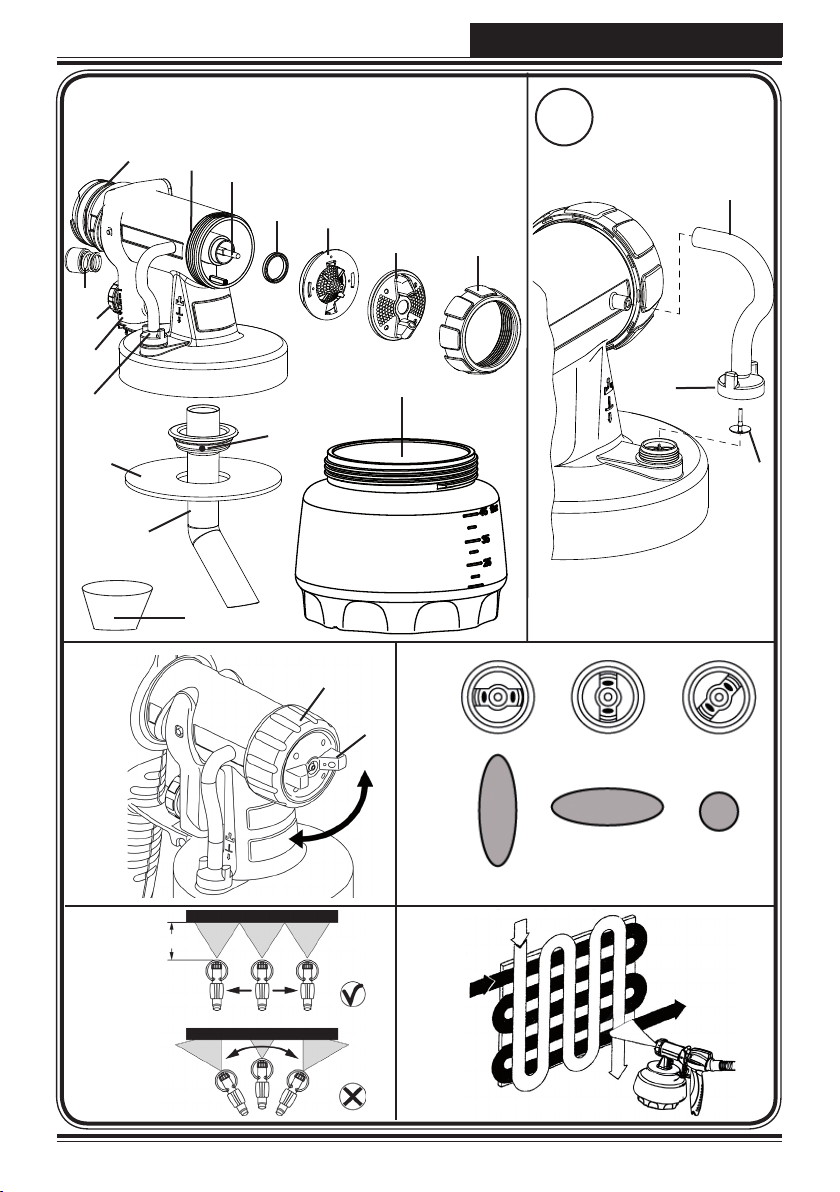

Description (Fig. 1 / A)

1) Gun body 2) Needle

3) Nozzle seal 4) Nozzle

5) Air cap 6) Union nut

7) O-Ring 8) Feather with cap

9) Material quantity regulation 10) Trigger

11) Container seal 12) Suction tube

13) Container 14) Ventilating hose

15) Valve cover 16) Diaphragm

17)Feed hopper

Coating Materials Suitable for Use

Masonry paint (only outdoor use)

Fine plaster (maximum grain size 1 mm), structured paint

Undercoats, sealing primer

Preparation of the workplace

Sockets and plugs must be masked. Risk of an electric shock as a

consequence of sprayed material entering the socket!

Mask all the areas and objects that are not to be spray painted, or

remove them from the work area. No liability is assumed for damage

due to overspray.

Silicate paint corrodes glass and ceramic surfaces upon contact! All

such surfaces must therefore be completely covered.

TexPerfect spray attachment

Preparation of the Coating Material

iSpray material that is at least at room temperature provides a better spray

result.

The spray attachment can spray masonry paint, ne plaster, structured paint and undercoats

undiluted or partially diluted. Detailed information is available in the technical data sheet

of the manufacturer (Internet download).

Stir the material thoroughly and dilute it in the container as per the recommended

dilution (an agitator is recommended for stirring).

Thinning recommendation

Sprayed material

Masonry paint, undercoats, sealing primer undiluted

Fine plaster dilute by 0-5%

Structured paint observe manufacturer's instructions

2. If the feed rate is too low even at maximum flow setting, dilute in steps of 5 - 10 %

until the feed rate meets your requirements (observe the maximum permitted

dilution as stipulated by the manufacturer).

Preparing the wall

iThe spray result depends heavily on the smoothness and cleanliness of

the surface to be sprayed. Fine plaster cannot be used to level bumps or

holes in the wall. Therefore the surface should be carefully prepared and

kept free of dust.

Depending on the surface, it might be necessary to apply a suitable sealing primer/

undercoat before spraying the ne plaster on the wall. Please observe the information

about this that is provided by the manufacturer of the material.

Adjusting the material quantity

Very high quantities can be processed with this attachment. In order to prevent the material

from dripping, test the ow rate by spraying the material on to a piece of card or paper rst.

First turn the adjustment knob (Fig. 1, Item 9) fully to the left (-) and then slowly increase

the material quantity to the desired amount by turning it to the right (+).

iRecommended ow rate:

For masonry paint select a medium or high ow rate.

For ne plaster and structured paint, the material ow should be adjusted

to the grain size. When using larger grain sizes (e.g. 1 mm) a high ow rate

should be set.

For undercoats/sealing primer, a low ow rate is recommended.

TexPerfect spray attachment

Selecting the Spray Setting

WARNING! Danger of injury! Never pull the trigger while adjusting the air

cap.

With the union nut (g. 2, 1) slightly unscrewed, turn the air cap (2) to the desired spray

setting position (arrow). Then tighten the union nut.

Fig. 3 A = vertical at jet for applying the material horizontally

Fig. 3 B = horizontal at jet for applying the material vertically

Fig. 3 C = circular jet 

for corners, edges and hard-to-reach

surfaces

Spray Technique (g. 4)

General

•

The spray movement should come from the arm, not just from the wrist. This ensures

that a uniform distance is maintained between the spray gun and the spray surface

during the spray operation.

Important: Start at the edge of the area to be sprayed. Start the spray movement rst

of all, and then press the trigger. Avoid interruptions within the area to be

sprayed.

Undercoats, sealing primer

•

Select a distance of about 15-20 cm and a low ow rate.

Masonry paint, ne plaster, structured paint

•

Select a distance of 15-20 cm, depending on the desired spray jet width.

•

For masonry paint select a medium or high ow rate.

•

For ne plaster, the material ow should be adjusted to the grain size. When using

larger grain sizes (e.g. 1 mm) a high ow rate should be set.

•

Apply the masonry paint and ne plaster in a criss-cross movement (g. 9).

If necessary, spray another 1-2 layers (allowing the material to dry rst).

With ne plaster the nal result cannot be evaluated until it has dried.Therefore

wait about 20-30 minutes until the rst layer is dry before you start touching-

up the wall.

iThe ow rate for ne plaster is lower than when using undercoat.

You therefore work more slowly in order to attain an even application.

For further information on setting the spray pattern and the correct spraying

technique refer to the instructions of the basic device.

TexPerfect spray attachment

Interruption of Work

•

Turn the machine o.

•

With ne plaster, observe the maximum processing time (usually 20-30 minutes). If

the spray attachment is not used for a slightly longer period, clean it, as the material is

hard to remove once dry.

•

During longer breaks, vent the container by briey opening and then closing it again.

•

Clean nozzle openings after an interruption in operation.

iMake sure that the container is secure when setting down the TexPerfect

spray attachment.

Shutting down and cleaning

Please also refer to the instructions of the basic device.

iWith masonry paint, ne plaster, structured paint and undercoats we

recommend using warm water for cleaning.

1. Switch the unit o.

2. Unscrew the container and empty it. Pull out the suction tube with container seal.

Preclean the container and feed tube with a brush. Clean the ventilating bore

(Fig. 1, B).

Pour water into the container. Screw the container back on.

Do not use ammable materials for cleaning purposes.

5. Turn on the machine and spray the water into a container or a cloth.

6. Repeat the above procedure until the water emerging from the nozzle is clear.

7. Turn o the machine and remove the plug.

8. Unscrew the container and empty it. Pull out the suction tube with container seal.

iWe recommend the use of a common household washing-up brush to clean

the container.

CAUTION! Never clean seals, diaphragm and nozzle or air

holes of the spray gun with metal objects.

The ventilation hose and diaphragm are only solvent-resistant to a limited

extent. Do not immerse in solvent, only wipe.

9. Pull the ventilating hose (g. A, 14) at the top from the gun body. Screw o the valve

cover (15). Remove the diaphragm (16). Clean all the parts carefully.

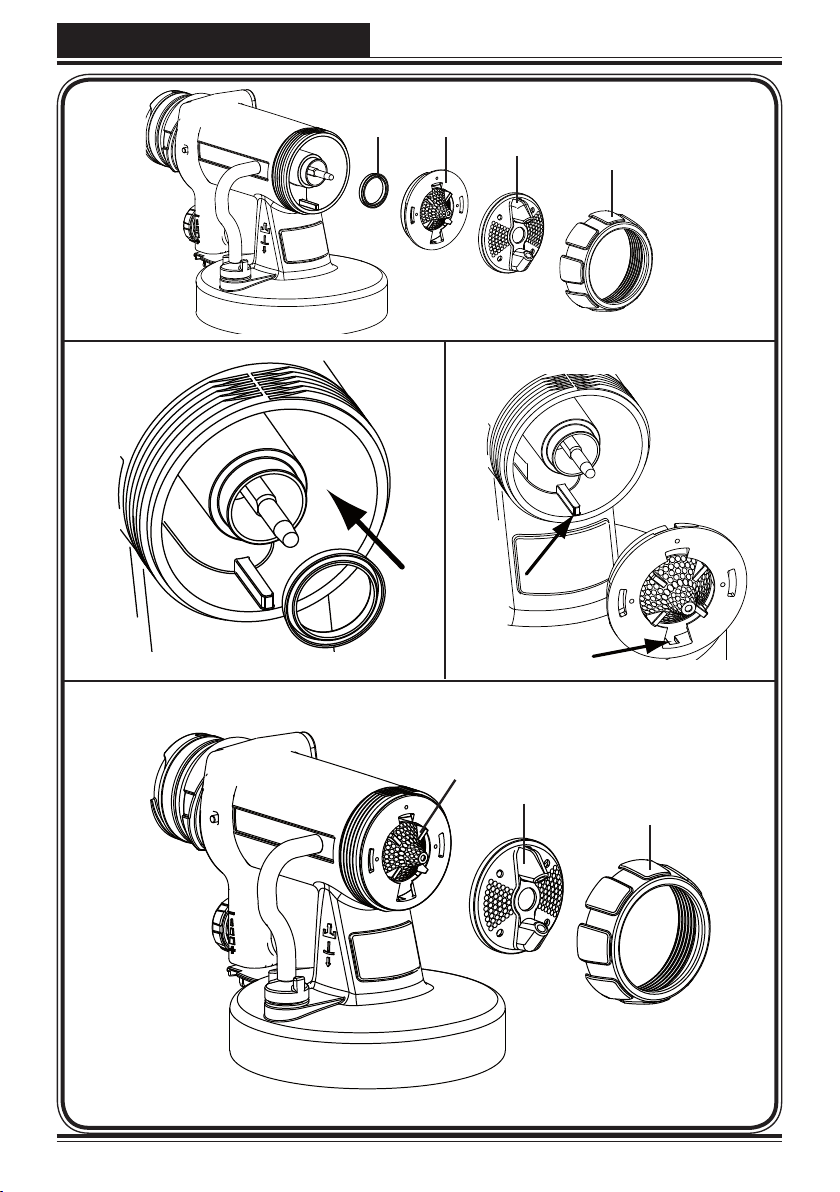

10. Unscrew the union nut (g. 6, 1) and remove the air cap (2) and nozzle (3). Clean the

air cap, nozzle seal (4) and nozzle with a brush and water.

TexPerfect spray attachment

Assembly

The nozzle, air cap and needle are optimally adjusted to suit each other. Do not

combine components from dierent spray attachments, as the components

could be damaged.

CAUTION! The units may only be used with a functional valve. If paints

rises in the ventilating hose (Fig. A, item 16) do not operate the unit

further! Dismantle and clean the ventilating hose, valve and diaphragm

and replace the diaphragm if necessary.

Do not lay the spray gun.

1. Place the diaphragm (g. A, 14) with the pin facing upwards on the bottom section

of the valve. Also see the marking on the gun body.

2. Place on the valve cover (g. A, 15) and screw it closed.

3. Place the ventilating hose (g. A, 16) on the valve cover and on the nipple at the gun

body.

Push the nozzle seal over the needle; the groove (slot) should point towards you

(g. 7).

5. Place the nozzle on to the gun body with the recess facing downwards. (Fig. 8)

6. Put the air cap (g. 9, 2) onto the nozzle (3) and tighten it using the union nut (1).

7. Place the container seal from below on the suction tube and slide it over the collar,

while turning the container seal slightly.

8. Insert the suction tube with container seal in the gun body.

Correction of Malfunctions

iThe following table contains information about solving the most frequent

types of problems encountered when using ne plaster and structured

paint. Solutions to further problems can be found in the manual for the

basic device and online at www.wagner-group.com/service.

Problem Cause Remedy

Coating material causes

"paint tears" •

Too much coating

material applied.

➞Turn material volume

adjusting screw to the

left (-)

➞Leave it to dry and then

sand down

Poor covering capacity

on the wall •

Spray material is too cold

•

Highly absorbent surface

or paint with poor

covering capacity

•

Distance too large

➞The material you are

spraying should be at

room temperature

➞Cross spray (Fig. 5)

➞Closer to the object

TexPerfect spray attachment

Problem Cause Remedy

No coating material

emerges from the nozzle •

Nozzle clogged

•

Feed tube clogged

•

Material volume setting

turned too far to the left

(-)

•

Feed tube loose

•

No pressure build-up in

container

•

Ventilating bore (Fig. 1, B)

clogged

➞Clean

➞Turn to the right (+)

➞Insert

➞Tighten container

➞Clean

Spare Parts List (Fig. 1/ A)

Pos. Designation Order No.

3 Nozzle seal (2 pcs.) 2304 433

4 Nozzle 2343 963

5 Air cap 2343 965

6 Union nut 2343 966

7 O-ring 0417 308

8 Feather with cap 2343 967

11 Container seal 2328 919

12 Suction tube 2328 922

13 Container 1300 ml with cover 2305 155

14, 15, 16 Ventilating hose, valve cover, diaphragm 2304 027

17 Feed hopper (3pcs.) 2304 028

The CLICK&PAINT SYSTEM with additional spray attachments and accessories oers

the right tool for each work.

Accessories (not included in the delivery)

Name Order No.

HVLP handle extension

For easier coating of ceilings 2307 678

Container 1800 ml with cover 2304 025

Brilliant spray attachment incl. 600 ml container

Optimised nozzle and air guidance for brilliant paint results

0417 932

Perfect Spray spray attachment incl. 800 ml. conainer

For a rapid paint change. For medium- and large-scale objects and

furniture.

0417 914

Small-scale spray attachment incl. 250 ml container

For ligree objects, detailed and creative work.

0417 918

Table des matières

Langues :

Autres manuels WAGNER Pistolet à peinture

WAGNER

WAGNER PS 3.20 Manuel utilisateur

WAGNER

WAGNER PROSPRAY 20 Manuel utilisateur

WAGNER

WAGNER GX 05 Manuel utilisateur

WAGNER

WAGNER AquaCoat AirCoat GM 5000EACW Manuel utilisateur

WAGNER

WAGNER 0558021 Manuel utilisateur

WAGNER

WAGNER W 660 Manuel utilisateur

WAGNER

WAGNER ProSpray 3.39 Manuel utilisateur

WAGNER

WAGNER SuperCoat 0556730W Manuel utilisateur

WAGNER

WAGNER POWERPAINTER 90 EXTRA Manuel utilisateur

WAGNER

WAGNER CONTROL SPRAY Manuel utilisateur

WAGNER

WAGNER FLEXIO 2500 Manuel utilisateur

WAGNER

WAGNER Brillux PROSPRAY 39 SELECT Manuel utilisateur

WAGNER

WAGNER Vector Pro Manuel utilisateur

WAGNER

WAGNER W 570 FLEXIO Manuel utilisateur

WAGNER

WAGNER AirCoat GM 4600AC-H Manuel d'exploitation

WAGNER

WAGNER W 990 FLEXIO Manuel utilisateur

WAGNER

WAGNER Opti-Stain Sprayer Manuel utilisateur

WAGNER

WAGNER PEA-C4-HiCoat FM Instructions d'utilisation

WAGNER

WAGNER GA 4000ACIC-R Manuel utilisateur

WAGNER

WAGNER CONTROL SPRAY DOUBLE DUTY Manuel utilisateur

WAGNER

WAGNER W 600 Manuel utilisateur

WAGNER

WAGNER CONTROL PRO 250 M Manuel utilisateur

WAGNER

WAGNER SUPER FINISH 23 CR Manuel utilisateur

WAGNER

WAGNER SUPER FINISH 23 PRO Manuel utilisateur

Manuels Pistolet à peinture populaires d'autres marques

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Manuel utilisateur

Graco

Graco 246737 Manuel d'utilisation et d'entretien

Binks

Binks SV100 Manuel utilisateur

Fimco

Fimco LG-4-3-1 Manuel utilisateur

AG SPRAY

AG SPRAY FS-ATV-25BL Manuel utilisateur

Nordson

Nordson MicroMax 2 Manuel utilisateur

Bonide

Bonide 051 Manuel d'utilisation

zogics

zogics Z-DAS Manuel utilisateur

KISANKRAFT

KISANKRAFT KK-KBS-165 Manuel utilisateur

Matrix

Matrix SG 650 Manuel utilisateur

Anest Iwata

Anest Iwata SGA-3 Guide de démarrage rapide

paasche

paasche VV Fiche technique

Carlisle

Carlisle DeVilbiss JGA-510 Manuel utilisateur

Gardena

Gardena 11120 Manuel utilisateur

Conrad

Conrad Hobby Airbrush K3 Manuel utilisateur

wiwa

wiwa 14025 R/F Manuel utilisateur

Graco

Graco EM 390 Manuel d'utilisation

DeVilbiss

DeVilbiss LUNA2i Manuel utilisateur
