VWR VisiScope ML103 Manuel utilisateur

Version: 3

Issued: 19, 05, 2014

Model European Catalogue Number

ML103 630-1550

ML114 630-1551

ML124 630-1552

BL114 630-1553

BL124 630-1554

ML124 R 630-1924

ML124 ALC 630-1925

BL124 R 630-1926

BL124 ALC 630-1927

VWR

Microscope series 100

INSTRUCTION MANUAL

Table of Contents

Warning

Safety information

Package contents

Unpacking

Intended use

Symbols and conventions

Product specications

Overview

Operation

Adjust the observation head

Place the specimen on the stage

Lamp settings

Adjust interpupillary distance (binocular models)

Focus and diopter adjustment (binocular models)

Condenser adjustment

Set the numerical aperture

Rechargeable battery (ML124 R and BL124 R models)

Automatic Light Control (ML124 ALC and BL124 ALC models)

Troubleshooting

Repair and maintenance

User replaceable accessories and spare parts

Technical service

Warranty

Compliance with local laws and regulations

Disposal

Legal Address of Manufacturer

Country of origin: ITALY

Europe

VWR International bvba

Researchpark Haasrode 2020

Geldenaaksebaan 464

B-3001 Leuven

+ 32 16 385011

http://be.vwr.com

Warning

This microscope is a scientic precision instrument designed to last for many years with a minimum of main-

tenance. It is built to high optical and mechanical standards and to withstand daily use.

We remind you that this manual contains important information on safety and maintenance, and that it must

therefore be made accessible to the instrument users.

We decline any responsibility deriving from incorrect instrument use that does not comply with this manual.

Safety Information

Avoiding Electrical Shock

Before plugging in the power supply, make sure that the supplying voltage of your region matches with the

operation voltage of the equipment and that the lamp switch is in off position.

Users should observe all safety regulations of the region. The equipment has acquired the CE safety label.

However, users have full responsibility to use this equipment safely.

Please follow the guidelines below, and read this manual in its entirety to ensure safe operation of the unit.

Package Contents

DESCRIPTION QUANTITY

Microscope stand with 4 position nosepiece, stage, condenser 1

Optical head (ML103, ML114, ML124: monocular; BL114,

BL124: binocular)

Objective 4x 1

Objective 10x 1

Objective 40x 1

Objective 100x

(or Objective 60x for mod. ML114, BL114. NOT included for

mod. ML103)

Eyepiece WF10x/18mm 1 (MONOCULAR)

2 (BINOCULAR)

Green lter 30mm diameter 1

Immersion oil 1

Dust cover 1

Power supply output 5Vdc (6Vdc only for -R models) 1

Unpacking

The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the contain-

er and lift the top half of the container. Take care to ensure that the optical items (objectives and eyepieces)

do not fall out and get damaged. Using both hands (one around the neck and one around the base), lift the

microscope from the container and put it on a stable desk.

Place the observation head onto the top of the neck and tighten the lock-screw. Insert the eyepieces into the

eye tubes.

Connect the provided power supply to the power supply input jack on the rear of the microscope.

Intended use

For research and teaching and teaching use only. Not intended for any animal or human therapeutic or diag-

nostic use.

Symbols and conventions

The following chart is an illustrated glossary of the symbols that are used in this manual.

CAUTION

This symbol indicates a potential risk and alerts you to proceed with

caution

Product specications

Model Head Eyepiece Objectives Stage Condenser Focusing system Illuminator

ML103 Monocular Wideeld

10x/18mm Achromatic

4X/10X/40X Plain stage,

125x120mm with

sample clips

0.65 N.A. with

diaphragm Coaxial coarse

and ne focusing

mechanism with

limit stop

1W LED with external

power supply

ML114 Monocular Wideeld

10x/18mm Achromatic

4X/10X/40X/60X Mechanical stage,

125x116mm with

specimen holder

1.2 N.A. with

diaphragm Coaxial coarse

and ne focusing

mechanism with

limit stop

1W LED with external

power supply

ML124 Monocular Wideeld

10x/18mm Achromatic

4X/10X/40X/100X Mechanical stage,

125x116mm with

specimen holder

1.2 N.A. with

diaphragm Coaxial coarse

and ne focusing

mechanism with

limit stop

1W LED with external

power supply

BL114 Binocular Wideeld

10x/18mm Achromatic

4X/10X/40X/60X Mechanical stage,

125x116mm with

specimen holder

1.2 N.A. with

diaphragm Coaxial coarse

and ne focusing

mechanism with

limit stop

1W LED with external

power supply

BL124 Binocular Wideeld

10x/18mm Achromatic

4X/10X/40X/100X Mechanical stage,

125x116mm with

specimen holder

1.2 N.A. with

diaphragm Coaxial coarse

and ne focusing

mechanism with

limit stop

1W LED with external

power supply

ML124 R Monocular Wideeld

10x/18mm DIN Achromatic

4x/10X/40X/100X Mechanical stage,

125x116mm with speci-

men holder

1.2 N.A. with

diaphragm Coaxial coarse

and ne focusing

mechanism with

limit stop

1W LED with

rechargeable battery

ML124 ALC Monocular Wideeld

10x/18mm DIN Achromatic

4x/10X/40X/100X Mechanical stage,

125x116mm with speci-

men holder

1.2 N.A. with

diaphragm Coaxial coarse

and ne focusing

mechanism with

limit stop

1W LED with external

power supply

BL124 R Binocular Wideeld

10x/18mm DIN Achromatic

4x/10X/40X/100X Mechanical stage,

125x116mm with speci-

men holder

1.2 N.A. with

diaphragm Coaxial coarse

and ne focusing

mechanism with

limit stop

1W LED with

rechargeable battery

BL124 ALC Binocular Wideeld

10x/18mm DIN Achromatic

4x/10X/40X/100X Mechanical stage,

125x116mm with speci-

men holder

1.2 N.A. with

diaphragm Coaxial coarse

and ne focusing

mechanism with

limit stop

1W LED with external

power supply

EYEPIECE

DIOPTRIC ADJUSTMENT

RING

OBJECTIVE

BINOCULAR

OBSERVATION HEAD

CONDENSER

SLIDE CLAMP

COARSE FOCUSING

IRIS DIAPHRAGM

FINE FOCUSING

TENSION ADJUSTMENT

TRANSLATION

STAGE

NOSEPIECE

Overview

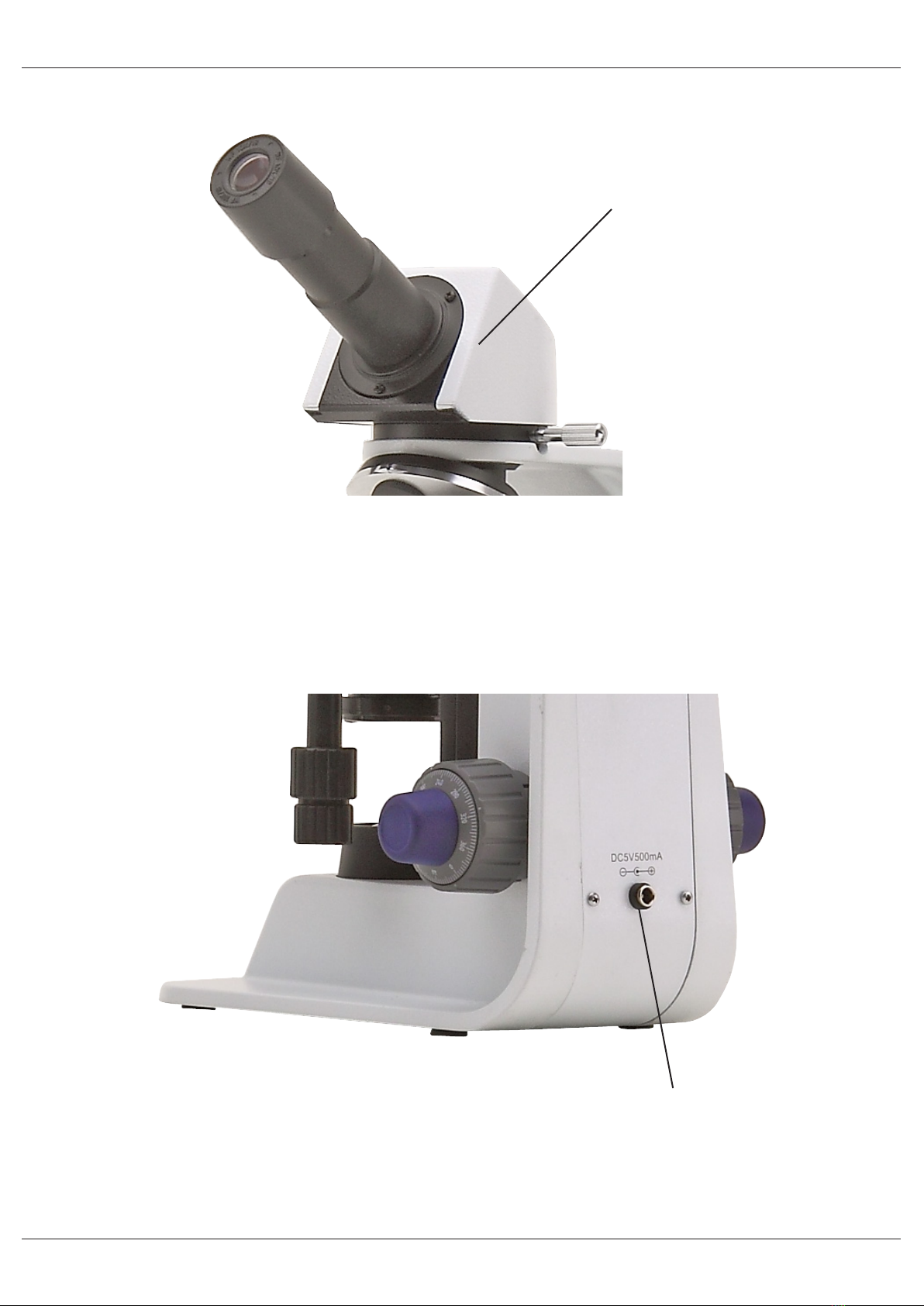

MONOCULAR OBSERVATION

HEAD

POWER SUPPLY

INPUT JACK

Description of buttons and switches

Rear View

Operation

Adjust the observation head

Loosen the lock-screw, turn the observation head to a comfortable position for observation, and then lock the

lock-screw.

Place the specimen on the stage

Lock the specimen slide on the mechanical stage using the slide holder. Ensure that the specimen is centred

over the stage opening by adjusting the coaxial knobs of the stage.

Lamp settings

The microscope is tted with a power white LED illuminator. Before turning on the light, read the section

about electrical safety precautions. Insert the plug of the power supply into the jack on the rear and turn on

the ON/OFF switch. Turn the brightness adjustment knob to a brightness suitable for observation.

Adjust interpupillary distance (binocular models)

Hold the right and left side of the observation head with both hands and adjust the interpupillary distance by

turning the two parts until one circle of light can be seen, when looking down the microscope with both eyes.

Focus and diopter adjustment (binocular models)

Rotate the coarse focusing knob to bring the slide into focus using a low magnication objective. Adjust the

ne focusing knob to get the image sharp and clear while observing with your stronger eye, then turn the di-

optric adjustment ring on the opposite eyepiece until a sharp and clear image can be observed also with the

other eye. Turn the tension adjust knob to achieve a suitable focus tension without the specimen dropping out

of focus. When the image is in focus, turn the nosepiece to choose the objective you need.

Condenser adjustment

Hold the notched ring at the base of the condenser and rotate it up or down until you reach a clear and uni-

form sample illumination.

Set the numerical aperture

Adjust the aperture of the iris diaphragm to set the numerical aperture of the illuminator, thus controlling im-

age contrast and resolution.

HOLD THIS LEVER AND

ROTATE IT

Rechargeable battery (ML124 R and BL124 R models)

ML124 R and BL124 R models are equipped with a built-in rechargeable battery.

The battery can be recharged simply by connecting the microscope to the provided external power supply,

using the jack connector on the rear.

During the charging process, you can use the microscope as usual.

NOTE

In order to speed up the charging of the battery, it’s suggested to turn the LED off when you connect

the external power supply.

NOTE

For a full charge, it’s suggested to keep the external power supply connected to the microscope for at

least 8 hours.

WARNING

Always unplug the external power supply from the microscope, when not in use.

Automatic Light Control (ML124 ALC and BL124 ALC models)

ML124 ALC and BL124 ALC models have a special function called “Automatic Light Control”.

The level of light is adjusted by the microscope in order to maintain the same level as the one the user has

chosen, no matter if the aperture of the diaphragm changes, another objective is inserted, opacity of the

sample changes, etc.

1) Set the focus on the sample as described in the previous chapters, using the objective of your choice.

2) Rotate the brightness adjustment knob in order to get a comfortable level of illumination.

3) Press the ALC button on the side of the microscope.

Now the ALC system is working: if you open or close the aperture diaphragm or change objective, the system

will try to maintain the same level of illumination as the one you stored when you pressed the button.

4) Press the ALC button again to return to a manual control of illumination.

BRIGHTNESS

ADJUSTMENT

KNOB

ALC BUTTON

Troubleshooting

Review the information in the table below to troubleshoot operating problems.

PROBLEM CAUSE SOLUTION

LIGHT DOESN’T TURN ON Power supply not connected Check that the power supply jack is

well inserted on the rear of the

microscope

Connected Rotate the brightness adjustment

control and check if there is an

increase in the light output

IMAGE CANNOT BE SEEN OR

IS DARK

The iris diaphragm aperture

is not completely opened

Completely open the iris diaphragm

aperture

Brightness level is low Rotate the brightness adjustment

potentiometer

Objective is not aligned with

the optical axis

Rotate the nosepiece until an objective

is well inserted in the optical path (it

“clicks”)

IMAGE IS UNCLEAR, BLURRED

OR HAS INSUFFICIENT

CONTRAST

Objectives or lters are dirty Wipe them clean

The iris diaphragm aperture

is not opened correctly

Open the iris diaphragm aperture

completely

Condenser at wrong height Hold the condenser and rotate it until

you see a uniform illumination

Repair and maintenance

Microscopy environment

This microscope is recommended for use in a clean, dry and shock free environment with a temperature of

0-40°C and a maximum relative humidity of 85 % (non condensing). Use a dehumidier if needed.

After using the microscope

The microscope should always be kept vertical when moving it so that no moving parts, such as the

eyepieces, fall out.

Never mishandle or impose unnecessary force on the microscope.

Never attempt to service the microscope yourself.

After use, turn down the illumination intensity control and turn the light off. Cover the microscope with included

the dust cover, and keep it in a dry and clean place.

Electrical safety precautions

Before plugging in the power supply, make sure that the supplying voltage of your region matches with the

operation voltage of the equipment and that the lamp switch is in off-position.

Users should observe all safety regulations of the region. The equipment has acquired the CE safety label.

However, users do have full responsibility to use this equipment safely.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels VWR Microscope

VWR

VWR VisiScope 400 Series Manuel utilisateur

VWR

VWR VistaVision 82026-614 Manuel utilisateur

VWR

VWR VisiScope TL384 POL Manuel utilisateur

VWR

VWR VisiScope 300 Series Manuel utilisateur

VWR

VWR VisiScope 300 Series Manuel utilisateur

VWR

VWR VisiScope 534 Series Manuel utilisateur

VWR

VWR VisiScope 400 Series Manuel utilisateur

VWR

VWR VistaVision 82026-636 Manuel utilisateur

VWR

VWR VisiScope ML103 POL Manuel utilisateur

VWR

VWR avantor 600 Series Manuel utilisateur

VWR

VWR 89404-882 Manuel utilisateur

VWR

VWR ViciScope 200 BL254 Manuel utilisateur

VWR

VWR VisiScope MSL100 Series Manuel utilisateur

VWR

VWR VisiScope 100D Series Manuel utilisateur

VWR

VWR VisiScope 384 Series Manuel utilisateur

VWR

VWR Visiscope 800 Series Manuel utilisateur

VWR

VWR avantor VisiScope 400 Series Manuel utilisateur

VWR

VWR VisiCam HDMI13 Manuel utilisateur

VWR

VWR VisiScope 200 Series Manuel utilisateur

VWR

VWR VisiScope 500 Series Manuel utilisateur

VWR

VWR VisiScope BL224T1 Manuel utilisateur

VWR

VWR VisiScope 300 Series Manuel utilisateur

VWR

VWR VisiScope 300 Series Manuel utilisateur

VWR

VWR VisiScope 300 Series Manuel utilisateur

Manuels Microscope populaires d'autres marques

Thermo Scientific

Thermo Scientific Nicolet iN10 Mode d’emploi

National

National DC3-163 Manuel utilisateur

KERN Optics

KERN Optics OPE-1 Manuel utilisateur

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manuel utilisateur

Prior

Prior Lux POL Manuel utilisateur

Opitec

Opitec Smartscoop 115615 Manuel utilisateur

KERN

KERN OPO-1 Manuel utilisateur

Topcon

Topcon SP-1P Manuel utilisateur

Motic

Motic PA43 Manuel utilisateur

Leica

Leica DVM5000 Guide de l'utilisateur

MshOt

MshOt MZ62 Manuel utilisateur

KERN Optics

KERN Optics OZR-5 Manuel utilisateur

Nikon

Nikon ECLIPSE E200 POL Manuel utilisateur

Leica

Leica DI C800 Manuel

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

Olympus

Olympus SZ61 Manuel utilisateur

Leica

Leica FL560 Manuel utilisateur
