KVM08KD
KVM Switch with
Keyboard Mouse Build In
COPYRIGHT©
This document is a copyright of the original manufacturer, 2000. The original
manufacturer reserves the right to make improvements to the product(s) described in this
manual at any time without notice. This manual may not, in whole or in part, be
photocopied, reproduced, transcribed, translated, or transmitted in whatever form without
the written consent of the manufacturer, except for copies retained by the purchaser for
backup purposes. All rights are reserved.
TRADEMARKS™
Products mentioned in this manual are mentioned for identification purposes only. All
names of products or services appearing in this manual are the trademarks or registered
trademarks of their respective organizations and companies.
Copyright 2000
Ver. No.V1.0
LEI-UM-KVM08KD
Date : 2000/11/17
TABLE OF CONTENTS
CHAPTER 1INTRODUCTION 1
1.1 SPECIFICATION 2
1.2 DIMENSION 3
1.2 PACKING CHECK LIST 4
CHAPTER 2INSTALLATION 5
2.1 PRODUCT DETAIL 5
2.2 HARDWARE INSTALLATION 6
2.3 DAISY CHAIN 9
CHAPTER 3OPERATION 10
RMA SERVICE REQUEST FORM
~ 1~
INTRODUCTION
The KVM08KD gives you the ultimate in control of 8 PCs from one keyboard, mouse and
monitor. To expand control ability the DB-25 Daisy-Chain allows with extra 15 KVM08
stack up for control 128 PCs from one keyboard, mouse and monitor. OSD (On-Screen
Display) menu provides human friendly interface for naming each PCs and selecting one
of them.
Feature
lAllows a user to control eight computers from one keyboard, mouse and monitor
lBuild keyboard and mouse for space saving.
lNo software required, each channel contains a microprocessor emulation to
intelligently manage the boot-up process for all your attached PCs boot-up
transparently and simultaneously.
lOn-Screen Display menu gives the user a visual interface to naming and selecting
computers
lOn-Screen Display, push button or keyboard “Hot Key” commands switching
lAutoScan mode for even more convenience
lAudible feedback when switching
lRecalls CAPS LOCK, NUM LOCK and SCROLL LOCK keys’ status for each
computer automatically
lSupports VGA, SVGA and MultiSync monitors
lUp to 1600 x 1200 resolution support
lKeyboard and mouse emulation for error-free boot ups
lUser inexpensive and commonly found standard cables
lStatus LEDs on front panel
lDB-25 Daisy-Chain ports allows control control over as many as 128 computer
through one KVM08KD with 15 KVM-08 stack up.
CHAPTER 1.
INTRODUCTION
~ 2~
1.1 SPECIFICATION
General
q19” Rack Mount :22” depth
qKeyboard / Mouse :6-pin Mini-DIN
qMonitor :15-pin HD DB type
qComputer Connections :8
qPort LEDs :8
qOn Screen Display :Yes
qHot Key :Yes
qSwitching Confirmation :Buzzer
qKeyboard State :Saved and Restored
qMonitor Supports :VGA, SVGA, XGA, MultiSync
qDisplay Data Channel :DDC1, DDC2B, DDC2AB
qResolution :1600 x 1200
qBandwidth :180MHz
qEnclosure :Heavy-duty metal
qStorage (Celsius) :0 ~ 60
qDimension (H x W x D) :48 x 440 x 508mm
qWeight (g) :6500 (without rail)
qPower Adapter :12V / 4A DC output
Keyboard & mouse
qKey :83 keys+trackball
INTRODUCTION
~ 3~
1.2 DIMENSION
531.80
440.00
508.00
437
486.00
48.00
INTRODUCTION
~ 4~
1.3 PACKING CHECK LIST
Before you begin to install your KVM08KD, please make sure that you received the
following materials as listed below:
Item Qty Remark
KVM08KD 1 pcs. KVM Switch with keyboard, mouse
Power adapter 1 pcs. 48W, universal AC input
Power cord 1 pcs. AC inlet power cable
Mouse driver 1 pcs. 3.5” diskette
User’s Manual 1 pcs. This manual
~ 5~
PS/2 keyboard & mouse connector
VGA monitor connector DC power jack
INSTALLATION

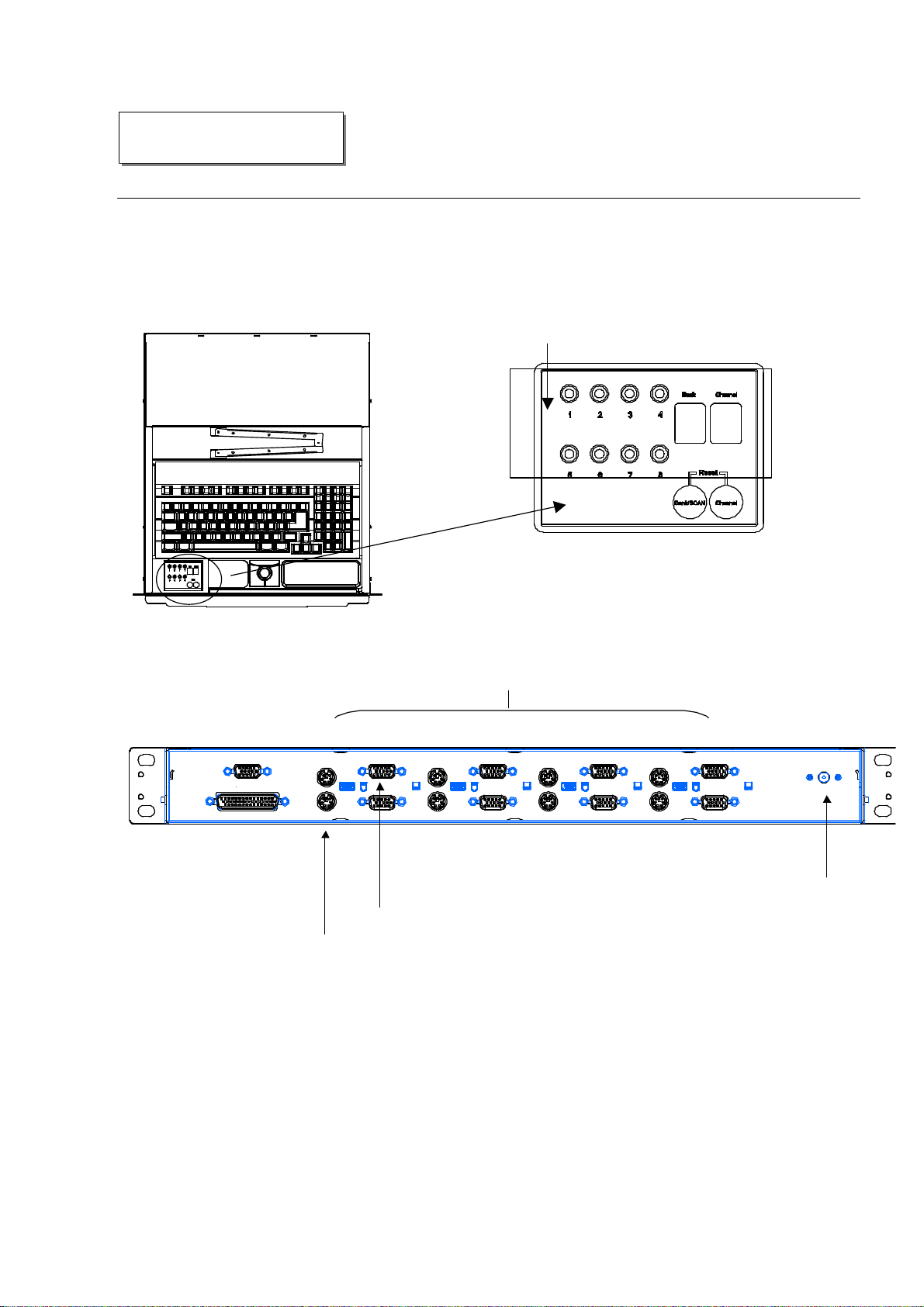

2.1 PRODUCT DETAIL
Top View
Rear View
CHAPTER 2.
PC port connectors
Current Active Port Displays
Master Input
PC1
PC2
PC3
PC4
VGA DC+12V/4.0A
PC5
PC6
PC7
PC8
Rear View
INSTALLATION
~ 6~
2.2 HARDWARE INSTALLATION
Step 1
1. How to slide KVM08KD back to rack
Press two sides in front part of sliders and push KVM08KD back at the same time.
Illustrated as below:
WARNING!
Before attempting to connect anything to the
KVM
08KD or the computers, make sure
everything is powered off. Otherwise, plugging
and unplugging cables may cause irreversible
damage to your computers and the KVM08KD.
