VOLTA VB1 Manuel utilisateur
www.volta.com.tr
VB2
VB1
VB3
Read this guide as carefully before using your electric pedal assisted cycle.
ELECTRIC PEDAL ASSISTED CYCLES
USER MANUAL
PREFACE
This product has been designed as environment friendly. In the in-
structions in this user’s guide, you can find instructions for use, safety
warnings, care and basic storage. This high-tech vehicle purchased
consists of the following parts:
This user manual will be an irreplaceable part of your vehicle.
sure you have this user manual with the product.
When there is a problem with your vehicle, do not use any parts
other than originals provided by the authorized service. Images and
specifications used here and the vehicle you purchased may not
show the same features.
The main purpose of this manual is to introduce the product and its
parts.
Thank you for choosing our product. Enjoyable rides.
• High eciency direct current brushless motor
• Low voltage protected digital smart driver
• Circuit breaker brake sensor for safe riding
• Long range and high performance with high capacity battery
• Pleasant and comfortable riding with high quality suspension system
• Bicycle equipment ensuring European standards
- According to the laws of some countries, a minimum age and driving license may be
required to use these products.
- Do not demount, replace or modify any part on the vehicle. Processes those are made
without approval of authorized service shop, will impair originality of the vehicle and the
vehicle will be out of the scope of guarantee. Please make all replaces at authorized ser-
vice.
WARNING
WARNING - These headings are written to explain personal accidents and to prevent
possible fatal accidents.
ATTENTION - These headgear protect you from serious injury and indicates mechanical
damage.
www.volta.com.tr
4www.volta.com.tr
4
VB1
VB2
VB3
www.volta.com.tr 5
www.volta.com.tr 5
TABLE OF CONTENTS
Preface ....................................................................................................................02
1. Devices and Accessories ...............................................................................06
2. Functions .............................................................................................................09
3. Assembling the Vehicle ...................................................................................13
4. Charging the Vehicle .........................................................................................14
5. Riding Instructions ..............................................................................................17
6. Safe Use Instructions ...........................................................................................18
7. Folding and Transporting ...............................................................................21
8. Maintenance and Storing ...............................................................................22
9. Storing Guide for the Vehicle ...........................................................................24
10. Technical Specs ...........................................................................................25
11. Authorized Service ················································································26
12. Warranty ·································································································27
www.volta.com.tr
6www.volta.com.tr
6
VB1
1. DEVICES AND ACCESSORIES
Products
1. LCD Display
2. Shifter
3. Thumb Throttle
4. Headlight
5. Disc Brake
6. Charge Input
7. Saddle
8. Lock Set
9. Rear Carrier
10. Folding Latch
11. Folding Pedal
12. Side Stand
13. Motor
14. Controller
12
3
4
5
6
8
9
10 11
12
14
13
7
www.volta.com.tr 7
www.volta.com.tr 7
1. DEVICES AND ACCESSORIES
VB2
1. LCD Display
2. Shifter
3. Thumb Throttle
4. Headlight
5. Disc Brake
6. Folding Latch
7. Charge Input
8. Lock Set
9. Folding Pedal
10. Controller
11. Side Stand
12. Motor
13. Saddle
1
4
2
3
5
6
8
7
10
11
9
12
13
www.volta.com.tr
8www.volta.com.tr
8
VB3
1. DEVICES AND ACCESSORIES
1. LCD Display
2. Shifter
3. Thumb Throttle
4. Headlight
5. Disc Brake
6. Controller
7. Charge Input
8. Lock Set
9. Motor
10. Folding Pedal
11. Side Stand
12. Saddle
13. Rear Carrier
1
2
3
4
5
6
10
8
7
12
9
13
11
www.volta.com.tr 9
www.volta.com.tr 9
2. FUNCTIONS

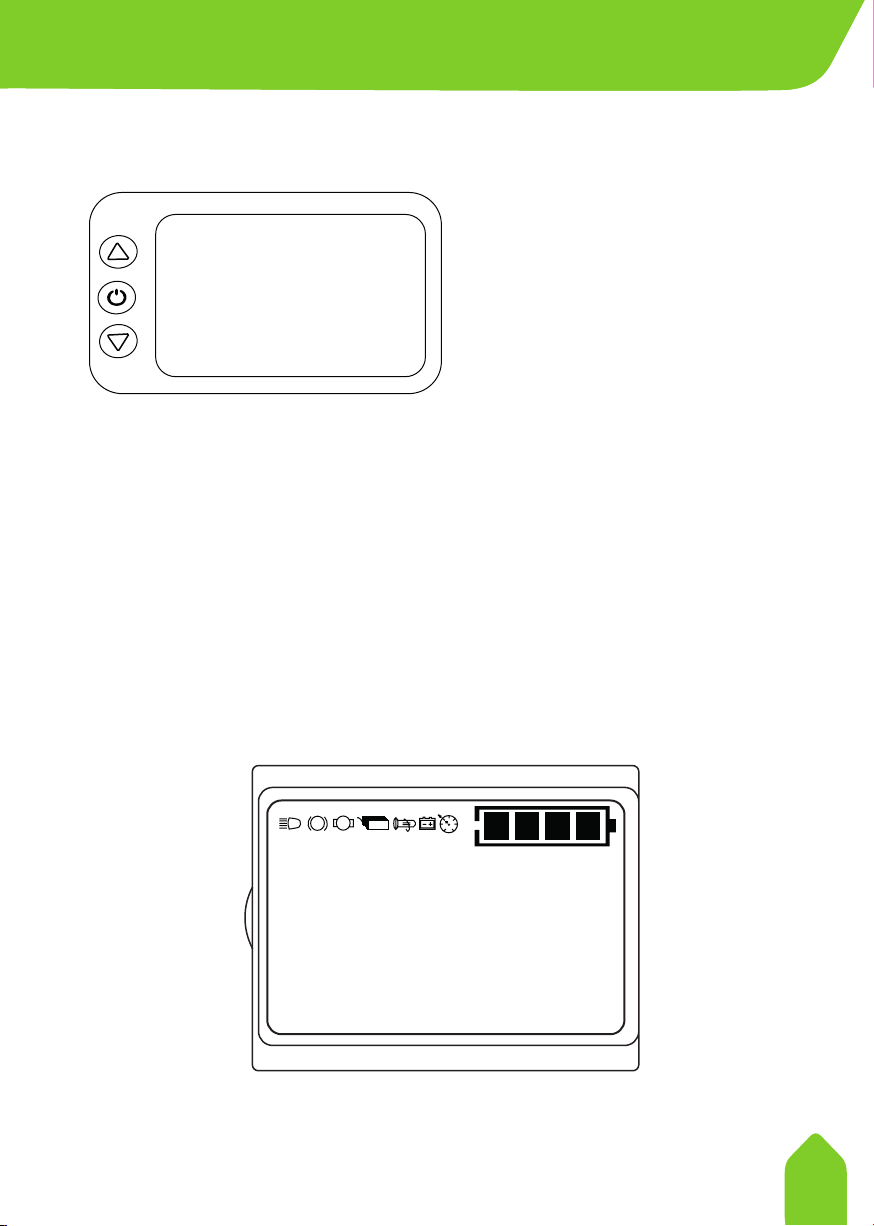

LCD Display
1- Function display, speed, remained battery signs, error, total range,
single round range, voltage, operation period.
2- Control, adjustment function, power button control, rim diameter adjust-
ment, idle period adjustment, holding ready automatically, rear lamp bright-
ness control, starting mode adjustment, rider mode adjustment, voltage level
adjustment, rider current limit adjustment.
3-Type of communication: UART
You can view all indicator content as follows (it demonstrates all signs 1 sec-
ond after opening)
88 8
8
.
8888
ODO
12
11 1
24
MILE
MPH
KM/H ASSIST
Km
TRIP
!
M
EC U
I
I
I
I
I
I
I
www.volta.com.tr
10 www.volta.com.tr
10
3.5 Error codes
E-01: Hall sensor warning;
E-02: Brake, Start-up Support Assistant;
E-03: Driver warning;
E-04: Brake lever warning;
E-05: Low voltage warning;
E-06: Communication warning (it means that speedometer cannot
take data from rider)
E-07: Communication warning (it means that rider cannot take data
from speedometer
3.4 In order to adjust electric bicycle support level, 8ASSIST you can use
1, 2, 3 levels for speed options.
3.5 Electric bicycle indicator signals:
: Headlamp : Brake, :Start-up Support Assistant,
: Driver warning : Batttery warning : Speed fixing warning
8
ASSIST
!
M
EC U
!
EC U
2. FUNCTIONS
3.1 Voltage and battery power
3.2 Multiple function display
Single round DIS, Total range ODO (unit: mile, km)
3.3 Speed indicator
Unit Mp/h, km/h
Speed signal comes from hall sensor of engine, it is sent to speedometer
by control device (circle period of each hall sensor, unit: IMS) speedometer
measures real speed according to rim diameter and signal data. If your rim
diameter is entered wrong, your speed will also be calculated wrong. Please
make sure that correct rim diameter is entered
Content View
8888.8
MILE
Km
ODO
TRIP
88
MPH
KM/H
