Vogelzang International BX42E Manuel utilisateur

VGZ-005 / 20100616 BX42E / Page 1

Vogelzang International Corp.

READ ALL INSTRUCTIONS CARE-

FULLY BEFORE STARTING THE

INSTALLATION OR OPERATING

THE STOVE. FAILURE TO FOLLOW

INSTRUCTIONS MAY RESULT IN

P R O PE R T Y DA M AG E , B O D I LY

INJURY, OR EVEN DEATH.

SAFETY INSTRUCTIONS

SAFETY NOTICE: IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE/BUILDING FIRE MAY

RESULT. FORYOUR SAFETY, CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT PERMITS,

RESTRICTIONS, AND INSTALLATION REQUIREMENTS FOR YOUR AREA.

READ ALL INSTRUCTIONS CAREFULLY.

1. The installation of this stove must comply

with your local building code rulings. Please

observe the clearances to combustibles (see

reference ﬁgures 1 & 2).

2. Do not install this stove in a mobile home,

manufactured home, trailer or tent

(NO EXCEPTIONS! per HUD Federal

Standard: 24 CFR Ch.XX).

3. Verify that the stove is properly installed

before ﬁring the stove for the ﬁrst time.

After reading these instructions, if you have

any doubt about your ability to complete

your installation properly, you must ob-

tain the services of a professional licensed

installer familiar with all aspects of safe

and correct installation. DO NOT use

temporary or makeshift compromises

during installation.

4. If any parts are missing or defective, please

notify the dealer or manufacturer immedi-

ately. DO NOT OPERATE A STOVE THAT

IS MISSING ANY PARTS!.

5. Do not tamper with combustion air control

beyond normal adjustment capacities.

6. Always connect this stove to a chimney and

vent to the outside. Never vent to another room

or inside a building. DO NOT CONNECT

THIS UNIT TO A CHIMNEY FLUE SERV-

ING ANOTHER APPLIANCE.

7. DO NOT CONNECT a wood burning stove

to an aluminum Type B gas vent. This is not

safe. Use approved masonry or a UL 103 HT

Listed Residential Type and Building Heat-

ing Appliance Chimney. Use a 6” diameter

chimney or larger, that is high enough to give

a good draft. (See speciﬁcs in installation

instructions).

8. Be sure that your chimney is safely con-

structed and in good repair. Have the chimney

inspected by the ﬁre department or a qualiﬁed

inspector. Your insurance company should be

able to recommend a qualiﬁed inspector.

Vogelzang International Corporation

400 West 17th Street

Holland, Michigan 49423

www.vogelzang.com

Phone: 1-616-396-1911

Fax: 1-616-396-1971

continued on next page

Deluxe BoxwooD stove

Model BX42E Owners Manual

(save this manual for future reference)

NOTE: THIS STOVE IS

NOT A UL LISTED STOVE.

DO NOT USE THIS STOVE IN A

MOBILE HOME, MANUFACTURED HOME,

TRAILER OR TENT – NO EXCEPTIONS!

Page 2 / BX42E VGZ-005 / 20100616

www.vogelzang.com

9. Creosote or soot may build up in the chimney

connector and chimney and cause a house/

building ﬁre. Inspect the chimney connector

and chimney twice monthly during the heating

season and clean if necessary. (See Chimney

Maintenance, page 10).

10. In the event of a chimney ﬁre, turn the air

control to closed position, leave the building

and CALL THE FIRE DEPARTMENT IM-

MEDIATELY! Have a clearly understood plan

on how to handle a chimney ﬁre by contacting

your local ﬁre authority for information on

proper procedures in the event of a chimney

ﬁre.

11. To prevent injury, do not allow anyone to use

this stove who is unfamiliar with the correct

operation of the stove.

12. Do not operate stove while under the

inﬂuence of drugs or alcohol.

13. Ashes should not be allowed to accumulate

higher than the optional grate. Dispose of ashes

in a metal container with a tight ﬁtting lid. Keep

the closed container on a noncombustible ﬂoor

or on the ground, well away from all combus-

tible materials. Keep the ashes in the closed

container until all cinders have thoroughly

cooled. The ashes may be buried in the ground

or picked up by a refuse collector.

14. The special paints used on your stove may

give off some smoke and an odor while

they are curing during the ﬁrst 12 to 15 ﬁres.

Additional smoke and odor may be emitted

from the light oils used in construction of the

ﬁre box. This should disappear after a short

period of time and not occur again. Persons

with lung conditions or owners of susceptible

domestic pets (such as birds) should take

prudent precautions. Open windows and

doors as needed to clear smoke and/or odor.

Paint discoloration will occur if the stove is

overﬁred.

15. This stove has a painted surface which

is durable but it will not stand rough handling

or abuse. When installing your stove, use care

in handling. Clean with soap and warm water

when stove is NOT hot. Do not use any acids

or scouring soap, as these solvents wear and

dull the ﬁnish.

SAFETY INSTRUCTIONS continued…

16. While stove is in operation, all persons,

especially young children should be alerted to

the hazards from high surface temperatures.

Keep away from a hot stove to avoid burns or

clothing ignition.

17. If small children will be in the same room

as the stove during operation, provide a

sturdy barrier to keep them at a save distance

from the stove. NEvER LEAvE sMALL

CHILDREN uNsuPERvIsED when they

are in the same room as the stove.

18. Keep stove area clear and free from all

combustible materials, gasoline, and other

ﬂammable vapors and liquids.

19. To prevent burns, always wear protective

clothing, leather hearth gloves and eye

protection, while tending the ﬁre.

20. While in operation, keep the feed door closed

and secured at all times except while tending

the ﬁre.

21. Do not overfire the stove. Overfiring will

occur if the feed door is left open during opera-

tion. Such actions can result in very dangerous

operating conditions.

22. All power cords and electrical appliances

and/or assemblies must be kept outside of the

clearance dimensions shown in this manual for

combustible materials.

23. For further information on using your stove

safely, obtain a copy of the National Fire

Protection Association (NFPA) publication,

“Using Coal and Wood Stoves Safely” NFPA

No. HS-10-1978. The address of the NFPA is

Batterymarch Park, Quincy, MA 02269.

NOTE: A PROFESSIONAL, LICENSED HEAT-

ING AND COOLING CONTRACTOR MUST

BE CONSULTED IF YOU HAVE QUESTIONS

REGARDING THE INSTALLATION OF THIS

SOLID FUEL BURNING APPLIANCE.

VGZ-005 / 20100616 BX42E / Page 3

Vogelzang International Corp.

ASSEMBLY INSTRUCTIONS

t o o l s r e q u i r e d

CAUTION: STOVE IS HEAVY. MAKE SURE YOU

HAVE ADEQUATE HELP AND USE PROPER

LIFTING TECHNIQUES WHENEVER MOVING

STOVE.

Refer to diagram and parts lists at back of this

manual.

1. Uncrate the stove and remove all packing ma-

terials and protective poly bag. (Save exterior

cardboard for further assembly.)

2. Remove parts from inside of stove. Parts

include: two lids (#9), one lid support (#10)

one damper collar (#12), one feed door (#6),

one lid lifter (#14), four legs (#1), hardware

pack (#15), and S-Hook (#16) from inside

the ﬁrebox.

3. Place ﬂattened carton on ﬂoor and carefully

turn stove over onto carton.

m a t e r i a l s r e q u i r e d

(NOTE: The following items are NOT included with your stove)

4. Attach the rear legs to base of stove with stove

bolts.

5. Attach hearth to front of stove and attach the

front legs to hearth with stove bolts supplied.

6. Carefully lift stove upright and place in de-

sired location (see following instructions for

properly locating stove).

7. Attach damper collar to rear top surface of stove

using stove bolts.

8. Place lid support and two lids in position on

swing top.

9. Lower feed door into position while aligning

hinge pins.

10. Place S-Hook in hole at left front corner of

hearth. NOTE: S-Hook is used to hang lid lifter

while not in use.

1/8” dia. Drill Bit

(sheet metal screws)

Screwdrivers

(blade and Phillips types)

5/16” Nut Driver or Ratchet

with 5/16” Socket (for 1/4”

Hex Nuts)

11mm Nut Driver or

Ratchet with 11mm Socket

(for Stove Bolts)

Safety Glasses

Hearth Gloves

Pencil

6 foot Folding Rule or

Tape Measure

Tin Snips

Drill: Hand or Electric

Flooring Protection: 48” x 74”

as speciﬁed (see page 3)

Chimney Connection: 6” black

steel (24 ga. min.) straight or

elbow (as required)

1/2” Sheet Metal Screws

Chimney: Existing 6” Lined Ma-

sonry Chimney or 6”Inside Dia.

listed Type HT chimney.

Furnace Cement (manufacturer

recommends Rutland Code 78

or equivalent)

NOTICE: Vogelzang International Corp. grants no warranty, stated or implied, for the installation or maintenance

of your wood stove and assumes no responsibility of any incidental or consequential damages.

LOCATING STOVE

Proper clearances must be maintained for adequate

air circulation. Adequate ventilation must be

provided while operating this stove.

1. The stove must be placed on solid con-

crete, solid masonry, or when installed on a

combustible ﬂoor, on a listed ﬂoor protec-

tor, such as Hy-C or Imperial Model UL

4874BK or equivalent. The base must extend

at least 18” beyond the front of the door, 18”

to the sides of the stove, and must extend

under the stove pipe if it is elbowed towards

a wall (see ﬁgure 1 and consult local building

codes and ﬁre protection ordinances.)

CAUTION: (FIRE HAZARD) CARPETING AND

OTHER COMBUSTIBLE MATERIAL MUST NOT

COVER THE FLOOR PROTECTOR. THESE

MATERIALS MUST REMAIN OUTSIDE OF

COMBUSTIBLE CLEARANCES, SEE FIG. 1- 2.

2. The stove must have its own ﬂue. DO NOT

CONNECT THIS UNIT TO A CHIMNEY

FLUE SERVING OTHER APPLIANCES.

3. After observing the clearances to combustible

materials (figure 1 & 2), locate your floor

protector accordingly (figure 1) and care-

fully place the stove in your selected location.

Install stove pipe, elbows, and thimble as

required, utilizing either a recently cleaned and

inspected 6” masonry chimney or a 6” i.d. listed

chimney. Maximum 64 square inches.

4. Use 6” round black stove pipe, not galvanized

stove pipe. Secure pipe sections with three (3)

sheet metal screws in each stove pipe and/or

elbow joint to ﬁrmly hold the pipe sections

together. DO NOT CONNECTTHIS STOVE

TO ANY AIR DISTRIBUTION OR DUCT

SYSTEM.

continued on next page

Page 4 / BX42E VGZ-005 / 20100616

www.vogelzang.com

5. Recheck clearances from the stove,

connector stove pipe, and corner clearances

using the illustrations (figure 1 & 2) and

your local building codes or ﬁre protection

ordinances.

NOTE: Drywall faced with brick or stone must

be considered a combustible surface.

6. Do Not iNstall this stove iN a mobile

home, maNufactureD home, trailer or

teNt – NO EXCEPTIONS! (HUD Federal

Standard: 24 CFR Ch.XX)

7. The clearances provided are minimum

dimensions determined by the NFPA. Instal-

lation of this stove must comply with the

latest edition of NFPA 211 for reduced clear-

ances and/or your local building code rulings.

Use whichever minimum dimensions are

LARGEST.

Failure to follow these minimum clear-

ance requirements may result in an unsafe

installation and could cause a ﬁre.

8. This stove is NOT a UL listed stove.

CAUTION: KEEP FURNISHINGS AND OTHER

COMBUSTIBLE MATERIALS AWAY FORM THE

STOVE.

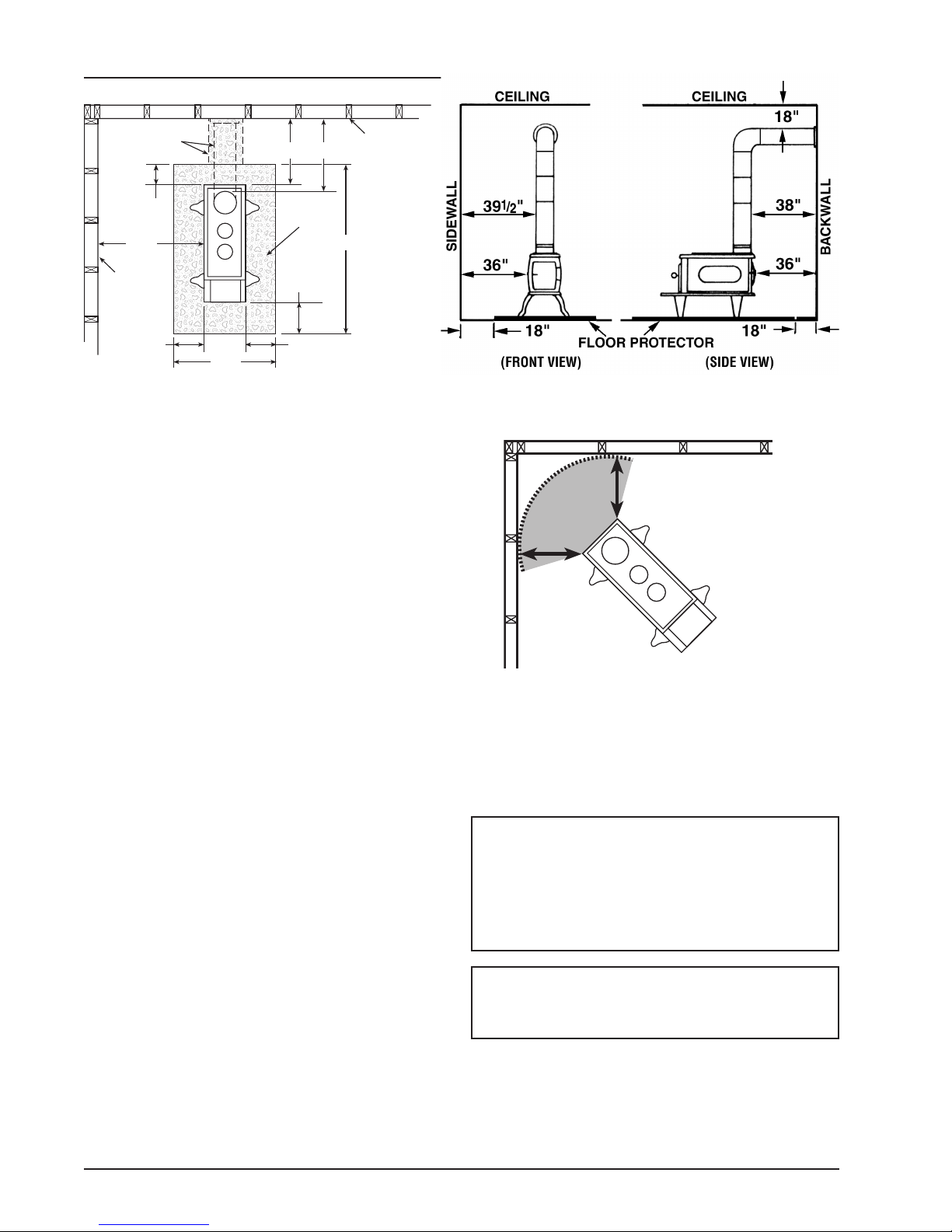

Fig. 2 – Top View

Minimum Corner Clearances from

Combustible Surfaces

36"

CORNER CLEARANCES

MINIMUM CLEARANCES

TO COMBUSTIBLE SURFACES

Unit to Sidewall ....................... 36 inches

Unit to Backwall ...................... 36 inches

Unit Corner to Wall .................. 36 inches

Pipe Connector to Backwall... 38 inches

Pipe Connector to Ceiling ...... 18 inches

ASSEMBLY INSTRUCTIONS continued…

Fig. 1 – Minimum Clearance Dimensions from Combustible Surfaces

COMBUSTIBLE

CONSTRUCTION

PER NFPA 211

FLOOR

PROTECTOR

DA SHED LINE SHOWS

HORIZONTAL CHIMNEY

CONNECTOR AND

ADDITIONAL FLOOR

PROTECTION REQUIRED

BACKWALL

48" (TOP VIEW)

36"

18"

18" 18"

38"

36" 74"

18"

SIDEWALL

COMBUSTIBLE

CONSTRUCTION

PER NFPA 211

VGZ-005 / 20100616 BX42E / Page 5

Vogelzang International Corp.

CONNECTOR PIPE INSTALLATION

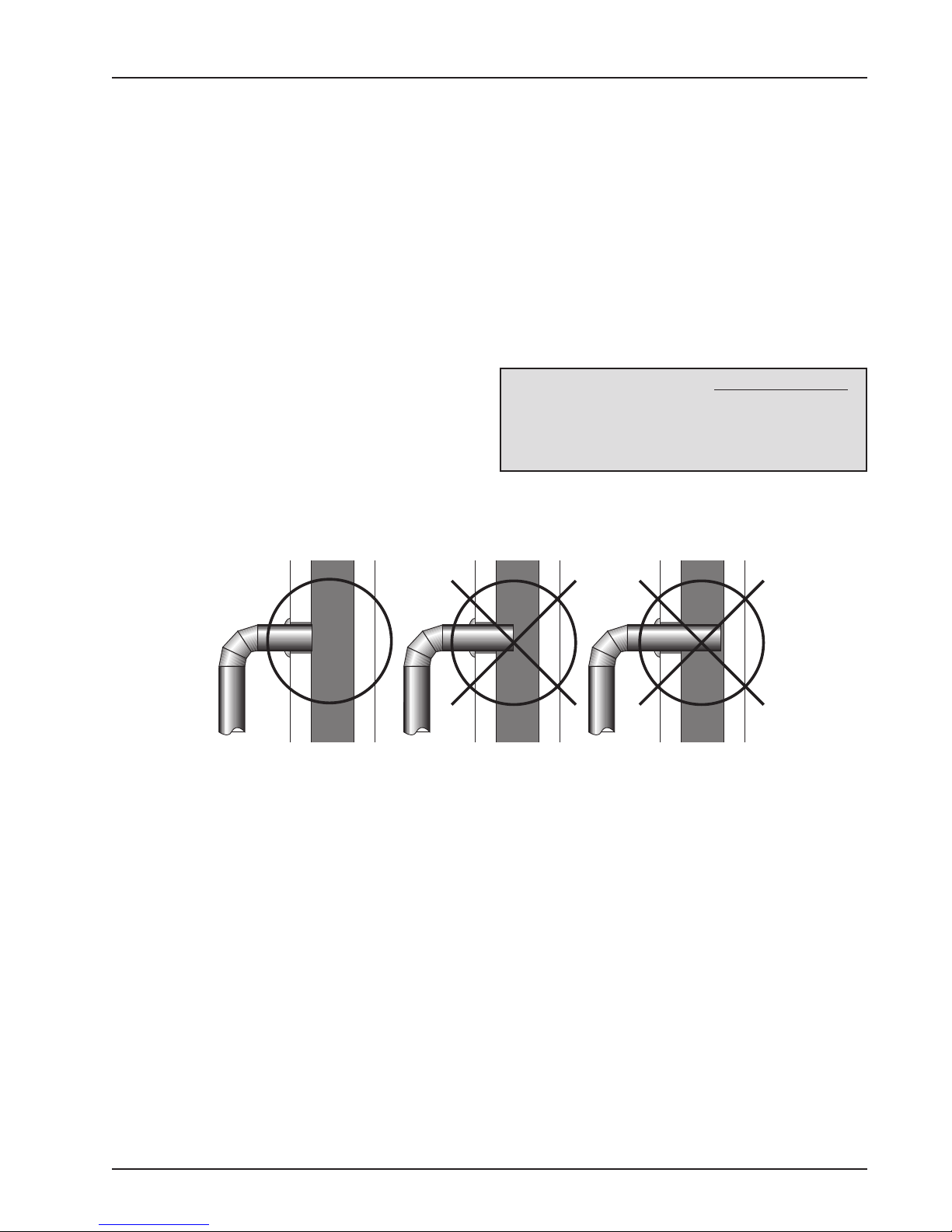

Fig. 3 – Stovepipe/Flue Connections

CORRECT WRONG WRONG

1. The smooth end of the stovepipe ﬁts over the

cast iron damper collar. Secure with three (3)

sheet metal screws.

2. Horizontal pipe runs must slope upwards

towards the chimney at least 1/4” per foot of

horizontal run.

3. You must have at least 18 inches of clearance

between any horizontal piping and the ceil-

ing.

4. The pipe cannot extend into the chimney ﬂue

(ﬁgure 3).

5. Secure pipe/elbow sections with three (3) sheet

metal screws at each joint to make the piping

rigid.

6. It is recommended that no more than two (2)

90° bends be used in the stovepipe installa-

tion. The use of more than two 90° bends may

decrease the amount of draw and possibly

cause smoke spillage. Where possible, use only

corrugated (nonadjustable) elbows. These

provide a better seal.

7. The connector pipe must not pass through an

attic or roof space, closet, or any concealed

space, or ﬂoor, ceiling, wall or combustible

construction. A UL 103 HT Listed chimney

must be used from the ﬁrst penetration of

ceiling or wall to the chimney cap. Never use

single wall connector pipe as a chimney - a

house ﬁre could result.

NOTE: STOVE PIPE IS NOT INCLUDED.

TO PURCHASE PIPE, VISIT YOUR LOCAL

HARDWARE, HOME OR BUILDING CEN-

TER. SEE “LOCATING STOVE” PAGE 3 FOR

ADDITIONAL SPECIFICATIONS.

Page 6 / BX42E VGZ-005 / 20100616

www.vogelzang.com

CHIMNEY CONNECTIONS

The stove must be connected to either a ma-

sonry or manufactured metal chimney built and

tested to the speciﬁcations listed on the previous

pages.

Chimneys perform two functions:

1). As a means of exhausting smoke and ﬂue

gases which are the result of fuel combustion.

2). The chimney provides “draft” which allows

oxygen to be continuously introduced into the

appliance, so that proper combustion is possible.

This stove relies on natural draft to operate.

NOTICE: Always provide a source of fresh air

into the room where the stove is located. Failure

to do so may result in air starvation of other fuel

burning appliances and the possible development

of hazardous conditions, ﬁre or death.

Your stove itself does not create draft. Draft is

provided by the chimney. To achieve proper draft

your chimney must meet the three minimum height

requirements detailed in ﬁgures 4–7. A minimum

of 0.05 w.c. (measured in water column) is required

for proper drafting to prevent back pufﬁng, smoke

spillage, and to maximize performance. (Gauges to

measure draft are readily available at stove stores

and are economical to rent or purchase.)

Factors such as wind, barometric pressure,

trees, terrain and chimney temperature can have

an adverse effect on the draft. The manufacturer

cannot be held responsible for external factors

leading to less than optimal drafting.

Should you have a problem with inadequate

draft, you should contact a licensed heating and

cooling contractor for assistance in solving the

problem.

IMPORTANT Installation Points

1. Size chimney ﬂue to stove collar. This stove

requires a 6” diameter ﬂue.

2. Never connect this unit to a chimney serv-

ing another appliance.

3. The chimney must meet all minimum

height requirements.

4. Never use a chimney to ventilate a cellar

or basement.

5. Contact your local building authority

for approved methods of installation and any

necessary permits and/or inspections.

MASONRY CHIMNEY

Before using an existing masonry chimney,

clean the chimney, inspect the ﬂue liner and make

any repairs needed to be sure it is safe to use. Make

repairs before attaching the stove. The connec-

tor stove pipe and ﬁttings you will need to con-

nect directly to a masonry chimney are shown in

ﬁgure 4.

Fig. 5 - Chimney Construction Through Attic Space

If the connector stove pipe must go through a

combustible wall before entering the masonry chim-

ney, consult a qualiﬁed mason or chimney dealer.

The installation must conform to local building and

ﬁre codes and latest edition of NFPA 211.

If there is a cleanout opening in the base of the

chimney, close it tightly.

CHIMNEY

FLUE

5/8" TILE

CHIMNEY

LINER

MASONRY

CHIMNEY

THIMBLE

COLLAR

6˝ ROUND

24 ga. BLACK

CONNECTOR

STOVEPIPE

8˝ MIN.

LINER

BELOW

ENTRY

HOLE

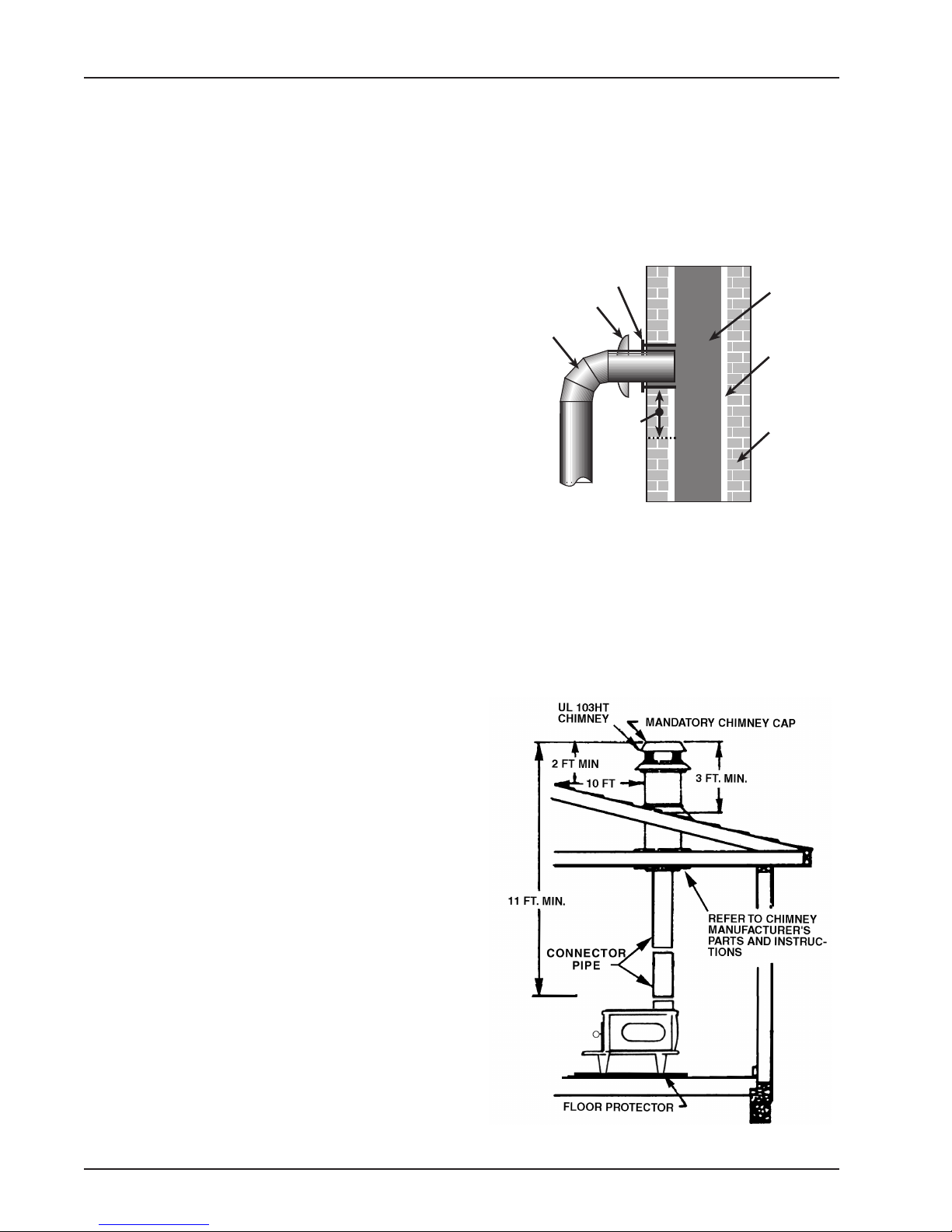

Fig. 4 - Masonry Chimney Connection

VGZ-005 / 20100616 BX42E / Page 7

Vogelzang International Corp.

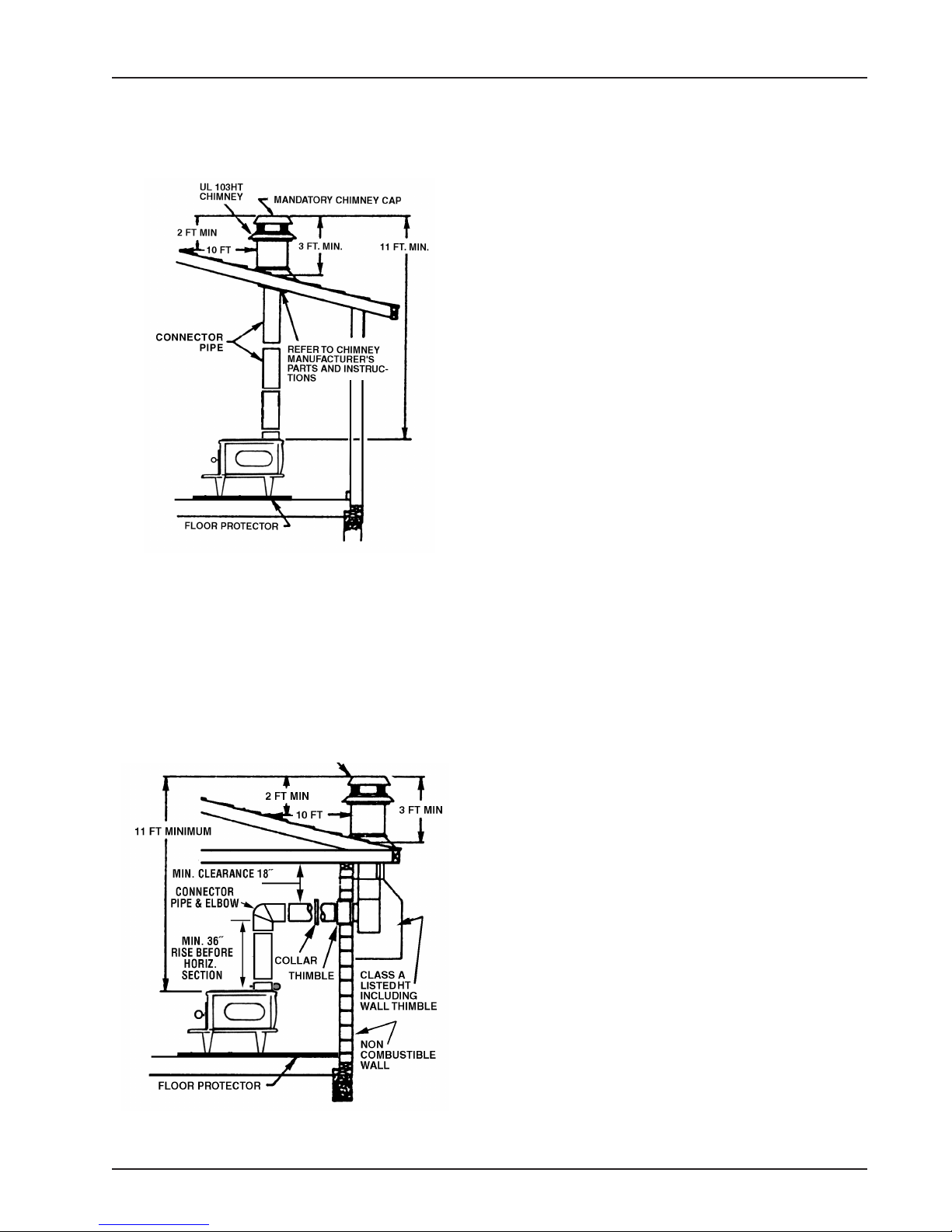

Fig. 6 - Chimney Construction Through Roof

Fig. 7 - Chimney Connection to Firebox

Through Masonry Wall

CHIMNEY CONNECTIONS continued …

MANUFACTURED CHIMNEY

REFER TO CHIMNEY AND CHIMNEY

CONNECTOR MAKER’S INSTRUCTIONS FOR

INSTALLATION AND USE.

Use only 6” diameter listed chimney UL 103

HT. Chimney made to this listing is High Tempera-

ture rated to 2100 degrees Fahrenheit. Use chimney

from only one manufacturer. Never mix brands.

Carefully follow the chimney manufacturer’s stated

requirements and clearances. Use the chimney

manufacturer’s attic guards, roof supports, ﬂashing

and ﬁre stops when passing through a ceiling. Use a

listed thimble when passing through a combustible

wall. Do not use makeshift compromises during

installation. Never use a single-wall connection

pipe as a chimney!

When using a pre-existing chimney, have it’s

condition and installation inspected before using.

Make sure that the chimney meets all of the UL

rating requirements listed above. Be aware that

not all manufactured chimney is of the UL 103

HT type.

NOTE: It is recommended that you contact a li-

censed heating and cooling contractor (consult your

local yellow pages) for chimney installation.

Manufactured chimney with the proper required

UL listing is available from most home centers,

hardware stores, and HVAC supply stores.

If you have access to the internet, you may

wish to view chimney manufacturers’ informa-

tion on-line. See, www.duravent.com, www.

selkirkinc.com, or www.mtlfab.com.

VENTING TO EXISTING FIREPLACE

In some instances, people desire to convert an

existing ﬁreplace for stove use. Usually, safe con-

nection to an existing masonry chimney requires

more work than using a prefabricated chimney.

The existing ﬁreplace must be closed and sealed at

the damper with high-temperature caulk, ceramic

wool, or furnace cement. Prior to installation, clean

and inspect the existing ﬂue and smoke shelf. In-

stallation should be designed so the system can be

dismantled for periodic cleaning and inspection.

Before conversion, make sure the existing chimney

is structurally sound, the chimney incorporates a

ﬂue liner and make sure it is in good condition.

(A ﬂue liner consists of clay tile that protects the

brickwork of a chimney. If a chimney does not

have a liner, or it is damaged, have it relined by

a professional. DO NOT USE a chimney that is

unlined or damaged!) If you have any question

regarding the condition of the chimney, consult a

qualiﬁed licensed contractor, qualiﬁed engineer,

competent mason, certiﬁed Chimney Sweep, or a

knowledgable inspector. Consult your insurance

company if you cannot ﬁnd a qualiﬁed expert.

Page 8 / BX42E VGZ-005 / 20100616

www.vogelzang.com

CHIMNEY CONNECTIONS continued …

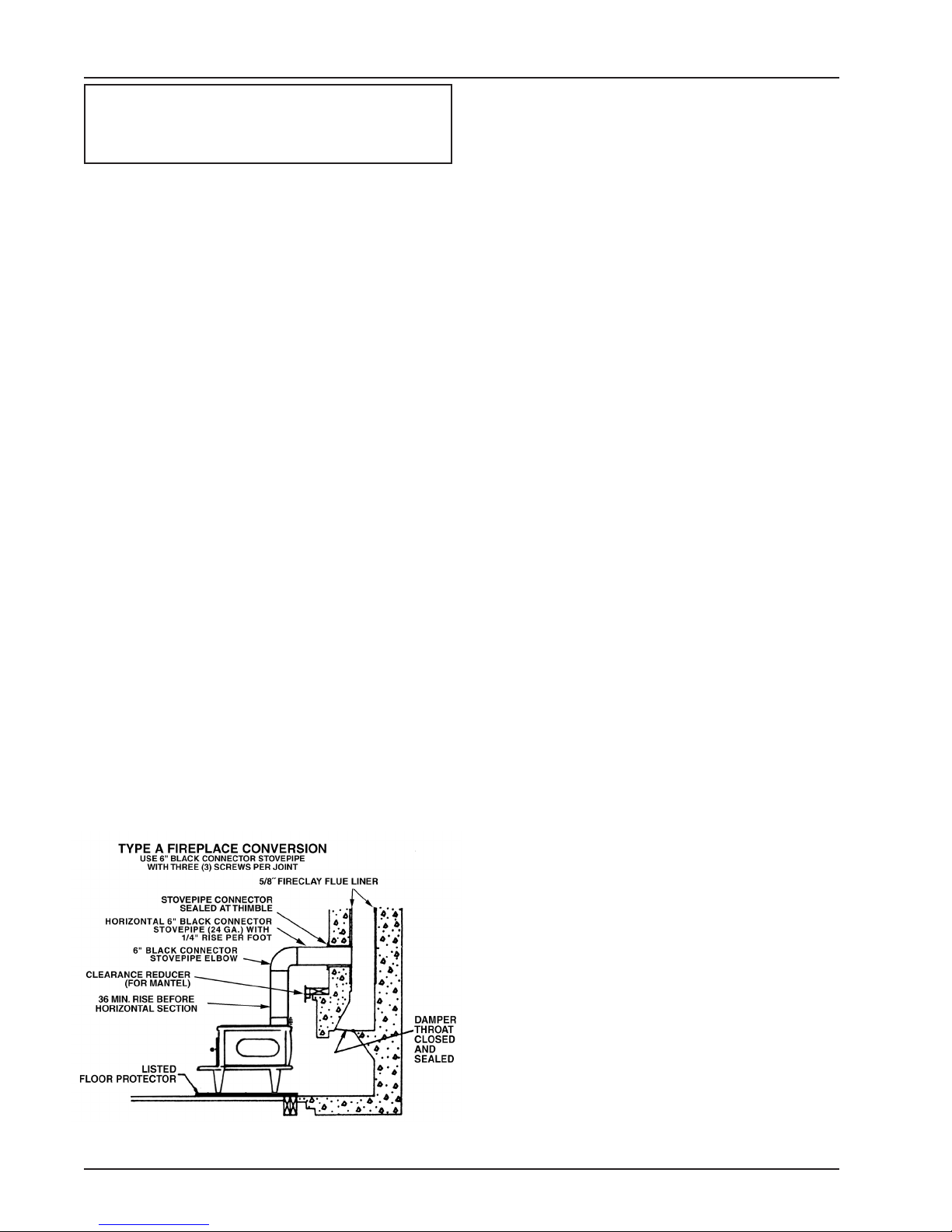

Fig. 8 - Fireplace Conversion

CAUTION: Not all ﬁreplaces are suitable

for conversion to a wood stove. Check

with a qualiﬁed expert.

Many prefabricated fireplaces are of the

“zero-clearance ﬁreplace” category. These consist

of multilayered metal construction. They are de-

signed with enough insulation and/or air cooling

on the base, back and sides so they can be safely

installed in direct contact with combustible ﬂoors

and walls. Although many prefabricated ﬁreplaces

carry endorsements from nationally recognized

organizations for use as ﬁreplaces, they have not

been tested for connection to wood stove heaters.

Connecting a stove to such a device will void the

manufacturer’s warranty.

Steel-lined fireplaces are constructed with

1/4” ﬁrebox liner, an air chamber in connection

with 8” of masonry. These can be safely used with

wood burning stoves. They contain all the essential

components of a ﬁreplace, ﬁrebox, damper, throat,

smoke shelf, and smoke chamber. Many look iden-

tical to masonry ﬁreplaces and should be checked

carefully before connecting a stove to them.

Venting a stove directly into a ﬁreplace does

not meet code and should not be attempted. (This

constitutes connection to another appliance - the

ﬁreplace.) Combustion products will be deposited

and build up in the ﬁrebox or ﬁreplace. The stove

warranty will be void with such an installation. Do

not create a hazard in your home by connecting in

this manner.

FIREPLACE INSTALLATION

Directly connecting the stovepipe into the exist-

ing masonry chimney (ﬁgure 12 “Type A” ﬁreplace

conversion) of the ﬁreplace is the only approved

method of installation. This is a complicated and

involved process and to insure safety should only

by done by a qualiﬁed installer.

1. An entry hole must be cut through the masonry

and tile liner with minimal damage to the liner.

At least 8” of liner must remain below the entry

position. When locating the stove and stove-

pipe, all minimum clearances must be observed

from combustible surfaces including mantels,

combustible trimwork, ceilings and walls.

Positioning the center of the stove pipe entry

into the chimney 24” below the ceiling should

insure proper clearance for a 6” stovepipe.

2. Install a metal or ﬁre clay (5/8” minimum thick-

ness) thimble. Make sure the thimble is ﬂush

with the inner surface of the chimney liner and

does not protrude into the ﬂue (see ﬁgure 4 on

page 6).

3. Secure the thimble with refractory mortar. The

thimble should be surrounded by 8” of solid

unit masonry brickwork or 24” of stone.

4. Install the stovepipe into the thimble as far as

possible without extending past the ﬂue lining

(see ﬁgures 4 on page 6).

5. A small airspace (about 1/2”) should remain

between the stovepipe and thimble to allow for

expansion of the pipe. Seal this airspace with

high-temperature caulking or ceramic wool.

6. Secure and seal the damper in the closed posi-

tion using high-temp caulking, ceramic wool,

or furnace cement. Also check to see if the

chimney has a cleanout. If it does, make sure it

is closed and sealed as well. A leaky cleanout

will greatly reduce draft efﬁciency.

If you have any questions regarding venting

your stove, contact the manufacturer or contact

the National Fire Protection Association (NFPA)

and request a copy of the latest editions of NFPA

Standard 211 and NFPA Standard 908. Their ad-

dress is:

Battery March Park, Quincy, MA 02269.

VGZ-005 / 20100616 BX42E / Page 9

Vogelzang International Corp.

OPERATING INSTRUCTIONS

This stove is designed to burn

WOOD FUEL ONLY.

Hardwood, 20” to 24” should be split and air

dried (seasoned), for 6 months to obtain maximum

burning efﬁciency. Wood should be stored in a dry,

well ventilated area.

NOTICE: USE SOLID WOOD MATERIALS ONLY.

DO NOT BURN GARBAGE OR FLAMMABLE

FLUIDS. DO NOT USE COAL AS COAL OR

CHARCOAL WILL DESTROY THE GRATE AND/

OR THE FIREBOX.

NOTE:A 2”layer ofsandora layerofﬁrebrick

should be used as bottom insulation in the

Boxwood stove. An optional cast iron grate,

42G, may be used instead of ﬁrebrick or

sand. See Accessory Sheet included with

this manual for ordering information.

LIGHTING

1. Open draft damper fully to provide maximum

draft.

2. Open the feed door and place several wads of

crushed paper in the ﬁrebox.

3. Lay small stacks of kindling on the paper to

start the ﬁre.

4. Light the paper and kindling, close the door

and secure tightly.

5. Add fuel after ﬁre is burning briskly. Use care

not to smother the kindling ﬁre when adding

wood. Close the door and secure tightly.

6. Adjust the draft damper and spin draft

control. The more closed the spin draft is set,

the lower and slower the ﬁre will burn. The

more open, the faster and hotter the ﬁre will

burn. Do not overﬁre the stove.

ADDING FUEL

Add small amounts of fuel each hour or so

instead of piling large quantities of fuel at one

time. This will insure a more complete combustion

process and less buildup of tars, soot, or creosote

will occur in the chimney.

1. Always open draft damper before opening the

feed door.

continued on next page

CAUTION: HOUSE FIRE HAZARDS

• DonotstorewooDonfloorprotec-

TOR, UNDERNEATH STOVEPIPE OR ANY-

WHEREWITHIN MINIMUM CLEARANCES FROM

COMBUSTIBLE SURFACES SPECIFIED FOR

THIS STOVE.

• overfiring may cause a house fire.

YOU ARE OVER FIRING IF THE STOVE OR

CHIMNEY CONNECTOR GLOWS RED.

WARNING: EXPLOSION HAZARD

• neverusechemicals,gasoline,gas-

OLINE-TYPE LANTERN FUEL, KEROSENE,

CHARCOAL LIGHTER FLUID, OR SIMILAR

FLAMMABLE LIQUIDS TO START OR “FRESH-

EN-UP” A FIRE IN THE STOVE.

• Keep all flammable liquiDs, espe-

CIALLY GASOLINE, OUT OF THE VICINITY

OF THE STOVE — WHETHER IN USE OR IN

STORAGE.

OPERATING SAFETY PRECAUTIONS

1. NEVER OVER FIRE THIS STOVE BY BUILD-

ING EXCESSIVELY HOT FIRES AS A HOUSE/

BUILDING FIRE MAY RESULT. YOU ARE OVER

FIRING THE STOVE IF STOVE OR STOVEPIPE

BEGINS TO GLOW OR TURN RED.

2. NEVER BUILD EXTREMELY LARGE FIRES

IN THIS TYPE OF STOVE AS DAMAGE TO THE

STOVE OR SMOKE LEAKAGE MAY RESULT.

3. STOVE IS HOTWHILE IN OPERATION. KEEP

CHILDREN, CLOTHING, AND FURNITURE AWAY

FROM HOT STOVE.CONTACT MAY CAUSE SKIN

BURNS. DO NOT TOUCH THE STOVE AFTER

FIRING UNTIL IT HAS COOLED.

4. PROVIDE AIR INTOTHE ROOM FOR PROP-

ER COMBUSTION.

5. INSPECT STOVEPIPE EVERY 60 DAYS.

REPLACE IMMEDIATELY IF STOVEPIPE IS

RUSTING OR LEAKING SMOKE INTO THE

ROOM.

Page 10 / BX42E VGZ-005 / 20100616

www.vogelzang.com

OPERATING INSTRUCTIONS continued …

2. When adding fuel be careful not to smother

the ﬁre.

3. Close the feed door and secure tightly.

4. Adjust the damper and spin draft control.

5. Empty ashes regularly. Do not allow ashes

to pile up higher than the top of the hearth (see

Safety Instructions #13 page 2). If ashes build

up to the grate, burnout will occur.

6. Properly dispose of hot ashes (see Safety

Instructions, item #13 on page 2.)

7. Do not over ﬁre the stove.

CAUTION: DO NOT OVER FIRE APPLIANCE.

TOO MUCH WOOD OR BURNING NON-REC-

OMMENDED MATERIALS SUCH AS TRASH OR

FLAMMABLE LIQUIDS MAY CAUSE OVER FIR-

ING. YOU ARE OVER FIRING IF THE CHIMNEY

CONNECTORS OR STOVE GLOWS RED. CLOSE

THE DOOR, SPIN DRAFT AND DAMPER IMME-

DIATELY TO REDUCE THE AIR SUPPLY TO THE

FIRE. THIS WILL SLOW DOWN THE FIRE.

MAINTENANCE & SERVICE HINTS

ASH DISPOSAL – Do not allow ashes to

accumulate higher than the optional grate or spin

damper. Dispose of properly. (See Safety Instruc-

tions #13, page 2.)

CHIMNEY DRAFT – Draft is a function of

the chimney, not the stove — do not expect the

stove to draw. Smoke spillage into the house or

excessive buildup of condensation or creosote in

the chimney are warnings that the chimney is NOT

functioning properly. Correct the problem before

using the stove. Following are some possible causes

for improper draft.

1. The connector stovepipe may be pushed

into the chimney too far, stopping the draft.

2. If the chimney temperature is too cool,

water will condense in the chimney and run back

into the stove. Creosote formation will be rapid

and may block the chimney. Operate the stove at a

ﬁre level high enough to keep the chimney warm

to prevent condensation from forming.

3. If the ﬁre burns well but sometimes creates

excess smoke or burns slowly, it may be caused by

the chimney top being lower than another part of

the house or a nearby tree. The wind blowing over

a house or tree, falls on top of the chimney like

water over a dam, beating down the smoke. The

top of the chimney should be at least three (3) feet

above the roof and be at least two (2) feet higher

than any point of the roof within ten (10) feet.

CREOSOTE – Formation and Removal.

Slow-burning wood produces tar and other organic

vapors which combine with expelled moisture to

form creosote. Creosote vapors condense in the

relatively cool chimney ﬂue of a slow-burning

ﬁre. As a result, creosote residue accumulates on

the ﬂue lining. If ignited, this creosote creates an

extremely hot ﬁre which may ignite surrounding

materials resulting in a building ﬁre.

If creosote has accumulated, it should be

removed. Failure to remove creosote may result

in ignition and may cause a house/building ﬁre.

Creosote may be removed using a chimney brush

or other commonly available materials from your

local hardware retailer.

continued on next page

CAUTION: SLOW BURNING FIRES AND

EXTENDED USE MAY CAUSE EXCES-

SIVE CREOSOTE BUILDUP. IGNITION OF

CREOSOTE BUILDUP OR OVER FIRING MAY

CAUSE A CHIMNEY FIRE. CHIMNEY FIRES

BURN EXTREMELY HOT AND MAY IGNITE

SURROUNDING MATERIALS. IN CASE OF A

CHIMNEY FIRE IMMEDIATELY LEAVE THE

BUILDING AND CALL THE FIRE DEPARTMENT

FROM A SAFE LOCATION.

Autres manuels pour BX42E

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vogelzang International Poêle

Vogelzang International

Vogelzang International VG150 Manuel utilisateur

Vogelzang International

Vogelzang International VG5713 Manuel d'exploitation et d'entretien

Vogelzang International

Vogelzang International Lit'l Sweetie BX22EL Manuel utilisateur

Vogelzang International

Vogelzang International VG5717-P Manuel d'exploitation et d'entretien

Vogelzang International

Vogelzang International BK150E Manuel utilisateur

Vogelzang International

Vogelzang International Sentry Coal VG810CL Manuel utilisateur

Vogelzang International

Vogelzang International PB65XL Manuel utilisateur

Vogelzang International

Vogelzang International VG450EL Manuel utilisateur

Vogelzang International

Vogelzang International BX26E Manuel utilisateur

Vogelzang International

Vogelzang International VG130 Manuel d'exploitation et d'entretien

Vogelzang International

Vogelzang International VG5770 Manuel utilisateur

Vogelzang International

Vogelzang International BX26E Manuel utilisateur

Vogelzang International

Vogelzang International Lit'l Sweetie BX22EL Manuel utilisateur

Vogelzang International

Vogelzang International VG2020-P Manuel d'exploitation et d'entretien

Vogelzang International

Vogelzang International BK100E Manuel utilisateur

Vogelzang International

Vogelzang International Sentry Coal VG810CL Manuel utilisateur

Vogelzang International

Vogelzang International VG60 Manuel d'exploitation et d'entretien

Vogelzang International

Vogelzang International Sentry Coal VG810CL Manuel utilisateur

Vogelzang International

Vogelzang International VG5790 Manuel d'exploitation et d'entretien

Vogelzang International

Vogelzang International VG5722 Manuel d'exploitation et d'entretien

Manuels Poêle populaires d'autres marques

Arada

Arada Cassette Stove Manuel utilisateur

Parmco

Parmco FS 600 Manuel utilisateur

MCZ

MCZ SUITE AIR 10 M2 Manuel utilisateur

HearthStone

HearthStone Stowe DV 8321 Guide de dépannage

Cattara

Cattara FAMILY Manuel utilisateur

Stanley

Stanley Argon F500 OVAL Manuel utilisateur

Avalon

Avalon B-VENT Manuel utilisateur

Nordpeis

Nordpeis Vega Manuel utilisateur

Exquisit

Exquisit EKC601-5 Manuel d'utilisation

Stanley

Stanley Oisin Oil MK II Manuel du propriétaire

Thermocet

Thermocet Brookfield S/CC Manuel utilisateur

HASE

HASE delhi Manuel utilisateur

Vermont Castings

Vermont Castings Intrepid 2 Manuel utilisateur

Italiana Camini

Italiana Camini CLASSICA Guide de démarrage rapide

Avalon

Avalon Vashon Avanti DVS FS Manuel utilisateur

Spartherm

Spartherm ambiente a1 Manuel utilisateur

Dimplex

Dimplex MCFSTV12AU Manuel utilisateur

Warmlite

Warmlite WL46040 Manuel utilisateur
