VMI X-Viber Manuel utilisateur

Version 1.00

VMI AB 28 August 2006

Manual

with X-Viber

Single Plane Balancing

Press firmly the ON/OFF or ESCAPE or OK button until the instrument starts.

Move the black line with the Up or Down buttons to Measurements and press the

OK button.

Move the black line with the Up or Down buttons to Single plane bal. and press the

OK button.

Before we start to balance we have to make some settings in the Set Up window.

Move the black line with the Up or Down buttons to Balancing Setup and press the

OK button.

Single Plane Balancing

Move the black line to Unit:

Press the side arrow buttons to select the

preferred unit.

METRIC: mm/s, um, mm, m/s, g

IMPERIAL: in/s, mils, thou, g

Move the black line to Frequency:

Press the side arrow buttons to select the

preferred unit RPM or HZ.

Move the black line to Weight(gr):

Here you can select the default size

of the trial weight.

Press the side arrow buttons to

increase or decrease the value. The weight

can also be changed at a later stage.

Move the black line to Weight angle:

Here you can select the angular position of

the trial weight.

Press the side arrow buttons to

increase or decrease the value. Note, you must

place the trial weight in the selected angle.

Move the black line to Auto-save:

Press the side arrow buttons to

select ENABLE or DISABLE. In Enable mode

the X-Viber will automatically finish and store

the measured value.

Move the black line to Auto-advance:

Press the side arrow buttons to

select YES or NO.

If YES is selected X-Viber will automatically

move to the next step in the balancing procedure.

Single Plane Balancing

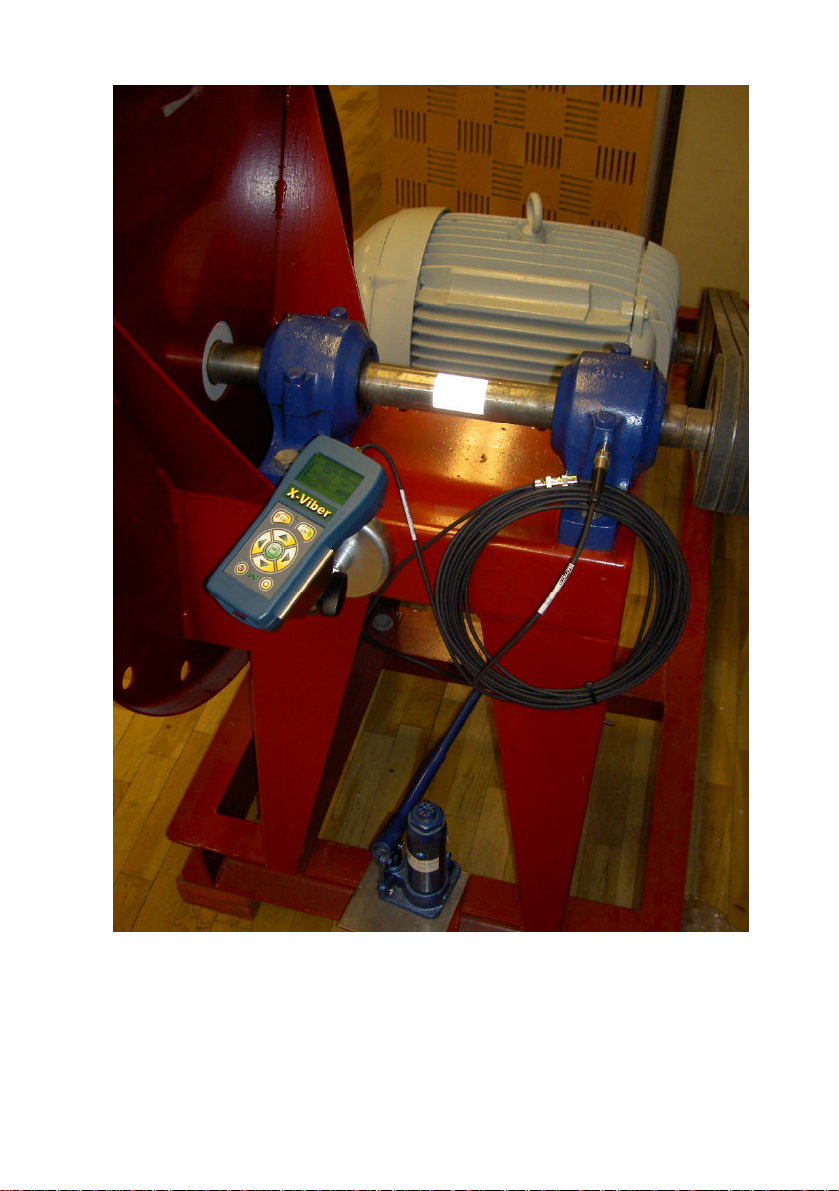

Hardware installation

1. Put a piece of the reflective tape on the shaft.

2. Insert X-Viber into the magnetic holder and direct the rpm sensor towards the

reflective tape. The distance between the X-Viber and the reflective tape should

at least be 200mm. Tighten the locking screw.

3. Mount the vibration transducer on the bearing and in the direction where you

have the highest vibration caused by unbalance.

4. Use the extension cable if the measuring distance is longer than 1m.

5. If the X-Viber has difficulties to measure the speed then put the instrument in an

angle towards the reflective tape as in the picture above and try to increase the

distance between the X-Viber and the tape.

If the instrument is measuring the speed at low but not at high speeds the reflex

tape is probably too small.

Single Plane Balancing

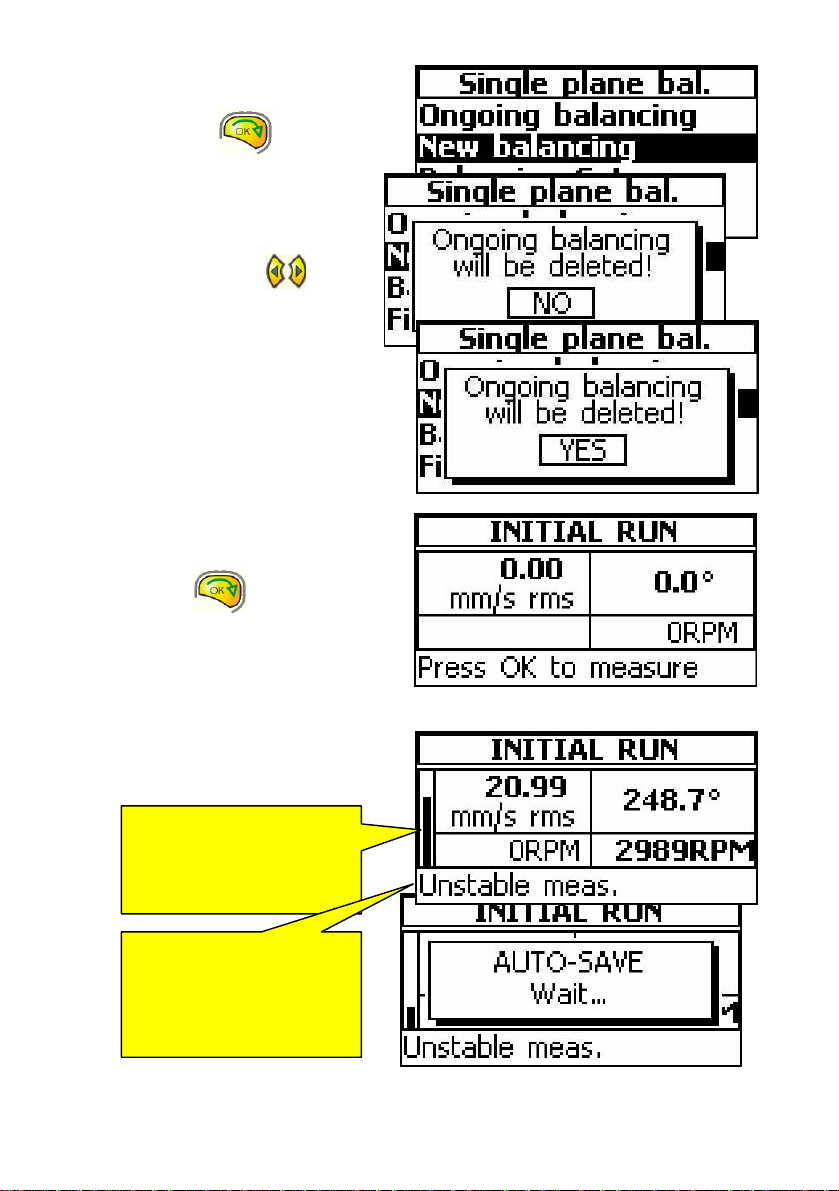

Move the line to New balancing

and press the OK button.

Note!

This message will appear.

If you answer NO you cannot start

a new balancing.

Press the side arrow buttons

to change from NO to YES then

press the OK button.

Note! When you select YES the

existing ongoing balancing will be

deleted.

The new balancing round has started.

Start the machine and select your

balancing speed.

Press the OK button and

X-Viber starts to measure.

Adjust the X-Viber on the magnet holder

until you get a stable rpm value and

tighten the locking screw again.

This window is shown, when X-Viber

is measuring.

This black bar is showing

the stability of the

measurement.

Do not press the OK button

until it is low.

This

message is showing

the same thing. In Auto-

Advance mode X-Viber will

move to the next step

when this message

disappear

Single Plane Balancing

This window is shown when X-Viber has finished and stored the measurement.

Press the OK button, if you want to repeat this measurement.

Press the right Side arrow button if you want to continue balancing.

Now it is time to tell the X-Viber about

the size of the trial weight.

You can increase or decrease the size of the trial weight with the Up or Down

buttons.

Start the machine and press the OK button to start the measurement.

This

part shows

the vibration level.

This

part shows the

angle of

the vibration.

This

part

shows the

machine speed.

This

part shows the

angle for the trial

weight.

This value comes from the default

values you made in the Settings menu.

This

part sho

ws the

size of

the trial weight.

This value comes from the

default values you made in

the Settings menu.

If you select to mount the trial weight at 0 (zero) then

ou can mount

the trial weight wherever you want, but you must name this direction

0 (zero). All new angles will refer to this direction.

Single Plane Balancing

X-Viber starts to measure.

If the speed deviation is too large the

message “Incorrect speed” will appear.

If the Auto-save function is activated

X-Viber will automatically save the

measurement, when the value is

sufficiently stable.

X-Viber is now presenting all the

data for this measurement.

Press the right Side arrow button if you want to continue.

When the measurement is finished

and saved this message will appear.

First, make a mark in the rotor close to

the trial weight indicating 0 (zero)

degrees.

Second, remove the trial weight!!!!!!!

This

part

shows

the machine

speed at the

Initial run.

This

part shows

the present

machine speed.

You

must adjust the

machine speed to be close

to the speed at the initial

run, because the speed

itself will influence the

vibration level.

the

message “Weight

too small” appears, you

must stop the machine

and increase the trial

weight and measure

again.

Single Plane Balancing

X-Viber is now showing the size and

angular position of the balancing weight.

Mount the balancing weight in the rotor.

Start the machine and press the

OK button to start the measurement

with the balancing weight installed.

Press the right Side arrow

buttons or the OK button,

if you want to continue.

This window shows the additional weight

you have to install in the rotor if you like

to further improve the balancing status.

This procedure can be repeated several

times.

The improvement shows how much lower

the vibration is now compared with the

Initial values

This

part shows

the size of the

balancing weight.

The unit can be

changed with

AUX button.

This

part shows

the angular

position for the

balancing weight.

Note!

The angle is always

measured against rotation

starting at 0 (zero).

Note

The radius the balancing

weight must be the same as

for the trial weight.

Note!

The unit for weight in X-Viber is grams but you can disregard this unit.

If you for example enter the size of the trial weight in ounce you will

also get size of the balancing weight in ounce.

Single Plane Balancing

Saving the balancing

Press the Escape button to

exit the balancing function or

press the right Side arrow

button to change to Yes and then

press the if OK button.

Move the black marker line to Files and

press the OK button.

There are 10 memory locations 0-9 where

You can save a balancing route.

X-Viber is automatically selecting the

first available free location in the memory.

You can change to another number with

the Side arrow buttons.

Press the OK button to save the

balancing.

This

information

shows th

at the

selected location is free for storage.

This

information

shows

the date and time

when this balancing round was stored.

This

mark

shows

that this location is

reserved and

contains balancing

information.

Note!

When storing a new balancing on an ocupied location the old balancing will be lost.
