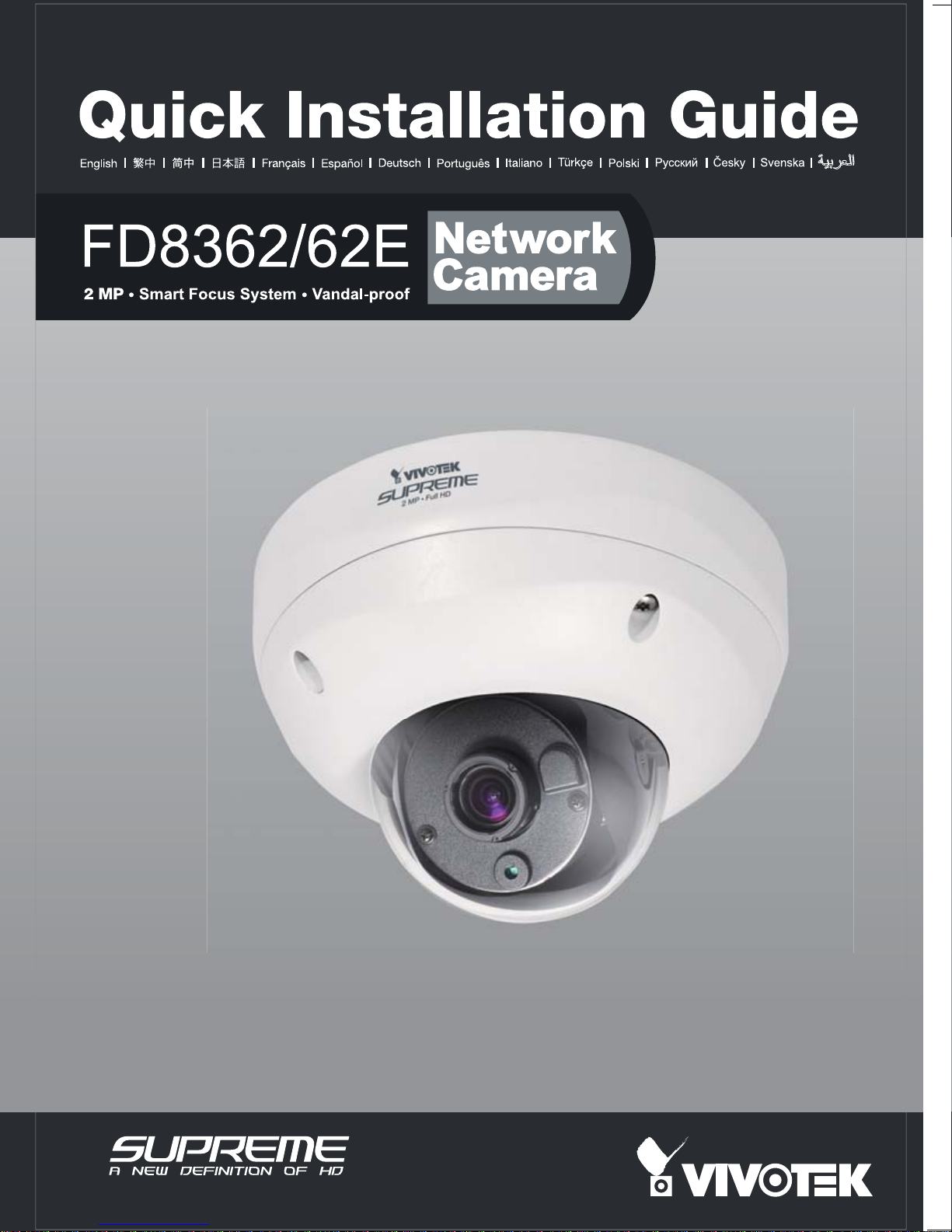

Vivotek Supreme FD8362 Manuel utilisateur

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Contact your distributor in the event of

occurrence.

Refer to your user's manual for the

operating temperature.

Warning Before Installation

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not insert sharp or tiny objects

into the Network Camera.

Do not drop the Network Camera.

EN - 2

Software CD

FD8362/62E

Quick Installation Guide /

Warranty Card

Alignment Sticker /

Ceiling Hole Template Sticker

Mounting Plate

Package Contents

L-type Hex Key Wrench / Silica Gel /

Screws / Hex Nut / DC Power Cable /

Double-sided Tape

Waterproof Connector & Bushing DC Power Adapter (Optional, for

indoor use only)

EN - 3

English

Light Sensor

Physical Description

Inner View

Ethernet 10/100

RJ45 Socket

Audio/Video

Out (green)

Microphone In

(pink) General I/O Terminal

Block

Operating environment: -40° ~ 55°C

When the temparature inside the Network Camera

drops to 0°C, the heater will operate automatically.

Heater

Vari-focal Lens

Tilt Adjustment Screw

Jumpers

Microphone Video Output

Internal

External

NTSC

60Hz

PAL

50Hz

Micro SD/SDHC Card Slot

Reset

Button

Black Cover

NOTE: The heater is only available on

FD8362E.

EN - 4

Outer View

Record the MAC address

under the camera base

before installing the camera.

Replace the side opening cover with the

included side outlet bushing if you want to

route cables from the side of camera. The

1/2" protection conduits and tubing are

separately purchased.

IP66-rated Vandal-proof

Dome Cover Mounting Plate

EN - 5

English

First, use the included T20 hex key wrench to loose the four screws and detach the dome cover from the

camera base. Follow the steps below to install the camera either to a ceiling or a wall.

Hardware Installation

Top View

Dome Cover

Dome Cover Retainer

Connect power lines and if you have external devices such as sensors and alarms, make the connection

from the general I/O terminal block.

87654321

Cabling Assembly

Pin Denitions

1 DC 12V-

2 DC 12V+

3 AC 24V_2

4 AC 24V_1

5 DI- (GND)

6 DI+

7 DO-

8 DO+ (12V)

For Ethernet

Cable For Power & IO Cables

Top View

Power and IO cables pass through a waterproof connector. The

Ethernet cable should be routed through a rubber seal plug. All

cables are user-supplied.

IMPORTANT! Dome cover should be removed because if it should fall during the installa-

tion process, physical injury could occur to your co-workers.

The max. output load from pins #7

and 8 is 400mA.

NOTE:

EN - 6

1. Disassemble the components of the waterproof

connector into parts (A) ~ (F) as shown above.

2. Place the screw nut (E) on the Power and GPIO

opening.

3. Feed the power cables through the waterproof

connector (F --> E --> D --> B --> A) as the

illustration shows. Then connect the power

cables to the power source. Note: There are 8

holes on the seal (D), and the widest holes with

a crack on the side are specic for power cables.

4. If you have external devices such as sensors

and alarms, feed the cables through the

Assembling Steps

Sealing Nut (A)

Housing (B)

Seals (C)

Seal (D)

Screw Nut (E)

Hex Nut (F)

Waterproof Connector

(A)

(B)

(D)

(E)

(F)

waterproof connector (F --> E --> D --> B -->

A) as previously described. Refer to the pin

definition to connect them to the general I/O

terminal block. Note: The recommended cable

gauge is 2.0 ~ 2.8 mm.

5. Push the seal (D) into the housing (B).

6. Insert the seals (C) into unused holes on the

seal (D) to avoid moisture.

7. Secure the sealing nut (A) tightly and hex nut

(F) from the bottom of the camera.

RJ45 Cable Dimension (unit: mm)

2. Strip part of the sheath from the

Ethernet cable.

1. Drill a hole on the rubber seal

plug and insert an Ethernet cable

through the opening.

Rubber Seal

Plug

Assembling Steps

Recommended cable gauge: 24AWG (0.51 mm)

Connecting RJ45 Ethernet Cable

EN - 7

English

o: white/orange stripe

O: orange solid

g: white/green stripe

B: blue solid

b: white/blue stripe

G: green solid

br: white/brown stripe

BR: brown solid

3. You will need an RJ45 crimping tool to

attach the Ethernet wires to a connector.

When done, connect the cable to the

camera’s Ethernet RJ45 socket.

4. Press the Ethernet cable into the routing path at

the bottom of the camera so that the cable will not

get in the way when the metal mounting plate is

attached.

Ceiling mount

1. Attach the supplied alignment sticker to the ceiling.

2. Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the

ceiling. Then hammer the four supplied plastic anchors into the holes.

3. Through three or four holes on the mounting plate, insert the supplied screws into the corresponding

holes and secure the mounting plate with a screwdriver.

4. Feed the cables through the triangular cutout A or side opening B. If you want to use hole B, remove

the side cover using a screwdriver. Secure the camera base to the mounting plate with three supplied

screws.

5. Remove the black cover.

Black Cover

EN - 8

Wall mount

1. Attach the supplied alignment sticker to the wall.

2. Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the

wall. Then hammer the four supplied plastic anchors into the holes.

3. Through three or four holes on the mounting plate, insert the supplied screws into the corresponding

holes and secure the mounting plate with a screwdriver.

4. Feed the cables through the triangular cutout A or side opening B. If you want to use hole B, remove

the side cover using a screwdriver. Secure the camera base to the mounting plate with three supplied

screws.

5. Remove the black cover.

Black Cover

EN - 9

English

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE Switch

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Eth-

ernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch

via Ethernet cable.

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

Network Deployment

1. Connect RJ45 Ethernet cable to a switch.

Use a Category 5 Cross Cable when your

network camera is directly connected to PC.

2. Connect either the DC or AC cables from

the terminal block. The IO cables are user-

supplied.

Ethernet

Non-PoE Switch

Pin 1

Pin 2

Pin 3

Pin 4

DC 12V

AC 24V±10%

Black

Red

General Connection (without PoE)

1. This equipment is only to be connected to PoE

networks without routing to outside plants.

2. For PoE input connections, use only UL listed I.T.E.

with PoE output.

NOTE:

1. The DC power adaptor, if used, should

comply with: O/P: 12V DC, 1.5A min.,

L.P.S. certied.

2. Pin #3 & 4 AC 24V as alternate power are

for indoor use only

NOTE:
