Vivotek SD83X4E Manuel utilisateur

EN-1

English

Warning Before Installation

Refer to your user’s manual for the

operating temperature.

Power off the Network Camera as soon as

smoke or unusual odors are detected.

Do not touch the Network Camera during

a lightning storm.

Do not disassemble the Network Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects into the

Network Camera.

Do not manually pan and tilt the Network

Camera when the power is on.

Package Contents

Software CD / Warranty Card

Wall Mount Bracket / Screws

SD83x4E/83x6E

Screws / Alignment Sticker / T25

Stardriver / Desiccant Bags

Waterproof Connectors / Terminal Blocks /

Ethernet Cable / Ground Wire

Quick Installation Guide PC/ABS / Smoked Dome Cover / IO Cable

(Separately Purchased)

EN-2

Inner View

Board-to-board

Connector

Lens

Outer View

Physical Description

Ethernet 10/100

RJ45 Plug

General I/O

Terminal Block

SD/SDHC/SDXC Card Slot

Ethernet

DI GND

DI4

DI3

DI2

DI1

DO2

DO1

DO+(12V)

AC24V

Reserved

MIC IN

RS485-

RS485+

Status LED

Network LED

Reset Button

Interface Section

Camera Body

This drawing shows a camera with its dome

cover removed.

The SD card slot is accessed

by removing the top section

using the T25 stardriver.

EN-3

English

Hardware Installation

RJ45 Cable Dimension (unit: mm)

Use CAT5e cables only.

3-1. Connecting RJ45 Ethernet Cable

(D) (B)

(C)

(A)

(E)

Components of the Waterproof

Connector

Screw Nut (C)

Housing (D)

Gasket (E)

Seal (B)

Sealing Nut (A)

100

Prepare an Ethernet cable

and strip part of the sheath.

Insert the housing into the

screw nut.

Insert the seal into the housing.

Insert the stripped Ethernet

cable through the sealing

nut and the housing.

Clamp the cable with

an RJ45 plug.

Push the RJ45 plug into the

housing, then secure the

sealing nut tightly.

Attach the gasket to the front

of the housing.

Assembling Steps

Recommended cable gauge: O.D.

5.5~7

Connect the Ethernet cable to the RJ45 cable and secure the

connectors tightly.

EN-4

3-2. Connecting Power and I/O Wires

If you need to connect I/O wires and 24V power, disassemble the top section of the

camera. It is highly recommended to complete the following before you can mount

the speed dome camera at the installation site:

Skip this section and move to Section 3-3 if you connect the Ethernet cable only.

1-3

1-2

1-1

Plan the wire length and complete cabling to

the Interface Section

Cabling through the dome cap and waterproof

connectors

Connect with the mount bracket

3-2-1. Cabling through the Waterproof Connectors

Components of the Waterproof Connector

Seals (C)

Housing (D)

Sealing Nut (E)

Seal (B)

Screw Nut (A) •

Wire range: 13~16AWG (1.2~1.8mm)

•

A socket wrench for the M20 hex nut is

required.

EN-5

English

1. Disassemble the components of the waterproof connector into parts (A) ~ (E) as

shown above.

2. Remove the plastic stopper from the bottom of the dome cap and keep the M20 hex

nut for later use.

3. Depending on the number of wires, remove seals (C) from the rubber seal (B).

4. If you have external devices such as sensors and alarms, feed IO wires through the

waterproof connector (E --> D --> B --> A) as illustrated below. Note that there are 16

holes on the seal (B), and wire range is beteen 1.2 and 1.8mm.

5. Push the seal (B) into the housing (D).

6. Secure the sealing nut (E) tightly.

(E)(D)(B)(A)

(C)

(B)

(D)

3-2-2. Connect cables:

Ethernet

DI GND

DI4

DI3

DI2

DI1

DO2

DO1

DO+(12V)

AC24V

Reserved

MIC IN

Line OUT

Audio GND

RS485-

RS485+

AC24V DI GND

AC24V DI4

Reserved DI3

MIC IN DI2

Line OUT DI1

Audio GND DO2

RS485- DO1

RS485+ DO+(12V)

Wire range: 13~16AWG

Strip length: 6~7mm

Screw: M2

1. Use a small-size at-blade screwdriver to secure IO

wires to the included terminal blocks. You may aslo

purchase an IO combo cable from VIVOTEK.

M20 hex

nut

The max. output load on

DO pins is 50mA.

EN-6

2. Feed the Ethernet cable and IO wires through the mounting bracket, the openings on

the dome cap, and to the interface section. Attach the rubber seal plug to dome cap for

water proong.

Mount bracket

Dome cap

Interface Section

1. IO wires are user-supplied.

2. Avoid touching the circuit boards to prevent damage by electro static discharge.

NOTE:

3. Secure the included ground wire to the dome cap, pass it through the mount bracket,

and connect the other end to a grounded conduit later.

EN-7

English

Combine the components of the top section.

1. Press the seal ring into the groove on canister. Use the black machine screws (M4x8)

to attach the interface section to the dome cap. Note that you should orient and align

the spring contacts with the dehumidier unit on the dome cap.

2. Secure the dome cap to the mount bracket.

3. Use the included hex wrench to secure the connection.

When done, the top section will

look like this. You can now carry the

camera and the top section

to the installation site.

Mount

Bracket

Interface Section

Board-to-board

Connector

3-2-3. Connect with the Mount Bracket

Seal Ring

EN-8

HD WDR Pro

IMPORTANT:

You should examine whether the color of the

silica gel inside the chassis has turned red. If

so, you should replace the desiccant bag.

To replace the desiccant bags:

1. Remove the dome cover by loosening 4 T25

anti-tamper screws.

2. Replace the desiccant bags by attaching

them rmly to the inside of the chassis.

3. Re-install the dome cover.

Also note the following:

1. Do not install the camera in a raining day.

2. It takes approximately 2 days to suppress

the moisture level to 30% or lower.

3. Condensation may still be observed from on

the dome cover within 30 minutes.

EN-9

English

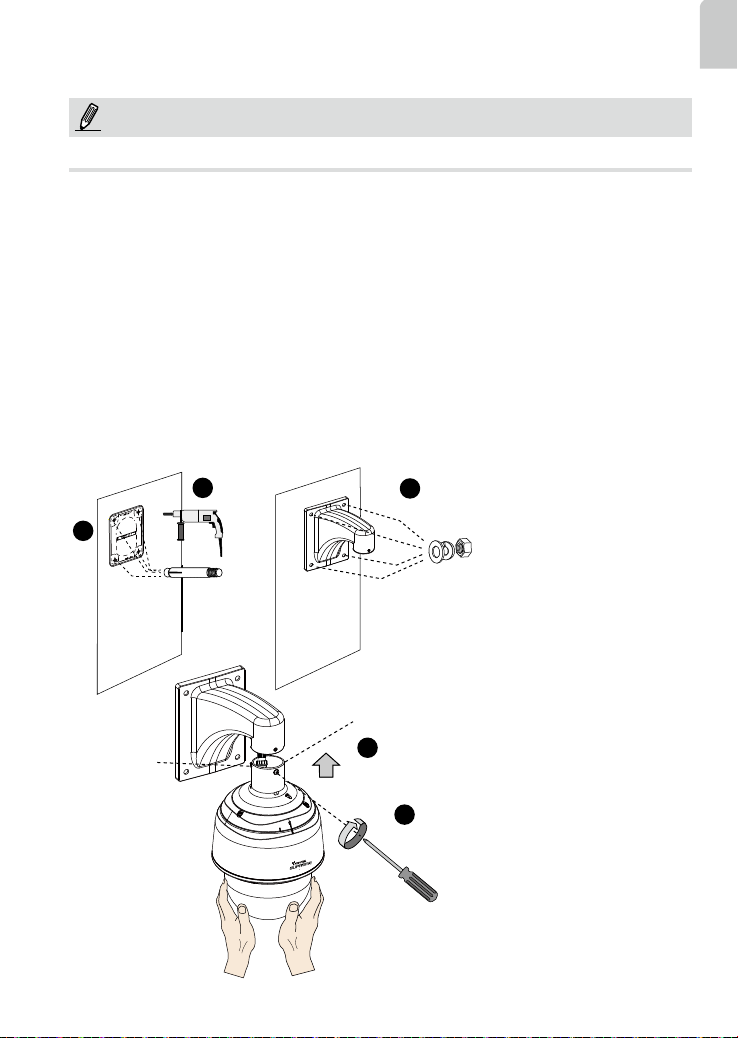

3-3. Mounting the Network Camera

NOTE:

Before mounting the camera, install an SD card if you prefer recording to local storage.

HD WDR Pro

1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to

the camera. Attach the alignment sticker to the wall.

2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer

in threaded anchors. Note that you should hammer the anchors with hex nuts on

them so that the threaded poles will not be deformed! If preferred, drill another hole

for routing cables.

3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.

4. Align the camera with the wall mount bracket.

5. Tighten 3 included screws using a Phillips screwdriver. Make sure all parts have been

securely tightened.

3-3-1. Mounting with Ethernet Connection Only
