Vivotek PT8133 Manuel utilisateur
Quick Installation Guide
PT8133/33W
1MP • PoE
1MP • WPS • 802.11n
English 繁中 日本語 Español Português
簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska
All specications are subject to change without notice. Copyright 2011 VIVOTEK INC. All rights reserved. P/N:625016400G
c
VIVOTEK INC.
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]
VIVOTEK USA, INC.
2050 Ringwood Avenue, San Jose, CA 95131
|T: 408-773-8686|F: 408-773-8298|E: [email protected]
PT8133:
PT8133W:
EN - 1
English
Contact your distributor in the event of
occurrence.
Keep the Network Camera
away from water. If the Network
Camera becomes wet, power off
immediately.
Refer to your user’s manual for the
operating temperature.
Power off the Network Camera as
soon as smoke or unusual odors
are detected.
Do not place the Network Camera
around heat sources, such as a
television or oven.
Keep the Network Camera away
from direct sunlight.
Do not place the Network Camera
in high humidity environments.
Contact your distributor in the event of
occurrence.
Warning Before Installation
EN - 2
Do not place the Network Camera
on unsteady surfaces.
Do not touch the Network Camera
during a lightning storm.
Do not disassemble the Network
Camera.
Do not drop the Network Camera.
Do not insert sharp or tiny objects
into the Network Camera.
Do not manually pan and tilt the
Network Camera when the power is
on.
EN - 3
English
5
0
0
0
2
4
7
0
1
G
Antenna
(PT8133W Only)
Screws
PT8133/33W Power Adapter
Quick Installation Guide /
Warranty Card
Software CD
Mount kit & Foot Pads

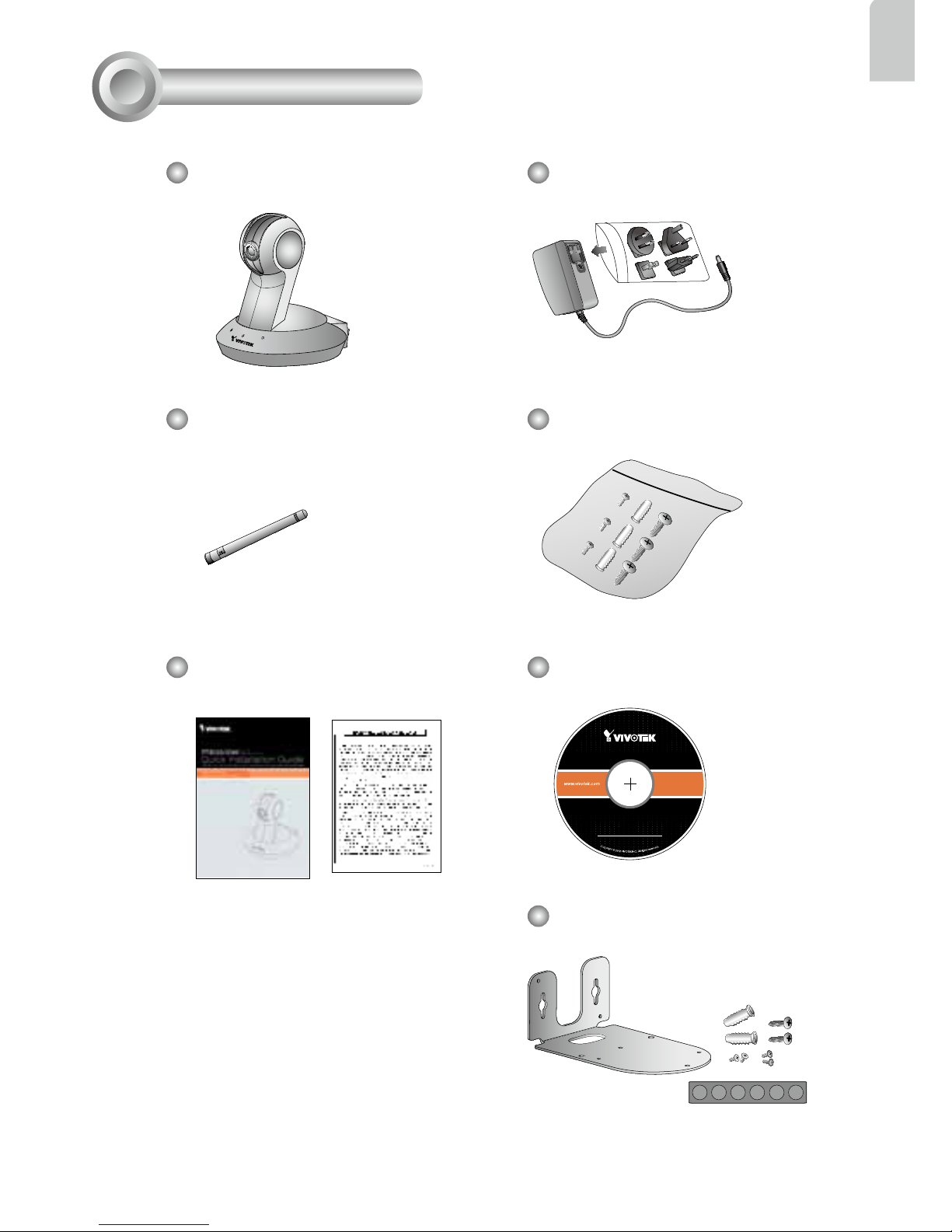

Package Contents
1
EN - 4
Front Panel
Back Panel
Antenna
Status LEDs
Lens and Manual
Focus Ring
Ethernet 10/100
RJ45 Socket Power cord socket
Physical Description
2
ETHERNET 12V
1.5A
WPS
WPS button (PT8133W)
Recessed Reset
Button
Item LED status Description
LED Denitions
1 Steady Red Power on and system boot
Red LED off Power off
2 Blink Green every 1 sec. + Steady Red Network connected (heartbeat)
Green LED off + Steady Red Network failed
3 Blink Red every 0.15 sec. + Blink Green every 1 sec. Upgrading rmware
4 Blink Red every 0.15 sec. + Blink Green every 0.15 sec. Restoring defaults
5 Steady Blue Linked to a wireless AP
Blue LED off Not connected to wireless network
6 Blink Blue every 0.15 sec. WPS searching
EN - 5
English
Mounting the Network Camera - Ceiling Mount
1. Use the holes on the mount bracket as a template to mark where holes will be drilled
on the ceiling. Drill two holes into the ceiling; and hammer in the plastic anchors.
2. Attach the Network Camera to the mount bracket using two athead screws.
3. Secure mount bracket to the ceiling using two panhead screws.
4. You can now proceed with cabling.
Hardware Installation
3
If you prefer wireless conguration, you
can congure wireless connection before
you mount the camera to bracket.
NOTE:
EN - 6
2
Mounting the Network Camera - Wall Mount
1. Use the holes on the mount bracket as a template to mark where holes will be drilled
on the ceiling. Drill two holes into the wall; and hammer in the plastic anchors.
2. Secure mount bracket to the wall using two included panhead screws.
3. Attach the Network Camera to the mount bracket using two athead screws.
4. You can now proceed with cabling.
If you prefer wireless conguration, you
can congure wireless connection before
you mount the camera to bracket.
NOTE:
EN - 7
English
General Connection (without PoE)
1. Connect the camera to a switch via Ethernet cable.
2. Connect the supplied power adapter between the camera and a power outlet.
Network Deployment
4
12V
1.5A
ETHERNET
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
2
Ethernet Switch
1
NOTE:
The PT8133W comes with an antenna. It should be installed by turning clockwise to
attach to the associated connector. The wireless model, PT8133W, does not support
PoE.
EN - 8
Power over Ethernet (PoE)
12V
1.5A
ETHERNET
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
PoE switch
12V
1.5A
ETHERNET
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a
non-PoE switch.
PoE Power Injector
(optional)
When using a PoE-enabled switch
The PT8133 Network Camera is PoE-compliant, allowing transmission of power and
data via a single Ethernet cable. Follow the below illustration to connect the camera to a
PoE enabled switch via a CAT5e Ethernet cable.
Non-PoE Switch
EN - 9
English
0002D10766AD
1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.
2. The program will conduct an analysis of your network environment. After your network is
analyzed, please click on the “Next” button to continue the program.
0002D10766AD
172.16.7.13 PZ71X2
PZ81X1
Installation
Wizard 2
IW
2
Assigning an IP Address
5
3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network
Cameras on the same LAN.
4. After a brief search, the main installer window will pop up. Double-click on the MAC
address that matches the one printed on the camera label or the S/N number on the
package box label to open a browser management session with the Network Camera.
