Vivotek IP816A-LPC Manuel utilisateur
Quick Installation Guide
IP816A-LPC
Rev. 1.1
License Plate Capturing Solution
2MP • WDR Pro • Remote back Focus • Snapshot Focus
Ordering part no.:
180000600G - IP816A-LPC(Street)
Document part no.: 625030101G
2
Specications
I
Model Number IP816A-LPC enclosure
Power Input 24VAC (+/-10%)
Rating Current 3.5 A
Heater Control 15°C (ON) / 25°C (OFF)
Blower Control 35°C (ON) / 25°C (OFF)
Environmental Operation Temp. AE-237 Single heater: -20°C ~ +50°C
AE-236 Double heater: -40°C ~ +50°C (heater is
on at -40°C. When temperature reaches -10°C,
camera is powered on)
Protection Level IP66, IK10
Temper Glass thickness 4mm
Mounting Bracket Fully-cable Management
Construction Die-cast Aluminum Alloy
Coating White epoxy powder coating
Dimensions 400 (L) x 130 (W) x 108 (H) mm
Net Weight 2900g
IR light angle of beam
(different IR light units)
AI-104-010 Street: 10º
CAUTION:
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
UNPACKING:
Unpack carefully. Electronic components can be damaged if improperly handled or
dropped. If an item appears damaged in shipment, place it properly in its carton and
notify the shipper.
IMPORTANT!:
1. Read and follow Instructions: All operating and user instructions should be read and
followed before the unit is to be operated.
2. Electrical Connections: Only a qualied electrician is allowed to make electrical
connections.
3
English
Mounting Conguration & Dimensions
II
Swivel Positions and Directions
171
256
462.7
Component Description
III
Waterproof cable
gland Power Supply Unit
Circulation
fan
Heater for the dual-heater,
-40ºC model
Heater
4
Installation
V
Installation Suggestions
IV
If you plan to install this camera enclosure into a tropical, sea coastal, or an environment
where salt water or corrosive industrial waste water/moist are present, please seal each
stainless steel screws and ttings with a silicon grease compounds. This will help prevent
electrolysis to occur and extend the life span of the camera and housing.
IMPORTANT:
1. Disconnect devices: A readily accessible disconnect device in the building installation wiring
should be incorporated.
2. Electrical Connection: Only a qualied electrician is allowed to make electrical connections.
1. Loosen the socket screws using the included L-type hex key wrench, and open the
cover.
2. Secure the IR light units to the included iron brackets using a crescent wrench and a
socket wrench.
5
English
To the front of
enclosure
Secure both IR light units to the included iron bracket in the orientation shown below.
3. Secure the IR light bracket to the bottom of th enclosure. Secure one screw only at this
stage of installation.
6
4. Adjust the IR lights' shooting direction and tighten up the mount screws. You may need
to adjust the shooting angles later.
5. Pass the IR light units' signal wires through the waterproof connectors on the front.
7
English

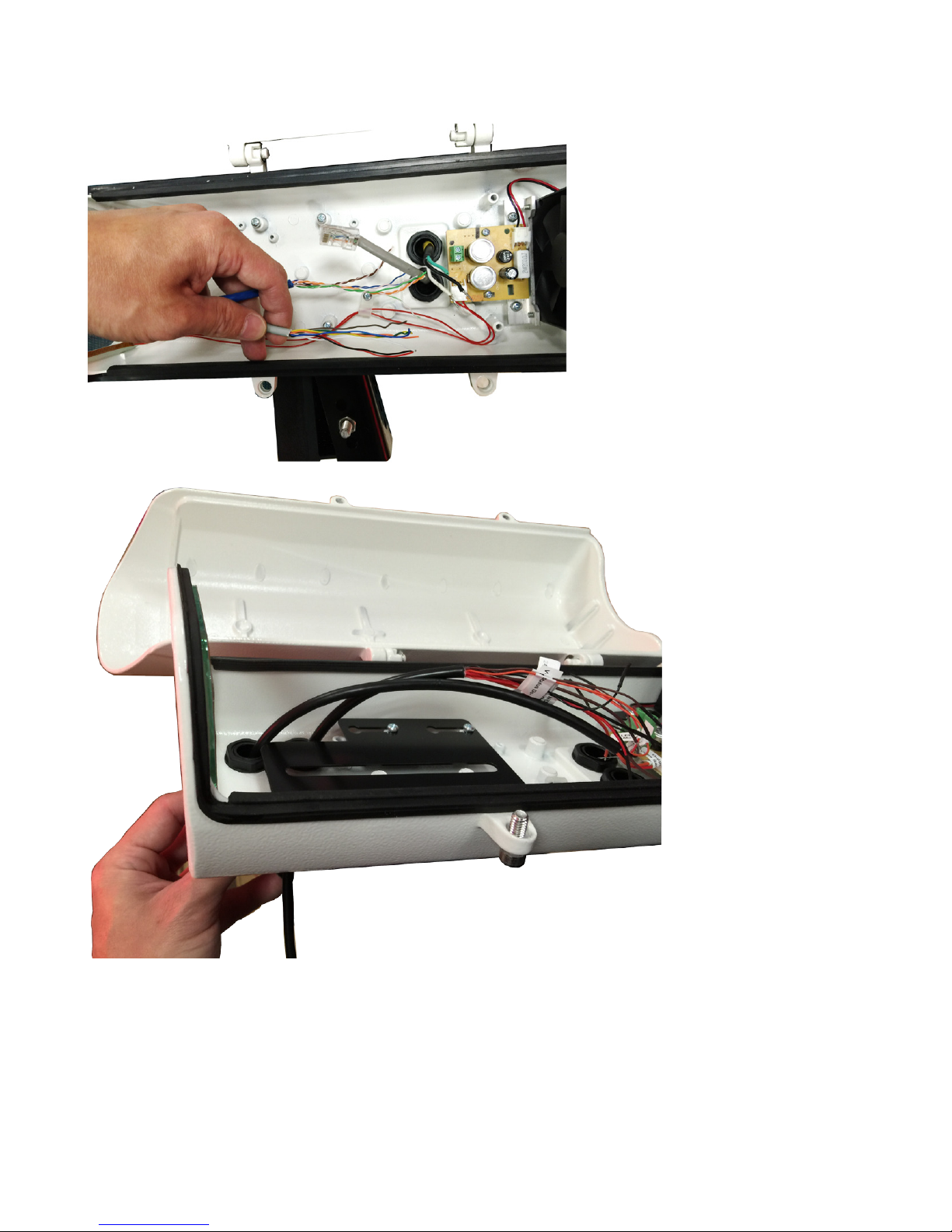

6. Loosen the retention hex screws of the enclosure. To access the screws, you can push
the IR bracket to the side.
8
7. Check the inside of the enclosure to make sure the I/O wires can reach the power
supply unit inside. An approximate of 25cm cable length is required. Install and tighten up
the waterproof connectors.
9
English
8. Prepare the AC24V power wires and a CAT5e Ethernet cable. Pass them through the
waterproof connectors.
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid
You may need to remove the RJ45 connector, and use a crimping tool to connect the
Ethernet wires to an RJ45 connector inside the enclosure. Use an Ethernet cable of the
width of 5 ~ 6.5mm.
10

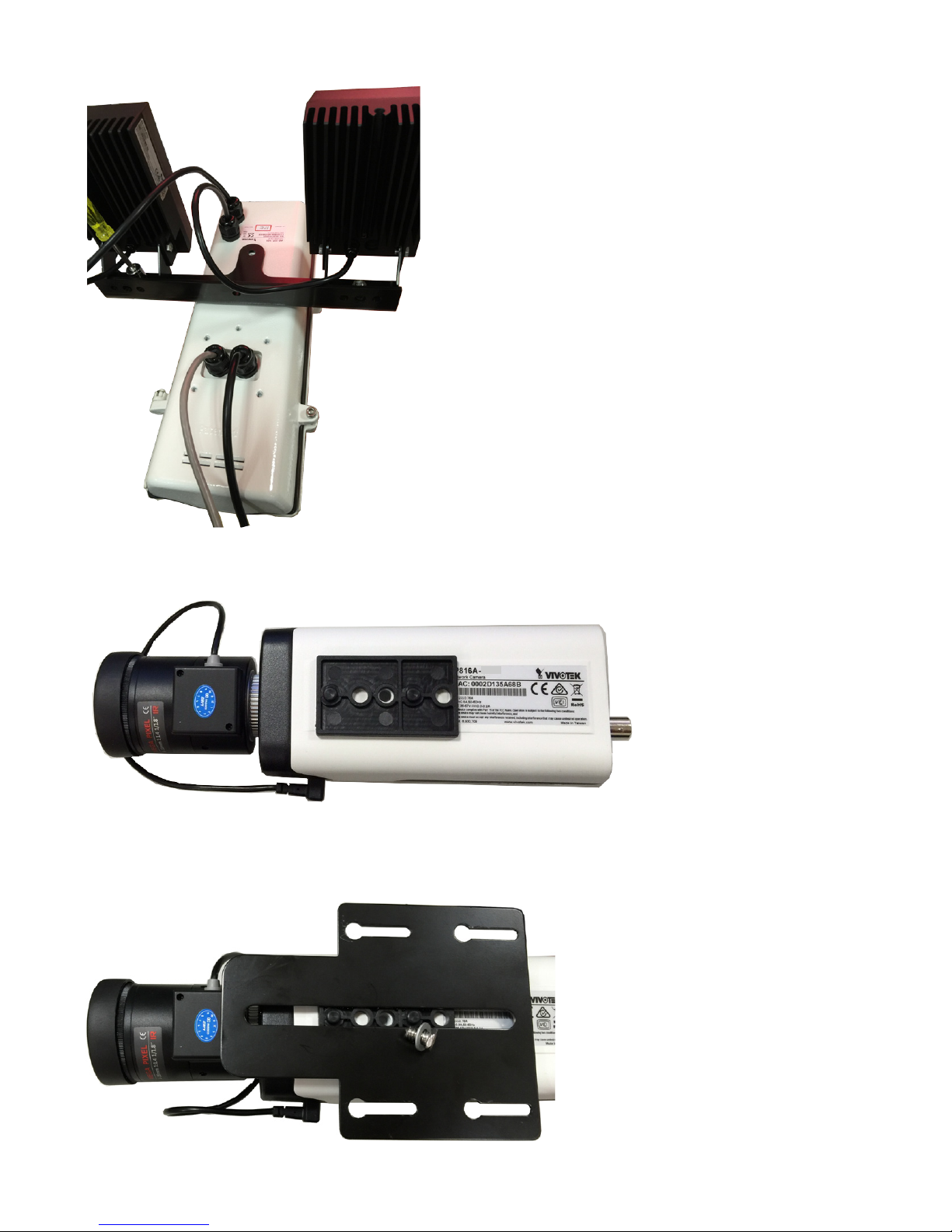

9. When done, tighten up the waterproof connectors.
10. Assemble the camera components, e.g., the CS ring and lens module. Align the
buffer pad with the mounting hole at the bottom of the camera (the label side).
LPC
11. Place the mounting plate on top of the buffer pad and then secure it to the camera.
You may need adjust its position so that the lens module can ush align with the tempered
glass.
