Vivotek FD8335H Manuel utilisateur

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Contact your distributor in the event of

occurrence.

Refer to your user's manual for the

operating temperature.

Warning Before Installation

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not insert sharp or tiny objects

into the Network Camera.

Do not drop the Network Camera.

EN - 2

Software CD

FD8335H

Quick Installation Guide /

Warranty Card

Alignment Sticker /

Ceiling Hole Template Sticker

Mounting Plate

Package Contents

L-type Hex Key Wrench / Moisture

Absorber / Screws / Hex Nut / Double-

sided Tape / AV Cable

Waterproof Connector & Bushing

EN - 3

English

IR LEDs (18 units, effective up

to 15m)

Physical Description

Inner View Lens

Tilt Adjustment Screw

Black Cover

1. There is no internal microphone. Only external microphone is applicable.

2. The Focus Assist button takes effect when using a hand-held monitor or camera

tester with a BNC connector. Press the button and use the focus and zoom

adjustment pullers to tune the image until the "BEST FOCUS" message is

shown.

Ethernet 10/100

RJ45 Socket

Audio/Video

Out (green)

Microphone In

(pink) General I/O Terminal

Block

Jumpers

Microphone Video Output

Internal

External

NTSC

60Hz

PAL

50Hz

Micro SD/SDHC Card Slot

Reset

Button

Focus Assist Button

LCD Monitor/

Camera tester

AV Out

Focus Assist

Button

EN - 4

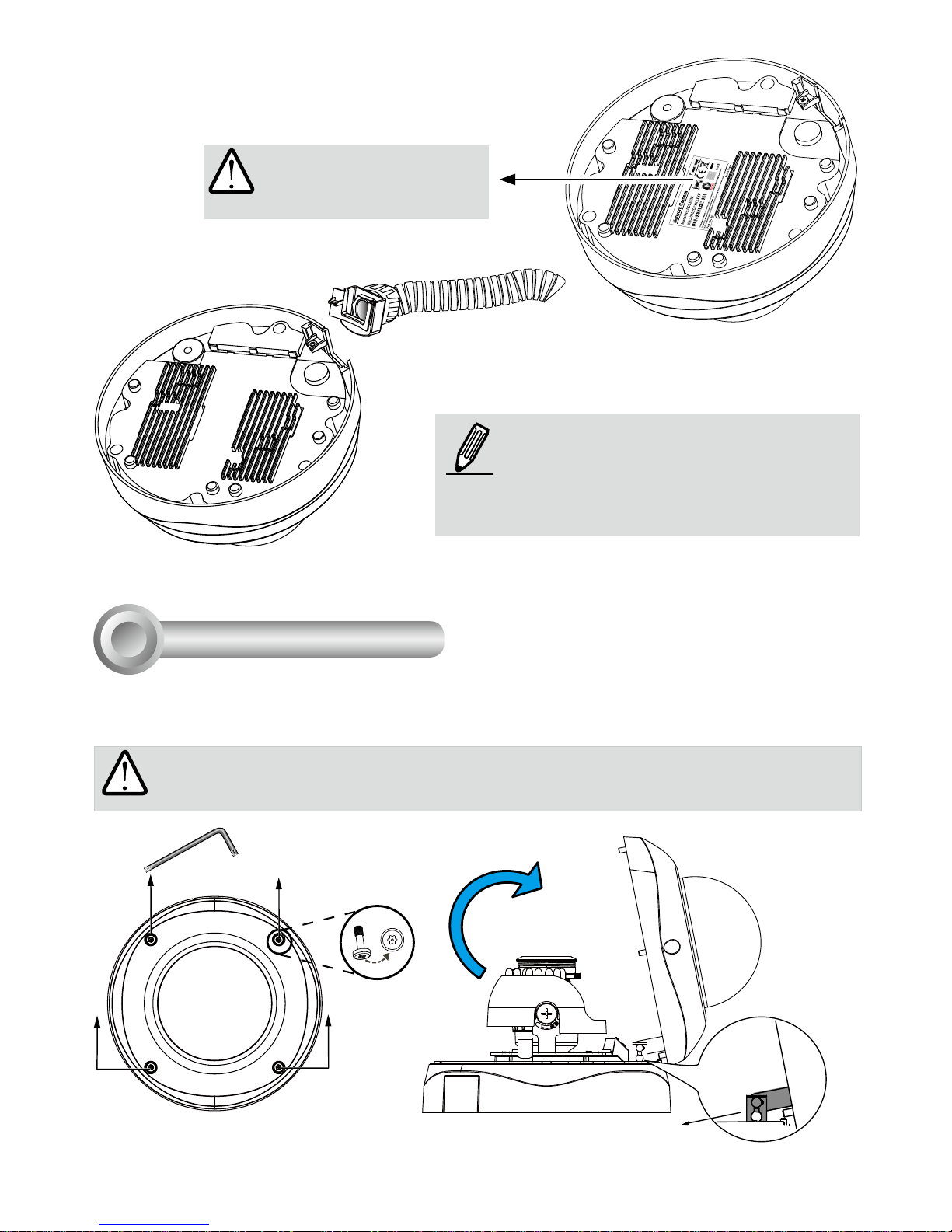

First, use the included T20 hex key wrench to loose the four screws and detach the dome cover from the

camera base. Follow the steps below to install the camera either to a ceiling or a wall.

Hardware Installation

Top View Dome Cover

Dome Cover Retainer

IMPORTANT! Dome cover should be removed because if it should fall during the installation

process, physical injury could occur to your co-workers.

Record the MAC address

under the camera base

before installing the camera.

Replace the side opening cover with the

included side outlet bushing if you want to

route cables from the side of camera. The 1/2"

protection conduits and tubing are separately

purchased.

EN - 5

English

Connect power lines and if you have external devices such as sensors and alarms, make the connection

from the general I/O terminal block.

87654321

Cabling Assembly

Pin Denitions

1 AC24V_2

2 AC24V_1

3 DI3+

4 DI2+

5 DI1+

6 DI-

7 DO-

8 DO+ (12V)

For Ethernet

Cable For Power & IO Cables

Top View

Power and IO cables pass through a waterproof connector. The

Ethernet cable should be routed through a rubber seal plug. All

cables are user-supplied.

1. Disassemble the components of the waterproof

connector into parts (A) ~ (F) as shown above.

2. Place the screw nut (E) on the Power and GPIO

opening.

3. Feed the power cables through the waterproof

connector (F --> E --> D --> B --> A) as the

illustration shows. Then connect the power

cables to the power source. Note: There are 8

holes on the seal (D), and the widest holes with

a crack on the side are specic for power cables.

4. If you have external devices such as sensors

and alarms, feed the cables through the

Assembling Steps

Sealing Nut (A)

Housing (B)

Seals (C)

Seal (D)

Screw Nut (E)

Hex Nut (F)

Waterproof Connector (A)

(B)

(D)

(E)

(F)

waterproof connector (F --> E --> D --> B -->

A) as previously described. Refer to the pin

definition to connect them to the general I/O

terminal block. Note: The recommended cable

gauge is 2.0 ~ 2.8 mm.

5. Push the seal (D) into the housing (B).

6. Insert the seals (C) into unused holes on the

seal (D) to avoid moisture.

7. Secure the sealing nut (A) tightly and hex nut

(F) from the bottom of the camera.

EN - 6

RJ45 Cable Dimension (unit: mm)

2. Strip part of the sheath from the

Ethernet cable.

1. Drill a hole on the rubber seal

plug and insert an Ethernet cable

through the opening.

Rubber Seal

Plug

Assembling Steps

Recommended cable gauge: 24AWG (0.51 mm)

Connecting RJ45 Ethernet Cable

o: white/orange stripe

O: orange solid

g: white/green stripe

B: blue solid

b: white/blue stripe

G: green solid

br: white/brown stripe

BR: brown solid

3. You will need an RJ45 crimping tool to

attach the Ethernet wires to a connector.

When done, connect the cable to the

camera’s Ethernet RJ45 socket.

4. Press the Ethernet cable into the routing path at

the bottom of the camera so that the cable will not

get in the way when the metal mounting plate is

attached.

EN - 7

English

Wall mount

1. Attach the supplied alignment sticker to the wall.

2. Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the

wall. Then hammer the four supplied plastic anchors into the holes.

3. Through three or four holes on the mounting plate, insert the supplied screws into the corresponding

holes and secure the mounting plate with a screwdriver.

4. Feed the cables through the triangular cutout A or side opening B. If you want to use hole B, remove

the side cover using a screwdriver. Secure the camera base to the mounting plate with three supplied

screws.

5. Remove the black cover.

Black Cover

EN - 8

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

Network Deployment

1. Connect RJ45 Ethernet cable to a switch.

Use a Category 5 Cross Cable when your

network camera is directly connected to PC.

2. Connect the AC cables from the terminal

block as an alternate power source. The IO

cables are user-supplied.

Ethernet

Non-PoE Switch

Pin 1

Pin 2

AC 24V±10%

Black

Red

General Connection (without PoE)

Ceiling mount

1. Attach the supplied alignment sticker to the ceiling.

2. Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the

ceiling. Then hammer the four supplied plastic anchors into the holes.

3. Through three or four holes on the mounting plate, insert the supplied screws into the corresponding

holes and secure the mounting plate with a screwdriver.

4. Feed the cables through the triangular cutout A or side opening B. If you want to use hole B, remove

the side cover using a screwdriver. Secure the camera base to the mounting plate with three supplied

screws.

5. Remove the black cover.

Black Cover

EN - 9

English

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE Switch

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Eth-

ernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch

via Ethernet cable.

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE

switch.

PoE Power Injector

(optional)

Non-PoE Switch
