Vivotek FD7132 Manuel utilisateur
EN - 1
English
Power off the Network Camera as
soon as it is found smoking or smelt
unusual.
Contact your distributor when such cases
happen.
Keep the Network Camera away from
the water. If the Network Camera is
wet, power off immediately.
Do not place the Network Camera
around the heat sources, such as
television or oven.
Refer to your user's manual for the
operating temperature.
Keep the Network Camera away from
direct sunlight.
Do not place the Network Camera in
high humid environments.
Contact your distributor when such cases
happen.
Warning Before Install
EN - 2

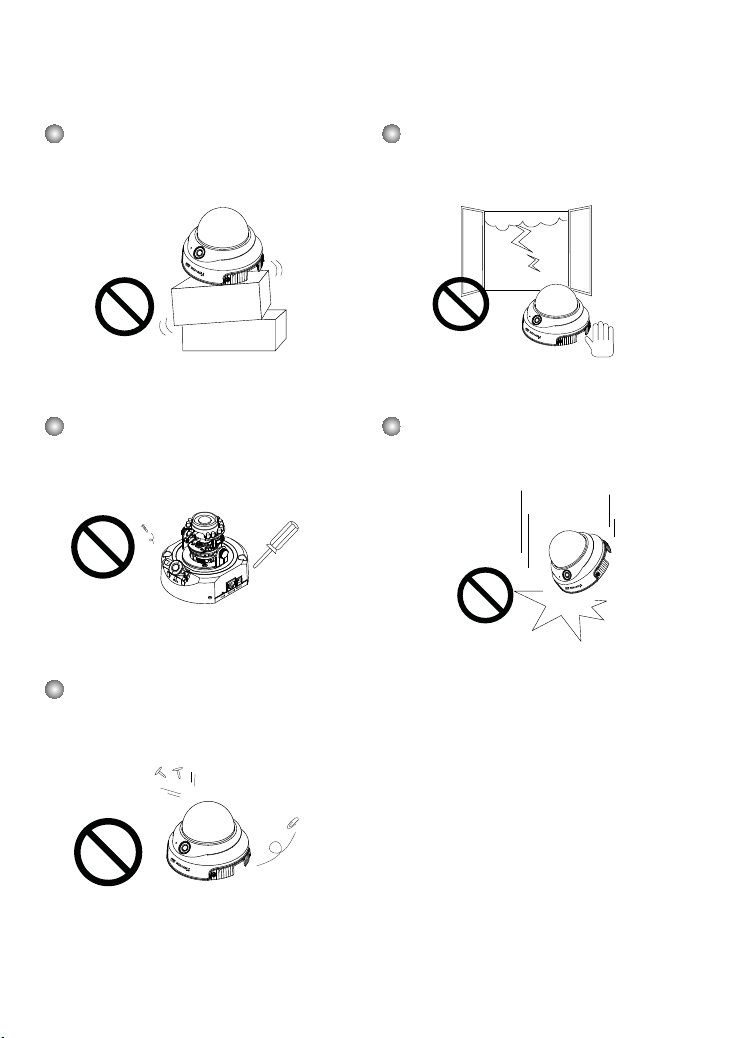

Do not place the Network Camera on
unsteady surfaces.
Do not touch the Network Camera
when it's lightening.
Do not disassemble the Network
Camera.
Do not drop the Network Camera.
Do not insert any object into the
Network Camera, such as needles.
EN - 3
English
Software CD
FD7132
Warranty card
Screwdriver
Alignment sticker
Screws and I/O connector
Quick installation guide
Power adapter
Package Contents
1
EN - 4

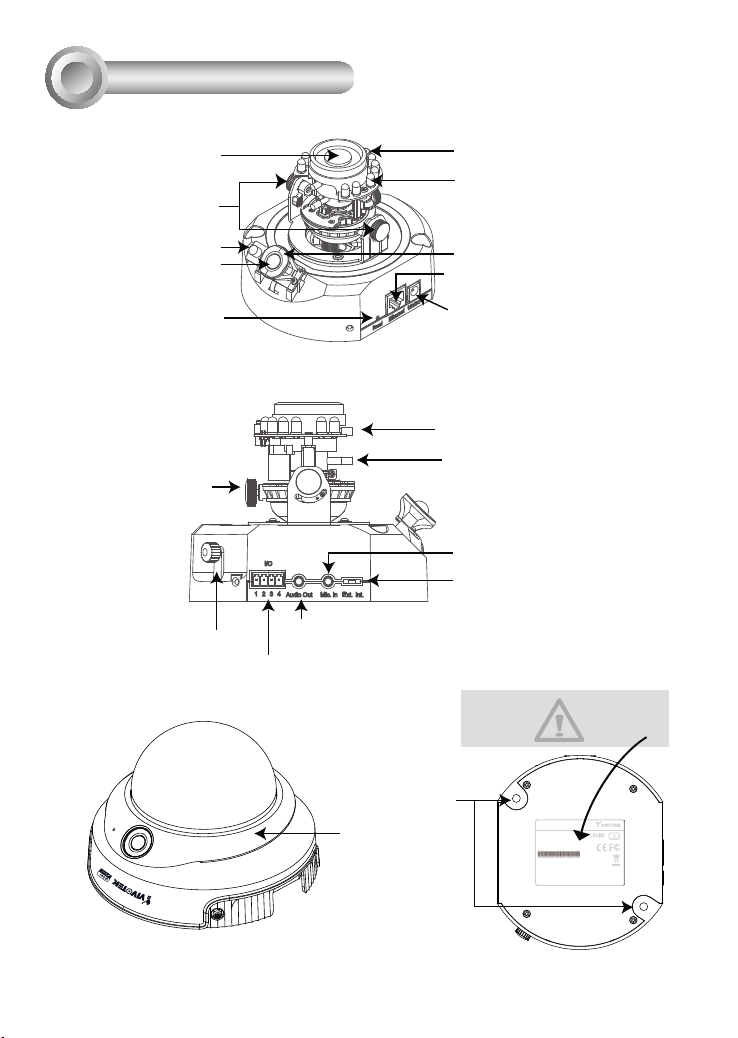

Lens
Tilt screw
Built-in microphone
PIR sensor
IR LEDs
Power cord socket
Ethernet 10/100 RJ45 socket
Indented reset button
Audio Out Mic. In Ext. Int.
1 2 3 4
I/O
Focus controller
Zoom controller
General I/O terminal block
Audio out
Microphone in
External/Internal microphone
switch
Keep a note of the MAC address
before installing the camera.
Network Camera
Model No: FD7132
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Pat. 6,930,709
RoHS
C I
MAC:0002D107258A
Drill holes
Pan screw
Dome cover
Image adjustment
screw
Status LED
Light sensor
Physical Description
2
EN - 5
English
First, use the supplied screwdriver to detach the dome cover from the camera base. Then,
follow the steps below to install the camera; either to a ceiling or to a wall.
Ceiling mount
Through the two holes on each side of the camera base, insert
the supplied two screws to corresponding holes and secure
them with a screwdriver.
Wall mount
1. Attach the alignment sticker to the wall.
2. Through the two circles on the sticker, drill two pilot holes
into the wall.
3. Hammer the supplied plastic anchors into the holes.
4. Align the two holes on each side of the camera base with the
two plastic anchors on the wall, insert the supplied screws to
corresponding holes and secure them with a screwdriver.
Alignment sticker
Installation Tips
Before installing the camera, look for a spot that best suits your needs. The built-in PIR
sensor is designed to be triggered when a person enters its detection range. Therefore,
it is crucial to install the camera at a place with the PIR sensor facing the desired direc-
tion. (The sensitivity of PIR sensor depends on object size and temperature differences
between the object and the background environment.)
I/O
Audio Out Mic. In Ext. Int.
1 2 3 4
Side viewTop view
Hardware Installation
3
EN - 6
General Connection (without PoE)
1. If you have external devices such as sensors and alarms, make connections from gen-
eral I/O terminal block.
2. Connect the camera to a switch via a Ethernet cable.
3. Connect the supplied power cable from the camera to a power outlet.
POWER COLLISION
LINK
RECEIV E
PARTITION
12345
2
3
Ethernet switch
Network Deployment
4
1: Power
2: Digital output
3: Digital input
4: Ground
Audio Out Mic. In Ext. Int.
1 2 3 4
I/O
1
EN - 7
English
non-PoE switch
Power over Ethernet (PoE)
POWER COLLISION
LINK
RECEIV E
PARTITION
12345
PoE switch
no
n-
PoE
s
w
i
t
ch
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the camera and a non-PoE
switch.
PoE power injector
(optional)
When using a PoE-enabled switch
The camera is PoE-compliant, allowing transmission of power and data via single Ether-
net cable. See the following illustration to connect the camera to a PoE-enabled switch
via Ethernet cable.
EN - 8
Network Camera
Model No: FD7132
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Pat. 6,930,709
RoHS
C I
MAC:0002D107258A
1. Install the "Installation Wizard 2" under the Software Utility directory from software CD.
2. The program will conduct analyses on your network environment. After your network is
analyzed, please click on the "Next" button to continue the program.
3. The program will search the VIVOTEK Video Receivers, Video Servers or Network Cam-
eras on the same LAN.
4. After searching, the main installer window will pop up. Click on the MAC that matches the
one labeled on the bottom of your device to connect the Internet Explorer to the Network
Camera.
0002D107258A
Installation
Wizard 2
Assigning IP Address
5
EN - 9
English
For further setup, please refer to user's manual on the software CD.
Ready to Use
6
1. Access to the Network Camera from the Internet.
2. Retrieve live video through web browsers or recording software.
3. It is suggusted to select Fix Iris in the Audio and Video page (Choose Configuration >
Advanced mode > Audio and video) to set up the iris at the maximum value; then fol-
low the instructions on the next page to adjust the zoom factor and focus range. Upon
completion, uncheck this item to enable auto iris.
