Vivotek 4X-FD7132 Manuel utilisateur

EN - 1

English

Power off the Network Camera as

soon as it is found smoking or smelt

unusual.

Contact your distributor when such cases

happen.

Keep the Network Camera away from

the water. If the Network Camera is

wet, power off immediately.

Do not place the Network Camera

around the heat sources, such as

television or oven.

Refer to your user's manual for the

operating temperature.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera in

high humid environments.

Contact your distributor when such cases

happen.

Warning Before Install

EN - 2

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

when it's lightening.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert any object into the

Network Camera, such as needles.

EN - 3

English

Software CD

FD7132

Warranty card

Screwdriver

Alignment sticker

Screws and I/O connector

Quick installation guide

Power adapter

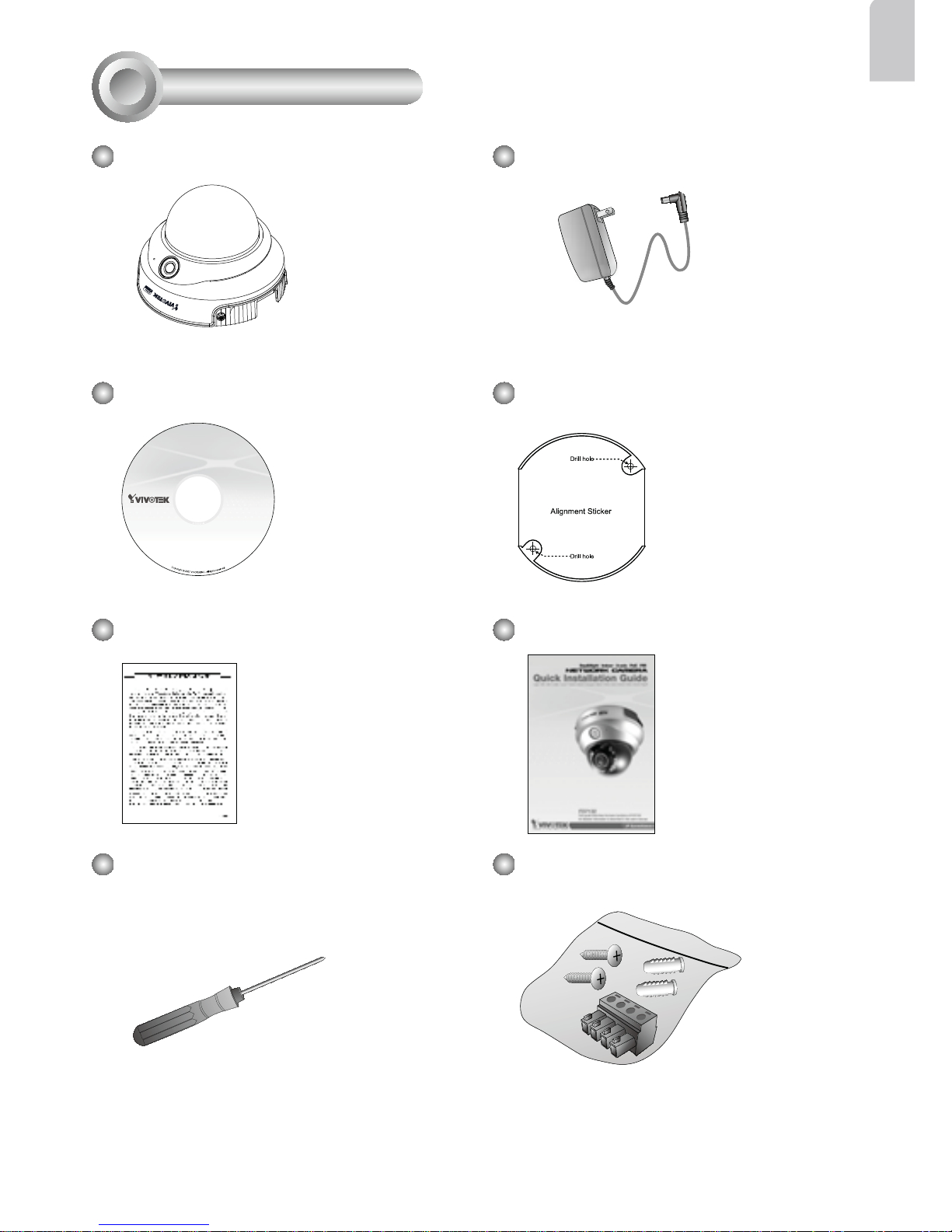

Package Contents

EN - 4

Lens

Tilt screw

Built-in microphone

PIR sensor

IR LEDs

Power cord socket

Ethernet 10/100 RJ45 socket

Indented reset button

Audio Out Mic. In Ext. Int.

1 2 3 4

I/O

Focus controller

Zoom controller

General I/O terminal block

Audio out

Microphone in

External/Internal microphone

switch

Keep a note of the MAC address

before installing the camera.

Network Camera

Model No: FD7132

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Pat. 6,930,709

RoHS

C I

MAC:0002D107258A

Drill holes

Pan screw

Dome cover

Image adjustment

screw

Status LED

Light sensor

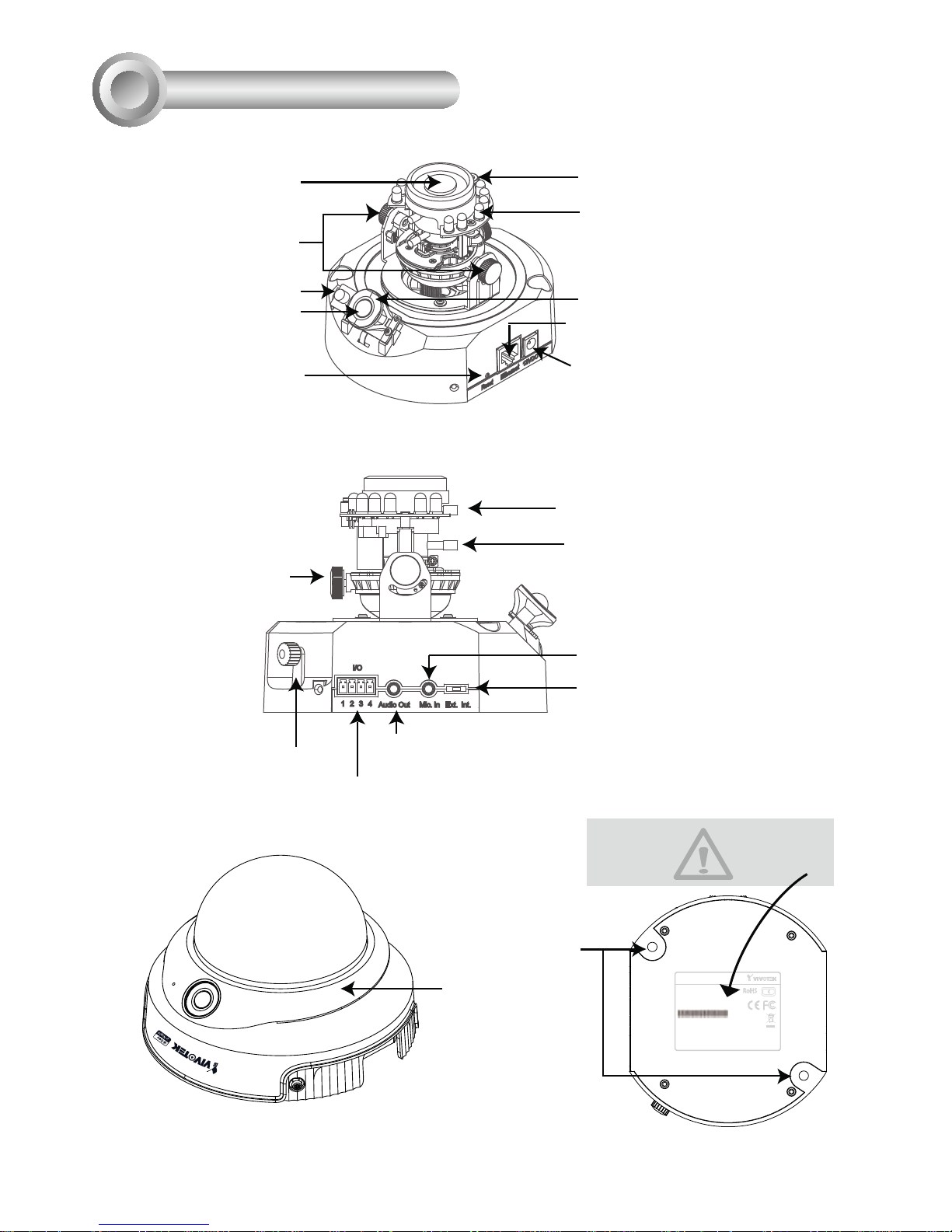

Physical Description

EN - 5

English

First, use the supplied screwdriver to detach the dome cover from the camera base. Then,

follow the steps below to install the camera; either to a ceiling or to a wall.

Ceiling mount

Through the two holes on each side of the camera base, insert

the supplied two screws to corresponding holes and secure

them with a screwdriver.

Wall mount

1. Attach the alignment sticker to the wall.

2. Through the two circles on the sticker, drill two pilot holes

into the wall.

3. Hammer the supplied plastic anchors into the holes.

4. Align the two holes on each side of the camera base with the

two plastic anchors on the wall, insert the supplied screws to

corresponding holes and secure them with a screwdriver.

Alignment sticker

Installation Tips

Before installing the camera, look for a spot that best suits your needs. The built-in PIR

sensor is designed to be triggered when a person enters its detection range. Therefore,

it is crucial to install the camera at a place with the PIR sensor facing the desired direc-

tion. (The sensitivity of PIR sensor depends on object size and temperature differences

between the object and the background environment.)

I/O

Audio Out Mic. In Ext. Int.

1 2 3 4

Side viewTop view

Hardware Installation

EN - 6

General Connection (without PoE)

1. If you have external devices such as sensors and alarms, make connections from gen-

eral I/O terminal block.

2. Connect the camera to a switch via a Ethernet cable.

3. Connect the supplied power cable from the camera to a power outlet.

POWER COLLISION

LINK

RECEI VE

PARTITION

12345

Ethernet switch

Network Deployment

1: Power

2: Digital output

3: Digital input

4: Ground

Audio Out Mic. In Ext. Int.

1 2 3 4

I/O

EN - 7

English

non-PoE switch

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEI VE

PARTITION

12345

PoE switch

PoE

POWER COLLISION

LINK

RECEI VE

PARTITION

12345

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the camera and a non-PoE

switch.

PoE power injector

(optional)

When using a PoE-enabled switch

The camera is PoE-compliant, allowing transmission of power and data via single Ether-

net cable. See the following illustration to connect the camera to a PoE-enabled switch

via Ethernet cable.

EN - 8

Network Camera

Model No: FD7132

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Pat. 6,930,709

RoHS

C I

MAC:0002D107258A

1. Install the "Installation Wizard 2" under the Software Utility directory from software CD.

2. The program will conduct analyses on your network environment. After your network is

analyzed, please click on the "Next" button to continue the program.

3. The program will search the VIVOTEK Video Receivers, Video Servers or Network Cam-

eras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that matches the

one labeled on the bottom of your device to connect the Internet Explorer to the Network

Camera.

0002D107258A

Installation

Wizard 2

Assigning IP Address

EN - 9

English

For further setup, please refer to user's manual on the software CD.

Ready to Use

1. Access to the Network Camera from the Internet.

2. Retrieve live video through web browsers or recording software.

3. It is suggusted to select Fix Iris in the Audio and Video page (Choose Conﬁguration >

Advanced mode > Audio and video) to set up the iris at the maximum value; then fol-

low the instructions on the next page to adjust the zoom factor and focus range. Upon

completion, uncheck this item to enable auto iris.
