Vivo STAND-V100E Manuel utilisateur

Mechanical Arm Single Ultrawide Monitor

Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v100e

SKU: STAND-V100E

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

PACKAGE CONTENTS

A (x1)

Base

B(x1)

Lower Arm

C(x1)

Spring Arm

T-A (x1)

4mm Allen Wrench

T-B (x1)

6mm Allen Wrench

G (x1)

Clamp

S-B (x4)

M6x12mm Screw

M-A (x4)

M4x12mm Screw

D(x1)

VESA Adapter

E(x1)

Clamp Plate

F (x1)

Clamp Brace

M-B (x4)

M5x12mm Screw

M-C (x4)

M5 Washer

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

TOOLS NEEDED

Phillips

Screwdriver

4.4-44 lbs

(2-20 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

S-A (x1)

M8 Nut

S-C (x1)

M8x35mm Screw

S-D (x2)

M10x63mm Screw

ASSEMBLY STEPS

STEP 1

Loosen bolts on back of Clamp (G) using 4mm Allen Wrench (T-A), leaving 6mm of thread exposed. For

a desk thickness of 3/8” to 2” (10 - 50mm), hang assembled clamp into top 4 slots of Clamp Brace (F),

or for a desk thickness of 1.5” to 3” (40 - 80mm), into lower 4 slots. Tighten using 4mm Allen Wrench

(T-A). Secure to the desktop using 6mm Allen Wrench (T-B).

OPTION A: Clamp Installation

Attach Clamp Brace (F) to Base (A) using M6x12mm Screws (S-B) and tighten with 4mm Allen

Wrench (T-A). Thread M10x63mm Screws (S-D) into Clamp (G) and place Clamp Plate (E) on top.

S-B

T-A

S-D

T-A

T-B

T-A

STEP 1 (Continued)

STEP 2

STEP 3

To limit Lower Arm (B) rotation to 90°, adjust the set screw located inside of the opening in the bottom

of Lower Arm (B). Back the screw o 5-6 turns, which is approximately 5mm (3/16”) using 4mm Allen

Wrench (T-A). For full roatation, fully tighten the set screw. Place Lower Arm (B) on top of Base (A), and

secure by turning the lower set screw in back with 4mm Allen Wrench (T-A).

Place Spring Arm (C) on top of Lower Arm (B), and secure by turning the set screw in back with 4mm

Allen Wrench (T-A).

Mark drill holes using the larger outer holes on Clamp Plate (E), drill two 3/8” (10mm) holes. Insert

M10x63mm Screws (S-D) with Clamp Plate (E) up through the underside of the desk and tighten to

Base (A) using the 6mm Allen Wrench (T-B).

OPTION B: Grommet Base Installation

BOTTOMBOTTOM

T-A

S-D

T-B

STEP 4

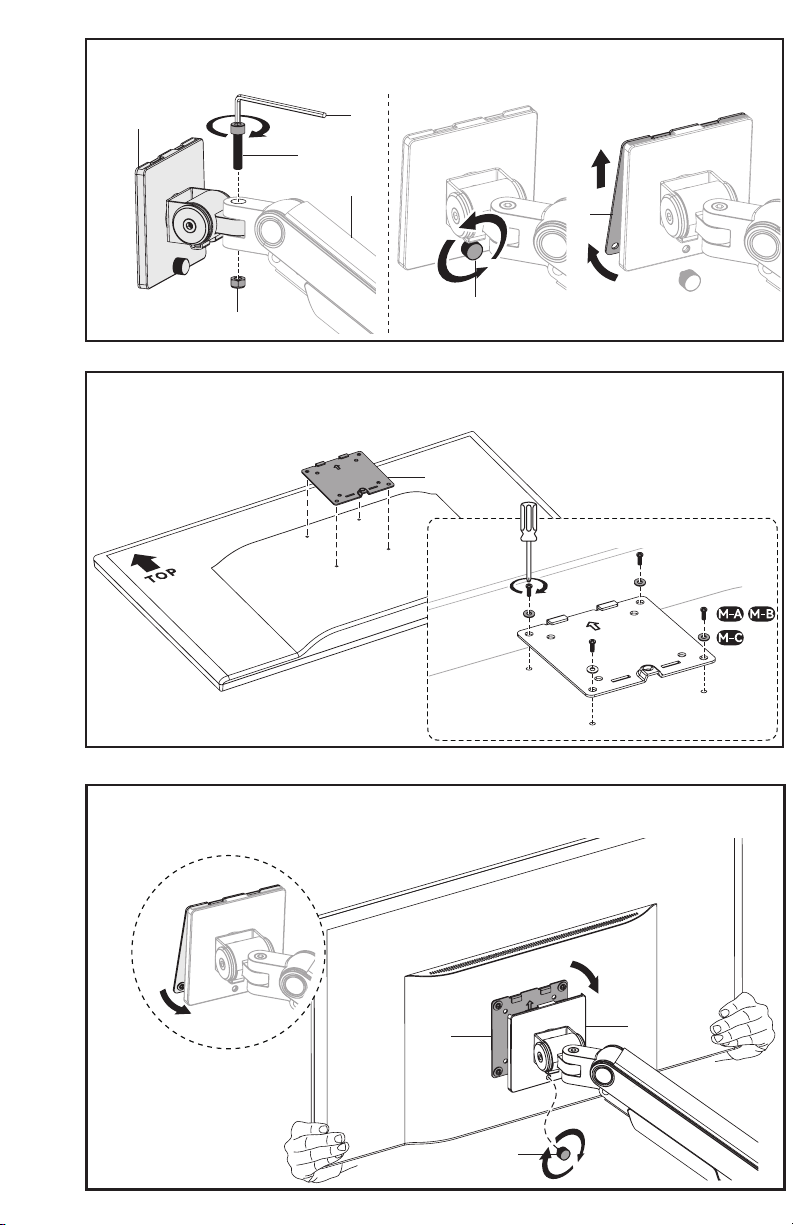

Install the VESA Plate (D2) to monitor using M4x12mm Screws (M-A) or M5x12mm Screws (M-B)

with M5 Washers (M-C), making sure the arrow in back is pointing up.

STEP 5

STEP 6

Hang VESA Plate (D2) on VESA Adapter (D) and secure using Thumbscrew (D1).

Attach VESA Adapter (D) using M8x35mm Screws (S-C) and M8 Nuts (S-A) on Spring Arm (C) using 6mm

Allen Wrench (T-B). Unscrew Thumbscrew (D1) on VESA Adapter (D) and remove VESA Plate (D2).

S-C

S-A

T-B

D2 D

STEP 7

STEP 8

Remove cable cover on Spring Arm (C) by pulling the sides away from the arm to unclip them. Slide

cable cover on Lower Arm (B) forward to remove it. Manage cables in cable covers and re-install.

If needed, adjust Spring Arms (C) to support the monitors using the 6mm Allen wrench (T-B). Turn the

screw in back counter-clockwise to decrease support, and clockwise to increase.

T-B

For safety, please do not extend the monitor behind the desk. This may cause instability and tip the

desk over.

Adjust as Desired

Adjust tilt and swivel using 6mm Allen Wrench (T-B).

T-B

LAST UPDATED: 11/10/23

REV1

v1.0

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
