Vivo STAND-V001FGL Manuel utilisateur

Laptop Desk Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v001fgl

SKU: STAND-V001FGL

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

A (x1)

Pole

B(x1)

Glass Base

C(x1)

Arm

H(x1)

Plastic

Spacer

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualied technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specied in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x1)

VESA Plate

E(x1)

Laptop Tray

F (x1)

Foam Pad

G(x1)

Weighted

Plate

J (x1)

Cover

K (x4)

Foot

L (x1)

Pole Cap

M (x1)

Cable Clip

N (x1)

Pole Cable

Clip

O (x4)

Felt Pad

I(x1)

Mounting

Plate

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

S-A (x4)

M4x8mm

Screw

M-A (x4)

M4x12mm

Screw

M-B (x4)

M4x30mm

Screw

M-C (x4)

Spacer

S-B (x4)

M4 Nut

S-C (x4)

M6x20mm

Screw

S-D (x3)

M6x16mm

Screw

T-A (x1)

4mm Allen

Wrench

T-B (x1)

5mm Allen

Wrench

T-C (x1)

Wrench

S-E (x1)

M6 Security

Nut

ASSEMBLY STEPS

TOOLS NEEDED

22lbs

(10kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

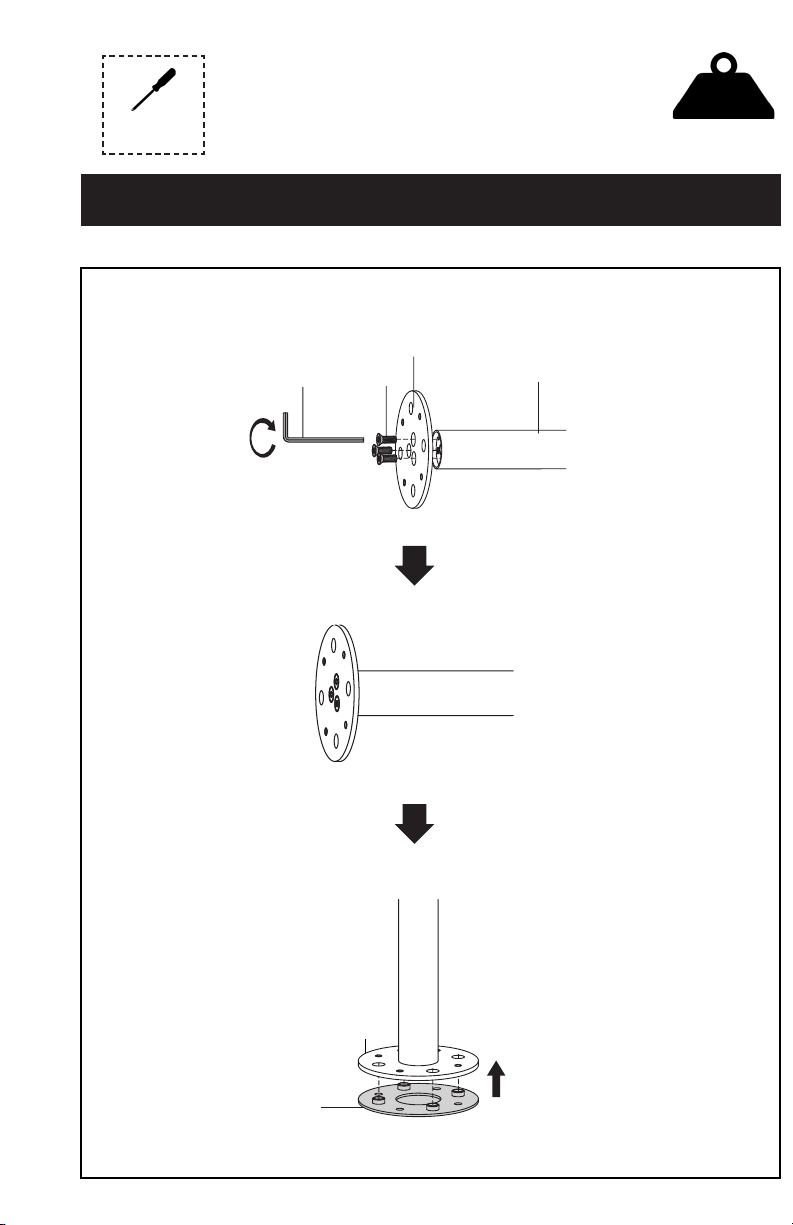

STEP 1

Attach Mounting Plate (I) to Pole (A) using M6x16mm Screws (S-D) and 4mm Allen Wrench (T-A).

Connect Plastic Spacer (H) to the bottom of Mounting Plate (I).

T-A S-D A

STEP 2

Remove protective lm from Foam Pad (F). Apply to Weighted Plate (G) on the side without the

tapered holes. Ensure the holes on Foam Pad are properly aligned with the Weight Plate before

applying.

Assemble Pole (A), Glass Base (B), and Weighted Plate (G) using M6x20mm Screws (S-C) and 4mm

Allen Wrench (T-A). Ensure Foam Pad (F) is between the Weighted Plate and Glass Base.

S-C T-A

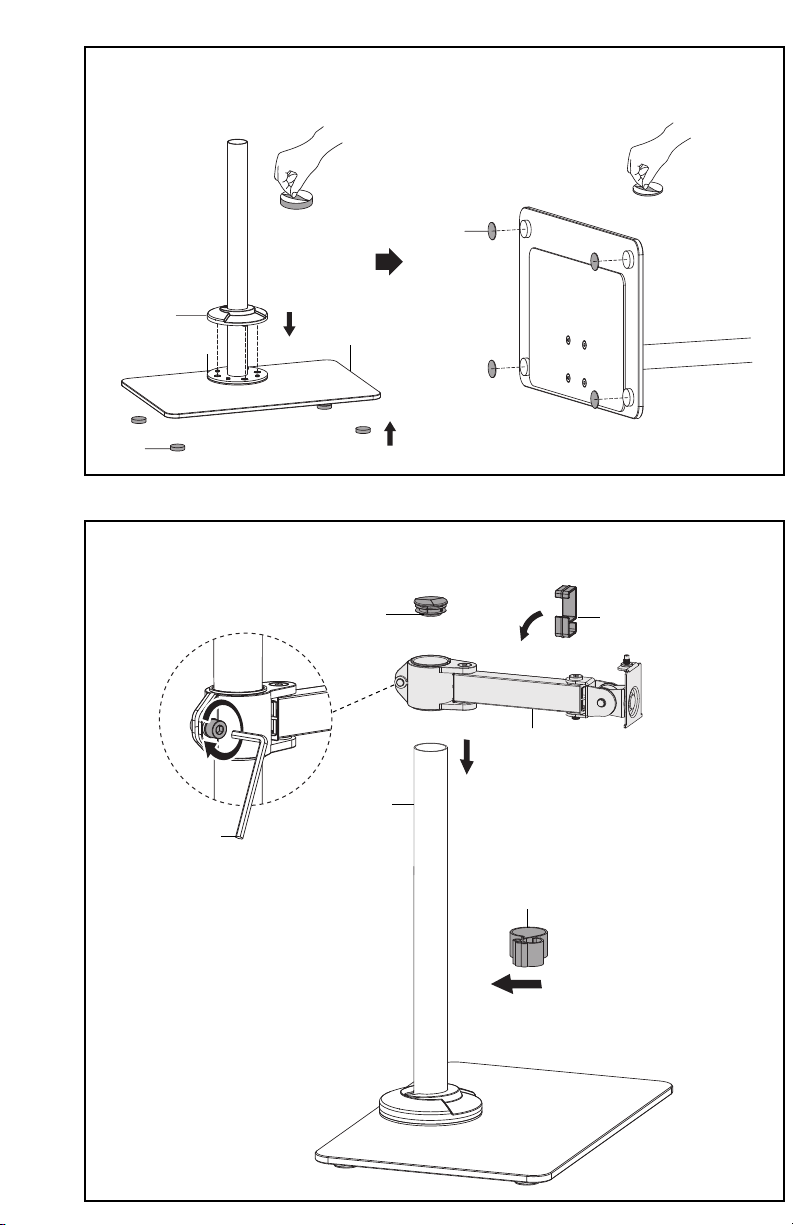

STEP 3

STEP 4

Slide Cover (J) onto Mounting Plate (I) making sure the posts on Cover are aligned with the holes on

Plate. Remove the protective lm from Feet (K) and apply to Glass Base (B). Remove the protective

lm from Felt Pads (O) and apply to Feet (K).

Slide Arm (C) onto Pole (A) and tighten Arm (C) using 5mm Allen Wrench (T-B). Press Pole Cap (L) on

top of Pole (A), and Cable Clip (M) to Arm (C) and Pole Cable Clip (N) to Pole (A).

T-B

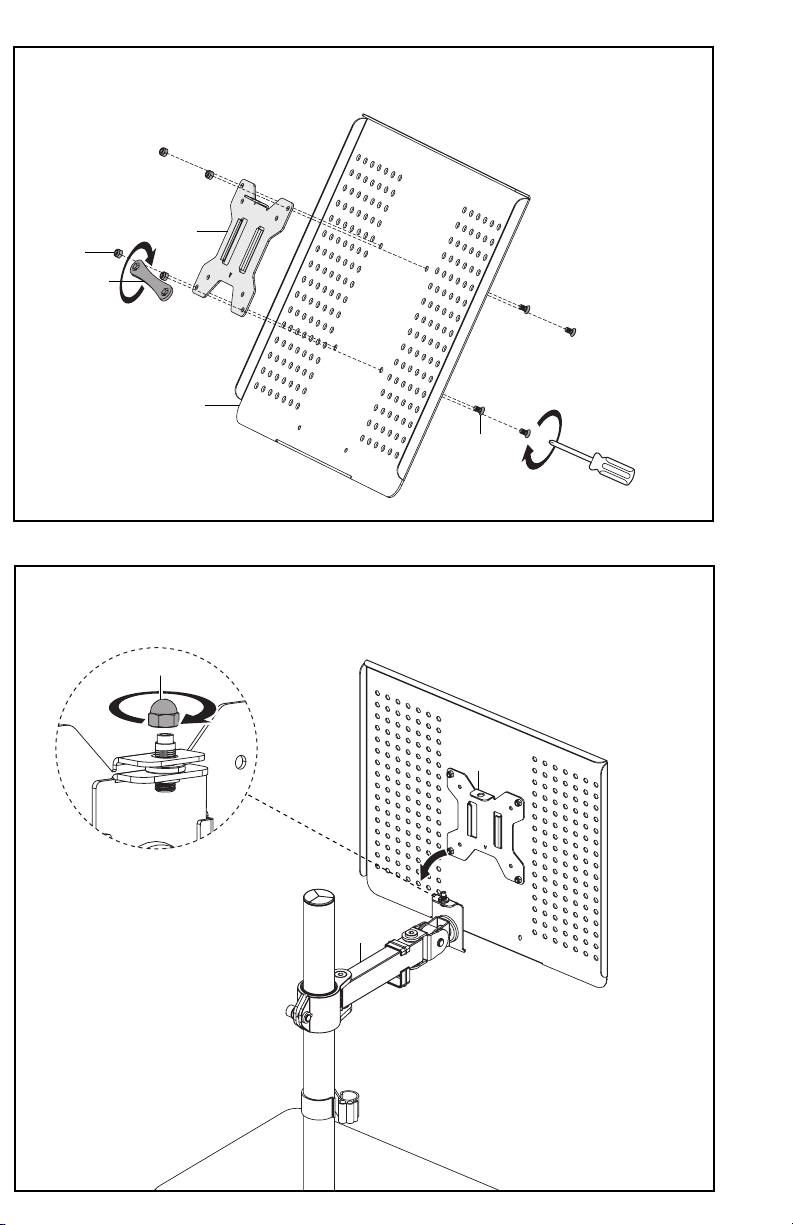

STEP 5

STEP 6

Attach Laptop Tray (E) to VESA Plate (D) using M4x8mm Screws (S-A), M4 Nuts (S-B), Wrench (T-C),

and a Phillips screwdriver.

Slide VESA Plate (D) onto Arm (C) and secure using M6 Security Nut (S-E).

S-E

S-B

T-C

S-A

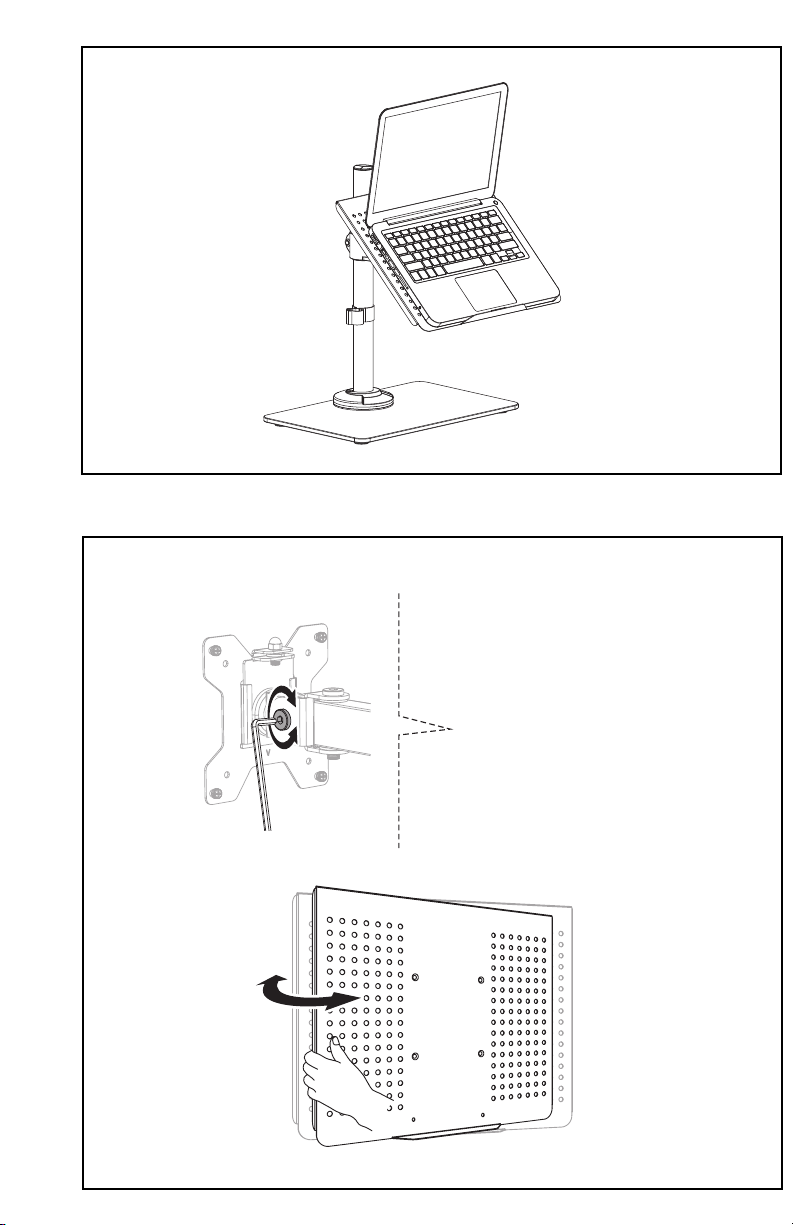

ASSEMBLY COMPLETE

ADJUST AS DESIRED

Assembly is now complete. Place laptop on tray.

Adjust the tilt joint on Arm (C) using 5mm Allen Wrench (T-B).

LAST UPDATED: 09/01/2023

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
