Vivo STAND-E-149 Manuel utilisateur

Electric Single Ultrawide

Monitor Desk Mount

Instruction Manual

SKU: STAND-E-149

Assembly Video & Product Info

www.vivo-us.com/products/stand-e-149

PERSONABLE CUSTOMER SUPPORT

Our friendly product support team is here to help!

DO NOT RETURN ITEM

We’re Here for You!

Missing a Part?

Our customer-minded support team is here for YOU,

Monday-Friday 7am-7pm CST.

We oer immediate assistance with rapid response times

from customer service agents and product techncians to

help you every step of the way!

Monday-Friday

Chat Us:

www.vivo-us.com

Give us a Call:

309-278-5303

Email Us:

[email protected]om

If any parts are received damaged / defective OR you are

missing a part, please reach out to us within 30 days of

product delivery to have it replaced at no cost.

We are happy to replace parts to ensure you have a fully

functioning product

7AM - 7PM

Product Warranty

Returns | Product Didn’t Work Out?

For the most up to date details on your product’s warranty, please visit

the product’s listing on our website or reach out to customer support.

vivo-us.com/products/stand-e-149

We oer a hassle-free 30 day return on all products. Contact customer

support at 309-278-5303 or [email protected]om. Please note: For items

ordered in error or no longer needed, the return shipping charges will

be at the buyer’s expense.

If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product

support team at 309-278-5303 or [email protected] for further assistance. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly

specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting,

incorrect assembly or inappropriate use.

LBS

CAUTION!

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

DO NOT EXCEED WEIGHT CAPACITY

FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY.

THIS PRODUCT IS POWERED BY ELECTRICITY. IN ORDER TO AVOID BURNS, FIRE AND

ELECTRIC SHOCK, PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY.

• DO NOT CLEAN PRODUCT WHILE POWER IS CONNECTED.

• DO NOT DISASSEMBLE OR REPLACE COMPONENTS WHILE POWER IS CONNECTED.

• NEVER OPERATE THE SYSTEM WITH A DAMAGED CORD OR PLUG. PLEASE CONTACT YOUR SELLER TO

REPLACE DAMAGED PARTS.

• NEVER OPERATE SYSTEM IN DAMP ENVIRONMENTS OR IF ANY ELECTRICAL COMPONENTS HAVE MADE

CONTACT WITH LIQUIDS.

• ALTERATIONS OF THE GIVEN POWER UNIT ARE NOT ALLOWED.

• OUTDOOR USE IS PROHIBITED.

ELECTRICAL SAFETY INSTRUCTIONS

Package Contents

Included Hardware & Tools

F (x1)

VESA Plate

A (x1)

Electric Stand

B(x1)

Lower Clamp

Bracket

C(x1)

Upper Clamp

Bracket

D(x1)

Clamp Cable Clip

E(x1)

Arm Bracket

G (x1)

Cable Sleeve

H (x1)

AC Adapter

I (x1)

Power Cable

J (x1)

Control Panel

K (x1)

Power Cable

S-A (x4)

M6x12mm

Screw

S-B(x1)

Screw Cap

S-C (x1)

M3x8mm

Screw

M-A (x4)

M4x12mm

Screw

M-C (x4)

M5 Washer

T-A (x1)

4mm Allen

Wrench

M-B (x4)

M5x12mm

Screw

T-B (x1)

6mm Allen

Wrench

L(x1)

Large Pad

M(x2)

Small Pad N(x2)

Cable Clip

S-D (x2)

ST3.5x18mm

Screw

Phillips

Screwdriver

Pencil

Drill

Scissors

Tools Needed: Weight Capacity:

22lbs

(10kg)

ASSEMBLY STEPS

STEP 1

SECURE CLAMP BRACKET

Attach Upper Clamp Bracket (C) to the bottom of the Electric Stand (A) using M6x12mm

Screws (S-A) and 4mm Allen Wrench (T-A). Remove protective film from Large Pad (L) then

attach it to the bottom of the stand.

A(x1)

C(x1)

L(x1)

S-A (x4)

T-A

S-A

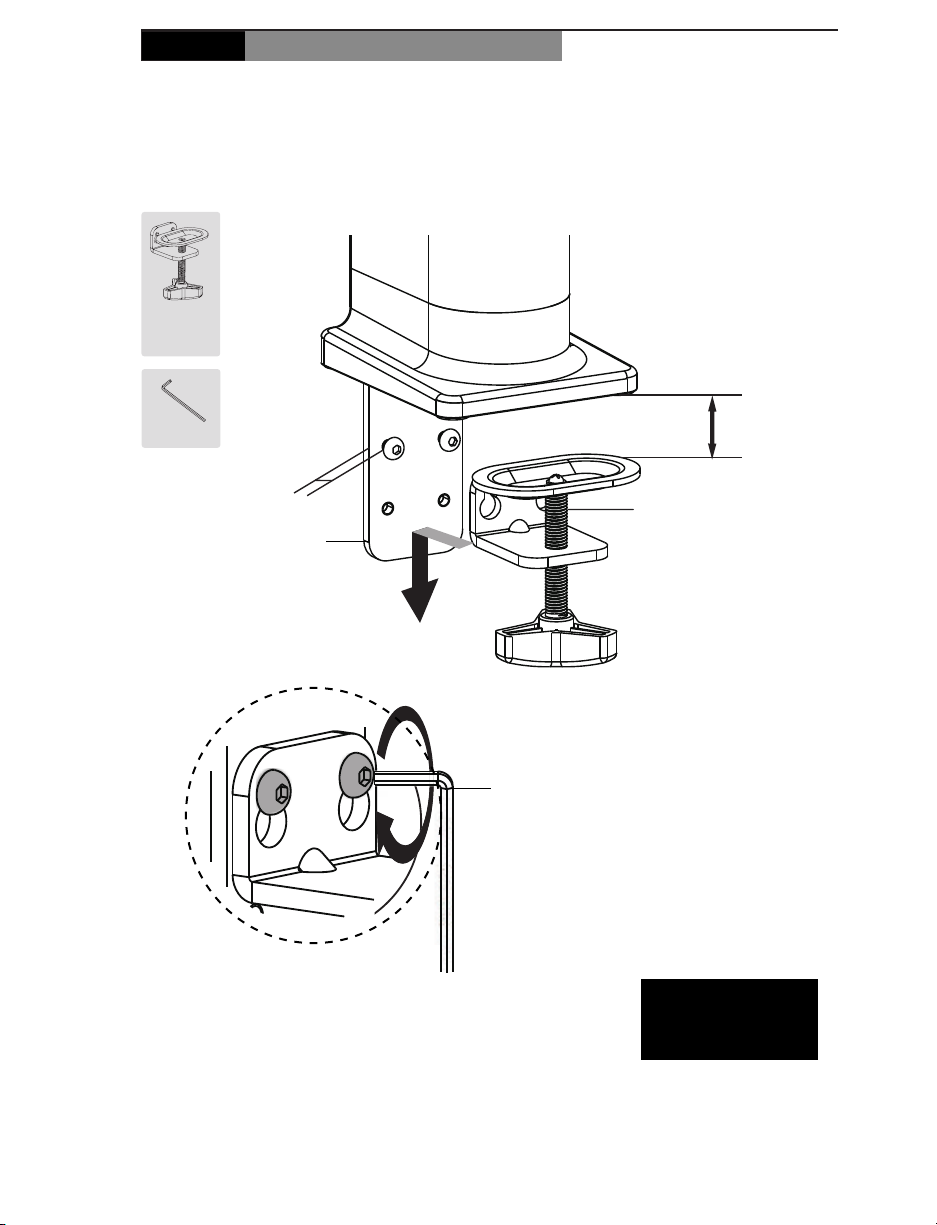

STEP 2 A. DESKTOPS 10-55mm (0.40”-2.15”)

FOR DESKTOPS 10-55mm (0.40”-2.15”)

Align the key slots on Lower Clamp Bracket (B) with the screws on Upper Clamp Bracket (C).

Pull Lower Clamp Bracket (B) down and lock the screws on Upper Clamp Bracket (C) in place

with the 4mm Allen Wrench (T-A).

PROCEED

TO STEP 3

B(x1)

6mm

10mm-55mm

T-A

FOR DESKTOPS 50-85mm (2”-3.35”)

Remove the screws on Upper Clamp Bracket (C) and reassemble them into the lower set of

holes using 4mm Allen Wrench (T-A).

Align the key slots on Lower Clamp Bracket (B) with the screws on Upper Clamp Bracket (C).

Pull Lower Clamp Bracket (B) down and lock the screws on Upper Clamp Bracket (C) in place

with the 4mm Allen Wrench (T-A).

T-A

STEP 2 B. DESKTOPS 50-85mm (2”-3.35”)

6mm

50-85mm

B(x1)

CT-A

T-A

D(x1)

STEP 3

STEP 4

SECURE CLAMP TO DESKTOP

Clamp the stand assembly onto desk and press the Clamp Cable Clip (D) onto Upper Clamp

Bracket (C).

ATTACH ARM BRACKET

Partially loosen the screw the on side of Arm Bracket (E) using 6mm Allen Wrench (T-B).

Slide Arm Bracket onto the post of Electric Stand (A) and secureusing 6mm Allen Wrench.

E (x1)

T-B

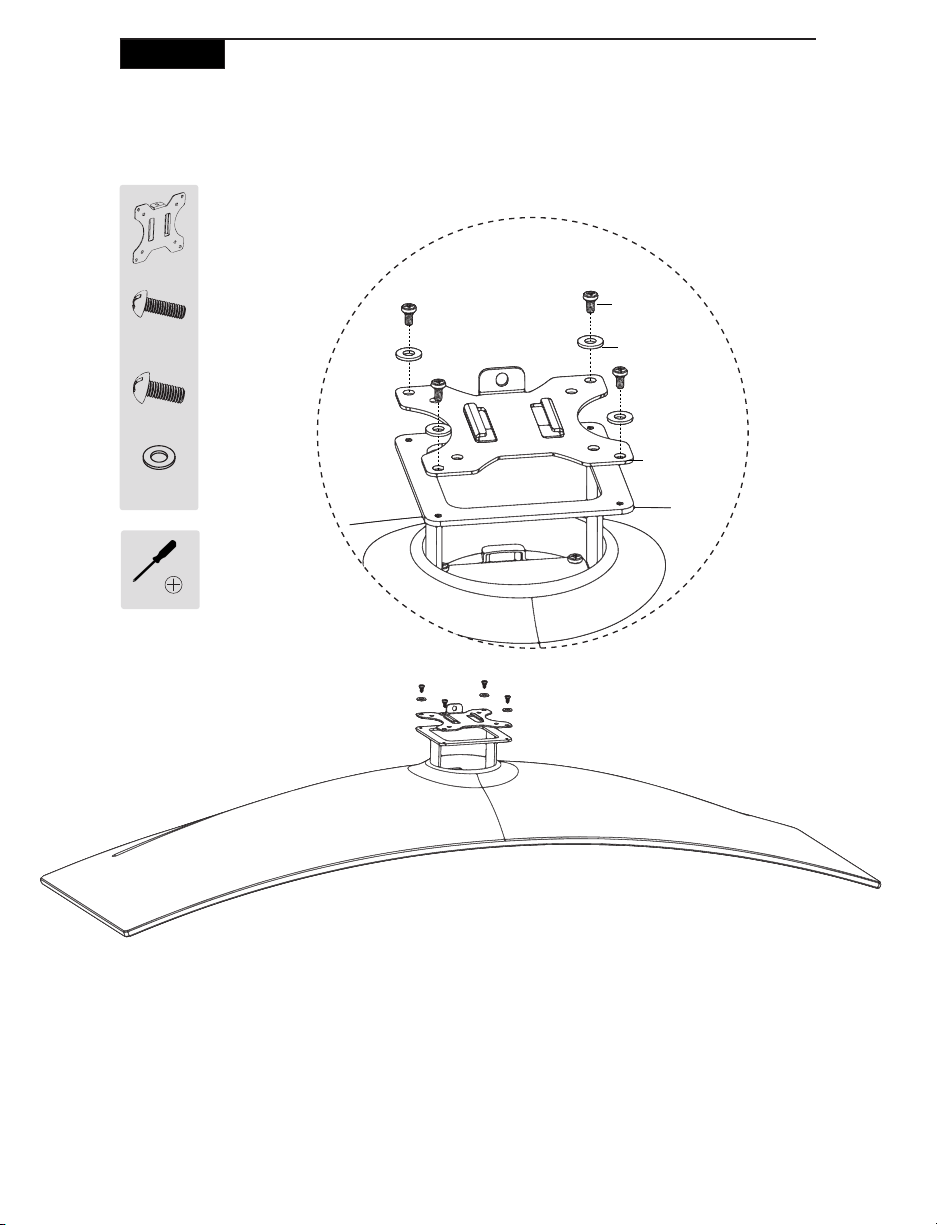

STEP 5

CONNECT VESA PLATE TO MONITOR

Attach VESA Bracket (E) to the monitor using either M4x12mm (M-A) or M5x12mm Screw

(M-B) and Washers (M-C) along with a Phillips Screwdriver.

M-A (x4)

M-B (x4)

M-C (x4)

F (x1)

M-C

M-A

M-B
