Vivo MOUNT-PC10BU Manuel utilisateur
Black Clamp-on Desk and Wall PC Mount with USB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
SKU: MOUNT-PC10BU
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
https://vivo-us.com/products/mount-pc10bu
3
PACKAGE CONTENTS
TOOLS NEEDED
WARNING!
A (x1)
PC Mount
B(x1)
USB Cover
S-A (x4)
ST4.8x38mm
Screw
S-C (x2)
ST4.2x15mm
Screw
S-D (x2)
M8 Nut
S-B (x4)
Concrete Anchor
C (x12)
Pad
D (x2)
Lower Clamps
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
Drill
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete If unsure, please contact us at vivo-us.com,
T-B (x1)
5mm Allen
Wrench
ASSEMBLY STEPS
STEP 1
Install USB Cover (B) using ST4.2x15mm Screws (S-C). Remove protective film and attach Pads (C) to
PC Mount (A) as shown.
Level
22 lbs
(10 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
Pencil
Phillips
Screwdriver
T-A (x1)
4mm Allen
Wrench
Thread Lower Clamps (D) onto PC Mount (A) by hand,
turning the screw and holding the lower clamps
steady. Ensure Lower Clamp (D) is extending towards
the front of the USB Cover (B).
Loosely install M8 Nuts (S-D) onto Mount (A).
C
S-D
D
A
B
S-C
A
B
2
5
STEP 2 - Option B | Wood Stud & Solid Wood Wall Installation
Solid Wood Wall Installation
For solid wood wall, place PC Mount (A) against wall and mark drilling locations. Using a 1/8” (3.5mm)
drill bit, drill holes 1.6” (40mm) deep. Insert two ST4.8x38mm Screws (S-A) into top holes, leaving 3mm
of thread exposed. Hang PC Mount (A) over screws and insert two more ST4.8x38mm Screws (S-A) into
lower holes. Tighten screws with a Phillips screwdriver.
Wood Stud Frame Installation
If wall has a wood stud frame, use a stud finder to locate the stud, then place mount against wall and
mark drilling locations for top and bottom holes on only one side of the mount. Using a 1/8” (3.5mm)
drill bit, drill holes 1.6” (40mm) deep. Insert a ST4.8x38mm Screw (S-A) into top hole, leaving 5mm of
thread exposed.
Hang PC Mount (A) over screw and insert another ST4.8x38mm Screw (S-A) into lower hole. Tighten
screws with a Phillips screwdriver.
12

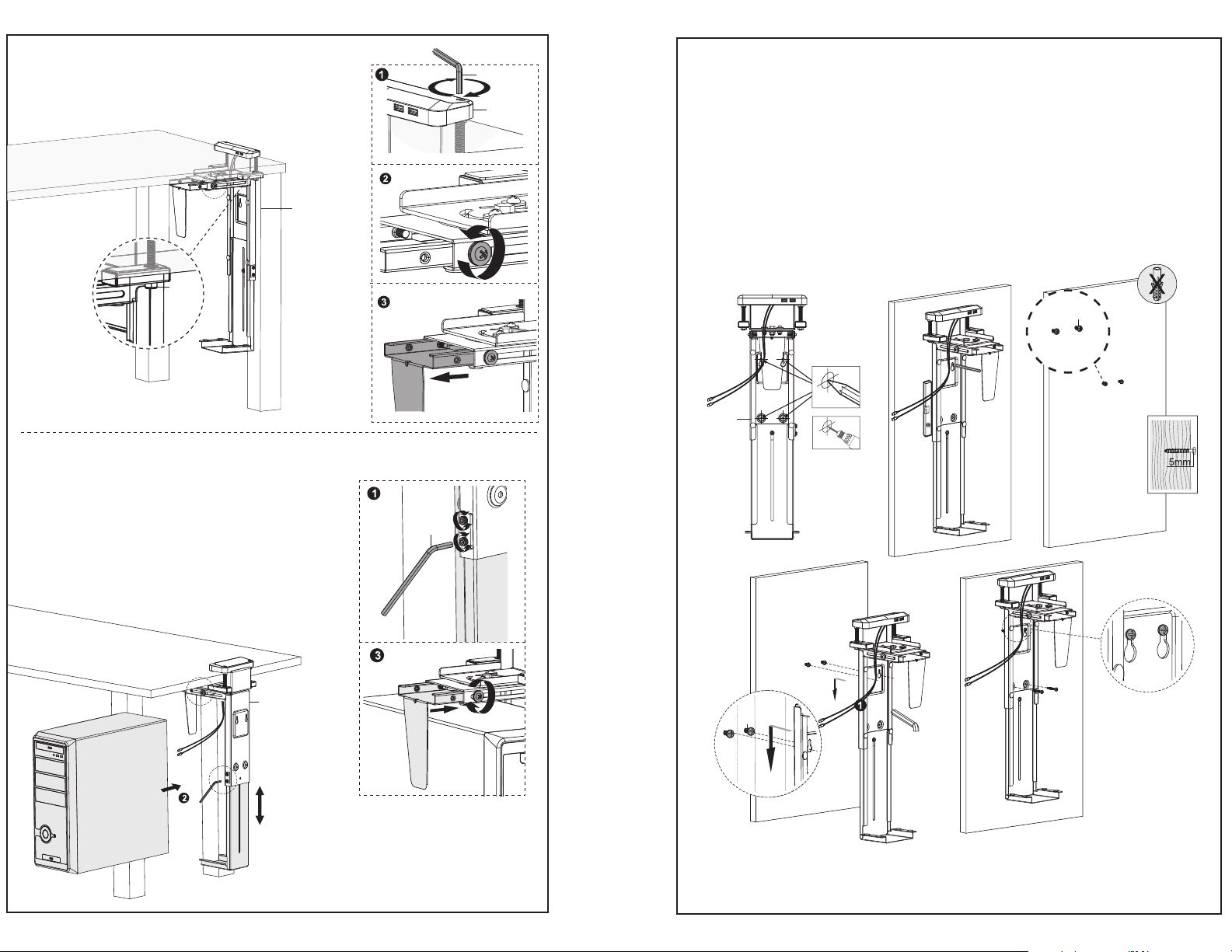

STEP 2 - Option A | Clamp Installation
Clamp PC Mount (A) onto desktop using 5mm Allen Wrench (T-B).
Hand-tighten M8 Nuts (S-D) installed in previous step.
Loosen width adjustment screw on PC Mount (A) with a Phillips
screwdriver and pull the side bracket outwards.
Loosen set screws for lower support using 4mm Allen Wrench
(T-A) and slide the support down.
Place PC tower in PC Mount (A), slide bottom support up until
mount is fit vertically to PC, and tighten set screws using 4mm
Allen Wrench (T-A). Slide side bracket into place to hold PC,
and tighten screws using a Phillips screwdriver.
S-D
B
T-B
A
T-A
A
A
S-A
S-A
4
7

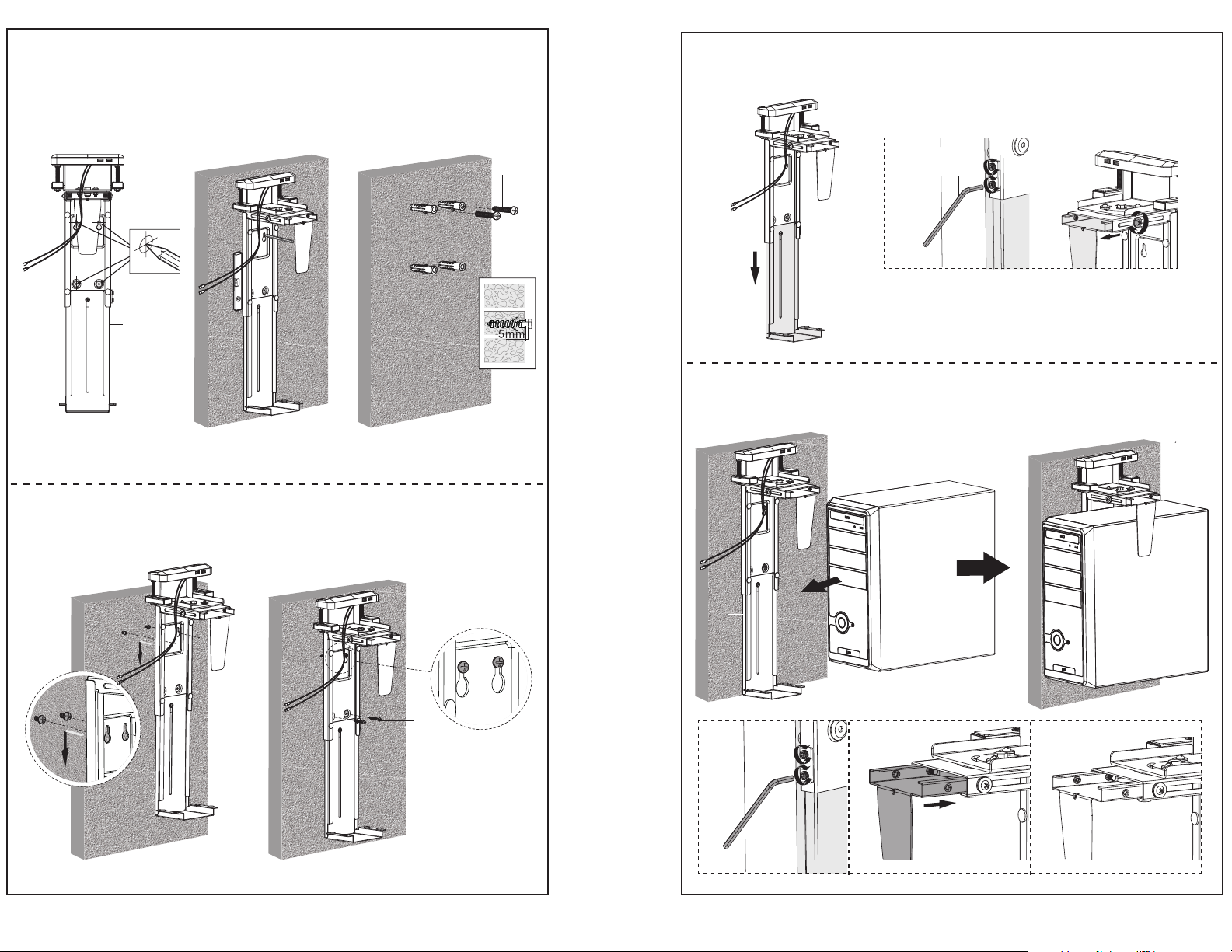

STEP 2 - Option C | Concrete Wall Installation
Concrete Wall Installation
For concrete wall installation, place PC Mount (A) against the wall and mark locations with a pencil.
Drill 1.6” (40mm) deep holes at marked locations using a 1/4” (6mm) drill bit. Insert Concrete Anchors
(S-B) into holes, and insert two ST4.8x38mm Screws (S-A) into top holes, leaving 5mm of thread
exposed.
Hang mount over two screws in the wall. Secure with two additional ST4.8x38mm Screws (S-A), and
tighten screws with a Phillips screwdriver.
S-B
S-A
S-A
A
STEP 3 - For Options B & C Only
Loosen set screws for lower support using 4mm Allen Wrench (T-A) and slide the support down. Loosen
two screws on top of Mount (A) (one on each side) with a Phillips screwdriver and slide side support
bracket out to maximum width.
Place PC tower in PC Mount (A), slide bottom support up until mount is fit vertically to PC, and tighten
set screws using the 4mm Allen Wrench (T-A). Slide side bracket into place to hold PC, and tighten
screws using a Phillips screwdriver.
AA
T-A
6
A
T-A
LAST UPDATED: 10/24/2022
REV2
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
