Vivo CART-V06A Manuel utilisateur

Sit and Stand Mobile Workstation

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/cart-v06a

[email protected]om www.vivo-us.com 1-800-371-5654

SKU: CART-V06A

PACKAGE CONTENTS

WARNING!

A (x19)

M5x12

B (x4)

M5x20

C (x9)

M6x12

E (x1)

4mm Allen Key

F (x1)

Wrench

G (x6)

M5x12 Flathead

1 (x1)

Desktop

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF CART.

• USE TIPOVER RESTRAINT OR ANCHOR CART TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

2 (x2)

Shelf Bracket

3 (x1)

Support Plate

4(x1)

Keyboard Shelf

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

5 (x3)

Release Lever

Handle

6 (x1)

Base

33 lbs

(15 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury. 4.4 lbs

(2 kg)

DESKTOP TRAY

7 (x4)

Locking Caster

D (x6)

M6x15

ASSEMBLY STEPS

STEP 1

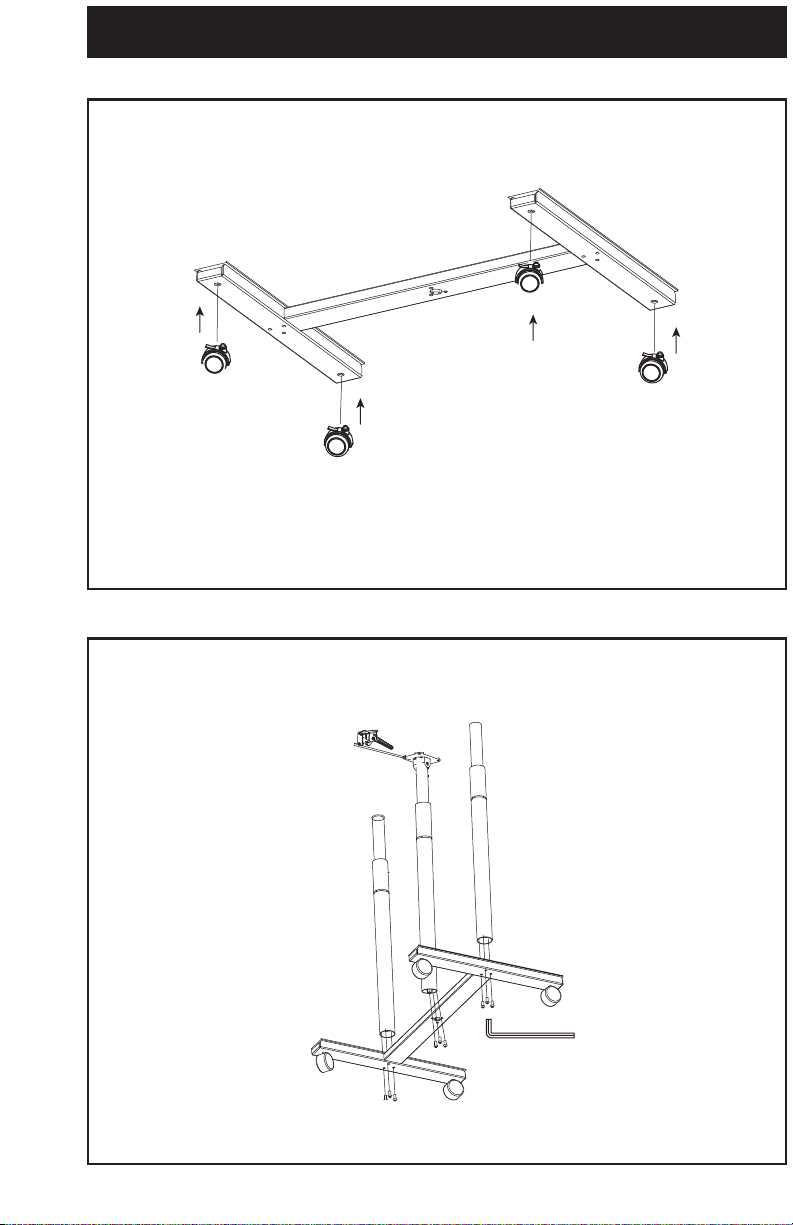

Screw casters (7) into underside of base. Tighten with wrench (F).

STEP 2

Assemble poles to base using x9 M6x12 screws (C) and x6 M6x15 screws (D), making sure the pole with

the release lever is installed in the center.

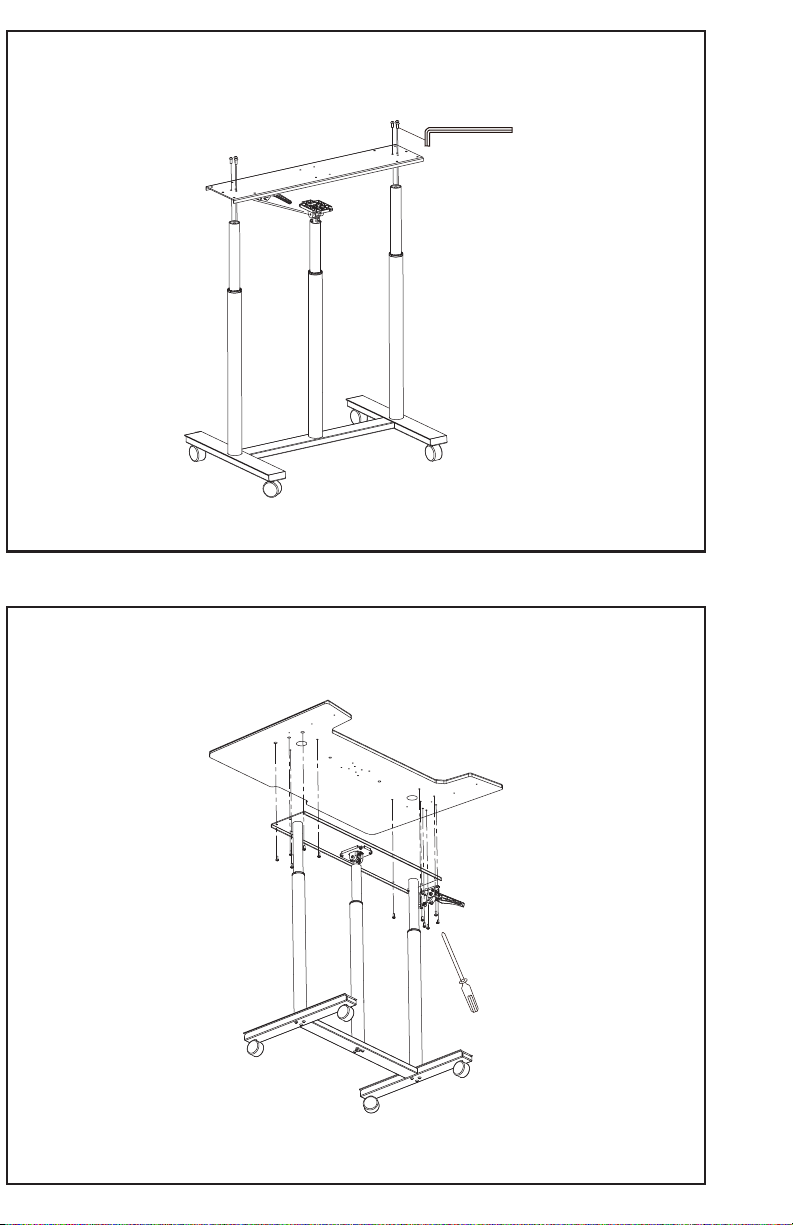

STEP 3

Install support plate (3) to poles using x6 M6x12 screws (C). Tighten with 4mm Allen wrench (E).

Assemble desktop (1) using x10 M5x12 screws (A). Secure release lever handle to desktop with x3

M5x12 screws (A).

STEP 4

STEP 5

Secure center pole to desktop (1) with x4 M5x20 screws (B).

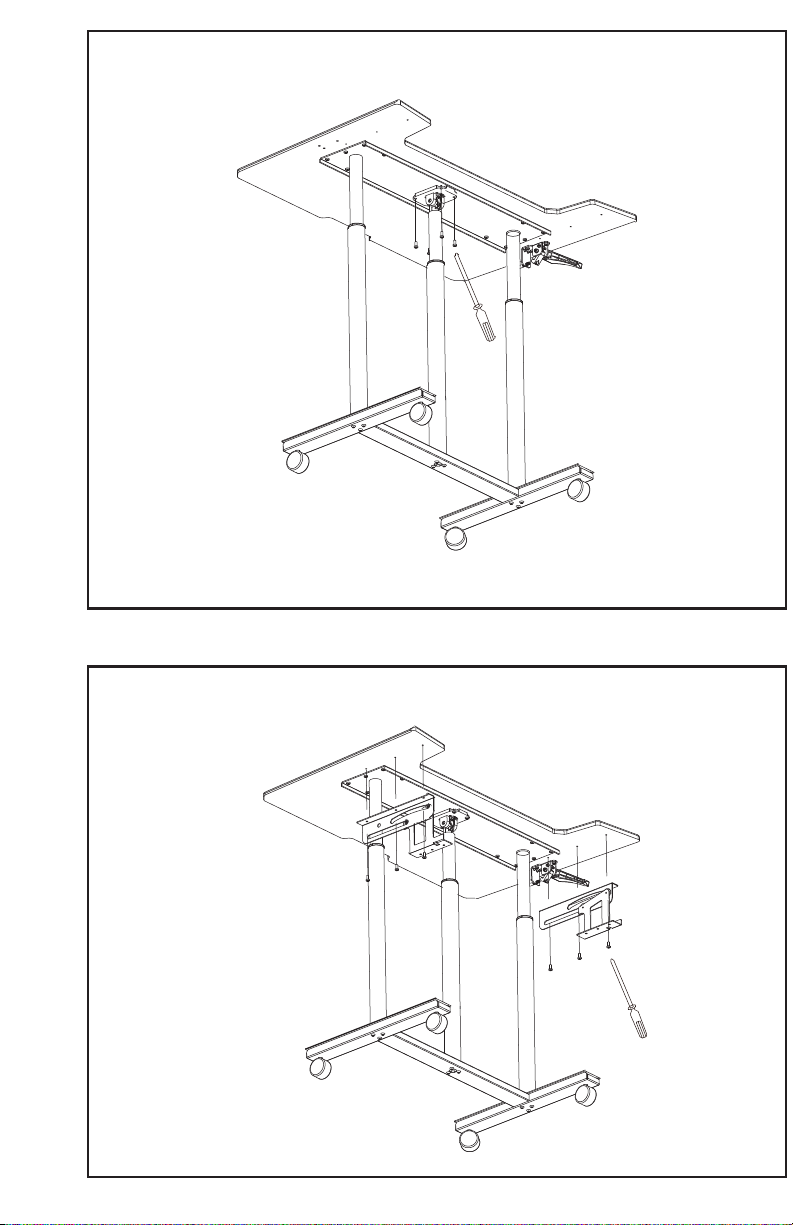

Install keyboard shelf brackets (2) to desktop using x6 M5x12 screws (A). Curved slots must be facing

towards the front.

STEP 6

STEP 7

Mount keyboard shelf (4) to brackets with x6 M5x12 screws (G).

Ensure the handle is correctly pulling on the release cable. If the release cable tension is too high

(height will not lock) or too low (desk will not raise or lower), turn the nuts at the end of the black tube

near the handle to adjust the tension. Press the handle on each side up and down.

STEP 8

STEP 9

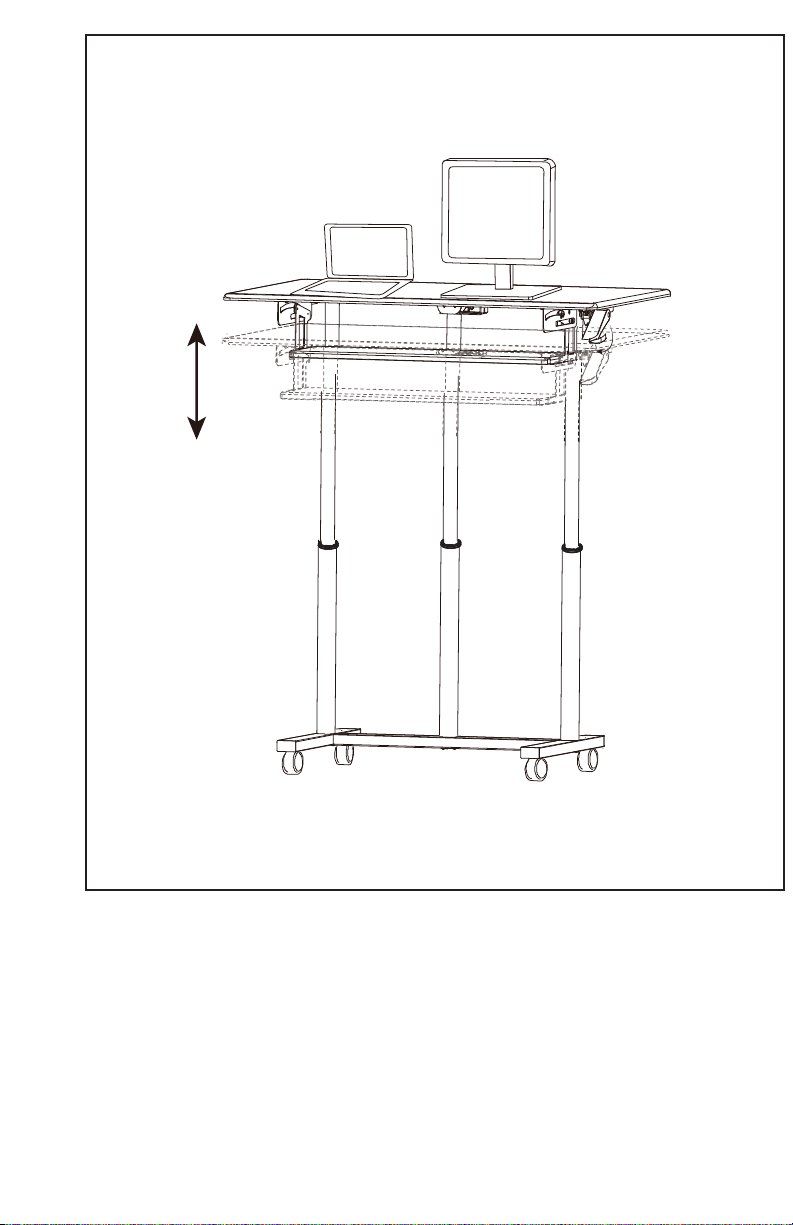

To adjust height, li release lever handle (5).

Last Updated: 04/16/2019

If any parts are received damaged or defective, please contact us. We are happy to

replace parts to ensure you have a fully functioning product.

For more VIVO products, check out our website at:

www.vivo-us.com.

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]om www.vivo-us.com 1-800-371-5654
