Vivo DESK-C01ZN Manuel utilisateur
Z-Shaped Compact Workstation
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/desk-c01zn
SKU: DESK-C01ZN
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or
inappropriate use.

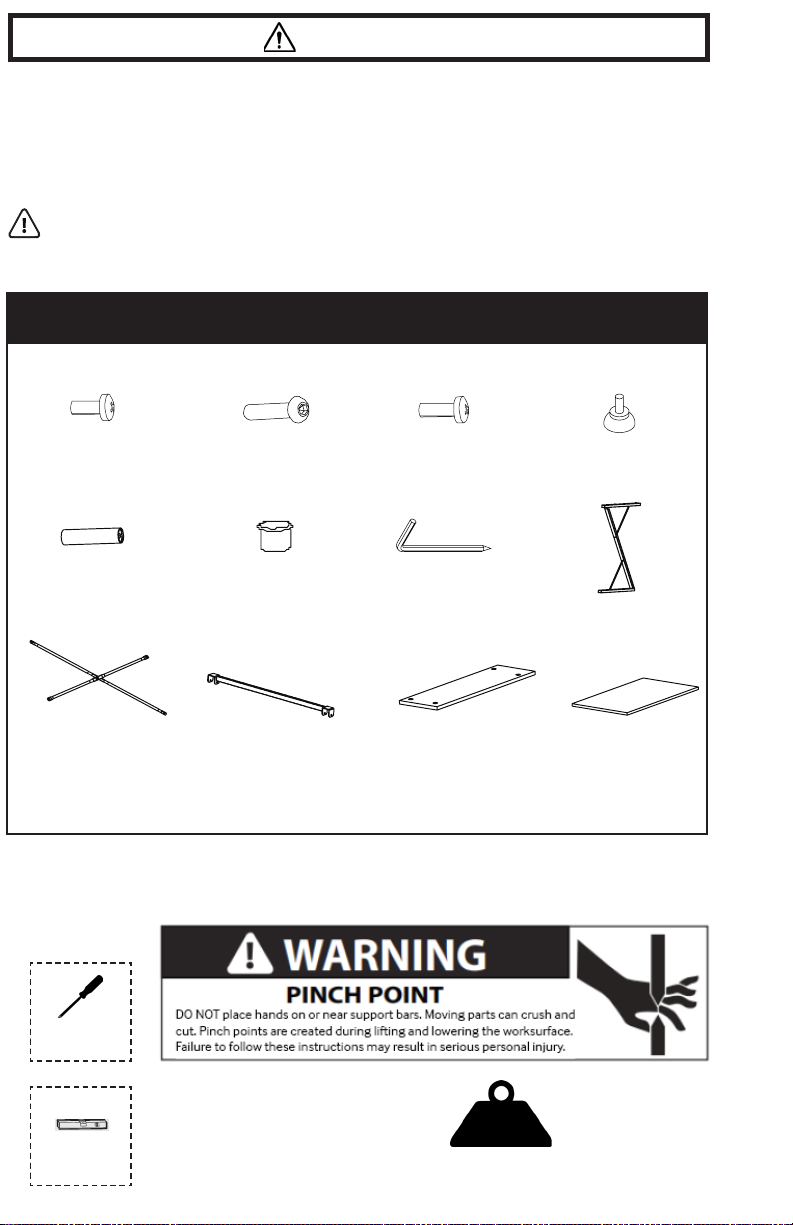

PACKAGE CONTENTS
WARNING!
A (x4)
M5x16
TOOLS NEEDED
Phillips
Screwdriver
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury. 22lbs
11kg
B (x2)
M6x40
D (x4)
Foot
E (x4)
Post
F (x4)
Screw Cover
H (x2)
Leg
C (x12)
M5x35
G (x1)
4mm Allen Wrench
Level
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
I (x1)
X Support
J (x1)
Crossbar
L (x1)
Desktop
K (x1)
Shelf
3
ASSEMBLY STEPS
STEP 1
Assemble the X support (I) to the back of the legs (H) using M5x16 bolts (A), and tighten with the
Phillips end of the Allen wrench (G). Screw the foot pads (D) into the underside of the legs.
A
G
D
H
I
4

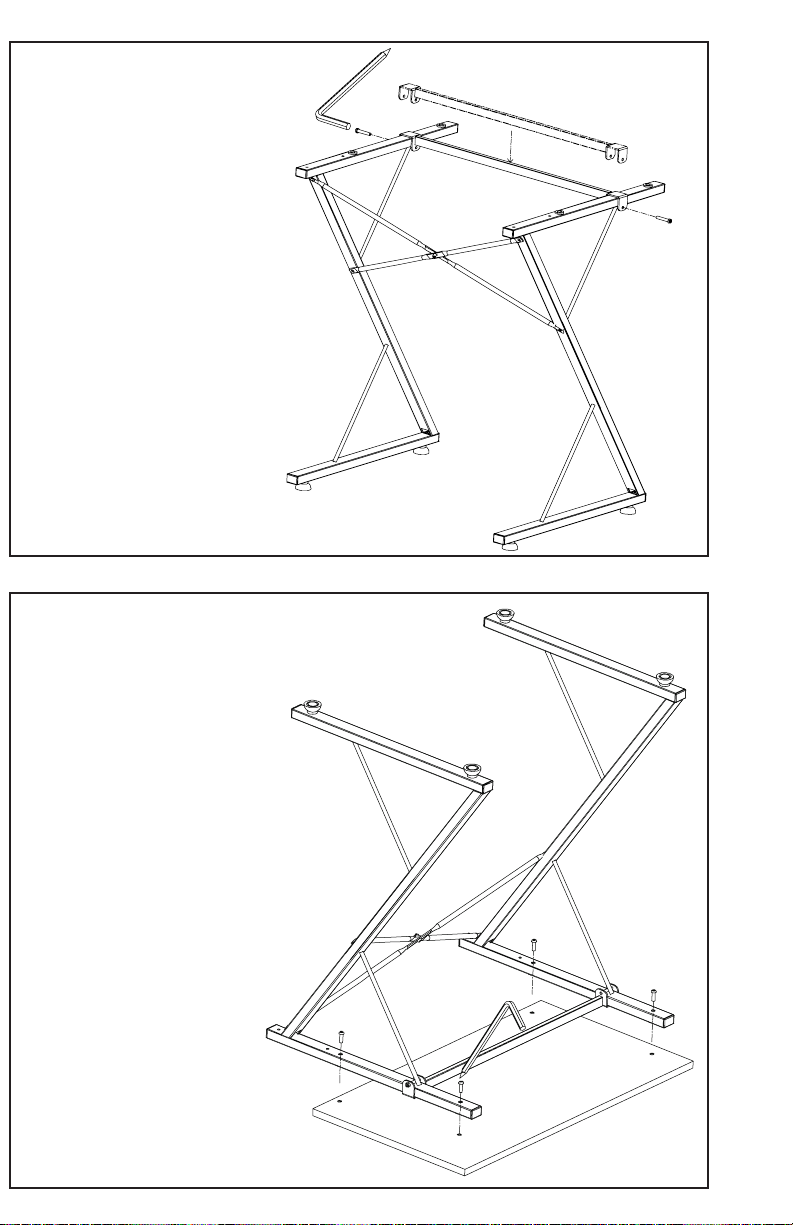

STEP 2
Place the crossbar (J) onto the top of
the legs (H), making sure the mounting
holes are positioned slightly behind
the front support rods of the legs.
Insert the M6x40 bolts (B) into each
side and tighten with the Phillips end
of the Allen wrench (G).
STEP 3
Place the desktop (L) upside down on a flat surface, then place the
assembled frame upside down on the desktop and secure using x4
M5x35 bolts (C) with the Phillips end of the Allen wrench (G). Please
note, the mounting holes are closer to the rear edge of the desktop.
The desk will not fit together correctly if the desktop is mounted
backwards.
C
G
L
B
GJ
H
5

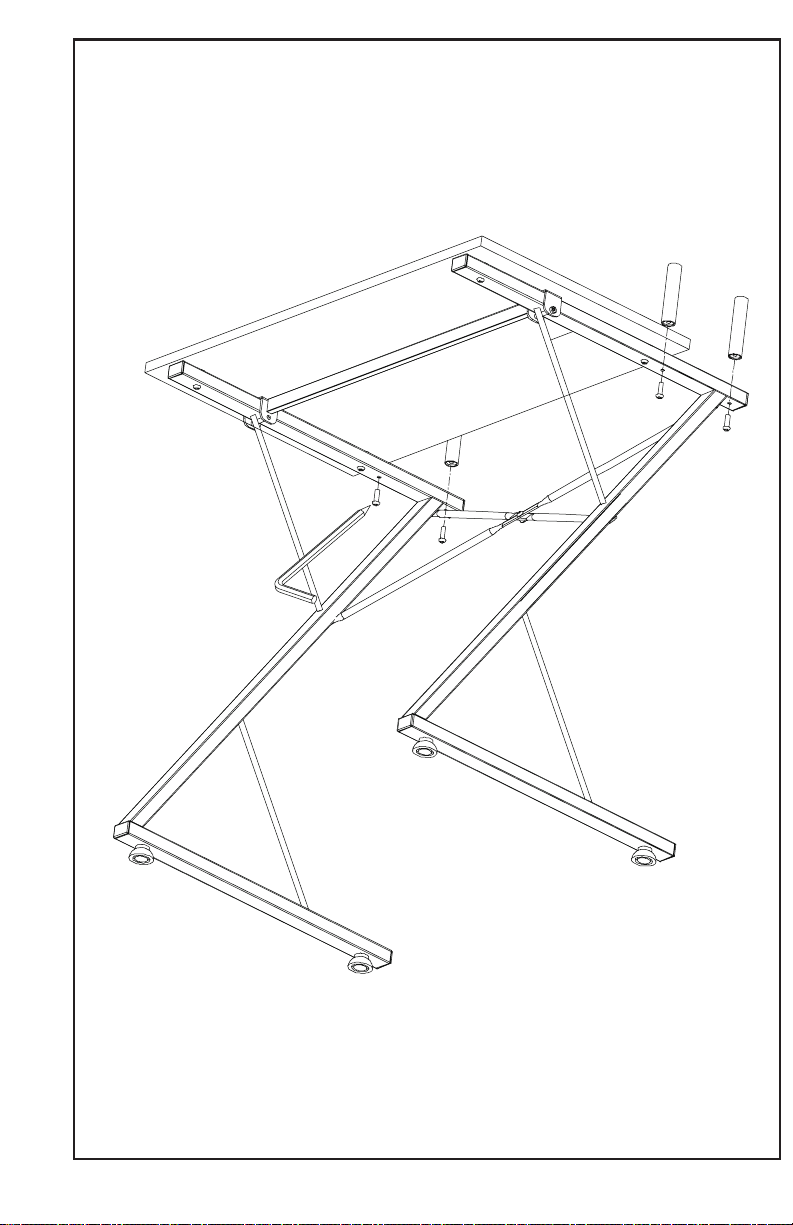

STEP 4
Assemble the posts (E) to the top of the frame using x4 M5x35 bolts (C) with the Allen wrench (G),
leaving the bolts slightly loose.
C
G
E
6
3

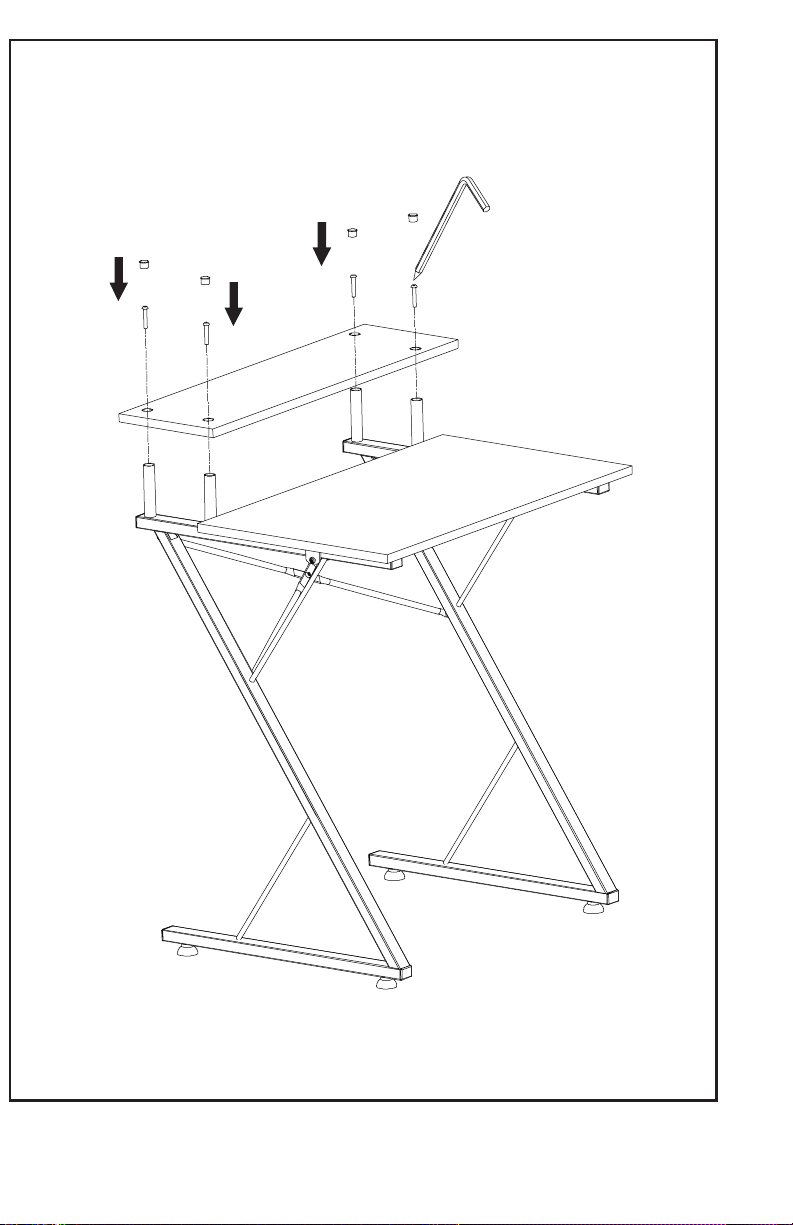

STEP 5
Mount the shelf (K) to the posts (E) using x4 M5x35 bolts (C). The shelf may be positioned with the
deeper end facing forward or back, depending on user preference. Tighten all bolts using the Phillips
end of the Allen wrench (G) and press the screw covers (F) into the top of the shelf.
G
C
F
K
7
3
CAUTION!
Failure to follow these instructions may result in property damage and/or personal injury.
Do not exceed desk weight limit. Keep weight on desk balanced for
correct operation and longer life of
components.
>
LAST UPDATED: 11/12/2020
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
