Vivitar ViviCam 3340 Manuel utilisateur

ViviCam 3340

Digital Camera

User's Mannual

1. INTRODUCTION

...............................................2

SPECIFICATIONS

.............................................6

3. G

ETTING TO KNOW YOUR CAMERA..................8

4. GETTING STARTED

........................................12

5. INSTALLING DRIVERS AND SOFTWARE

.........19

6. TRANSFERRING IMAGES TO A COMPUTER

.....22

7. USING YOUR CAMERA AS A PC CAMERA

........27

Rev 0304

Table of Contents

INTRODUCTION

Please read through this manual carefully before using the

camera and follow the instructions to derive full benefit from

your camera.

-1 Safety Precautions

•The software CD-ROM disc packaged with the camera

is designed for PC use only.

•This product is a highly intricate device. Any attempt

to disassemble it may cause electric shock from the

internal components.

-2 Before Using Your Camera

Familiarize yourself with your new camera before taking

any images of an important occasion (such as a wedding,

graduation, or a trip). Test the camera beforehand to

ensure that it functions well. Learn the features and

characteristics of the macro function, movie mode, flash

operations, shutter timing, and the process of image

transfer (downloading) to your computer.

Consider purchasing a memory card to expand the

capacity of your camera. Consider also a memory card

reader to derive maximum benefit and ease of use of

your camera.

Please observe copyright law and restrictions, as your

new camera is a recording device.

LCD (Liquid Crystal Display) status display

Your new camera includes an LCD information/status

display that contains a small amount of liquid. If the LCD

monitor is damaged, please observe the following

precautions:

1. If the liquid contacts the skin wipe the skin with a

cloth and wash with water.

2. If the liquid gets in the eye immediately rinse with

fresh water for at least 15 minutes and then consult a

physician as soon as possible.

3. If anyone accidentally swallows the liquid rinse the

mouth with water, drink large amount of water and

induce vomiting. Consult a physician as soon as

possible.

1-3 Operational Cautions

Your camera consists of intricate electrical and mechanical

components.

Avoid exposing the camera to the following conditions:

•Extremely damp and dusty places.

•Sealed vehicles or places exposed to direct

sunlight

•Extreme high temperatures or heat.

•Mechanical shock or vibration.

•Smoke, fumes or steam.

•Locations subject to strong magnetic fields.

•Rain or snow.

Do not open the battery cover when the power is on.

If wat

er has entered the camera, immediately turn the

power OFF and remove the batteries.

Maintaining your camera:

•If lens, LCD display, or viewfinder windows

become dirty, use a lens brush or soft cloth to

wipe clean. Avoid touching the lens with your

fingers.

•Do not use any detergent or volatile solution,

which will harm the camera case and paint. Only

use a soft cleaning cloth.

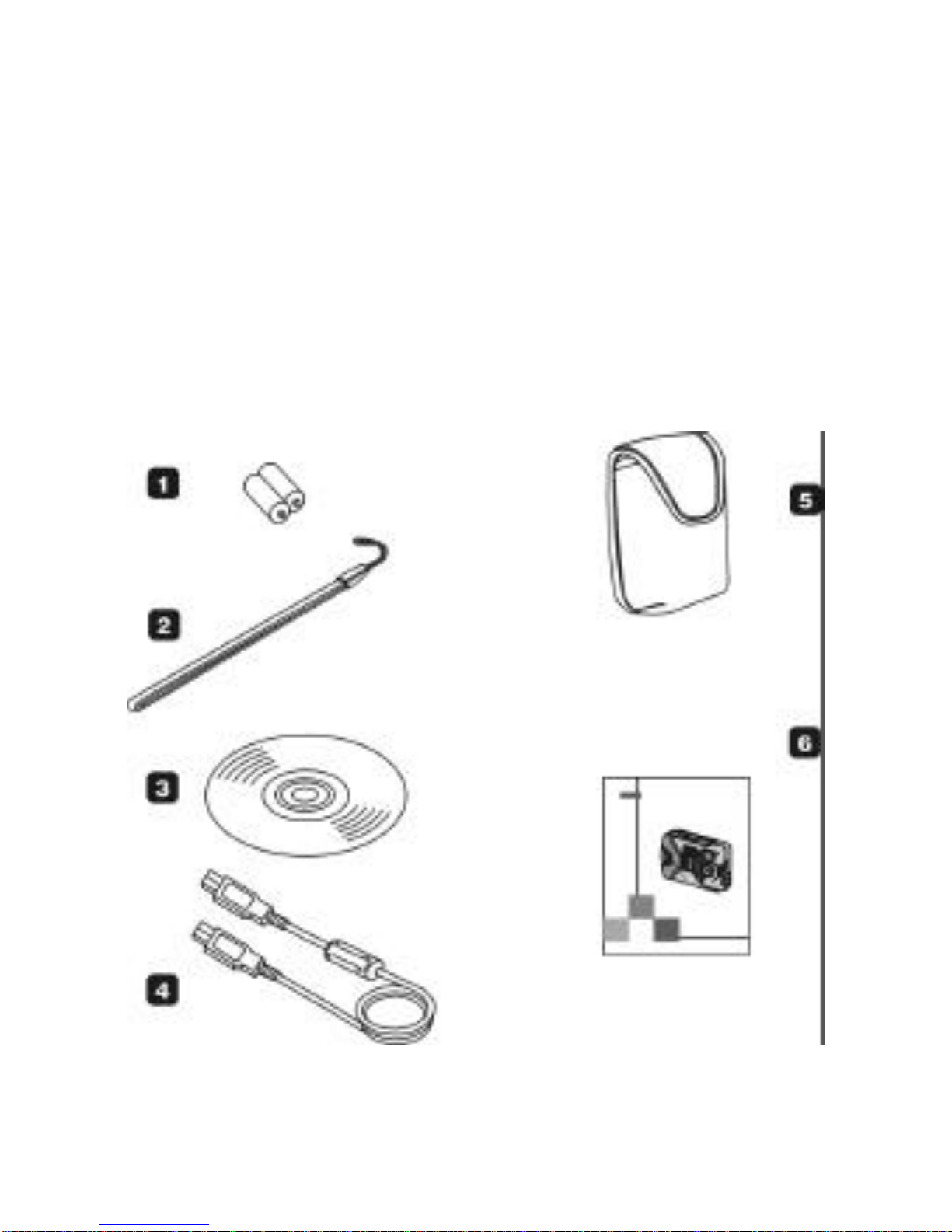

Common Accessories

The following items are normally included with the Vivicam

3340 camera. (Note that accessories may vary by ret

ailer.)

AA Batteries (2)

Wrist Strap

Software CD ROM (Driver and PC Applications)

USB Cable

Pouch

User’s Manual

SPCIFICATIONS

2.1

Camera Specifications

•Image resolution: Still images: Fine = 1280 x 1024

(1.3M), Mid = 640 x 480 (VGA); Video = 320 x 240

•Range of Focus:

oNormal mode: 3 feet to Infinity

oMacro mode: 8 to 10 inches

•Internal Memory: 8M SDRAM. Note that 4 MB of

memory is allocated to image processing (buffering),

and 4 MB is available for image storage

•Image File Formats: JPEG (still images), AVI (movies)

•Flash modes: Automatic, Off

•Self-timer: 10 sec. delay

•Power Supply: AA battery x2; USB 5V (in PC-CAM

Mode)

•Computer Interface: USB

•Auto Power Off: The power will automatically turn off

if no buttons are pressed after 60 seconds.

•Memory Expansion slot: For Secure Digital (SD)

memory cards. (Also compatible with MMC cards.)

2-2System Requirements

To operate your camera with your computer the following

minimum requirements are suggested. For MAC users, only

the USB Mas

s Storage Device function is available. PC users

may use the PC/web cam feature.

System Requirements (Windows)

OS Microsoft Windows 98SE/Me/2000/XP

CPU Intel Pentium or higher

RAM 64 MB or higher

CD-ROM 4X speed CD ROM drive

HDD 20 MB hard disk space

USB port Available USB 1.1 port

Lycoris Desktop LX: same as PC requirements except OS

System Requirements (Macintosh)

OS Mac OS 8.6 or higher, including OSX

CPU PowerPC 601 processor or higher

RAM 64 MB or higher

CD-ROM 4X speed CD ROM drive

HDD 20 MB hard disk space

USB port Available USB 1.1 port

3. GETTING TO KNOW YOUR CAMERA

3.1 Identifying the Features:

Front View

Back View

(1) Shutter button

(2) Power button

(3) Mode button

(4) Select button

(5) LCD information display

(6) Viewfinder window

(7) Macro switch

(8) USB connector cover

(9) Lens

(10) Self-timer LED

(11) Flash

(12) Hand Strap eyelet

(13) Battery door

(14) Macro LED

(15) Status LED

(16) Viewfinder

(17) Memory Card Slot

(

SD/MMC

)

3.2

Information and Status LCD

Flash:

: Off

: Auto

: Self-timer

Image Resolution:

: 640x480

:1280x1024

: Memory Card

Indicator

White Balance:

: Tungsten : Sunny

: Fluorescent : Cloudy

: Auto
